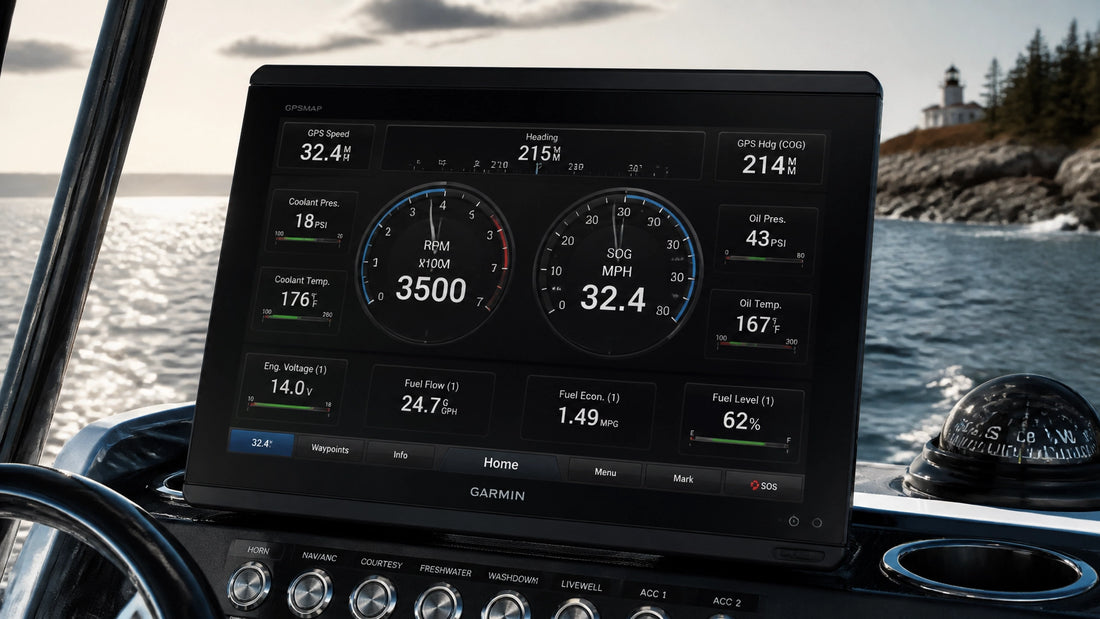

Marine fish finder display showing NMEA 2000 digital gauges

How to Read NMEA 2000 Data on Your Fish Finder : Guide for Maine Boaters

Overview

  • Purpose: Read NMEA 2000 network data on marine fish finders.
  • Target audience: Maine boaters and national marine enthusiasts.
  • Scope: Hardware connection, network setup, configuration, troubleshooting.
  • Business reach: Nationwide shipping to all 50 states via DIY Customs Store.

1. Required Components

  • Fish finder with NMEA 2000 port.
  • NMEA 2000 starter kit (backbone cable, T-connectors, power cable, terminators).
  • Drop cables.
  • Engine interface cable or gateway.

NMEA 2000 marine backbone network setup

2. Backbone Installation

  • Mount T-connectors near stern and helm.
  • Connect backbone cables between T-connectors.
  • Attach 12V power cable to one T-connector.
  • Install male and female terminators at physical ends of backbone.
  • Secure all connections against moisture.

3. Engine and Sensor Connection

  • Connect engine gateway to outboard or sterndrive data port.
  • Run drop cable from engine gateway to stern T-connector.
  • Connect additional sensors (fuel flow, GPS antennas, heading sensors) to available T-connectors.

Boat engine gateway interface connected to NMEA 2000 network

4. Helm Connection

  • Run drop cable from helm T-connector to fish finder NMEA 2000 port.
  • Ensure waterproof sealing rings are tightened.
  • Power on boat electronics system.

5. Fish Finder Configuration Steps

  • Open system settings menu on fish finder.
  • Navigate to Network / Communications / NMEA 2000 Setup.
  • Open Device List.
  • Verify connected nodes appear (engine, GPS, depth sensors).
  • Assign data sources to specific gauge readouts.

Custom boat helm console with multi-function fish finder display

6. Displaying Data Pages

  • Select Vessel or Gauge screen.
  • Edit gauge panes.
  • Select data parameters:
    • Engine RPM
    • Engine hours
    • Coolant temperature
    • Oil pressure
    • Fuel rate
    • Battery voltage
    • Water depth
    • Water temperature

7. Troubleshooting

  • Check Device List if data does not appear.
  • Verify backbone 12V power supply.
  • Inspect terminal resistors at both ends.
  • Reseat drop cable connectors.
  • Consult equipment manuals for PGN settings.
