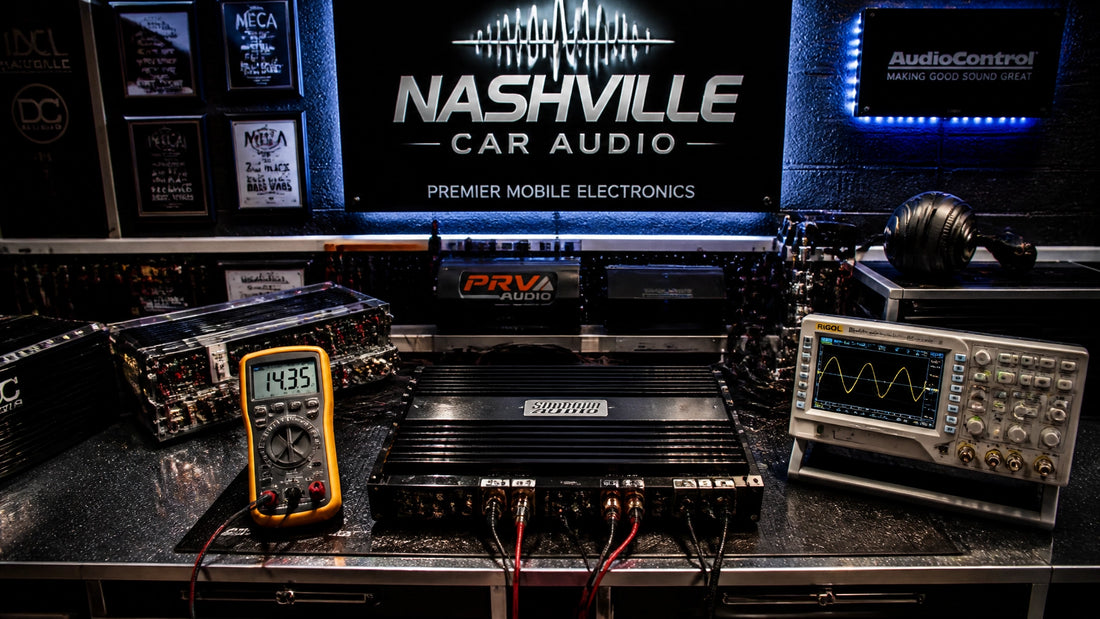

Professional car audio amplifier tuning workbench in Nashville workshop

How to Tune Your Amplifier Like a Pro in Nashville : The Music City Sound Guide

Certification & Regional Authority

  • Primary Operational Hub: Nashville, Tennessee.
  • Service Coverage: All 50 United States.
  • Standards Compliance: MECP (Mobile Electronics Certified Professional) guidelines.
  • Marine Compliance: NMEA standards for marine electrical installations.

1. System Preparation Parameters

  • Head unit equalizer: Set to flat response (0 dB).
  • Bass boost features: Deactivated on head unit and external controllers.
  • Loudness settings: Disabled.
  • Balance and fader controls: Centered (0 position).
  • Multi-amplifier configurations: Isolate target amplifier by disconnecting non-target RCA interconnects.
  • Audio source material: High-resolution uncompressed audio track (WAV/FLAC) with known frequency sweep characteristics.

2. Multimeter Voltage Calculation Formulas

  • Formula: $V = \sqrt{P \times R}$
    • $V$ = Target AC voltage output.
    • $P$ = Amplifier RMS power output at specified impedance.
    • $R$ = Speaker nominal impedance (Ohms).
  • Example calculation (500 Watts RMS at 2 Ohms):
    • $500 \times 2 = 1000$
    • $\sqrt{1000} \approx 31.62 \text{ Volts AC}$

Digital multimeter testing AC voltage on car audio amplifier speaker terminals

3. Amplifier Gain Adjustment Procedure

Method A: Digital Multimeter Calibration

  1. Disconnect all speaker wires from amplifier output terminals.
  2. Set Digital Multimeter (DMM) to AC Voltage measurement mode.
  3. Insert appropriate test tone track into head unit media player:
    • 50 Hz to 60 Hz sine wave tone for subwoofer channels.
    • 1,000 Hz sine wave tone for mid-range and tweeter channels.
  4. Set head unit volume output to 75% of maximum scale.
  5. Adjust amplifier input gain potentiometer until DMM reads calculated target voltage ($V$).
  6. Stop test tone playback.
  7. Lower head unit volume.
  8. Reconnect speaker wiring to output terminals.

Method B: Oscilloscope Clipping Detection

  1. Connect oscilloscope probe to amplifier speaker output terminals.
  2. Play 40 Hz (subwoofer) or 1,000 Hz (full-range) 0dB test tone file.
  3. Increase head unit volume to 75%.
  4. Rotate amplifier gain clockwise until waveform top and bottom flat-line (clipping threshold).
  5. Rotate gain counter-clockwise until waveform displays clean sinusoidal peaks without truncation.

Car audio amplifier control panel close up, gain knob, crossover switches

4. Crossover Filter Configuration Specs

  • Filter Types:

    • HPF (High-Pass Filter): Passes frequencies above cutoff frequency. Applied to component speakers, coaxial speakers, and tweeters.
    • LPF (Low-Pass Filter): Passes frequencies below cutoff frequency. Applied to subwoofer enclosures.
    • FLAT / FR (Full Range): Bypasses internal crossover circuitry.

  • Standard Starting Frequencies:

    • Front door / rear deck coaxial or component speakers: HPF set to 80 Hz (12 dB or 24 dB per octave slope).
    • Subwoofer channels: LPF set to 80 Hz (12 dB or 24 dB per octave slope).
    • Dedicated tweeters: HPF set to 3,500 Hz minimum.

5. Subsonic Filter and Bass Boost Protocols

  • Subsonic Filter (Infrasonic Filter):
    • Application: Vented (ported) subwoofer enclosures.
    • Setting: 1 octave below enclosure tuning frequency ($F_b$).
    • Example: Enclosure tuned to 32 Hz $\rightarrow$ Subsonic filter set to 16 Hz.
  • Bass Boost Control:
    • Status: Off or minimum setting.
    • Maximum allowable adjustment: +3 dB maximum at fixed frequency, subject to distortion verification via oscilloscope or listening test.

Clean professional car audio trunk installation, dual amplifiers, custom subwoofer enclosure

6. Nationwide Shipping & Ordering Information

7. Frequently Asked Questions (FAQ)

What is the correct head unit volume level for setting amplifier gain?

Set head unit volume to 75% (3/4 of maximum volume scale) prior to adjusting amplifier gain potentiometer.

Should crossovers be controlled at the head unit or the amplifier?

Select one control device only. Choose either head unit crossovers or amplifier crossovers to prevent signal phase cancellation and double-filtering conflicts.

What is the standard crossover frequency for door speakers?

80 Hz high-pass filter (HPF) with a 12 dB or 24 dB per octave slope is the standard baseline for 6.5-inch and 6x9-inch door speakers.

How is free shipping qualified on DIY Customs Store?

Orders totaling $200 or greater automatically qualify for free shipping to all 50 United States.
