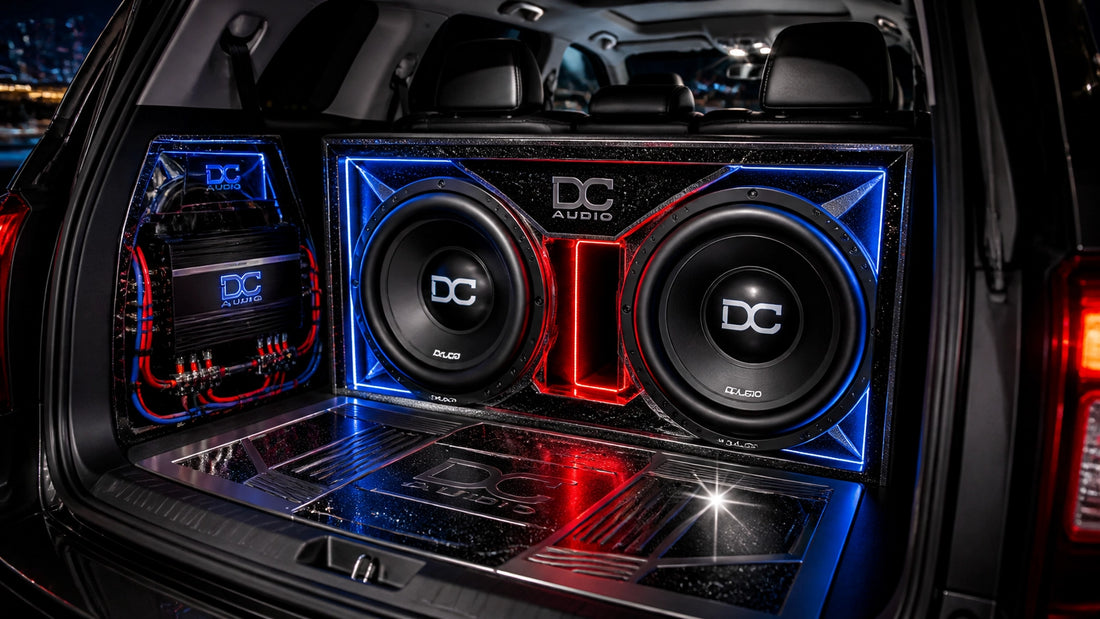

Custom Subwoofer Enclosure Installation in SUV

How to Wire a Custom Subwoofer Enclosure in Your SUV : Cleveland Edition

Overview

This technical procedure details subwoofer enclosure wiring for sport utility vehicles. DIY Customs Store serves automotive enthusiasts nationwide. We ship to all 50 states. Orders over $200 qualify for free shipping. Purchase components online at diycustoms.store.

Required Tools and Materials

  • Wire strippers
  • Wire crimpers
  • Power drill
  • Screwdriver set
  • Socket set
  • Cable zip ties
  • Silicone sealant
  • Panel removal tools
  • Digital multimeter
  • Inline fuse holder
  • Primary power cable (gauge matched to amplifier current draw)
  • Ground cable
  • Remote turn-on wire
  • RCA patch cables
  • Speaker wire (12-gauge or 14-gauge)

Subwoofer Voice Coil Wiring Schematic

Step 1: Vehicle Preparation and Safety

  1. Park vehicle on level surface.
  2. Engage emergency parking brake.
  3. Open vehicle hood.
  4. Disconnect negative battery terminal.
  5. Isolate battery terminal to prevent accidental contact.
  6. Remove interior trim panels required for cable routing.

Step 2: Enclosure Preparation

  1. Select subwoofer enclosure location in SUV cargo area.
  2. Measure available space for amplifier and wiring clearance.
  3. Drill wire entry hole or install terminal cup.
  4. Run internal speaker wire from terminal cup to subwoofer mounting location.
  5. Apply silicone sealant around terminal cup or wire entry point to maintain airtight seal.
  6. Verify continuity with multimeter.

Amplifier Power Distribution and Wiring

Step 3: Subwoofer Voice Coil Configuration

Single Voice Coil (SVC) Wiring

  1. Connect positive amplifier output wire to subwoofer positive terminal.
  2. Connect negative amplifier output wire to subwoofer negative terminal.
  3. Verify polarity with multimeter.

Dual Voice Coil (DVC) Series Wiring

  1. Connect amplifier positive wire to first voice coil positive terminal.
  2. Run jumper wire from first voice coil negative terminal to second voice coil positive terminal.
  3. Connect amplifier negative wire to second voice coil negative terminal.
  4. Measure total load impedance using multimeter.

Dual Voice Coil (DVC) Parallel Wiring

  1. Connect both voice coil positive terminals together and attach to amplifier positive output.
  2. Connect both voice coil negative terminals together and attach to amplifier negative output.
  3. Measure total load impedance to match amplifier stability specifications.

Terminal Cup Wiring Inside Enclosure

Step 4: Power Cable Routing

  1. Locate factory firewall grommet.
  2. Pierce grommet rubber membrane.
  3. Pass power cable through firewall into engine bay.
  4. Route power cable along vehicle chassis away from moving parts and exhaust components.
  5. Install inline fuse holder within 18 inches of battery positive terminal.
  6. Crimp ring terminal to power cable end.
  7. Connect power cable to battery positive terminal.
  8. Route power cable internally along passenger side sill plates to amplifier location.

Step 5: Signal and Remote Wire Routing

  1. Connect RCA patch cables to head unit subwoofer output ports.
  2. Connect remote turn-on wire to head unit remote output.
  3. Route RCA cables and remote wire along driver side sill plates (separated from power cable to prevent electrical interference).
  4. Bring cables to amplifier mounting location.

Step 6: Amplifier Ground Installation

  1. Select bare metal chassis grounding point near amplifier location.
  2. Remove paint and primer using sandpaper or wire brush.
  3. Attach ring terminal of ground cable to chassis using star washer and self-tapping screw or factory bolt.
  4. Torque bolt to specification.
  5. Connect opposite end of ground cable to amplifier ground terminal.

Completed Subwoofer Installation in SUV

Step 7: Final Connections and System Testing

  1. Ensure inline fuse is removed from fuse holder.
  2. Connect power cable to amplifier +12V terminal.
  3. Connect remote wire to amplifier REM terminal.
  4. Connect ground cable to amplifier GND terminal.
  5. Connect speaker wires from enclosure to amplifier speaker output terminals.
  6. Insert inline fuse into fuse holder.
  7. Reconnect negative battery terminal.
  8. Turn on head unit.
  9. Verify subwoofer operation.
  10. Adjust amplifier gain, low-pass filter, and bass boost settings.
