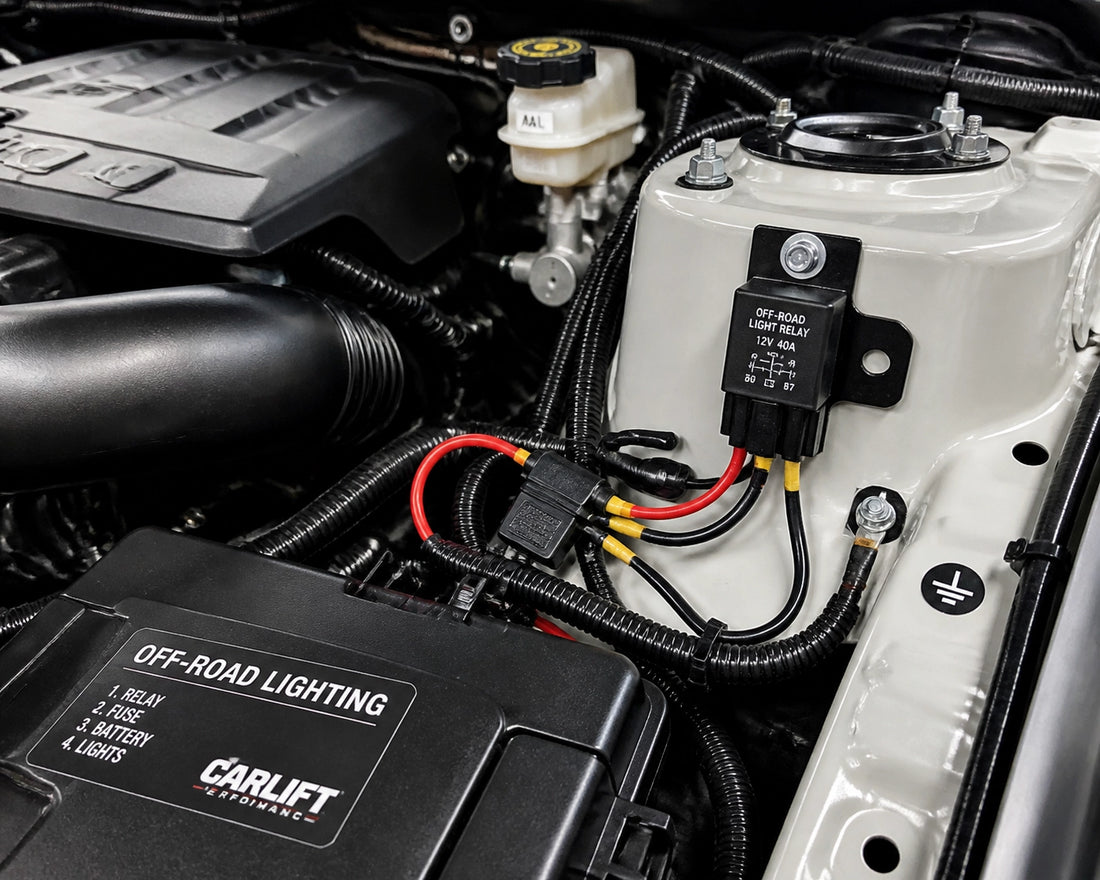

Engine bay relay wiring

How to Wire Off-Road Lights Like a Pro: Complete Guide for Colorado Trails

Overview

Proper wiring ensures safe power delivery for auxiliary lighting. This guide outlines the steps to install off-road lights using a 4-pin relay, inline fuse, and dashboard switch. DIY Customs Store provides nationwide shipping to all 50 states for off-road lighting products from brands such as Rigid Industries and Baja Designs. Orders over $200 qualify for free shipping. Place orders online at https://diycustoms.store.

Required Tools and Parts

Automotive wiring harness and inline fuse

  • 12V off-road LED lights (Rigid Industries or Baja Designs)
  • 4-pin automotive relay (30, 85, 86, 87)
  • Inline fuse holder
  • Blade fuse (amp rating matched to total light draw)
  • On/off switch (toggle or rocker style)
  • 12 AWG and 14 AWG automotive primary wire
  • Ring terminals, spade terminals, and butt connectors
  • Heat shrink tubing and electrical tape
  • Wire loom and nylon zip ties
  • Wire strippers, crimping tool, and heat gun
  • Multimeter

Relay Terminal Definitions

Terminal Function Connection Path
30 Power Input Connects to battery positive via inline fuse
87 Power Output Connects to positive lead of off-road lights
85 Relay Coil Ground Connects to clean chassis ground
86 Trigger Input Connects to dashboard switch output

Step 1: Disconnect Battery Power

  1. Open vehicle hood.
  2. Loosen negative battery terminal clamp.
  3. Disconnect negative battery cable.
  4. Secure cable away from metal contact points to prevent electrical shorts during installation.

Step 2: Mount Off-Road Lights and Chassis Grounds

  1. Attach off-road light brackets to vehicle bumper, bull bar, or roof rack.
  2. Secure mounting hardware using torque specifications.
  3. Route negative (black) wire from each light to a clean, bare-metal chassis ground point.
  4. Remove paint, primer, or rust from grounding location.
  5. Secure ground ring terminal with a self-tapping screw or factory grounding bolt.

Step 3: Mount Relay and Inline Fuse Holder

Dashboard custom rocker switches

  1. Select a secure mounting surface in the engine bay near the battery.
  2. Avoid high-heat components and moving parts.
  3. Fasten relay mounting bracket with a sheet metal screw or bolt.
  4. Cut positive battery wire.
  5. Install inline fuse holder onto wire section leading to battery positive terminal.
  6. Position fuse holder close to the battery.

Step 4: High-Current Circuit Wiring

  1. Run 12 AWG wire from inline fuse output to relay terminal 30.
  2. Crimp ring terminal to wire end and secure to terminal 30.
  3. Run 12 AWG wire from relay terminal 87 to positive wires of off-road lights.
  4. Secure connections with crimp connectors and heat shrink tubing.
  5. Run 14 AWG wire from relay terminal 85 to a clean engine bay chassis ground point.
  6. Crimp ring terminal and fasten securely to bare metal.

Step 5: Low-Current Switch and Trigger Circuit

  1. Mount on/off toggle or rocker switch in vehicle dashboard.
  2. Route 14 AWG trigger wire from switch through a firewall grommet into engine bay.
  3. Connect trigger wire to relay terminal 86.
  4. Connect switch power supply terminal to a fused 12V accessory source or direct battery feed through a small inline fuse.
  5. Connect switch ground terminal if switch incorporates LED illumination.

Step 6: Cable Protection and Routing

  1. Enclose exposed wire runs in split polyethylene wire loom.
  2. Secure wire harnesses along factory routing channels using nylon zip ties.
  3. Keep wires away from exhaust manifolds, steering shafts, and suspension components.
  4. Seal firewall penetration points with silicone sealant to prevent moisture entry.

Step 7: Testing and Verification

Off-road truck on mountain trail

  1. Insert correct amperage fuse into inline fuse holder.
  2. Reconnect negative battery cable.
  3. Turn dashboard switch to ON position.
  4. Verify relay clicks and off-road lights illuminate.
  5. Turn switch to OFF position.
  6. Check all wire runs for heat generation or voltage drop using a multimeter.
