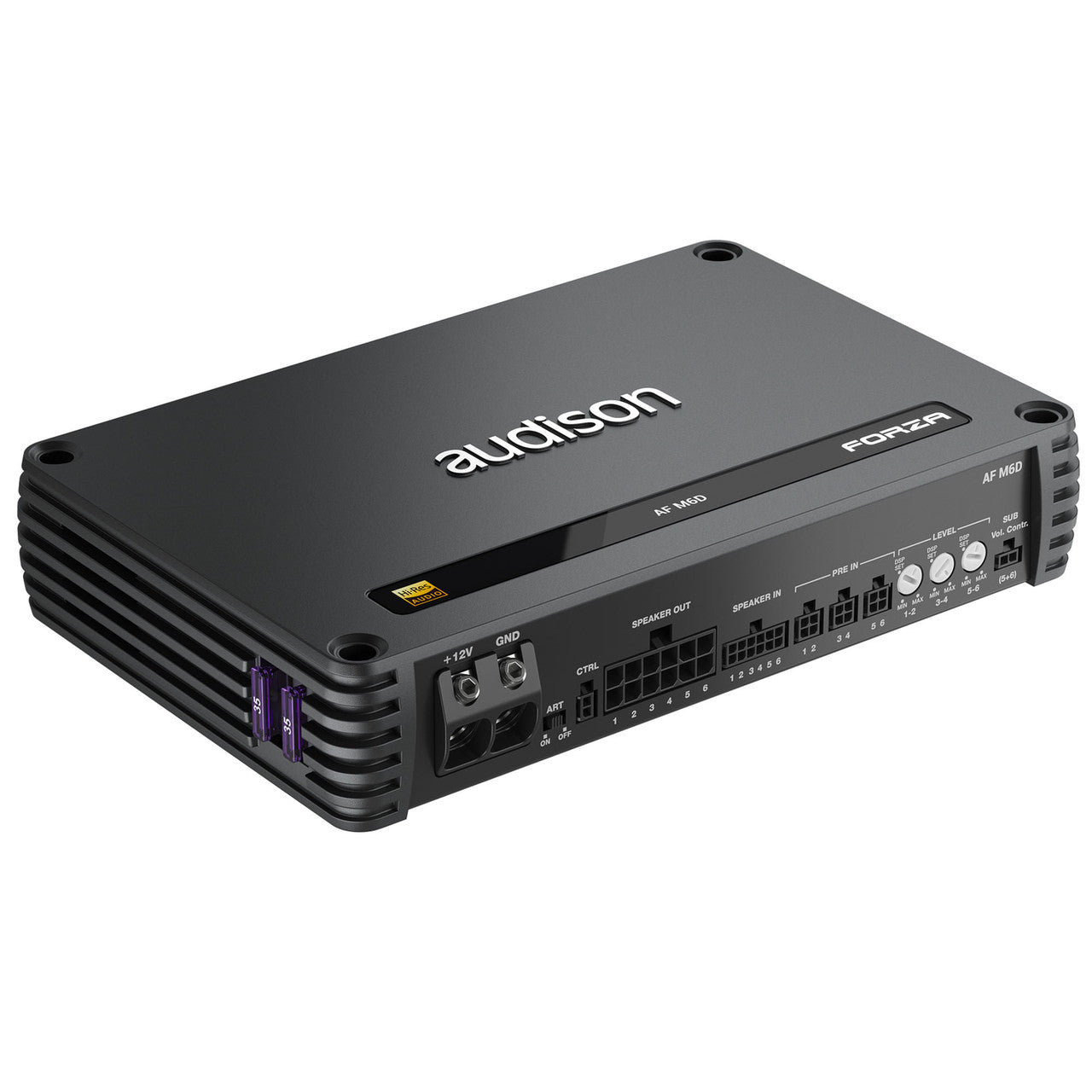

• Audison - AF-M6D Audison Forza AF M6D AUDISON D Class 6 CH Amplifier - 6 x 130W - View 1

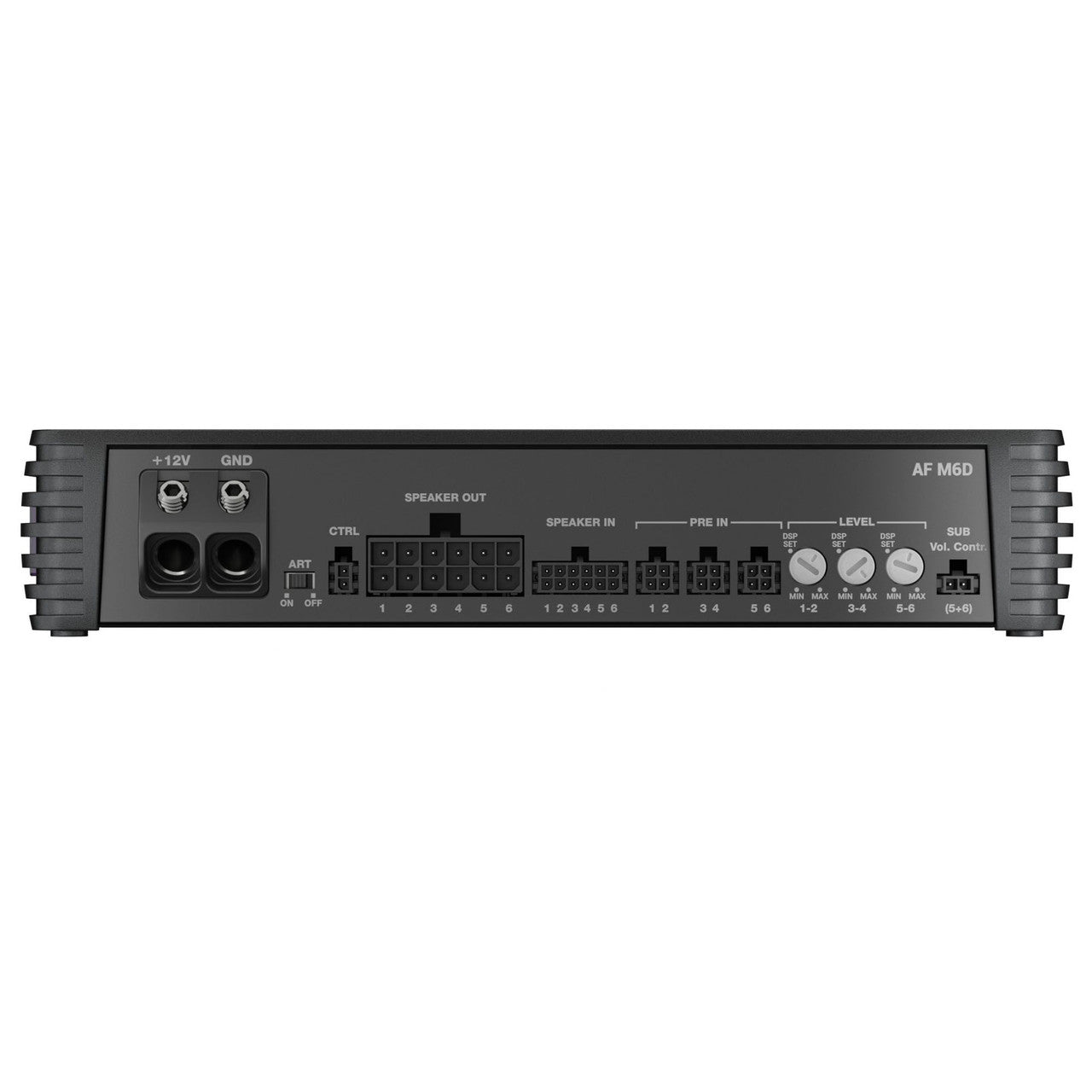

  • Audison - AF-M6D Audison Forza AF M6D AUDISON D Class 6 CH Amplifier - 6 x 130W - View 2
1 2

Audison - AF-M6D Audison Forza AF M6D AUDISON D Class 6 CH Amplifier - 6 x 130W

Audison - AF-M6D Audison Forza AF M6D AUDISON D Class 6 CH Amplifier - 6 x 130W

Audison - AF-M6D

$999.99 USD
$1,199.99 USD $999.99 USD
Sale Special Order this item by Clicking the Chat Button Below
Shipping calculated at checkout.

Audison - AF-M6D Audison Forza AF M6D AUDISON D Class 6 CH Amplifier - 6 x 130W

Experience unmatched acoustic fidelity, pristine audiophile-grade detail, and state-of-the-art Italian design with a premium car audio power amplifier from Audison. Precision-engineered to deliver continuous power distribution with absolute zero background coloration, these amplifiers feature ultra-low distortion parameters and high-current circuitry tailored to reveal every nuance of high-resolution acoustic soundstages.

Product Overview & Core Highlights:

AF companion amplifiers are designed to add powerful amplifier channels to AF bit processor amplifiers. A plug-and-play signal input harness is included to make connection to AF bit amplifiers straightforward. AF companion amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso. AF companions have a “straight wire” architecture, without analog preamp functions such as crossover filtering, and are intended for use with external processors.AF M6D boasts six high-fidelity amplified channels 135W x 6 @4Ω*, 220W x 6 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 440W x 3 @4Ω*, guaranteeing flexible and powerful performance.*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

Amplifier Tech Data -
• Channels: 6
• Class: D
• Efficiency: 81 %
• Hi Level Input: Yes
• Low Level Input: Yes
• Digital Input: No
• Power supply voltage / fuse: 11 ÷ 15 VDC
• Operating power supply voltage: 6.5 ÷ 17.5 VDC
• Idling current: 1 A
• Idling current when off: 0.009 mA
• Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 60 A
• Remote OUT: 6.5 ÷15 VDC (150 mA)
• Remote IN: 4 ÷15 VDC (1 mA)
• ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable): 1.5 VDC

Amplifier Stage -
• Distortion: THD @ 100 Hz, 4Ω, 70% Rated Power 0.04%
• Bandwidth A: 10 Hz ÷ 42 kHz
• S/N ratio A: 103 dBA
• Damping factor A: 160
• Input sensitivity Pre-In: 0.6 ÷ 6 VRMS
• Input sensitivity Speaker-In: 2.2 ÷ 22 VRMS

🚨 Critical Performance Specifications:

  • Package Quantity Configuration: Sold Individually (Includes 1 Premium Component Unit)
  • Manufacturer Part Number (MPN): AF-M6D
  • Product Category Component: Amplifiers
  • Hardware Fitment Sizing Profile: 8-Inch Layout Fitment
  • System Power Metrics: 130 Watts Performance Rating
  • Nominal System Stability Configuration: 4 Ohms Impedance Load
  • Total Package Boxed Shipping Weight: 4.2 lbs
