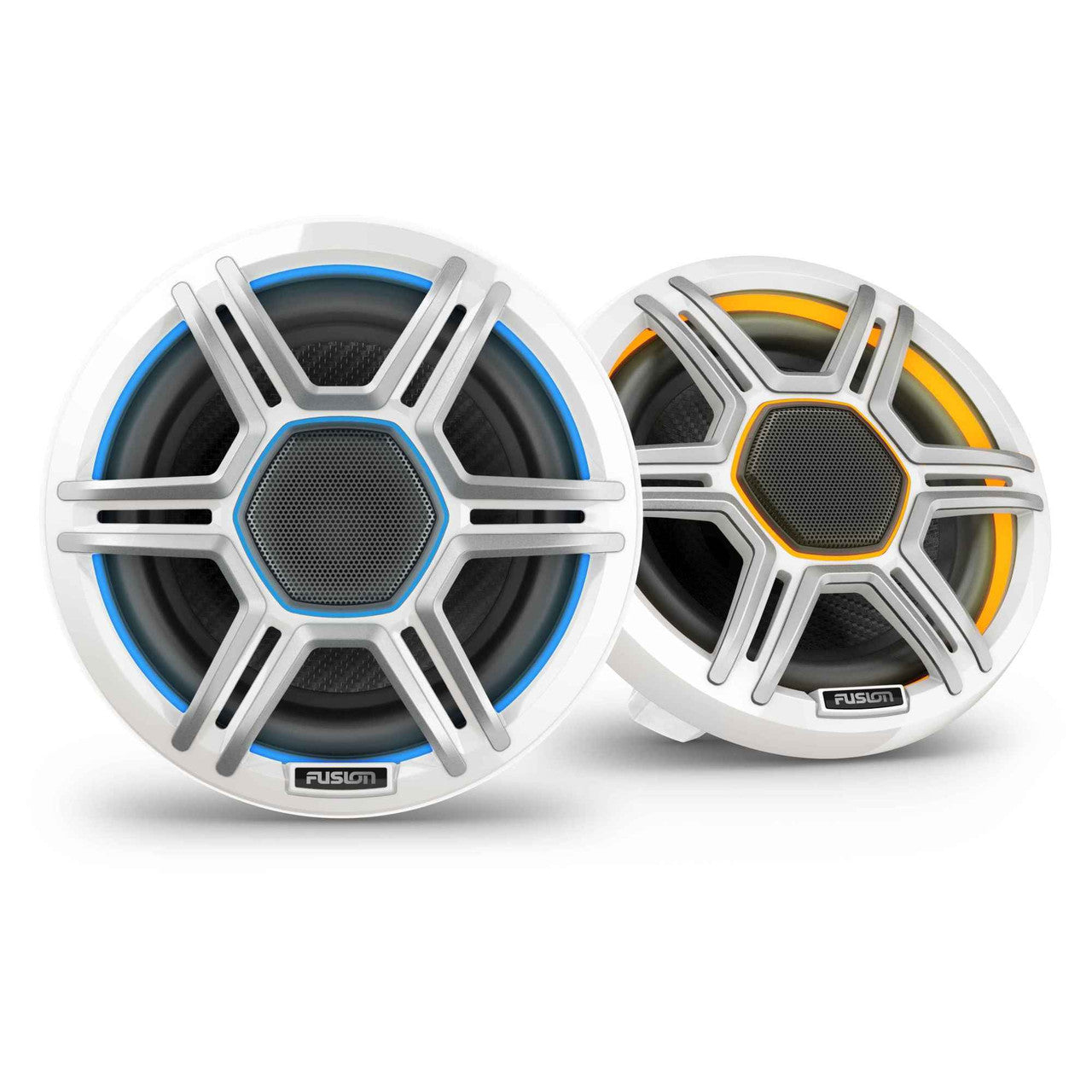

Fusion Apollo™ Speakers 6.5" LED Marine Speakers with Sports White Grilles

Fusion Apollo™ Speakers 6.5" LED Marine Speakers with Sports White Grilles

Unlock immaculate vocal projection, deep low-frequency punch, and premium audio warmth across any waterway with high-efficiency True-Marine™ speakers and subwoofers from Fusion. Built inside water-tight structures designed to resist severe salt spray, punishing UV yellowing, and high-vibration engine play, these high-end marine components integrate optional ambient visual illumination features for the perfect onboard environment.

Product Overview & Core Highlights:

Fusion Apollo™ Speakers 6.5" LED Marine Speakers with Sports White Grilles

SURRENDER TO THE SOUND

CRYSTAL-CLEAR PREMIUM SOUND QUALITY

INCLUDED INTERCHANGEABLE SPORTS WHITE OR SPORTS GRAY GRILLES

MATCH THE MOOD WITH DUAL-HUE LED LIGHTING RINGS

AVAILABLE IN 6.5”, 7.7” AND 8.8” SIZES

RIGOROUSLY TESTED MARINIZED DESIGN

SIZES	6.5"/7.7"/8.8"
COLOR	Sports White or Sports Gray
PHYSICAL DIMENSIONS (DIAMETER)	6.5": 6.93" (176 mm) 7.7": 7.72" (196 mm) 8.8": 8.82" (224 mm)
PHYSICAL DIMENSIONS (DEPTH)	6.5": 4.06" (103.1 mm) 7.7": 4.46" (113.2 mm) 8.8": 5.28" (134.1 mm)
WEIGHT	6.5": 8.3 lbs (3.76 kg) 7.7": 11.3 lbs (5.12 kg) 8.8": 14.1 lbs (6.39 kg)
WATER AND DUST RATING	IP66/IP67
SPEAKER TYPE	Coaxial
CONTINUOUS POWER HANDLING (RMS)	6.5": 75 W 7.7": 100 W 8.8": 130 W
SENSITIVITY (SPL @ 1 W/1 M)	6.5": 90 dB 7.7"/8.8": 91 dB
FREQUENCY RESPONSE (+/- 3 DB)	6.5": 70 Hz-22 kHz 7.7": 60 Hz-22 kHz 8.8": 50 Hz-20 kHz
NOMINAL IMPEDANCE	4 Ω
RECOMMENDED AMPLIFIER POWER (RMS)	6.5": 25-150 W/Channel 7.7": 30-200 W/Channel 8.8": 40-260 W/Channel
LED LIGHTING	yes - CRGBW (5 colors)
LED SUPPLY VOLTAGE	10.8-16 VDC
LED LOAD CURRENT @ 14.4 VDC (MAX)	6.5": 130 mA per color, per speaker 7.7": 140 mA per color, per speaker 8.8": 180mA per color, per speaker
OPERATING TEMPERATURE RANGE	32° to 122° F (0° to 50° C)
CONE MATERIAL	CURV® Cone Technology with Rubber Surround
TWEETER TYPE	Silk Dome
TWEETER SIZE	6.5": 1" (25 mm) 7.7": 1" (25 mm) 8.8": 1.25" (32 mm)
WARRANTY	3 years

Electrical Features
COMPASS SAFE DISTANCE	6.5": 9.19 ft (280 cm) 7.7": 9.84 ft (300 cm) 8.8": 10.33 ft (315 cm)

Connections
SPEAKER CONNECTIONS	5.9" (150 mm) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors (0.25" (6.3 mm) positive and 0.19" (4.8 mm) negative)
LED CONNECTION	5.9" (150 mm) water-resistant 6-way connector (6-pin, CRGBW and ground)

Mounting Dimensions
MOUNTING DIAMETER CLEARANCE	6.5": 5.35" (136 mm) 7.7": 6.14" (156 mm) 8.8": 7.09" (180 mm)
MOUNTING DEPTH CLEARANCE	6.5": 3.03" (77 mm) 7.7": 3.39" (86 mm) 8.8": 4.13" (105 mm)
FRONTAL GRILLE PROTRUSION	6.5": 1.18" (30 mm) 7.7": 1.26" (32 mm) 8.8": 1.30" (33 mm)



🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold as a Pair (Includes 2 Marine Speakers)
• Manufacturer Part Number (MPN): AP-FL65SPW
• Product Category Component: Speakers
• Hardware Sizing Dimension: 6.5-Inch Marine Profile
• Total Package Boxed Shipping Weight: 5.0 lbs
