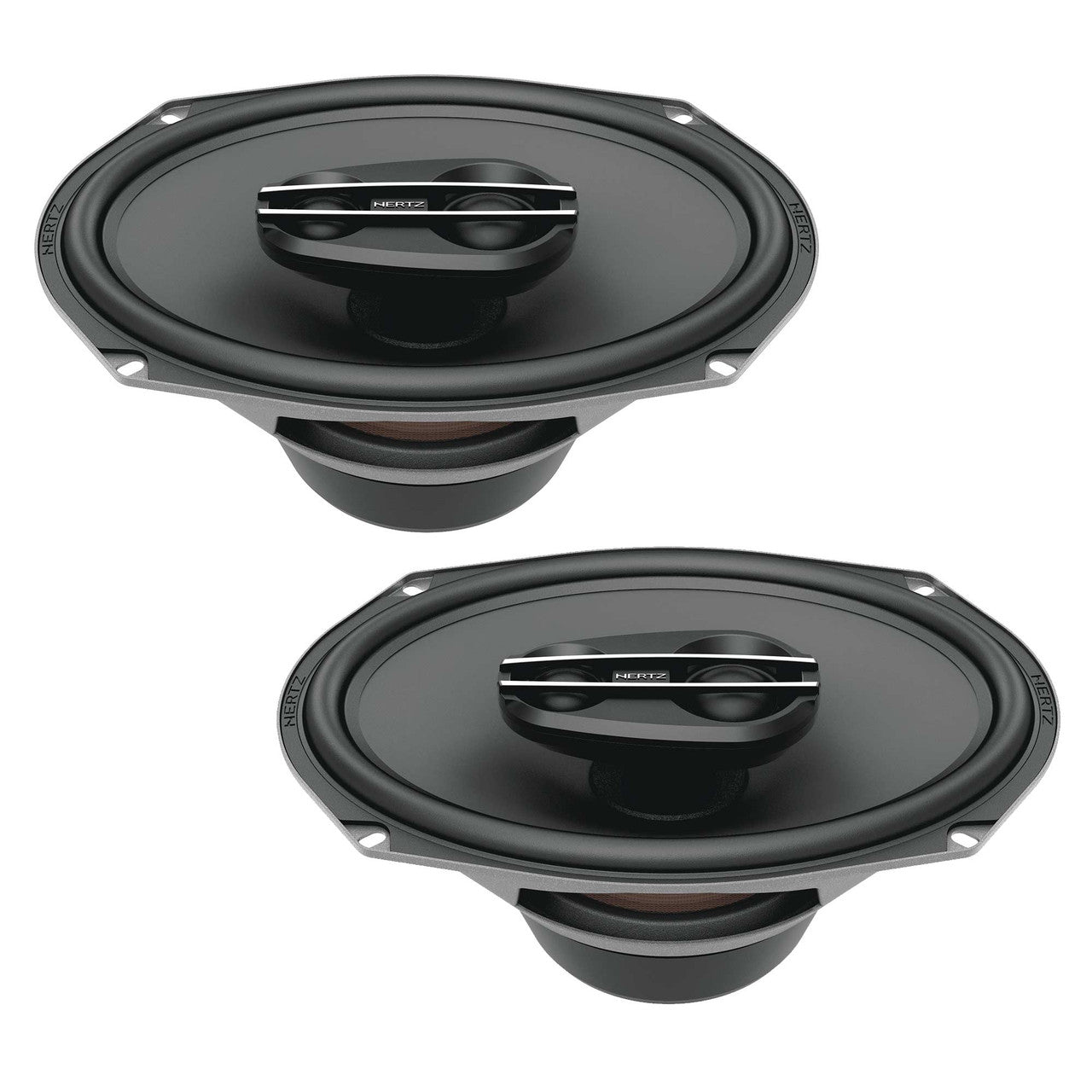

Hertz CPX 690 6x9" Three-Way Coaxial Speakers with Grilles

Hertz CPX 690

The three-way car audio coaxial CPX 690 is the best solution for enthusiasts who love highly dynamic listening with low engaging frequencies and want to make the most of the rear deck mount. Tweeter and Super tweeter both feature Neodymium magnet and Tetolon dome, 32 mm and 24 mm respectively. The stylish faceplate is designed to maximize off-axis emissions and thus optimizing horizontal installation. As for the CPX 165, the CPX 690’s Tweeter and Super tweeter boasts Radial Venting System technology for outstanding cooling and acoustic performance. The robust basket with radial ventilation keeps operating temperatures low. The supplied grille is made of a high resistance ABS plastic support and metallic mesh to ensure a high level of protection with a Hi-tech design.

Features -
• Pressed-paper cone with FEM-optimized geometry, it combines rigidity and lightness for a color-free sound.
• Wide rubber suspension engineered for a long excursion and excellent sound damping.
• High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
• Basket with metallic finish acoustically combined with a rubber magnet cover for total damping of spurious vibrations.
Specifications -
• Power Handling - Peak W: 360
• Power Handling - Continuous W: 120
• Impedance Ω: 4
• Frequency response Hz: 35 ÷ 24k
• Sensitivity dB SPL: 94
• Woofer size mm (in.): (6 x 9)
• Tweeter size mm (in.): 32 (1.26)
• Super tweeter size mm (in.): 24 (0.9)
• Woofer Voice Coil Ø mm (in.): 30 (1.2)
• Tweeter voice coil Ø mm (in.): 28 (1.1)
