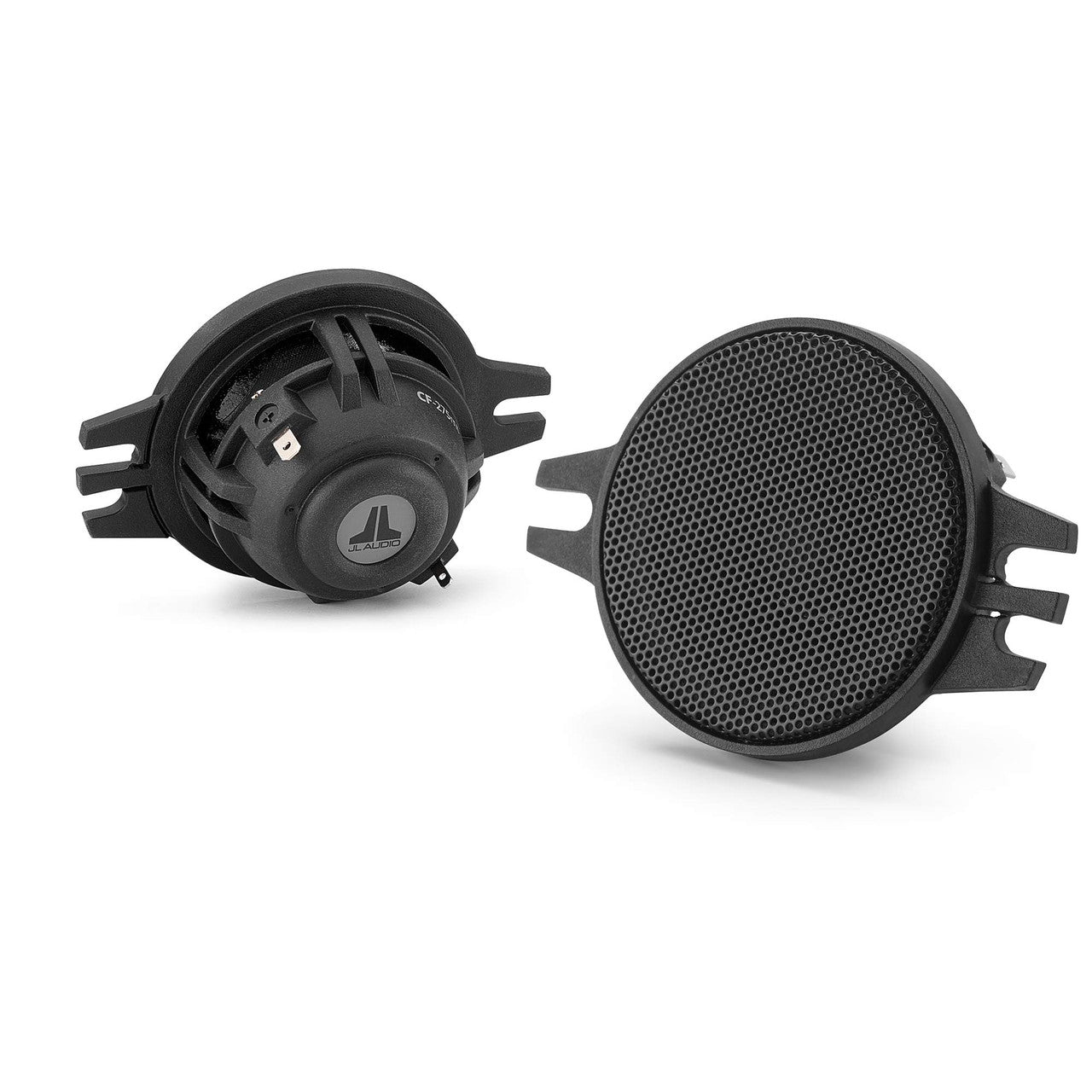

JL Audio® Custom-Fit Car Speakers 2.75" Mid-Tweeter Speaker System (CF-275mt)

JL Audio® Custom-Fit Car Speakers 2.75" Mid-Tweeter Speaker System (CF-275mt)

Unlock immaculate vocal transparency, wider acoustic soundstage dispersion, and pristine high-frequency tracking with the world-renowned speaker engineering of JL Audio. Built using proprietary technical benchmarks—including DMA-optimized long-excursion motor structures, premium silk dome tweeters, and mineral-filled cone membranes—these drivers slice right through ambient cabin wind and road noise for total sound immersion.

Product Overview & Core Highlights:

JL Audio® Custom-Fit Car Speakers 2.75" Mid-Tweeter Speaker System (CF-275mt)

GREAT SOUND AND A PERFECT FIT

DIRECT FIT IN POPULAR VEHICLES

2.75- OR 3.5-INCH SIZES FOR USE AS MIDTWEETERS OR MIDRANGE DRIVERS

SLIMLINE FRAMES AND BREAKAWAY MOUNTING TABS OFFER AN EASY FIT

IN-LINE, SECOND-ORDER HIGH-PASS FILTERS INCLUDED

HANDLES HARSH HEAT AND UV EXPOSURE IN DASHBOARD LOCATIONS

2-YEAR WARRANTY



SIZES	2.75"/3.5"
CONTINUOUS POWER HANDLING (RMS)	2.75": 30 W 3.5": 35 W
SENSITIVITY (SPL @ 1 W/1 M)	2.75": 82 dB 3.5": 86 dB
FREQUENCY RESPONSE (+/- 3 DB)	450 Hz-20 KHz ± 3 dB
NOMINAL IMPEDANCE	4 Ω
RECOMMENDED AMPLIFIER POWER (RMS)	2.75": 10-40 W/Channel 3.5": 10-50 W/Channel
CONE MATERIAL	Fiber-reinforced pulp
GRILLE(S) INCLUDED
WARRANTY	1 year

Connections
SPEAKER CONNECTIONS	Spade connectors

Mounting Dimensions
FRAME OUTER DIAMETER	2.75": 2.85" (72 mm) 3.5": 3.46" (88 mm)
MOUNTING DEPTH CLEARANCE	2.75": 1.39" (35 mm) 3.5": 1.59" (40 mm)
FRONTAL GRILLE PROTRUSION	0.26" (7 mm)
MOUNTING HOLE	2.75": 2.48" (63 mm) 3.5": 3.12" (80 mm)
MOTOR OUTER DIAMETER	1.29" (33 mm)

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold as a Pair (Includes 2 Matching Units)
• Manufacturer Part Number (MPN): 010-03408-00
• Product Category Component: Speakers
• Physical Hardware Sizing: 2.75-Inch Layout Profile
• Total Package Boxed Shipping Weight: 5.0 lbs
