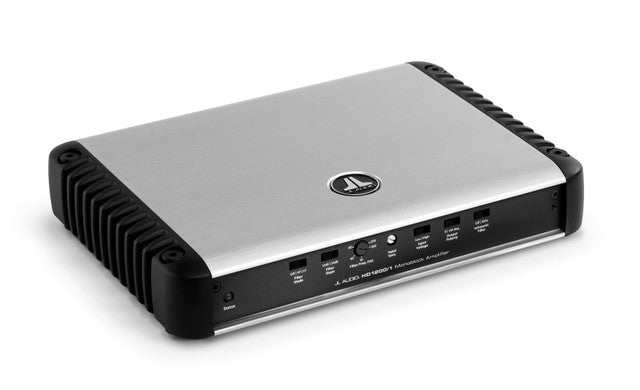

JL Audio® HD Car Monoblock Amplifier Monoblock Amplifier (1200 W) (HD1200/1)
JL Audio® HD Car Monoblock Amplifier Monoblock Amplifier (1200 W) (HD1200/1)
JL Audio
Regular price
$1,549.99 USD
Regular price
$1,649.99 USD
Sale price
$1,549.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
JL Audio® HD Car Monoblock Amplifier Monoblock Amplifier (1200 W) (HD1200/1)
COMPACT, POWERFUL, EFFICIENT
Combining groundbreaking JL Audio Single Cycle Control™ switching along with Regulated, Intelligent Power Supply (R.I.P.S.™) technologies, these HD monoblock amplifiers deliver world-class, full-range fidelity and ultrapowerful output from a surprisingly small package.
SELECTABLE 12- OR 24-DECIBEL/ OCTAVE FILTER SLOPE
REMOVABLE POWER AND SPEAKER CONNECTORS
SELECTABLE INPUT VOLTAGE: LOW (200 MV TO 2-VOLT RMS) TO HIGH (800 MV TO 8-VOLT RMS)
INFRASONIC FILTER AND POLARITY SWITCH
2 MOUNTING OPTIONS PLUS A SPACE-SAVING STACKING FEATURE
2-YEAR WARRANTY
| CHANNELS | Monoblock |
|---|---|
| PHYSICAL DIMENSIONS (HEIGHT) | 1.93" (49 mm) |
| PHYSICAL DIMENSIONS (WIDTH) | 10.74" (273 mm) |
| PHYSICAL DIMENSIONS (DEPTH) | 7.85" (199 mm) |
| WEIGHT |
6.6 lbs (2.99 kg) |
| WARRANTY | 2 years |
| OPERATING VOLTAGE | 11-14.5 VDC |
Audio |
|
| AMPLIFIER CLASS | Class D |
|---|---|
| RATED CONTINUOUS (RMS) POWER (14.4 V INPUT @ 4 OHM < 1% THD) | Monoblock (750 W): 750 W x 1 Monoblock (1200 W): 1200 W x 1 |
| RATED CONTINUOUS (RMS) POWER (14.4 V INPUT @ 2 OHM < 1% THD) | Monoblock (750 W): 750 W x 1 Monoblock (1200 W): 1200 W x 1 |
| RATED CONTINUOUS (RMS) POWER (12.5 V INPUT @ 4 OHM < 1% THD) | Monoblock (750 W): 750 W x 1 Monoblock (1200 W): 1200 W x 1 |
| RATED CONTINUOUS (RMS) POWER (12.5 V INPUT @ 2 OHM < 1% THD) | Monoblock (750 W): 750 W x 1 Monoblock (1200 W): 1200 W x 1 |
| SIGNAL-TO-NOISE RATIO, REFERRED TO HIGHEST RATED POWER (A-WEIGHTED, 20 HZ - 20 KHZ NOISE BANDWIDTH): ANALOG INPUTS | 111 dB |
| SIGNAL-TO-NOISE RATIO, REFERRED TO 1 W (A-WEIGHTED, 20 HZ - 20 KHZ NOISE BANDWIDTH): ANALOG INPUTS | 82.2 dB |
| DAMPING FACTOR @ 4 Ω | >500/50 Hz |
| DAMPING FACTOR @ 2 Ω | >250/50 Hz |
| THD+N @ RATED POWER | <0.03% @ 4 Ω |
| FREQUENCY RESPONSE (+0, -1DB) | 6 Hz-8 kHz |
| INPUT VOLTAGE RANGE @ RCA INPUTS | Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High) |
| FUSE RATING | Monoblock (750 W): 60 A Monoblock (1200 W): 100 A |
| RECOMMENDED FUSE TYPE(S) | AFS, AGU or MaxiFuse™ |
| MIN. COPPER POWER/GROUND WIRE GAUGE | 4 AWG wire |
Signal Processing |
|
| FILTER MODE(S): CHANNELS 1 & 2 | Off, Low-pass or High-pass |
|---|---|
| FILTER SLOPE(S): CHANNELS 1 & 2 | 12/24 dB/octave |
| FILTER FREQUENCY RANGE: CHANNELS 1 & 2 | 50 Hz-500 Hz |
| DETENTED, CALIBRATED FILTER FREQUENT POTENTIOMETERS | |
| INFRASONIC FILTER: SUBWOOFER CHANNEL | 30 Hz, Defeatable |
| REMOTE LEVEL CONTROL | Optional (HD-RLC) |
| OUTPUT POLARITY SWITCH | |
| PASS-THROUGH PREAMP OUTPUT | Buffered |
