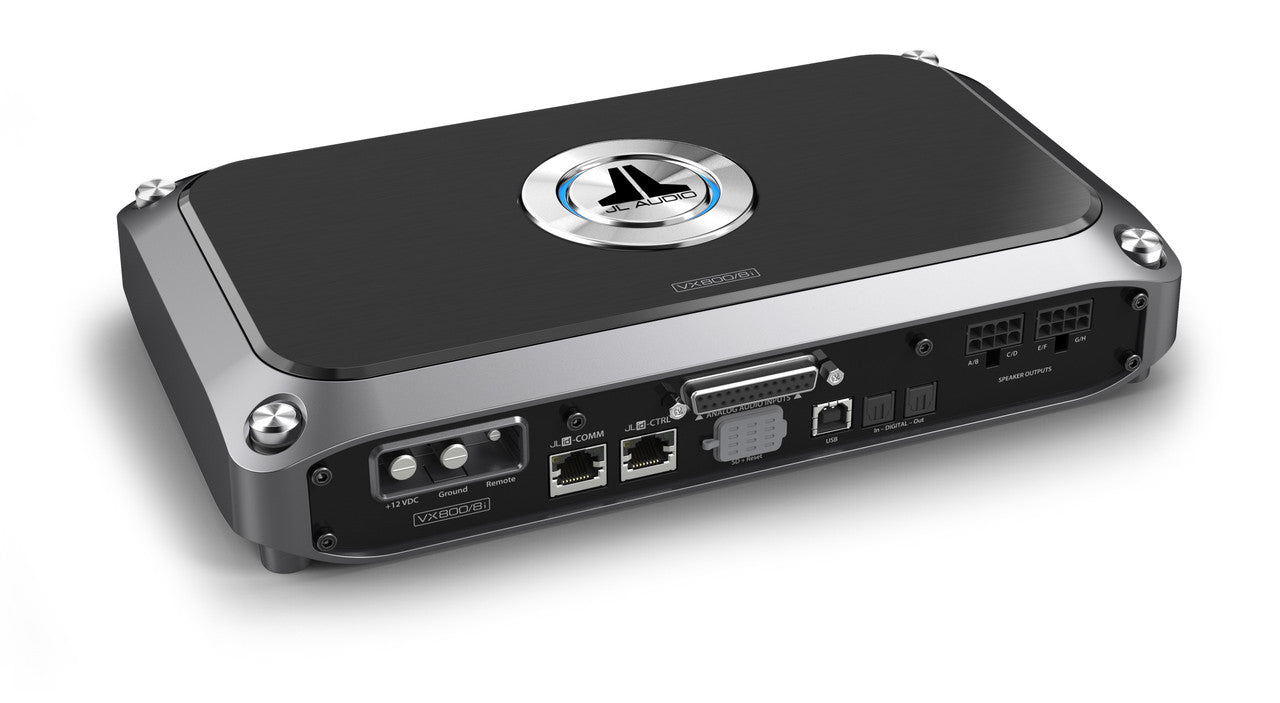

JL Audio® VXi Car Full-range Amplifier 8 Channel Full-range Amplifier with Integrated DSP (800 W) (VX800/8i)

JL Audio® VXi Car Full-range Amplifier 8 Channel Full-range Amplifier with Integrated DSP (800 W) (VX800/8i)

JL Audio

$1,849.99 USD
$1,949.99 USD $1,849.99 USD
Sale Special Order this item by Clicking the Chat Button Below
Shipping calculated at checkout.

JL Audio® VXi Car Full-range Amplifier 8 Channel Full-range Amplifier with Integrated DSP (800 W) (VX800/8i)



REFERENCE-GRADE AMPLIFIERS WITH DIGITAL SIGNAL PROCESSING (DSP) TECHNOLOGY

Offering exceptional tuning power and flexibility, VXi amplifiers combine our second-generation NexD2™ high-speed switching technology with a powerful DSP, all within a compact, beautiful package.

COMPREHENSIVE ONBOARD TUNING FOR EXCEPTIONAL SOUND QUALITY

REMOVABLE POWER, SIGNAL AND SPEAKER CONNECTORS

12-VOLT REMOTE WIRE, SIGNAL SENSING OR DC OFFSET TURN-ON OPTIONS

UP TO 6 REMOTE-CONTROLLED STORABLE PRESETS (REMOTE SOLD SEPARATELY)

FULLY CONFIGURABLE ANALOG OR OPTICAL OUTPUT CHANNEL

2-YEAR WARRANTY

CHANNELS 8
PHYSICAL DIMENSIONS (HEIGHT) 2.12" (54 mm)
PHYSICAL DIMENSIONS (WIDTH) Monoblock (600 W): 9.02" (229 mm)
Monoblock (1000 W): 11.32" (287 mm)
PHYSICAL DIMENSIONS (DEPTH) 6.62" (168 mm)
WEIGHT Monoblock (600 W): 5.0 lbs (2.27 kg)
Monoblock (1000 W): 6.55 lbs (2.95 kg)
OPERATING VOLTAGE 11-14.5 VDC

Audio
AMPLIFIER CLASS Class D
RATED CONTINUOUS (RMS) POWER (14.4 V INPUT @ 4 OHM < 1% THD) Monoblock (600 W): 400 W x 1
Monoblock (1000 W): 600 W x 1
RATED CONTINUOUS (RMS) POWER (14.4 V INPUT @ 2 OHM < 1% THD) Monoblock (600 W): 600 W x 1
Monoblock (1000 W): 1000 W x 1
RATED CONTINUOUS (RMS) POWER (12.5 V INPUT @ 4 OHM < 1% THD) Monoblock (600 W): 300 W x 1
Monoblock (1000 W): 500 W x 1
RATED CONTINUOUS (RMS) POWER (12.5 V INPUT @ 2 OHM < 1% THD) Monoblock (600 W): 500 W x 1
Monoblock (1000 W): 800 W x 1
SIGNAL-TO-NOISE RATIO, REFERRED TO HIGHEST RATED POWER (A-WEIGHTED, 20 HZ - 20 KHZ NOISE BANDWIDTH): ANALOG INPUTS Monoblock (600 W): 90 dB
Monoblock (1000 W): 87 dB
SIGNAL-TO-NOISE RATIO, REFERRED TO HIGHEST RATED POWER: DIGITAL INPUTS Monoblock (600 W): 90 dB
Monoblock (1000 W): 87 dB
SIGNAL-TO-NOISE RATIO, REFERRED TO 1 W (A-WEIGHTED, 20 HZ - 20 KHZ NOISE BANDWIDTH): ANALOG INPUTS Monoblock (600 W): 64 dB
Monoblock (1000 W): 60 dB
SIGNAL-TO-NOISE RATIO, REFERRED TO 1 W (A-WEIGHTED, 20 HZ - 20 KHZ NOISE BANDWIDTH): DIGITAL INPUTS Monoblock (600 W): 64 dB
Monoblock (1000 W): 56 dB
DAMPING FACTOR @ 4 Ω Monoblock (600 W): >125/50 Hz
Monoblock (1000 W): >400/50 Hz
DAMPING FACTOR @ 2 Ω Monoblock (600 W): >125/50 Hz
Monoblock (1000 W): >300/50 Hz
THD+N @ RATED POWER <1% @ 2 Ω
FREQUENCY RESPONSE (+0, -1DB) 12 Hz-500 Hz
INPUT VOLTAGE RANGE @ RCA INPUTS 200 mV-16 V RMS
FUSE RATING Monoblock (600 W): 50 A
Monoblock (1000 W): 80 A
RECOMMENDED FUSE TYPE(S) AFS, AGU or MaxiFuse™
MIN. COPPER POWER/GROUND WIRE GAUGE 4 AWG wire
