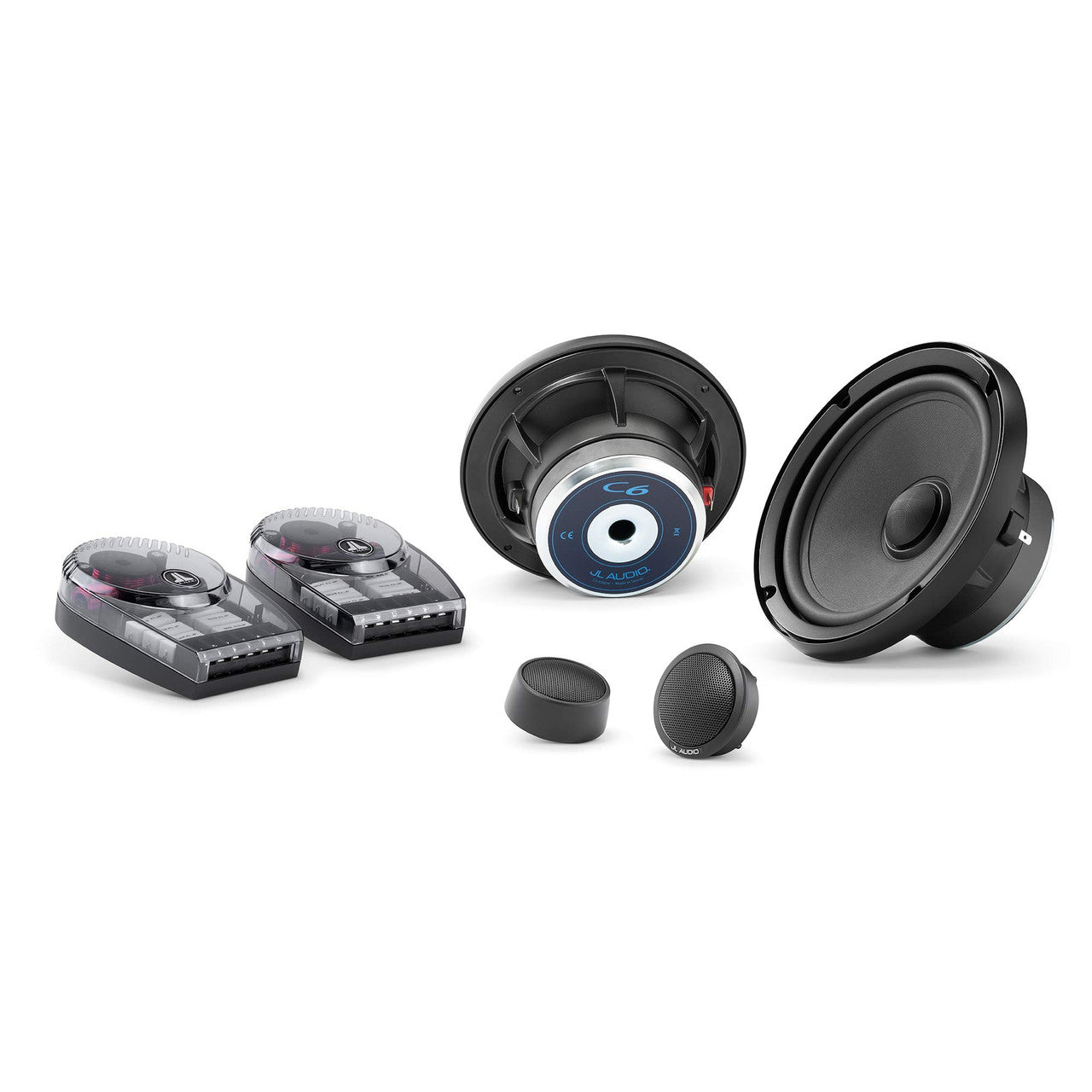

JL Audio® C6 Car System 6.5" Two-way Component System (C6-650)

JL Audio® C6 Car System 6.5" Two-way Component System (C6-650)

Unlock immaculate vocal transparency, wider acoustic soundstage dispersion, and pristine high-frequency tracking with the world-renowned speaker engineering of JL Audio. Built using proprietary technical benchmarks—including DMA-optimized long-excursion motor structures, premium silk dome tweeters, and mineral-filled cone membranes—these drivers slice right through ambient cabin wind and road noise for total sound immersion.

Product Overview & Core Highlights:

JL Audio® C6 Car System 6.5" Two-way Component System (C6-650)

PRECISE CAR AUDIO FIDELITY AND PERFORMANCE

ENJOY CRISP, POWERFUL MIDBASS IMPACT WITH ULTRALOW DISTORTION

SOLD AS TWO-WAY OR THREE-WAY COMPONENT SYSTEMS

C6 COMPONENT SYSTEMS INCLUDE ADJUSTABLE PASSIVE CROSSOVER NETWORKS

CAST-ALLOY WOOFER DESIGN FEATURES ELEVATED FRAME COOLING^™TECHNOLOGY

SPEAKER SYSTEM INCLUDES MESH GRILLES AND MOUNTING FIXTURES

1-YEAR WARRANTY

SIZES	6.5"
CONTINUOUS POWER HANDLING (RMS)	100 W
SENSITIVITY (SPL @ 1 W/1 M)	2.75": 83.50 dB 6.5": 87.37 dB
SENSITIVITY (SPL @ 1 W/0.5 M)	1": 96 dB
SENSITIVITY (SPL @ 2.83 V/1 M)	2.75": 86.50 dB 6.5": 90.33 dB
FREQUENCY RESPONSE (+/- 3 DB)	53 Hz-21 KHz
NOMINAL IMPEDANCE	4 Ω
RECOMMENDED AMPLIFIER POWER (RMS)	25-150 W/Channel
VOICE COIL DIAMETER	2.75": 0.8" (20.5 mm) 6.5": 1.27" (32 mm)
CONE MATERIAL	Vacuum-formed, mineral-filled polypropylene
TWEETER TYPE	Silk Dome
TWEETER SIZE	1" (25 mm)
GRILLE(S) INCLUDED
WARRANTY	1 year

Connections
SPEAKER CONNECTIONS	Spade connectors

Mounting Dimensions
FRAME OUTER DIAMETER	2.75": 2.52" (77 mm) 6.5": 6.5" (165 mm)
MOUNTING DEPTH CLEARANCE	2.75": 1.42" (36 mm) 6.5": 2.60" (66 mm)
FRONTAL GRILLE PROTRUSION	2.75": 0.47" (12 mm) 6.5": 1" (25 mm)
MOUNTING HOLE	2.75": 2.52" (64 mm) 6.5": 5.46" (139 mm)
GRILLE TRAY OUTER DIAMETER	2.75": 3.58" (91 mm) 6.5": 6.76" (172 mm)
BOLT HOLE CIRCLE	2.75": 3.03" (77 mm) 6.5": 6.12" (156 mm)
MOTOR OUTER DIAMETER	2.75": 2.75" (69 mm) 6.5": 3.54" (90 mm)

Parameters
FREE AIR RESONANCE (FS)	1": 1500 Hz 2.75": 185 Hz 6.5": 52.8Hz
ELECTRICAL “Q” (QES)	2.75": 0.769 6.5": 0.647
MECHANICAL “Q” (QMS)	2.75": 7.848 6.5": 5.076
TOTAL “Q” (QTS)	2.75": 0.700 6.5": 0.574
EQUIVALENT COMPLIANCE (VAS)	2.75": 0.0353 cu ft (0.125 L) 6.5": 0.532 cu ft (15.069 L)
ONE-WAY LINEAR EXCURSION (XMAX; SPECS ARE DERIVED VIA ONE-WAY VOICE COIL OVERHANG METHOD WITH NO CORRECTION FACTORS APPLIED)	2.75": 0.059" (1.50 mm) 6.5": 0.148" (3.75 mm)
REFERENCE EFFICIENCY (NO)	2.75": 0.1414% 6.5": 0.344%
MOVING MASS (MMS)	2.75": 4.65 g 6.5": 16.42 g
MECHANICAL COMPLIANCE (CMS)	2.75": 0.00031 m/N 6.5": 0.000581 m/N
MAGNETIC STRENGTH (BL)	2.75": 5.03 N/A 6.5": 5.186 N/A
EFFECTIVE PISTON AREA (SD)	2.75": 3.66 in² (0.00236 m²) 6.5": 21.4 in² (0.013807 m²)
DC RESISTANCE (RE)	1"/6.5": 3.20 Ω 2.75": 3.58 Ω

Tweeter Specifications
FLUSH MOUNT FIXTURE DIAMETER	2.13" (54 mm)
SURFACE MOUNT FIXTURE DIAMETER	2.11" (54 mm)
FLUSH MOUNT MOUNTING HOLE DIAMETER	1.85" (47 mm)
FLUSH MOUNT MOUNTING DEPTH	1.85" (47 mm)
FLUSH MOUNT TWEETER FRONTAL PROTRUSION	0.30" (8 mm)
SURFACE MOUNT TWEETER FRONTAL PROTRUSION	1.04" (26 mm)

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold as a Pair (Includes 2 Matching Units)
• Manufacturer Part Number (MPN): 010-03391-00
• Product Category Component: Speakers
• Physical Hardware Sizing: 6.5-Inch Layout Profile
• Total Package Boxed Shipping Weight: 5.0 lbs
