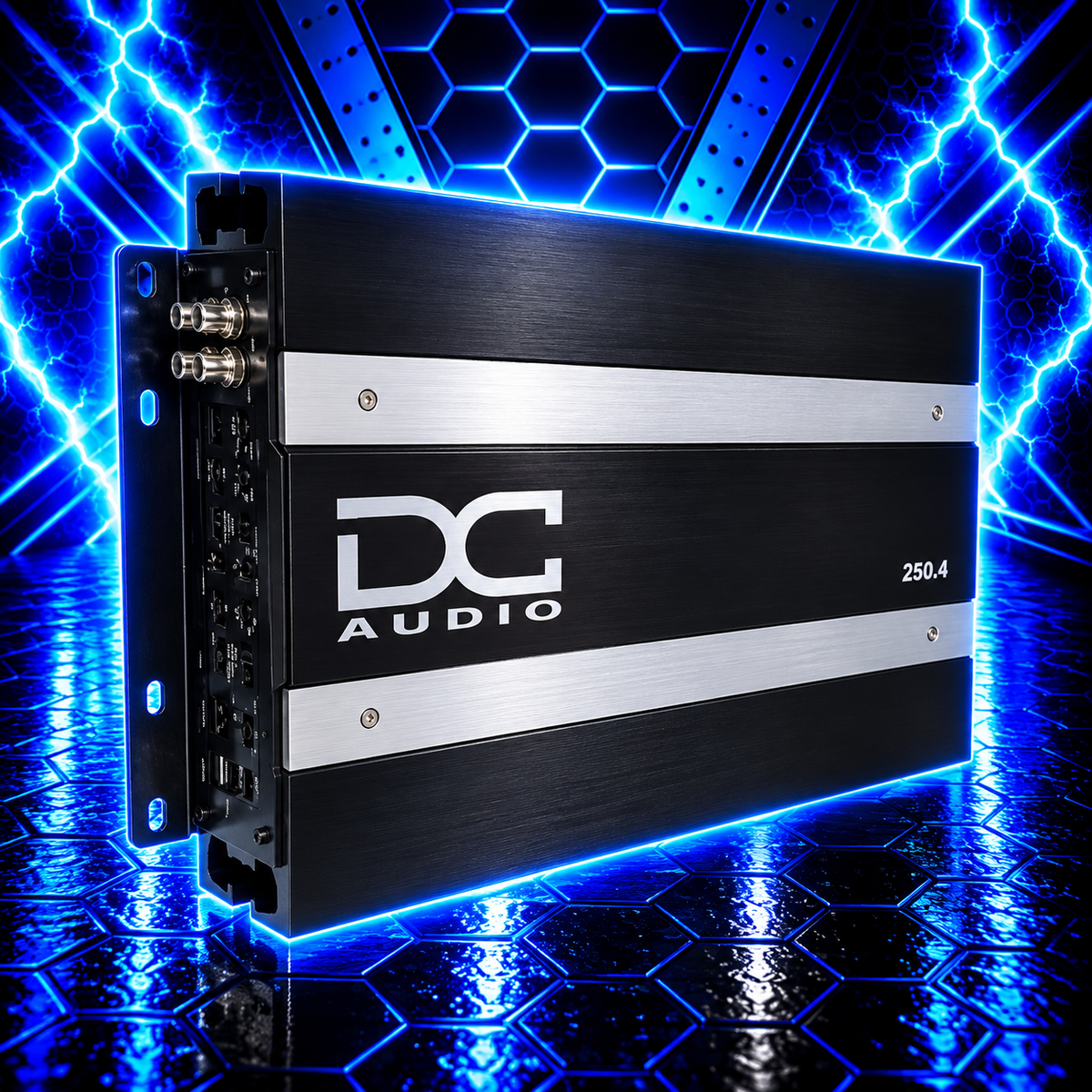

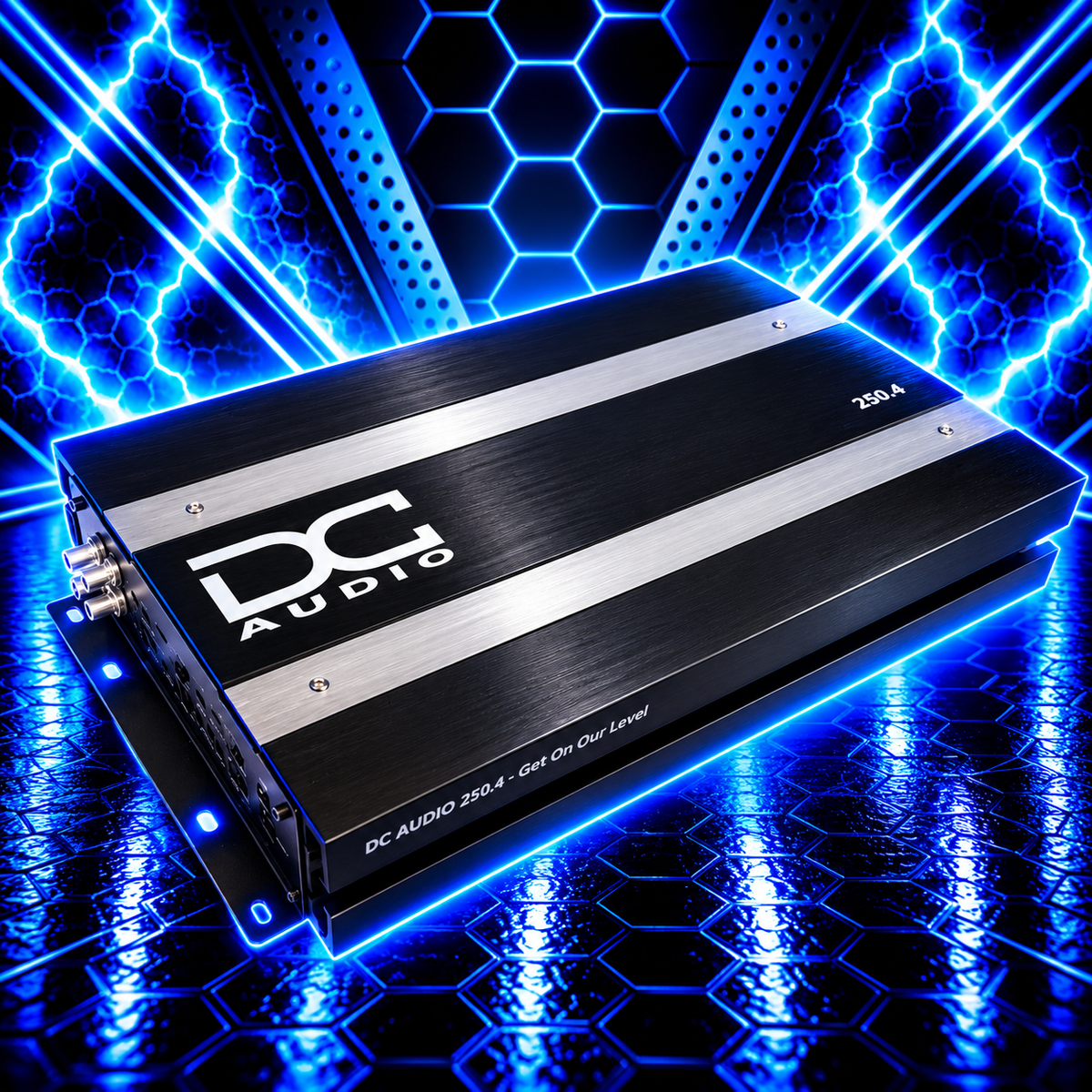

DC Audio 250.4 Competition Series Amplifier – 1,700 Watt 4-Channel

Massive Bass Deserves Massive Mids & Highs.

What's the point of having thousands of watts of bass if you can't hear your music?

At DC Audio, we know our customers love serious bass. From ground-pounding daily drivers to extreme SPL competition vehicles, powerful subwoofer systems are what we do. But when your bass gets louder, your mids and highs need to keep up.

That's exactly why we created the DC Audio 250.4 Competition Series 4-Channel Amplifier.

Delivering an impressive 250 watts RMS per channel at 4 ohms and 400 watts RMS per channel at 2 ohms, this high-output Class D amplifier is designed to bring serious power to your door speakers, midrange drivers, and high-frequency audio systems.

With up to 1,700 watts RMS total output in bridged mode, the DC Audio 250.4 provides the power needed to build a loud, clear, and aggressive full-range car audio system.

Whether you're running high-performance component speakers, multiple midrange drivers, or a massive stunt wall, the DC Audio 250.4 is built to make sure your mids and highs never get left behind.

Big Bass Needs Big Sound.

DC Audio – Get On Our Level.

Serious Power for Mids and Highs

The DC Audio 250.4 isn't your average 4-channel car audio amplifier.

While many traditional 4-channel amplifiers are designed for modest speaker upgrades, the DC Audio 250.4 is engineered for high-output audio systems that demand substantially more power.

Producing 250 watts RMS per channel at 4 ohms, this amplifier delivers excellent output for demanding midrange speakers and high-performance full-range applications.

At 2 ohms, output increases to 400 watts RMS per channel, giving you a total of 1,600 watts RMS across all four channels.

Need even more power per speaker? Bridge the amplifier into a two-channel configuration for 850 watts RMS per bridged channel at 4 ohms, delivering an incredible 1,700 watts RMS total output.

This versatility makes the DC Audio 250.4 an excellent choice for custom door speaker installations, high-output mids and highs, and serious competition car audio builds.

Built to Keep Up with Your Bass

250 Watts RMS Per Channel at 4 Ohms

The DC Audio 250.4 delivers substantial power to high-performance midrange and full-range speakers, helping your system produce the output needed to compete with powerful subwoofer setups.

400 Watts RMS Per Channel at 2 Ohms

For even more output, the amplifier delivers 400 watts RMS per channel at 2 ohms.

This makes it an excellent choice for properly configured multi-speaker installations and high-output door panels.

Bridgeable for 1,700 Watts RMS

Need serious power for larger speakers or high-output applications?

Bridge the DC Audio 250.4 into a two-channel configuration to produce 850 watts RMS x 2 at 4 ohms, giving you 1,700 watts RMS of total available output.

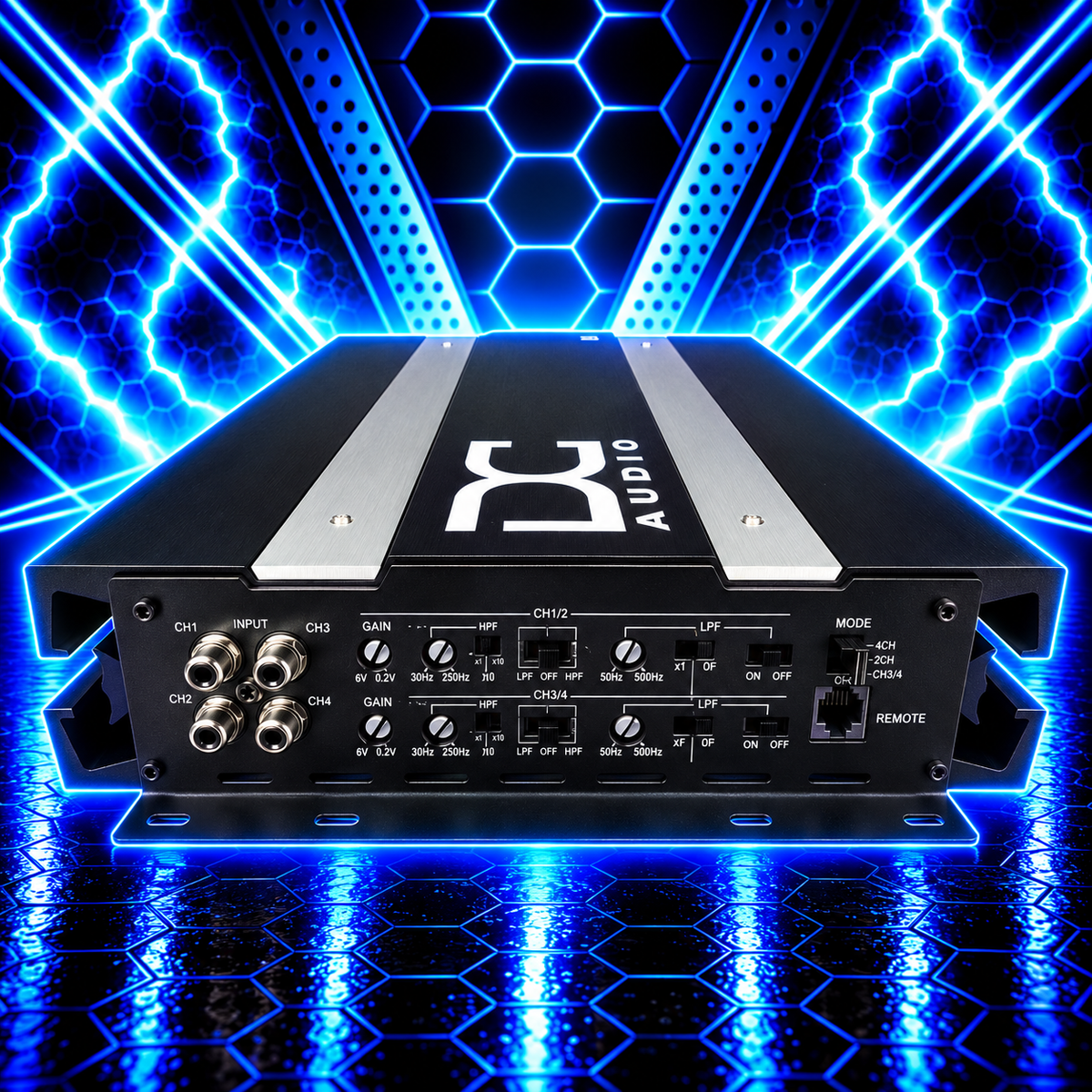

Advanced High-Pass and Low-Pass Crossovers

The DC Audio 250.4 features adjustable high-pass and low-pass crossover controls, allowing you to tailor the frequency range delivered to your speakers.

Whether you're powering midbass drivers, dedicated midrange speakers, or other high-output drivers, these controls help you build a properly tuned system.

Versatile Crossover Modes

With selectable HPF, FULL, LP, and BP modes, the DC Audio 250.4 provides the flexibility needed for a variety of speaker configurations.

Its x10 crossover multiplier extends the adjustable frequency ranges, making it especially useful for custom multi-speaker and high-output car audio systems.

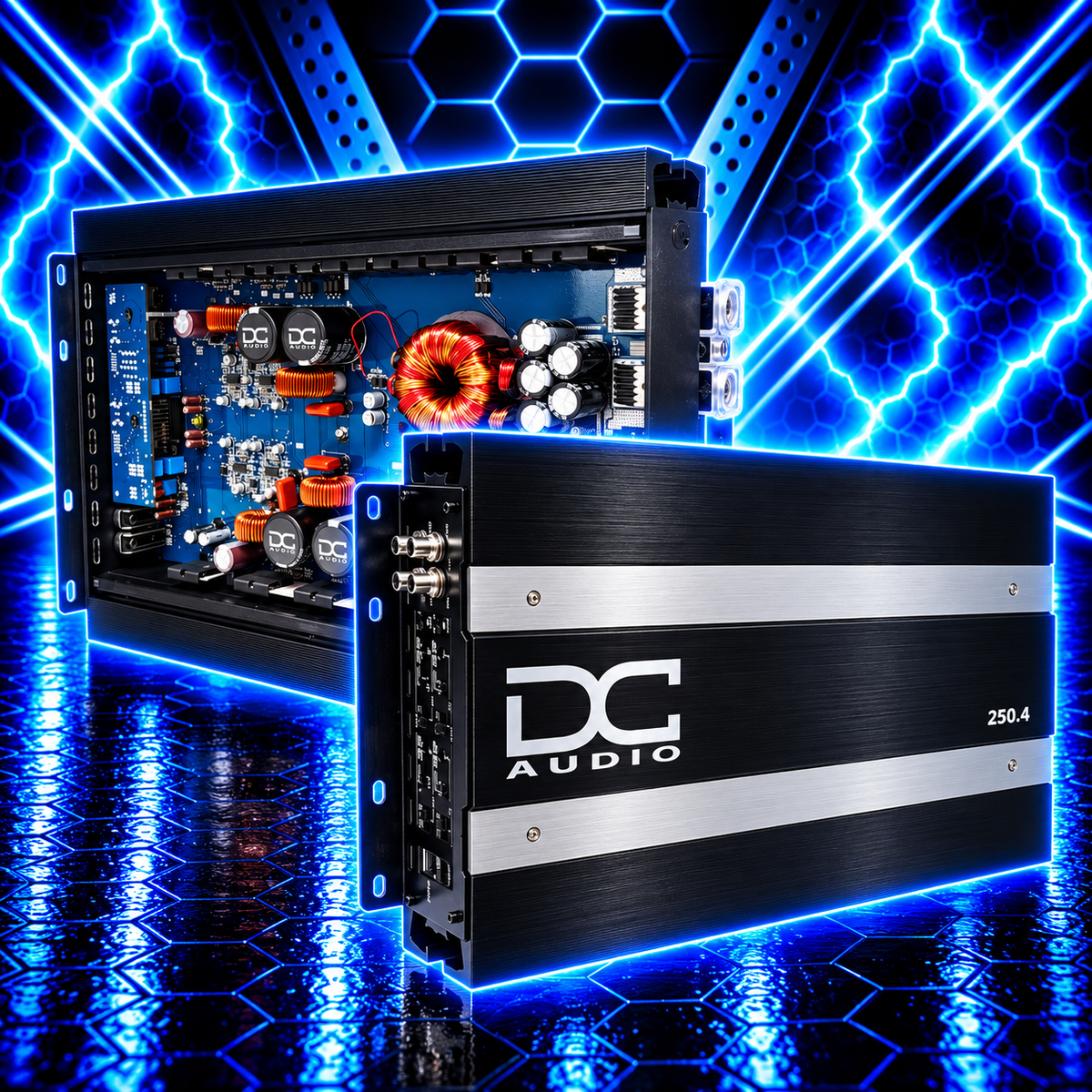

Efficient Class D Amplifier Design

The DC Audio 250.4 utilizes Class D amplification technology to deliver high power output with improved efficiency compared to traditional amplifier designs.

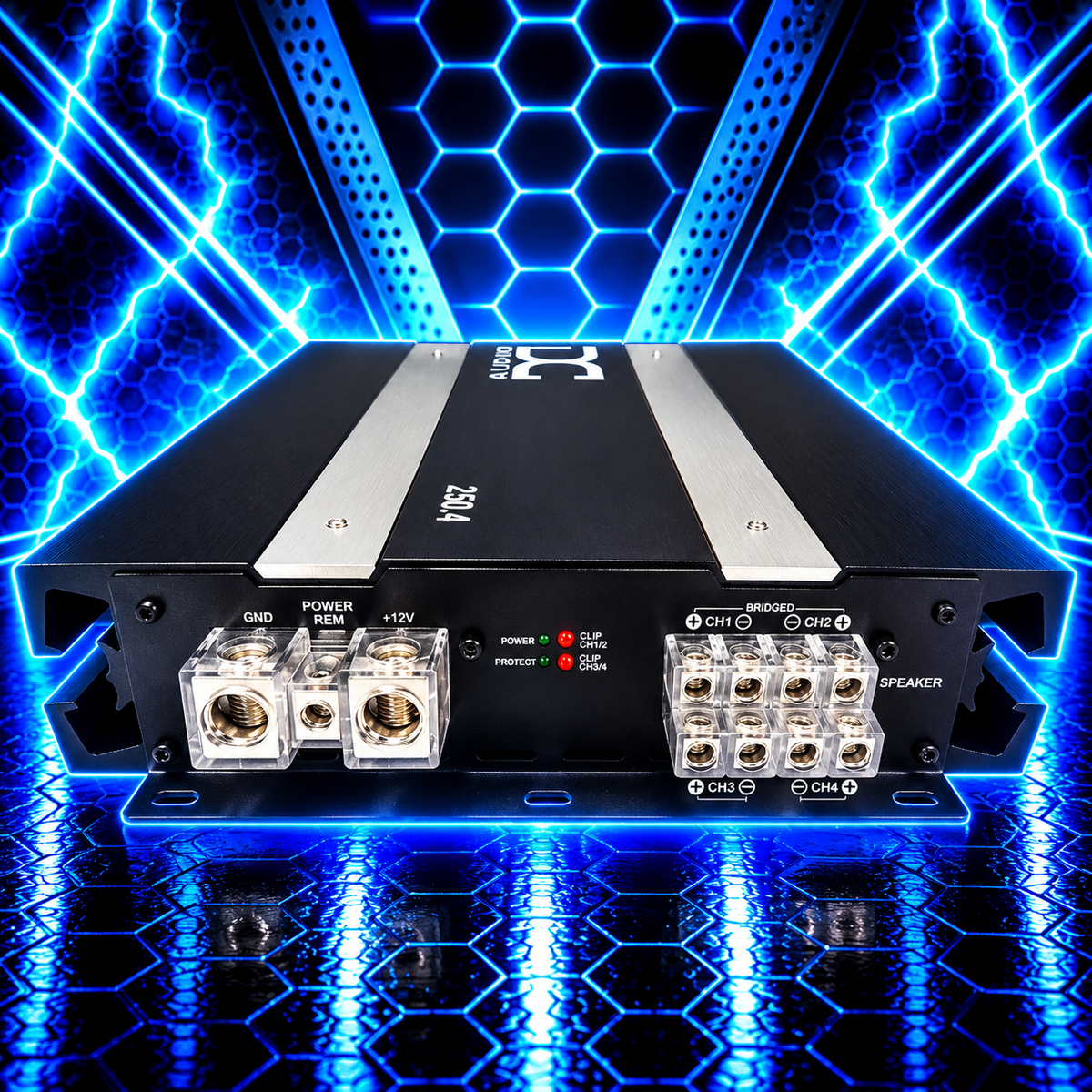

Heavy-Duty Power and Speaker Connections

Serious power requires serious connections.

The DC Audio 250.4 features 1/0 AWG power and ground inputs along with 8 AWG speaker terminals, allowing installers to use substantial wiring for demanding audio applications.

Power, Protect, and Clip Indicators

Integrated LED status indicators provide convenient feedback on amplifier operation, including power, protection, and clipping status.

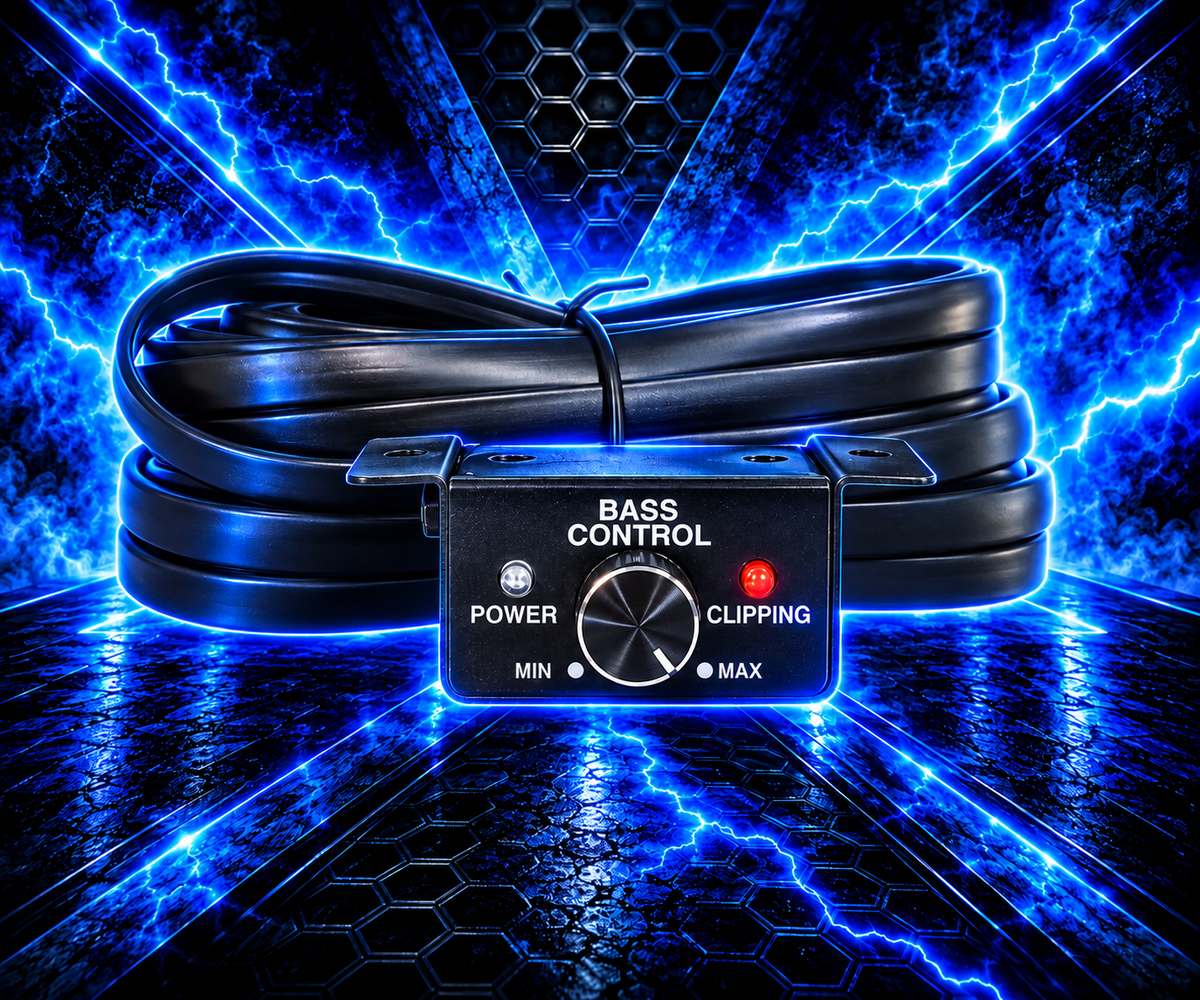

A remote control connection with clipping indication adds another level of monitoring for your system.

Output Power Ratings (RMS)

Configuration	RMS Power	Voltage
4 Ohm Stereo	250W x 4	14.4V
2 Ohm Stereo	400W x 4	14.4V
4 Ohm Bridged	850W x 2	14.4V

Maximum Rated Total Output: 1,700 Watts RMS in Bridged Mode

The DC Audio 250.4 is not 1-ohm stable. Minimum recommended impedance is 2 ohms per channel in stereo operation or 4 ohms per bridged pair.

Key Features

• 250 Watts RMS x 4 at 4 Ohms
• 400 Watts RMS x 4 at 2 Ohms
• 850 Watts RMS x 2 Bridged at 4 Ohms
• Up to 1,700 Watts RMS Total Output
• High-Output 4-Channel Class D Design
• Designed for Powerful Mids and Highs
• Variable High-Pass Crossover
• Variable Low-Pass Crossover
• HPF / FULL / LP / BP Crossover Modes
• x10 Crossover Frequency Multiplier
• 1/0 AWG Power and Ground Inputs
• Heavy-Duty 8 AWG Speaker Connections
• Power / Protect / Clip LED Status Indicators
• Remote Control Connection with Clipping Indicator
• 12dB / Octave Crossover
• Designed for High-Performance Door Speaker Systems
• Suitable for Custom Midrange and Full-Range Audio Applications

Complete Technical Specifications

Specification	DC Audio 250.4
Amplifier Type	Class D 4-Channel
RMS Power @ 4 Ohms	250W x 4
RMS Power @ 2 Ohms	400W x 4
RMS Power Bridged @ 4 Ohms	850W x 2
Maximum Rated Total Output	1,700W RMS
Input Sensitivity	6V – 0.2V
Frequency Response	20Hz – 20kHz
Crossover Slope	12dB / Octave
High-Pass Filter	20Hz – 800Hz / 200Hz – 8kHz (x10)
Low-Pass Filter	50Hz – 800Hz / 500Hz – 8kHz (x10)
Crossover Selector	HPF / FULL / LP / BP
Remote Control	Yes, with Clipping Light
Signal-to-Noise Ratio	95dB
Damping Factor	Greater Than 130
THD @ 4 Ohms	Less Than 0.1%
External Fuse Rating	200A
LED Status Indicators	Power / Protect / Clip
Amplifier Class	Class D
Minimum Stereo Impedance	2 Ohms Per Channel
Minimum Bridged Impedance	4 Ohms
Power Connections	1/0 AWG Power and Ground
Speaker Connections	8 AWG

Amplifier Dimensions

Measurement	Inches	Millimeters
Heatsink Length	13.78"	350mm
Heatsink Width	9.38"	Verify
Heatsink Height	2.35"	59.6mm

Important Installation Information

The DC Audio 250.4 is NOT 1-ohm stable.

This amplifier is designed to operate at a minimum impedance of:

• 2 Ohms Per Channel in Stereo Mode
• 4 Ohms Per Bridged Pair

Operating the amplifier below its specified minimum impedance may result in overheating, protection mode, or amplifier damage.

For best performance, use properly rated speakers, adequate power and ground wiring, appropriate external fuse protection, and a correctly designed electrical system.

When powering high-frequency drivers or tweeters, always use suitable crossover settings and ensure the speakers can safely handle the amplifier's output.

Why Choose the DC Audio 250.4?

At DC Audio, we understand that building a truly impressive car audio system takes more than just powerful subwoofers.

When you're running thousands of watts to your bass system, your mids and highs need the power to keep up.

That's where the DC Audio 250.4 Competition Series Amplifier comes in.

With up to 400 watts RMS per channel at 2 ohms, 850 watts RMS per bridged channel at 4 ohms, advanced crossover controls, and heavy-duty electrical connections, this amplifier is designed for enthusiasts who want their entire system to perform at a higher level.

Whether you're powering a custom door panel loaded with midrange speakers, building a high-output full-range system, or adding serious volume to your competition vehicle, the DC Audio 250.4 delivers the power to make your music heard.

Because What's the Point of Massive Bass If You Can't Hear the Music?

Loud Bass. Louder Mids. Crystal-Clear Highs.

DC Audio – Get On Our Level.
