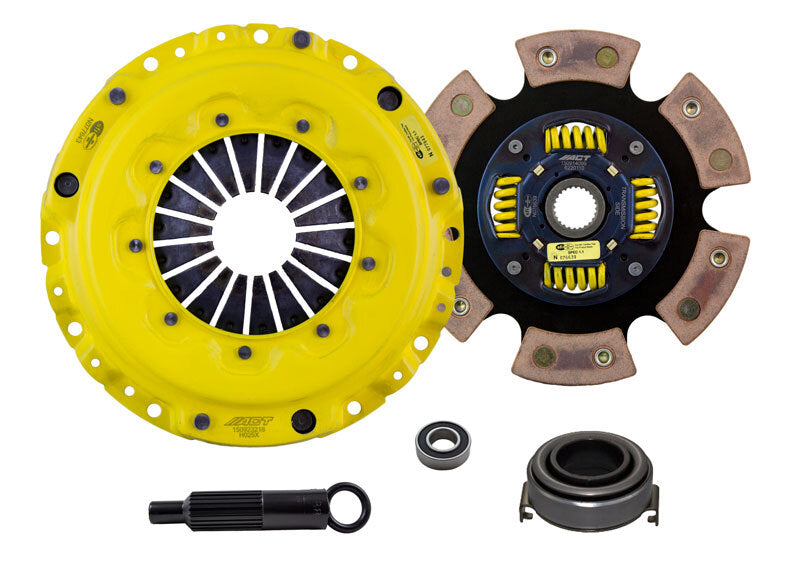

ACT AI4-XTG6 XT/Race Sprung 6-Pad Clutch Kit for Honda Civic, Civic del Sol and Acura Integra

AI4-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. XT/Race Sprung 6 Pad Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

• "Excellence in Performance", backed by the best one-year warranty in the industry!

The ACT AI4-XTG6 XT/Race Sprung 6-Pad Clutch Kit is engineered for high-horsepower street and race applications that demand strong clamping force, rapid shifting and dependable operation under harsh conditions. This complete automotive clutch kit combines an ACT Xtreme pressure plate with a spring-centered 6-pad race disc to deliver aggressive engagement and excellent high-temperature performance.

The ACT Xtreme pressure plate uses an exclusive diaphragm design to increase clamp load, reduce deflection and help maximize clutch life. Each diaphragm undergoes a four-stage heat-treating process for consistent performance, while precision cover stampings improve rigidity and assembly consistency. The pressure plate is 100% clamp-load tested and dynamically computer balanced for smooth, reliable operation at high engine speeds.

The 6-pad spring-centered race disc uses selected ceramic friction materials for high heat tolerance and quick engagement. Spring-center construction helps damp torsional vibrations and resist failure during demanding use. ACT spring retainers feature wraparound spring windows and thicker retainer stampings to support the springs, reduce stress concentrations and improve durability. Engagement is harsher than an organic street disc, with moderate to heavy pedal effort and possible mild gear rattle, but shifting response is faster. This disc design is recommended for larger clutch sizes to help absorb more heat. The kit is listed for select 1994-2000 Acura Integra, 1996-1997 Honda Civic del Sol and 1999-2000 Honda Civic applications; verify vehicle-specific fitment before ordering. ACT backs the product with a one-year warranty.

Features:

• Xtreme pressure plate: Increases clamp load, reduces deflection and supports extended clutch life.
• Four-stage heat-treated diaphragm: Provides consistent pressure plate performance under demanding conditions.
• 6-pad spring-centered race disc: Delivers aggressive engagement, faster shifting and torsional vibration damping.
• Ceramic friction material: Provides high heat tolerance and reliable performance for high-horsepower street or race use.

Fitments:
1994 Acura Integra GS-R
1994 Acura Integra LS
1994 Acura Integra RS
1994 Honda Civic del Sol VTEC
1995 Acura Integra GS-R
1995 Acura Integra LS
1995 Acura Integra RS
1995 Acura Integra Special Edition
1995 Honda Civic del Sol VTEC
1996 Acura Integra GS-R
1996 Acura Integra LS
1996 Acura Integra RS
1996 Acura Integra Special Edition
1996 Honda Civic del Sol VTEC
1997 Acura Integra GS
1997 Acura Integra GS-R
1997 Acura Integra LS
1997 Acura Integra RS
1997 Acura Integra Type R
1997 Honda Civic del Sol VTEC
1998 Acura Integra GS
1998 Acura Integra GS-R
1998 Acura Integra LS
1998 Acura Integra RS
1998 Acura Integra Type R
1998 Honda CR-V EX
1998 Honda CR-V LX
1999 Acura Integra GS
1999 Acura Integra GS-R
1999 Acura Integra LS
1999 Honda Civic Si
1999 Honda CR-V EX
1999 Honda CR-V LX
2000 Acura Integra GS
2000 Acura Integra GS-R
2000 Acura Integra LS
2000 Acura Integra Type R
2000 Honda Civic Si
2000 Honda CR-V EX
2000 Honda CR-V LX
2001 Acura Integra GS
2001 Acura Integra GS-R
2001 Acura Integra LS
2001 Acura Integra Type R
2001 Honda CR-V EX
2001 Honda CR-V LX

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
