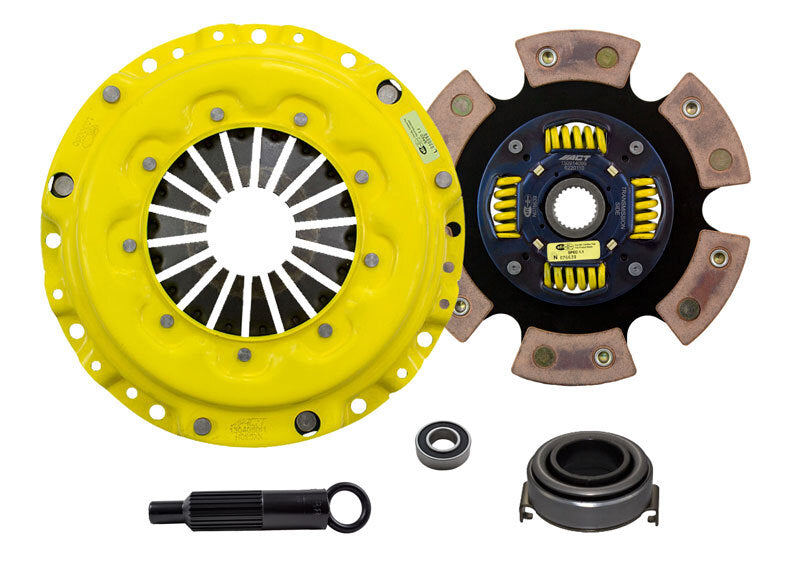

ACT AI4-XXG6 MaXX/Race Sprung 6-Pad Clutch Kit for Honda Civic, del Sol and Acura Integra

AI4-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat. MaXX/Race Sprung 6 Pad Heavy to very heavy pedal effort, aggressive engagement, quick shifts, mild to moderate gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

• "Excellence in Performance", backed by the best one-year warranty in the industry!

The ACT AI4-XXG6 MaXX/Race Sprung 6-Pad Clutch Kit is engineered for high-horsepower street and race applications that demand increased clamp load, fast shifting and reliable performance under severe conditions. This kit combines an ACT MaXX pressure plate with a spring-centered, six-pad race disc designed to handle elevated heat while maintaining dependable power transfer.

The ACT MaXX pressure plate uses an exclusive diaphragm design to increase clamp load, reduce deflection and help maximize clutch life. Each diaphragm undergoes a four-stage heat-treating process, while precision cover stampings improve rigidity and consistency. The included six-pad ceramic friction disc uses spring-centered construction to damp torsional vibrations and resist failure during aggressive use. Wraparound spring windows and thicker spring retainer stampings provide additional support, reduce stress concentrations and improve reliability.

This ACT clutch kit delivers heavy to very heavy pedal effort, aggressive engagement and quick shifts, with mild to moderate gear rattle possible depending on the vehicle and drivetrain. Its select ceramic friction material offers high heat tolerance and performance suited to demanding driving. The clutch is 100% clamp-load tested and dynamically computer balanced for smooth, reliable operation at high engine speeds. Engagement is harsher than a conventional street disc, making this configuration best suited for experienced drivers, competition use and larger clutch applications requiring improved heat absorption.

What's Included: ACT MaXX pressure plate, ACT six-pad spring-centered race disc and clutch kit components required for installation. The kit is backed by ACT's one-year warranty. This product may carry a California Proposition 65 warning and is not CARB approved.

Fitment: Designed for select 1994-1996 Acura Integra applications, 1999-2000 Honda Civic applications and 1996-1997 Honda Civic del Sol models. Confirm vehicle year, engine, transmission and clutch configuration before ordering.

Features:

• MaXX Pressure Plate: Exclusive diaphragm design increases clamp load, reduces deflection and helps extend clutch service life.
• Six-Pad Race Disc: Select ceramic friction material provides high heat tolerance and aggressive power transfer for high-performance applications.
• Spring-Centered Construction: Helps damp torsional vibrations and resist disc failure during demanding street or race use.
• Precision-Balanced Performance: 100% clamp-load tested and dynamically computer balanced for smooth, reliable operation at high RPM.

Fitments:
1994 Acura Integra GS-R
1994 Acura Integra LS
1994 Acura Integra RS
1994 Honda Civic del Sol VTEC
1995 Acura Integra GS-R
1995 Acura Integra LS
1995 Acura Integra RS
1995 Acura Integra Special Edition
1995 Honda Civic del Sol VTEC
1996 Acura Integra GS-R
1996 Acura Integra LS
1996 Acura Integra RS
1996 Acura Integra Special Edition
1996 Honda Civic del Sol VTEC
1997 Acura Integra GS
1997 Acura Integra GS-R
1997 Acura Integra LS
1997 Acura Integra RS
1997 Acura Integra Type R
1997 Honda Civic del Sol VTEC
1998 Acura Integra GS
1998 Acura Integra GS-R
1998 Acura Integra LS
1998 Acura Integra RS
1998 Acura Integra Type R
1998 Honda CR-V EX
1998 Honda CR-V LX
1999 Acura Integra GS
1999 Acura Integra GS-R
1999 Acura Integra LS
1999 Honda Civic Si
1999 Honda CR-V EX
1999 Honda CR-V LX
2000 Acura Integra GS
2000 Acura Integra GS-R
2000 Acura Integra LS
2000 Acura Integra Type R
2000 Honda Civic Si
2000 Honda CR-V EX
2000 Honda CR-V LX
2001 Acura Integra GS
2001 Acura Integra GS-R
2001 Acura Integra LS
2001 Acura Integra Type R
2001 Honda CR-V EX
2001 Honda CR-V LX

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
