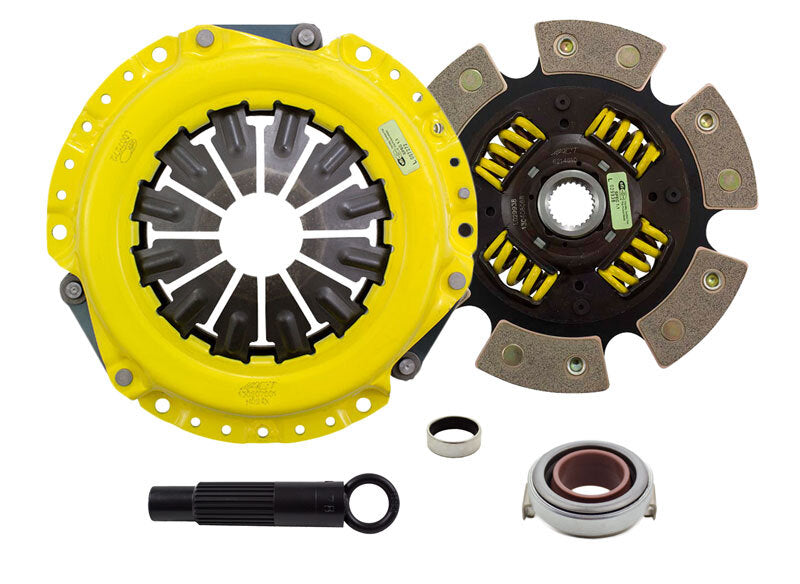

ACT AR1-XTG6 XT/Race Sprung 6-Pad Clutch Kit for Acura RSX, TSX and Honda Civic

AR1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. XT/Race Sprung 6 Pad Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

• "Excellence in Performance", backed by the best one-year warranty in the industry!

The ACT AR1-XTG6 XT/Race Sprung 6-Pad Clutch Kit is engineered for high-horsepower street and race applications that demand strong clamping force, rapid shifting, and dependable performance under severe conditions. The kit combines an ACT Xtreme pressure plate with a spring-centered 6-pad race disc designed to manage increased heat while maintaining reliable power transfer.

ACT Xtreme pressure plates use an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. Each diaphragm undergoes a four-stage heat-treating process, while precision cover stampings improve rigidity and consistency. The included 6-pad spring-centered race disc uses torsional dampers to help control vibration and resist failure. Its wraparound spring windows and reinforced spring retainers provide additional support and strength during aggressive use.

This ACT clutch kit delivers moderate to heavy pedal effort, aggressive engagement, and faster shifting, with OE to mild gear rattle possible. Select ceramic friction materials provide high heat tolerance and performance, while careful engineering, precise assembly, accurate balancing, 100% clamp-load testing, and dynamic computer balancing support smooth, reliable operation at high engine speeds. The kit is recommended for larger clutch applications where additional heat capacity is important. It is backed by ACT's one-year warranty.

Fitment: This clutch kit fits select 2002-2006 Acura RSX, 2004-2008 Acura TSX, and 2002-2006 Honda Civic applications. Verify vehicle configuration and transmission compatibility before installation.

What's Included

• ACT Xtreme pressure plate
• Spring-centered XT/Race 6-pad race disc
• Clutch kit components supplied by ACT for the AR1-XTG6 application

Features:

• High-clamp Xtreme pressure plate: Increases clamping force, reduces diaphragm deflection, and helps maximize clutch service life.
• 6-pad spring-centered race disc: Dampens torsional vibrations while providing aggressive engagement and fast shifting for demanding applications.
• High-temperature ceramic friction material: Resists heat buildup and supports reliable power transfer during high-performance street or race use.
• Precision-balanced construction: ACT engineers, assembles, clamp-load tests, and dynamically computer-balances each kit for smooth high-RPM reliability.

Fitments:
2002 Acura RSX Base
2002 Acura RSX Type-S
2002 Honda Civic Si
2003 Acura RSX Base
2003 Acura RSX Type-S
2003 Honda Civic Si
2004 Acura RSX Base
2004 Acura RSX Type-S
2004 Acura TSX Base
2004 Honda Civic Si
2005 Acura RSX Base
2005 Acura RSX Type-S
2005 Acura TSX Base
2005 Honda Civic Si
2006 Acura RSX Base
2006 Acura RSX Type-S
2006 Acura TSX Base
2006 Honda Civic Si
2007 Acura TSX Base
2007 Honda Civic Si
2008 Acura TSX Base
2008 Honda Civic MUGEN Si
2008 Honda Civic Si
2009 Honda Civic Si
2010 Honda Civic Si
2011 Honda Civic Si

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
