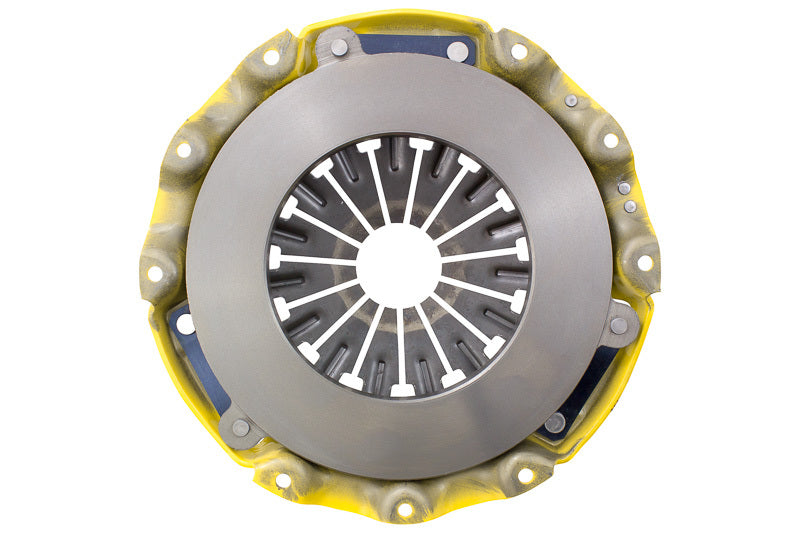

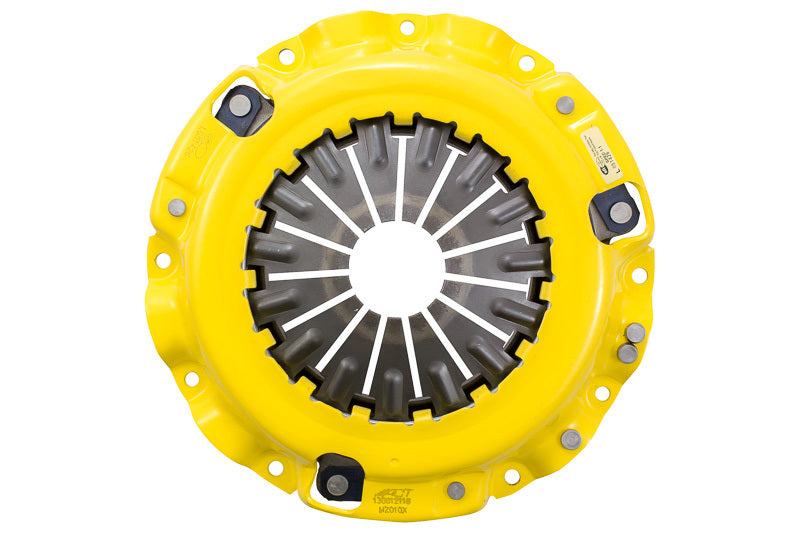

ACT MZ010XX MaXX Xtreme Clutch Pressure Plate for Ford Probe, Chrysler Conquest and Mitsubishi Starion

MZ010XX pressure plate uses exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All ACT diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's MaXX Xtreme pressure plates increase clamp load by 70 to 150 percent. MaXX Xtreme pressure plates are recommended for use with a race disc. MaXX Xtreme Pressure Plate Heavy to very heavy pedal effort, positive engagement; Available disc life extended by ACT's exclusive diaphragm design; Carefully engineered for improved durability, precisely assembled, accurately balanced; Recommended for race use only; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

• "Excellence in Performance", backed by the best one-year warranty in the industry!

The ACT MZ010XX MaXX Xtreme clutch pressure plate is engineered for high-performance and race applications that require substantially increased clamping force and positive engagement. Its exclusive diaphragm design increases clamp load, reduces deflection and helps maximize clutch service life. The unit is designed for heavy to very heavy pedal effort and is recommended for use with a compatible race disc.

ACT manufactures each MaXX Xtreme pressure plate with precision cover stampings for improved rigidity and consistency. The diaphragm undergoes a four-stage heat-treating process to support durability under demanding operating conditions. Each pressure plate is carefully engineered, precisely assembled, accurately balanced, 100% clamp-load tested and dynamically computer balanced for smooth, reliable operation at high RPM. Compared with a standard pressure plate, the MaXX Xtreme design increases clamp load by approximately 70 to 150 percent.

The ACT MZ010XX is intended for race use only and provides firm, positive clutch engagement for performance-driven applications. It is supplied as a single pressure plate and carries ACT's industry-backed one-year warranty. Fitment includes select 1987-1988 Mitsubishi Starion, 1988-1989 Chrysler Conquest and 1989-1992 Ford Probe applications. Verify the vehicle, transmission and clutch combination before installation.

Key Product Specifications & Technical Data

• Brand: ACT
• Part Number: MZ010XX
• Product Type: MaXX Xtreme clutch pressure plate
• Application: High-performance and race clutch systems
• Clamp Load Increase: Approximately 70 to 150 percent over standard designs
• Engagement: Positive engagement with heavy to very heavy pedal effort
• Balancing: Dynamically computer balanced and 100% clamp-load tested
• Warranty: One-year ACT limited warranty

What's Included

• One ACT MZ010XX MaXX Xtreme clutch pressure plate

Features:

• Exclusive diaphragm design increases clamp load, reduces deflection and helps extend available disc life.
• MaXX Xtreme construction delivers approximately 70 to 150 percent more clamp load than standard pressure plates.
• Four-stage heat-treated diaphragm supports durability and consistent performance under demanding conditions.
• Precision assembly, accurate balancing, 100% clamp-load testing and dynamic computer balancing promote smooth high-RPM reliability.

Fitments:
1986 Mazda RX-7 Turbo
1987 Chrysler Conquest Base
1987 Mazda RX-7 Turbo
1987 Mitsubishi Starion ESi-R
1988 Chrysler Conquest TSi
1988 Mazda 626 Turbo
1988 Mazda 929 Base
1988 Mazda MX-6 GT
1988 Mazda RX-7 10th Anniversary
1988 Mazda RX-7 Turbo
1988 Mitsubishi Starion ESi
1988 Mitsubishi Starion ESi-R
1989 Chrysler Conquest TSi
1989 Ford Probe GT
1989 Mazda 626 Turbo
1989 Mazda MX-6 GT
1989 Mazda MX-6 GT 4WS
1989 Mazda RX-7 Turbo
1989 Mitsubishi Starion ESi-R
1990 Ford Probe GT
1990 Mazda 626 GT
1990 Mazda MX-6 GT
1990 Mazda MX-6 GT 4WS
1990 Mazda RX-7 Turbo
1991 Ford Probe GT
1991 Mazda 626 GT
1991 Mazda MX-6 GT
1991 Mazda RX-7 Turbo
1992 Ford Probe GT
1992 Mazda MX-6 GT

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
