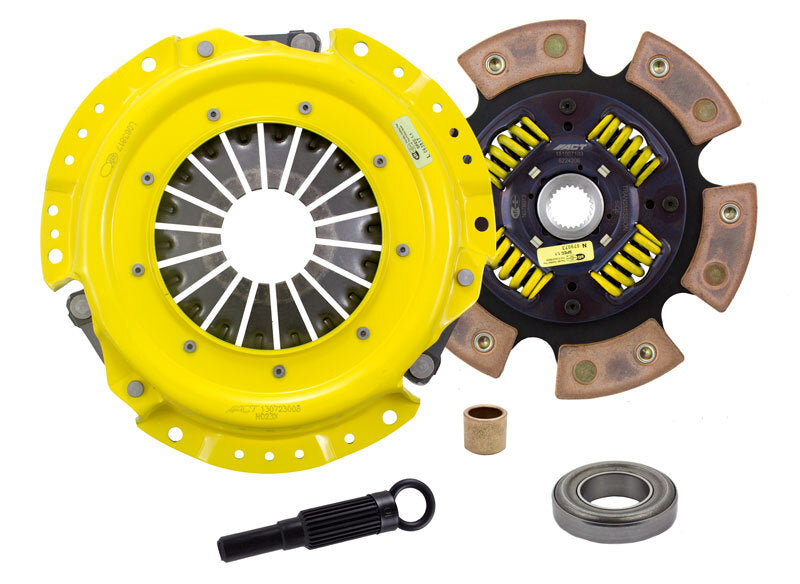

ACT NX1-XTG6 XT/Race Sprung 6-Pad Clutch Kit for Select Nissan Applications

NX1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. XT/Race Sprung 6 Pad Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

• "Excellence in Performance", backed by the best one-year warranty in the industry!

The ACT NX1-XTG6 XT/Race Sprung 6-Pad Clutch Kit is engineered for high-horsepower street and race vehicles that require increased clamping force, reliable heat management, and fast shifting. The kit combines an ACT Xtreme pressure plate with a 6-pad spring-centered race disc for aggressive engagement and dependable performance under demanding driving conditions. It is designed for drivers who need more capability than a conventional replacement clutch while retaining torsional vibration damping through the sprung-center disc.

ACT Xtreme pressure plates use an exclusive diaphragm design to increase clamp load, reduce deflection, and help maximize clutch life. Each diaphragm undergoes a four-stage heat-treating process, while precision cover stampings improve rigidity and consistency. The 6-pad race disc uses select ceramic friction materials for high heat tolerance and rapid engagement. Its spring retainers feature wraparound spring windows and thicker stampings to support the springs, reduce stress concentrations, and improve strength and reliability. Engagement is harsher than an organic street disc, with moderate to heavy pedal effort and possible mild gear rattle, but shifting response is faster.

The NX1-XTG6 is carefully engineered, precisely assembled, accurately balanced, and 100% clamp-load tested. Dynamic computer balancing supports smooth, reliable operation at high engine speeds. The spring-centered disc helps damp torsional vibrations and resist failure during severe use, while the larger clutch-size application helps absorb additional heat. This kit is recommended for performance-oriented street cars and race vehicles where aggressive engagement, increased holding power, and repeatable operation are priorities. ACT backs its clutch products with a one-year warranty. Listed fitment includes select 1984–1986 Nissan 720 and 1995–1997 Nissan 240SX applications; verify the vehicle configuration before installation.

Features:

• Xtreme pressure plate: Increases clamp load and reduces diaphragm deflection for improved holding power and clutch durability.
• 6-pad spring-centered race disc: Provides aggressive engagement, faster shifting, and torsional vibration damping under harsh conditions.
• Heat-resistant ceramic friction material: Handles high temperatures and demanding street or race use with dependable performance.
• Precision-balanced construction: Includes 100% clamp-load testing and dynamic computer balancing for smooth high-RPM reliability.

Fitments:
1975 Nissan 280Z Base
1975 Nissan 620 Base
1976 Nissan 280Z Base
1976 Nissan 620 Base
1977 Nissan 280Z Base
1977 Nissan 620 Base
1978 Nissan 280Z Base
1978 Nissan 620 Base
1979 Nissan 280ZX Base
1979 Nissan 620 Base
1980 Nissan 280ZX Base
1980 Nissan 280ZX GL
1980 Nissan 720 Base
1980 Nissan 720 Deluxe
1981 Nissan 280ZX Base
1981 Nissan 280ZX GL
1981 Nissan 720 Base
1981 Nissan 720 Deluxe
1982 Nissan 280ZX Base
1982 Nissan 720 Base
1982 Nissan 720 Deluxe
1982 Nissan Maxima GL
1983 Nissan 280ZX Base
1983 Nissan 720 Base
1983 Nissan 720 Deluxe
1983 Nissan Maxima GL
1984 Nissan 720 Deluxe
1984 Nissan Maxima GL
1985 Nissan 720 Deluxe
1986 Nissan 720 Deluxe
1989 Nissan 240SX SE
1989 Nissan 240SX XE
1990 Nissan 240SX SE
1990 Nissan 240SX XE
1990 Nissan Axxess SE
1990 Nissan Axxess XE
1995 Nissan 240SX Base
1995 Nissan 240SX SE
1996 Nissan 240SX Base
1996 Nissan 240SX SE
1997 Nissan 240SX Base
1997 Nissan 240SX LE
1997 Nissan 240SX SE
1998 Nissan 240SX Base
1998 Nissan 240SX LE
1998 Nissan 240SX SE

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: false
Units Per Sku: 1
