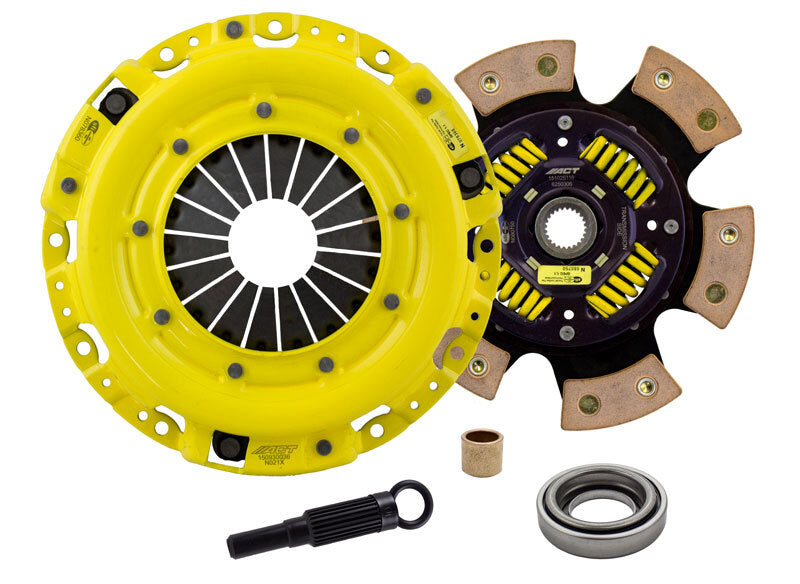

ACT NZ1-XTG6 XT/Race Sprung 6-Pad Clutch Kit for Nissan 350Z

NZ1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. XT/Race Sprung 6 Pad Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

• "Excellence in Performance", backed by the best one-year warranty in the industry!

The ACT NZ1-XTG6 XT/Race Sprung 6-Pad Clutch Kit is engineered for high-horsepower street and race applications that demand strong clamping force, reliable heat management, and fast shifting. This kit combines an ACT Xtreme pressure plate with a spring-centered, 6-pad ceramic race disc for aggressive engagement and consistent performance under demanding driving conditions.

The ACT Xtreme pressure plate uses an exclusive diaphragm design to increase clamp load, reduce deflection, and help maximize clutch life. Each diaphragm undergoes a four-stage heat-treating process for enhanced durability, while precision cover stampings provide rigidity and consistency. The pressure plate is 100% clamp-load tested and dynamically computer balanced to support smooth, dependable operation at high engine speeds.

The included XT/Race sprung 6-pad disc uses spring-centered construction to damp torsional vibrations and help resist failure under harsh conditions. Reinforced spring retainers with wraparound spring windows and thicker stampings improve spring support, reduce stress concentrations, and increase reliability. The ceramic friction material offers high heat tolerance and maximum performance, while the larger clutch design helps absorb additional heat. Engagement is intentionally harsher than an organic street clutch, with moderate to heavy pedal effort, faster shifting, and OE to mild gear rattle possible. The kit fits the 2003-2006 Nissan 350Z applications listed by ACT. It includes ACT's one-year manufacturer's warranty and is not CARB approved.

What's Included

• ACT Xtreme pressure plate
• XT/Race sprung 6-pad ceramic clutch disc
• ACT one-year manufacturer's warranty

Key Product Specifications and Technical Data

• Brand: ACT
• Part Number: NZ1-XTG6
• Clutch Type: XT/Race sprung 6-pad
• Disc Construction: Spring-centered race disc
• Friction Material: Select ceramic
• Performance Level: High-horsepower street and race use
• Engagement: Aggressive with moderate to heavy pedal effort
• Testing: 100% clamp-load tested and dynamically computer balanced

Features:

• High-Clamp Xtreme Pressure Plate: ACT's exclusive diaphragm design increases clamp load, reduces deflection, and supports extended clutch life.
• Aggressive 6-Pad Ceramic Disc: Select ceramic friction material delivers high heat tolerance, rapid shifting, and strong performance for demanding applications.
• Spring-Centered Race Construction: Damps torsional vibrations and helps resist failure during harsh street or competition use.
• Reinforced Spring Retainers: Wraparound spring windows and thicker stampings improve spring support, reduce stress concentrations, and increase reliability.

Fitments:
2003 Infiniti G35 Base
2003 Nissan 350Z Base
2003 Nissan 350Z Enthusiast
2003 Nissan 350Z Performance
2003 Nissan 350Z Touring
2003 Nissan 350Z Track
2004 Infiniti G35 Base
2004 Nissan 350Z Base
2004 Nissan 350Z Enthusiast
2004 Nissan 350Z Performance
2004 Nissan 350Z Touring
2004 Nissan 350Z Track
2005 Infiniti G35 Base
2005 Nissan 350Z 35th Anniversary Edition
2005 Nissan 350Z Base
2005 Nissan 350Z Enthusiast
2005 Nissan 350Z Grand Touring
2005 Nissan 350Z Performance
2005 Nissan 350Z Touring
2005 Nissan 350Z Track
2006 Infiniti G35 Base
2006 Nissan 350Z Base
2006 Nissan 350Z Enthusiast
2006 Nissan 350Z Grand Touring
2006 Nissan 350Z Touring
2006 Nissan 350Z Track

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
