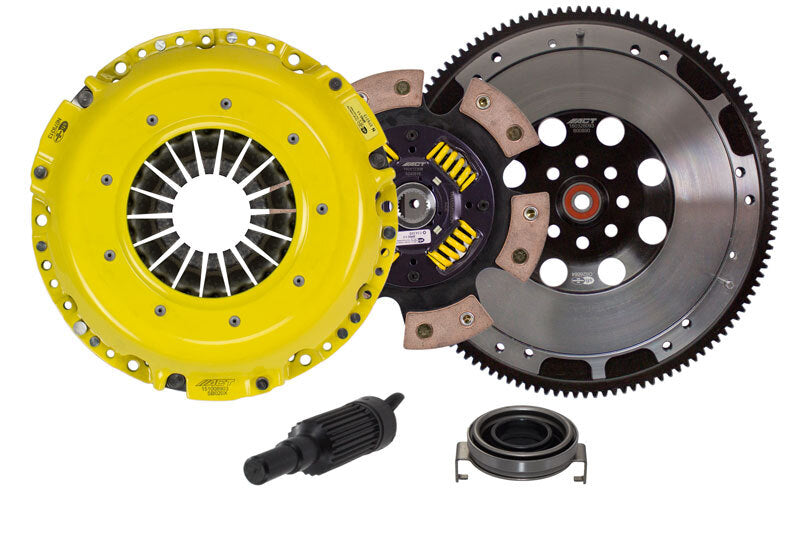

ACT SB11-XTG6 XT/Race Sprung 6-Pad Clutch Kit for Subaru Impreza and Legacy

SB11-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. XT/Race Sprung 6 Pad Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

• "Excellence in Performance", backed by the best one-year warranty in the industry!

The ACT SB11-XTG6 XT/Race Sprung 6-Pad Clutch Kit is engineered for high-horsepower street and race applications that demand strong clamping force, rapid shifting, and dependable operation under harsh conditions. This automotive clutch kit combines an ACT Xtreme pressure plate with a spring-centered 6-pad race disc to deliver aggressive engagement and high heat tolerance. It is suited for drivers who prioritize performance and durability over smooth, stock-style clutch operation.

The ACT Xtreme pressure plate uses an exclusive diaphragm design to increase clamp load, reduce deflection, and help maximize clutch life. Each diaphragm undergoes a four-stage heat-treating process for consistent performance, while precision cover stampings improve rigidity and stability. The pressure plate is 100% clamp-load tested and dynamically computer balanced for smooth reliability at high RPM.

The spring-centered 6-pad race disc is designed to absorb significant heat while maintaining dependable power transfer. Its spring-center construction helps damp torsional vibrations and resist failure during demanding use. Reinforced spring retainers with wraparound spring windows and thicker stampings provide improved spring support, reduce stress concentrations, and increase strength. Engagement is harsher than an OEM clutch, with moderate to heavy pedal effort, faster shifting, and possible mild gear rattle. The ACT SB11-XTG6 includes select ceramic friction materials and is backed by ACT's one-year warranty.

Fitment includes select 2005–2009 Subaru Legacy and 2006–2007 Subaru Impreza applications. Verify the vehicle year, model, engine, transmission, and existing clutch specifications before ordering.

Features:

• Xtreme Pressure Plate: Increases clamp load, reduces diaphragm deflection, and supports extended clutch life under demanding conditions.
• Spring-Centered 6-Pad Race Disc: Dampens torsional vibrations while providing aggressive engagement and rapid shifting performance.
• High-Heat Ceramic Friction Material: Provides strong friction performance and heat tolerance for high-horsepower street and race use.
• Precision Balanced Construction: Uses carefully engineered, accurately assembled components that are clamp-load tested and dynamically balanced for high-RPM reliability.

Fitments:
2005 Subaru Legacy GT
2005 Subaru Legacy GT Limited
2005 Subaru Outback XT
2005 Subaru Outback XT Limited
2006 Subaru Baja Turbo
2006 Subaru Forester XT Limited
2006 Subaru Impreza WRX
2006 Subaru Impreza WRX Limited
2006 Subaru Impreza WRX TR
2006 Subaru Legacy GT
2006 Subaru Legacy GT spec.B
2006 Subaru Outback XT
2006 Subaru Outback XT Limited
2007 Subaru Forester XT Limited
2007 Subaru Impreza WRX
2007 Subaru Impreza WRX Limited
2007 Subaru Impreza WRX TR
2007 Subaru Legacy GT Limited
2007 Subaru Legacy GT spec.B
2007 Subaru Outback XT Limited
2008 Subaru Forester Sports 2.5 XT
2008 Subaru Forester XT Limited
2008 Subaru Impreza WRX
2008 Subaru Legacy GT Limited
2008 Subaru Legacy GT spec.B
2008 Subaru Outback XT Limited
2009 Subaru Impreza WRX
2009 Subaru Impreza WRX Premium
2009 Subaru Legacy GT Limited
2009 Subaru Legacy GT spec.B
2009 Subaru Outback XT Limited
2010 Subaru Impreza WRX
2010 Subaru Impreza WRX Limited
2010 Subaru Impreza WRX Premium
2011 Subaru Impreza WRX
2011 Subaru Impreza WRX Limited
2011 Subaru Impreza WRX Premium
2012 Subaru Impreza WRX
2012 Subaru Impreza WRX Limited
2012 Subaru Impreza WRX Premium
2013 Subaru Impreza WRX
2013 Subaru Impreza WRX Limited
2013 Subaru Impreza WRX Premium
2014 Subaru Impreza WRX
2014 Subaru Impreza WRX Limited
2014 Subaru Impreza WRX Premium
2015 Subaru WRX Base
2015 Subaru WRX Limited
2015 Subaru WRX Premium
2016 Subaru WRX Base
2016 Subaru WRX Limited
2016 Subaru WRX Premium
2017 Subaru WRX Base
2017 Subaru WRX Limited
2017 Subaru WRX Premium
2018 Subaru WRX Base
2018 Subaru WRX Limited
2018 Subaru WRX Premium
2019 Subaru WRX Base
2019 Subaru WRX Limited
2019 Subaru WRX Premium
2020 Subaru WRX Base
2020 Subaru WRX Limited
2020 Subaru WRX Premium
2021 Subaru WRX Base
2021 Subaru WRX Limited
2021 Subaru WRX Premium
2022 Subaru WRX Base
2022 Subaru WRX Limited
2022 Subaru WRX Premium
2023 Subaru WRX Base
2023 Subaru WRX Limited
2023 Subaru WRX Premium
2024 Subaru WRX Base
2024 Subaru WRX Limited
2024 Subaru WRX Premium
2024 Subaru WRX TR
2025 Subaru WRX Limited
2025 Subaru WRX Premium
2025 Subaru WRX TS
2026 Subaru WRX Limited
2026 Subaru WRX Premium
2026 Subaru WRX Series.Yellow
2026 Subaru WRX TS

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
