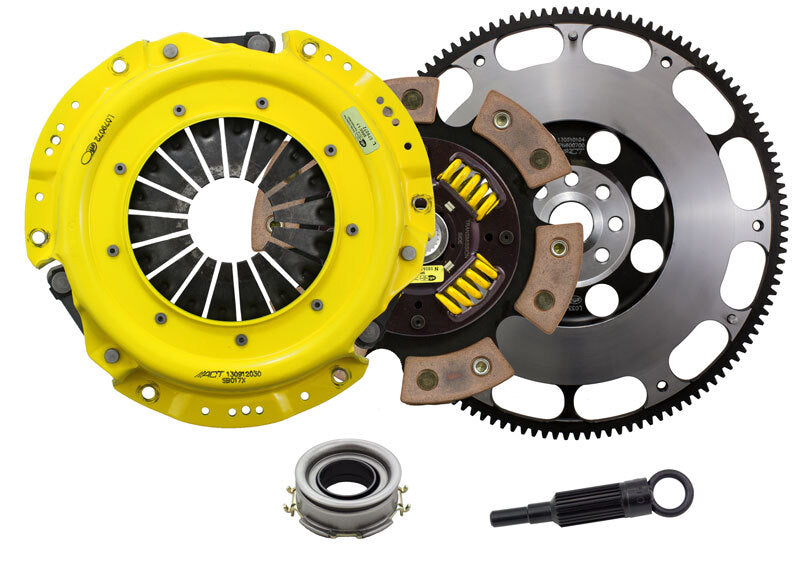

ACT SB8-XTG6 XT/Race Sprung 6-Pad Clutch Kit for 2013-2015 Scion FR-S and Subaru BRZ

SB8-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. XT/Race Sprung 6 Pad Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

• "Excellence in Performance", backed by the best one-year warranty in the industry!

The ACT SB8-XTG6 clutch kit is engineered for high-horsepower street and race applications that demand strong engagement, fast shifting, and reliable performance under severe conditions. This kit combines an ACT Xtreme pressure plate with a 6-pad spring-centered race disc that uses select ceramic friction materials for high heat tolerance and consistent power transfer.

The Xtreme pressure plate features ACT’s exclusive diaphragm design to increase clamp load, reduce deflection, and help extend clutch life. Each diaphragm undergoes a four-stage heat-treating process, while precision cover stampings improve rigidity and consistency. The included spring-centered disc helps damp torsional vibrations and resist failure during hard use. Its wraparound spring windows and thicker retainer stampings provide improved spring support, reduced stress concentrations, and increased durability.

The ACT SB8-XTG6 provides moderate to heavy pedal effort with aggressive engagement and may produce OE-level to mild gear rattle. The 6-pad design is recommended for larger clutch applications because it helps absorb more heat, although engagement is harsher than a conventional street disc. Every assembly is carefully engineered, precisely assembled, accurately balanced, 100% clamp-load tested, and dynamically computer balanced for smooth high-RPM reliability. This kit is designed to fit 2013-2015 Scion FR-S and Subaru BRZ applications, including the listed model-year configurations. ACT backs the product with a one-year warranty.

Features:

• Xtreme pressure plate: Increases clamp load, reduces diaphragm deflection, and supports extended clutch life.
• 6-pad spring-centered race disc: Provides aggressive engagement, rapid shifting, torsional vibration damping, and resistance to failure under harsh conditions.
• High-temperature friction material: Uses select ceramic materials for heat tolerance and reliable performance in demanding street or race use.
• Precision-balanced construction: Features carefully engineered assembly, 100% clamp-load testing, and dynamic computer balancing for smooth high-RPM operation.

Fitments:
2013 Scion FR-S Base
2013 Subaru BRZ Limited
2013 Subaru BRZ Premium
2014 Scion FR-S Base
2014 Subaru BRZ Limited
2014 Subaru BRZ Premium
2015 Scion FR-S Base
2015 Subaru BRZ Limited
2015 Subaru BRZ Premium
2015 Subaru BRZ Series.Blue
2016 Scion FR-S Base
2016 Subaru BRZ Limited
2016 Subaru BRZ Premium
2016 Subaru BRZ Series.HyperBlue
2017 Subaru BRZ Limited
2017 Subaru BRZ Premium
2017 Subaru BRZ Series.Yellow
2017 Toyota 86 Base
2017 Toyota 86 Special Edition
2018 Subaru BRZ Limited
2018 Subaru BRZ Premium
2018 Subaru BRZ TS
2018 Toyota 86 Base
2018 Toyota 86 GT
2019 Subaru BRZ Limited
2019 Subaru BRZ Premium
2019 Subaru BRZ Series.Gray
2019 Toyota 86 Base
2019 Toyota 86 GT
2019 Toyota 86 TRD Special Edition
2020 Subaru BRZ Limited
2020 Subaru BRZ TS
2020 Toyota 86 Base
2020 Toyota 86 GT
2020 Toyota 86 Hakone Edition

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
