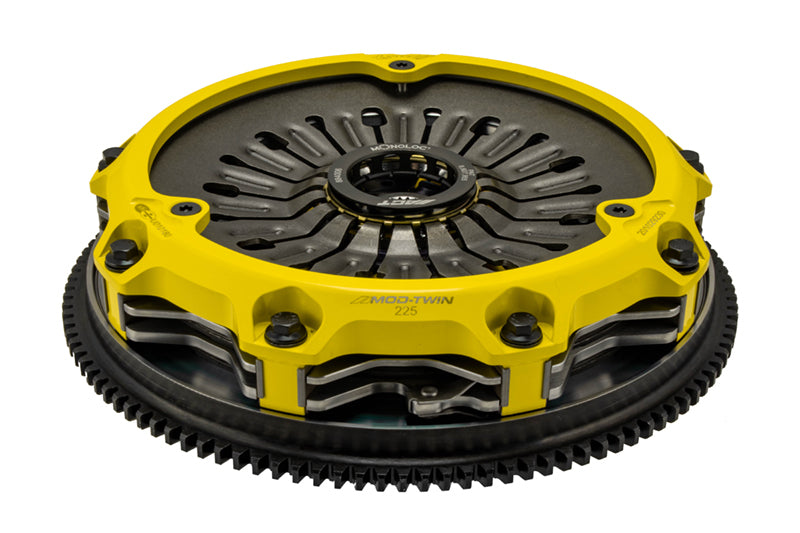

ACT T1S-M05 Mod-Twin 225 HD Sprung Street Clutch Kit for Mitsubishi Lancer Evolution X 5-Speed

T1S-M05 Mod-Twin 225 HD Sprung Street Kit is designed for high powered AWD street cars. It unites uncompromised pedal feel, durability, engagement quality with very high torque capacity by combining twice the organic friction surfaces with an ultra-durable spring center Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to the Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately. Mod-Twin 225 HD Sprung Street Soft progressive engagement, light pedal effort, smooth shifting with OE to mild transmission gear noise; Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions; Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances; Street or Street/Strip; Applying tactical engineering to the Mod-Twin, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified

• "Excellence in Performance", backed by the best one-year warranty in the industry!

The ACT T1S-M05 Mod-Twin 225 HD Sprung Street Kit is engineered for high-powered, all-wheel-drive Mitsubishi Lancer Evolution X street cars equipped with a 5-speed transmission. With a torque capacity of up to 700 ft-lbs, this twin-disc clutch combines strong power handling with smooth, street-friendly operation. Its modular design delivers confident engagement, consistent pedal feel, and long service life for demanding street and street/strip applications.

The kit uses two organic friction surfaces with steel-backed friction plates to provide stable friction characteristics, strong heat capacity, and controlled engagement. An exclusive four-stage heat-treated diaphragm spring helps maintain a light, consistent pedal effort, while the sprung Mono-Drive hub assembly reduces driveline shock and torsional vibration to help protect the transmission input shaft. The forged aluminum cover, hardened wear points, precision components, and close manufacturing tolerances support reliable performance under high loads.

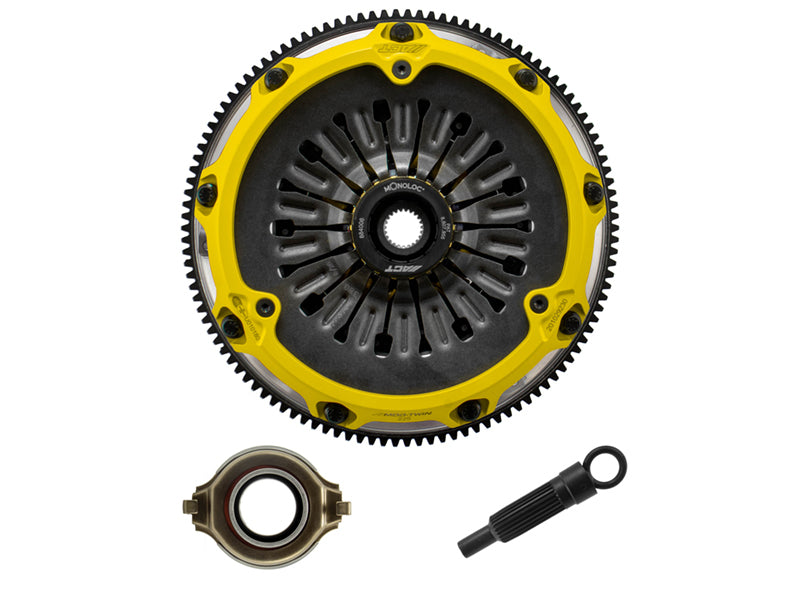

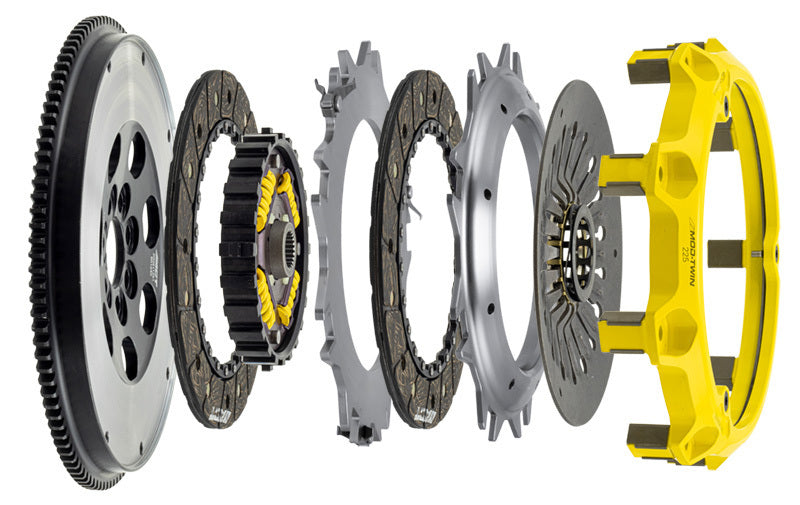

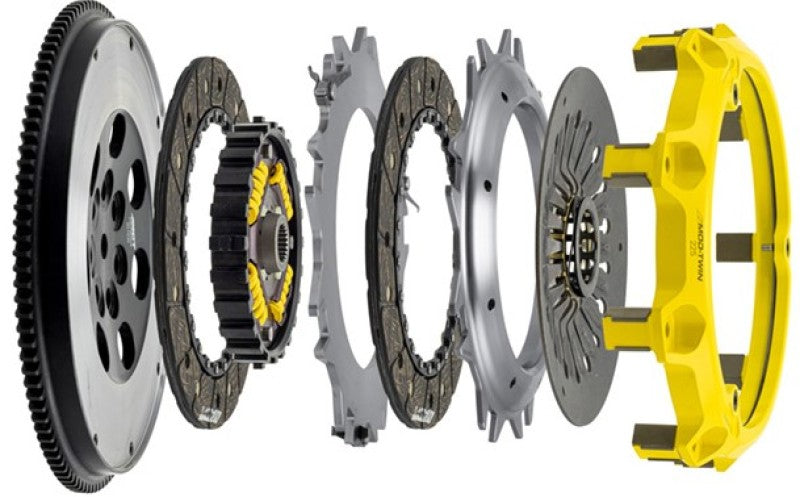

ACT includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, ceramic puck-style friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool, and pilot bearing when required. The clutch is fully rebuildable, with many components available separately for easier long-term service. Each assembly is clamp-load tested, dynamically balanced, and SFI certified. Fitment includes select 2008 and 2010–2015 Mitsubishi Lancer Evolution applications with a 5-speed transmission; verify vehicle configuration before ordering.

• “Excellence in Performance,” backed by ACT’s limited one-year warranty.

Features:

• High Torque Capacity: Supports up to 700 ft-lbs of torque for high-powered AWD street and street/strip applications.
• Sprung Mono-Drive Hub: Helps reduce driveline shock and torsional vibration while supporting input shaft durability.
• Smooth Street Engagement: Organic friction materials and a progressive design provide controlled engagement, light pedal effort, and smooth shifting.
• Durable Modular Construction: Forged aluminum cover, heat-treated diaphragm spring, hardened wear points, rebuildable components, and balanced assemblies provide dependable long-term performance.

Fitments:
2008 Mitsubishi Lancer Evolution GSR
2010 Mitsubishi Lancer Evolution GSR
2011 Mitsubishi Lancer Evolution GSR
2012 Mitsubishi Lancer Evolution GSR
2013 Mitsubishi Lancer Evolution GSR
2014 Mitsubishi Lancer Evolution GSR
2015 Mitsubishi Lancer Evolution Final Edition
2015 Mitsubishi Lancer Evolution GSR
