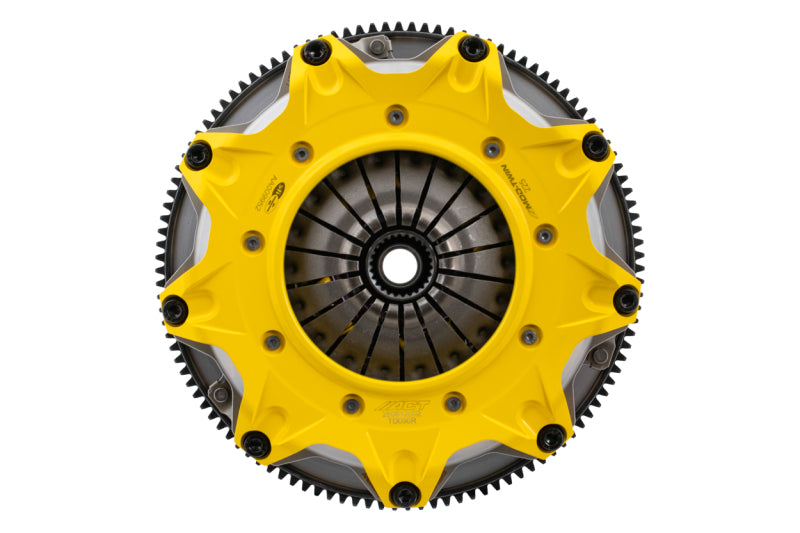

ACT T1SS-B01 Mod-Twin 225 HD Sprung Street Twin Disc Clutch Kit for BMW 3.0L Turbo

T1SS-B01 Mod-Twin 225 HD Sprung Street Kit is designed for high powered AWD street cars. It unites uncompromised pedal feel, durability, engagement quality with very high torque capacity by combining twice the organic friction surfaces with an ultra-durable spring center Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to the Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately. Mod-Twin 225 HD Sprung Street Soft progressive engagement, light pedal effort, smooth shifting with mild to moderate transmission gear noise; Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions; Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances; Street or Street/Strip; Applying tactical engineering to the MOD-TWIN, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified

• "Excellence in Performance", backed by the best one-year warranty in the industry!

The ACT T1SS-B01 Mod-Twin 225 HD Sprung Street Kit is engineered for high-powered BMW AWD street cars using the 3.0L turbocharged N54 or N55 engine. This twin-disc clutch system combines high torque capacity, refined engagement, durable construction, and consistent pedal feel in a fully modular, serviceable design. Its dual organic friction surfaces provide smooth street manners while supporting demanding performance applications.

Each diaphragm spring receives ACT's exclusive four-stage heat-treating process to maintain consistent clamp load and light pedal effort. Steel-backed friction plates use premium organic friction material for stable friction performance, reliable heat capacity, and extended clutch life. The friction plates transfer torque through ACT's sprung Mono-Drive hub assembly, which helps protect the transmission input shaft and reduce driveline shock caused by torsional vibration. The system is designed for soft, progressive engagement, smooth shifting, and mild to moderate transmission gear noise.

The kit includes a CNC-machined and dynamically balanced flywheel, forged aluminum pressure plate cover, diaphragm spring, organic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool, and pilot bearing when required. ACT Mod-Twin components are fully rebuildable, and individual service components can be ordered separately. Every unit is clamp-load tested, balanced, and SFI certified, and is supported by ACT's one-year warranty. This clutch fits select 2010–2011 BMW applications equipped with the N54 or N55 3.0L turbo engine, including the 135i, 335i, 335i xDrive, 335is, 535i, and Z4.

Product Specifications and Technical Data

• Brand: ACT
• Part Number: T1SS-B01
• Clutch Type: Twin-disc sprung street clutch
• Application: High-powered street and street/strip vehicles
• Friction Material: Premium organic friction plates
• Hub Design: Sprung Mono-Drive hub assembly
• Flywheel: CNC-machined and dynamically balanced
• Certification: SFI certified and 100% clamp-load tested

What's Included

• CNC-machined balanced flywheel
• Pressure plate cover and diaphragm spring
• Organic friction plates and floater
• Sprung Mono-Drive hub assembly
• Monoloc Collar
• Release bearing
• Alignment tool
• Pilot bearing, when required

Features:

• High Torque Capacity: Twin organic friction surfaces and a robust modular design support high-powered street and street/strip applications.
• Light Pedal Effort: ACT's four-stage heat-treated diaphragm spring provides consistent clamp load and a comfortable pedal feel.
• Smooth Street Engagement: Progressive organic friction material delivers controlled engagement, smooth shifting, and mild to moderate transmission gear noise.
• Sprung Mono-Drive Hub: Helps extend transmission input shaft life while reducing driveline shock from torsional vibration.

Fitments:
2009 BMW 135i Base
2009 BMW 335i Base
2009 BMW 335i xDrive Base
2009 BMW 535i Base
2009 BMW 535i xDrive Base
2009 BMW Z4 sDrive35i
2010 BMW 135i Base
2010 BMW 335i Base
2010 BMW 335i xDrive Base
2010 BMW 535i Base
2010 BMW 535i xDrive Base
2010 BMW Z4 sDrive35i
2011 BMW 135i Base
2011 BMW 335i Base
2011 BMW 335i xDrive Base
2011 BMW 335is Base
2011 BMW 535i Base
2011 BMW Z4 sDrive35i
2012 BMW 135i Base
2012 BMW 335i Base
2012 BMW 335i xDrive Base
2012 BMW 335is Base
2012 BMW 535i Base
2012 BMW Z4 sDrive35i
2013 BMW 135i Base
2013 BMW 335i Base
2013 BMW 335i xDrive Base
2013 BMW 335is Base
2013 BMW 535i Base
2013 BMW Z4 sDrive35i
2014 BMW 335i Base
2014 BMW 335i xDrive Base
2014 BMW 435i Base
2014 BMW 435i xDrive Base
2014 BMW 535i Base
2014 BMW M235i Base
2014 BMW Z4 sDrive35i
2015 BMW 335i Base
2015 BMW 335i xDrive Base
2015 BMW 435i Base
2015 BMW 435i xDrive Base
2015 BMW 535i Base
2015 BMW M235i Base
2015 BMW Z4 sDrive35i
2016 BMW 435i Base
2016 BMW 435i xDrive Base
2016 BMW 535i Base
2016 BMW M235i Base
2016 BMW Z4 sDrive35i
