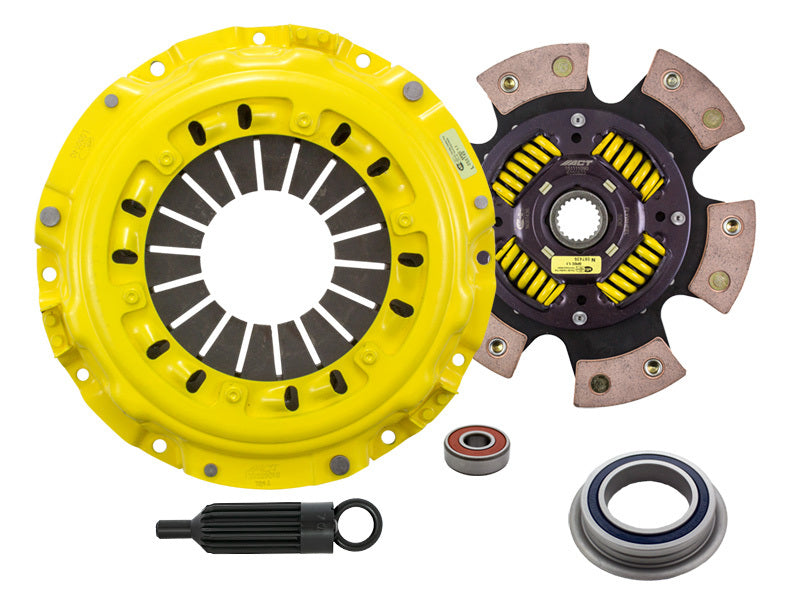

ACT TS4-HDG6 Heavy Duty 6-Pad Sprung Race Clutch Kit for 1993-1998 Toyota Supra

TS4-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat. HD/Race Sprung 6 Pad Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

• "Excellence in Performance", backed by the best one-year warranty in the industry!

The ACT TS4-HDG6 Heavy Duty clutch kit is engineered for high-horsepower street and race applications in 1993-1998 Toyota Supra models. This kit combines ACT’s Heavy Duty pressure plate with a 6-pad, spring-centered race disc to deliver increased clamping force, faster shifting, and reliable performance under demanding conditions. The spring-centered design helps damp torsional vibrations while resisting failure during aggressive use.

ACT Heavy Duty pressure plates feature an exclusive diaphragm design that increases clamp load, reduces deflection, and helps maximize clutch life. Each diaphragm undergoes a four-stage heat-treating process, while precision cover stampings provide improved rigidity and consistency. The pressure plate is 100% clamp-load tested and dynamically computer balanced for smooth, high-RPM reliability.

The 6-pad ceramic friction disc provides high heat tolerance and strong power-handling capability. Its engagement is more aggressive than an organic-style disc, supporting faster shifts with light to moderate pedal effort and possible mild gear rattle. Reinforced spring retainers use wraparound spring windows and thicker stampings to improve spring support, reduce stress concentrations, and enhance durability. The disc is recommended for larger clutch applications where additional heat absorption is needed.

Key Features and Performance Benefits

• Feature: Heavy Duty pressure plate increases clamp load and reduces deflection for dependable power transfer.
• Feature: 6-pad, spring-centered race disc provides aggressive engagement, faster shifting, and torsional vibration damping.
• Feature: Select ceramic friction materials deliver high heat tolerance for high-performance street and race use.
• Feature: Heat-treated diaphragm, reinforced spring retainers, precision assembly, and dynamic balancing support long-term reliability.

Key Product Specifications and Technical Data

• Brand: ACT
• Part Number: TS4-HDG6
• Clutch Type: Heavy Duty and race clutch kit
• Disc Design: 6-pad, spring-centered race disc
• Friction Material: Select ceramic
• Pedal Effort: Light to moderate
• Recommended Use: High-horsepower street or race applications
• Balancing: Dynamically computer balanced and 100% clamp-load tested

What’s Included

• ACT Heavy Duty pressure plate
• ACT 6-pad, spring-centered race disc
• Clutch kit components supplied by the manufacturer

Fitment: Fits 1993, 1994, 1995, 1996, 1997, and 1998 Toyota Supra models. ACT backs this performance clutch kit with a one-year warranty.

Fitments:
1993 Toyota Supra Twin Turbo
1994 Toyota Supra Twin Turbo
1995 Toyota Supra Twin Turbo
1996 Toyota Supra Twin Turbo
1997 Toyota Supra Twin Turbo
1998 Toyota Supra Twin Turbo

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Clearance Item: t
Regular Stock: false
Units Per Sku: 1
