ACT ZX6-XTG6 XT-M/Race Sprung 6-Pad Clutch Kit for 1993-1995 Mazda RX-7

ZX6-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service. XT-M/Race Sprung 6 Pad Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle, confidence during hard shifts; Moderate friction life, extended by ACT's exclusive diaphragm design, dramatic improvement in release mechanism life; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance, major improvement in release mechanism; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc

• "Excellence in Performance", backed by the best one-year warranty in the industry!

The ACT ZX6-XTG6 XT-M/Race Sprung 6-Pad Clutch Kit is engineered for high-horsepower street and race applications requiring fast shifting, reliable engagement, and improved heat tolerance. This kit combines an ACT Xtreme pressure plate, XT-M/Race sprung 6-pad ceramic disc, and patented Monoloc release-bearing collar system to deliver dependable performance under demanding driving conditions.

The Xtreme pressure plate uses an exclusive diaphragm design to increase clamp load, reduce deflection, and help maximize clutch life. Each diaphragm undergoes a four-stage heat-treating process, while precision cover stampings provide consistent rigidity. The spring-centered 6-pad race disc helps damp torsional vibrations and resist failure during aggressive use. Its ceramic friction material delivers high-heat performance, although engagement is harsher than an organic disc and may produce mild gear rattle.

ACT spring retainers feature wraparound spring windows and thicker stampings to support the springs, reduce stress concentrations, and improve reliability. The included Monoloc is a one-piece replacement or upgrade for the standard two-piece wedge collar and wire ring used with pull-type clutches. Its hardened chrome-moly steel construction and carefully calculated segmented retaining ring provide uniform bearing and pressure plate loading for proper alignment. The kit is 100% clamp-load tested and dynamically computer balanced for smooth, high-RPM operation. It fits select 1993-1995 Mazda RX-7 applications; verify exact vehicle configuration before ordering. Backed by ACT's one-year warranty.

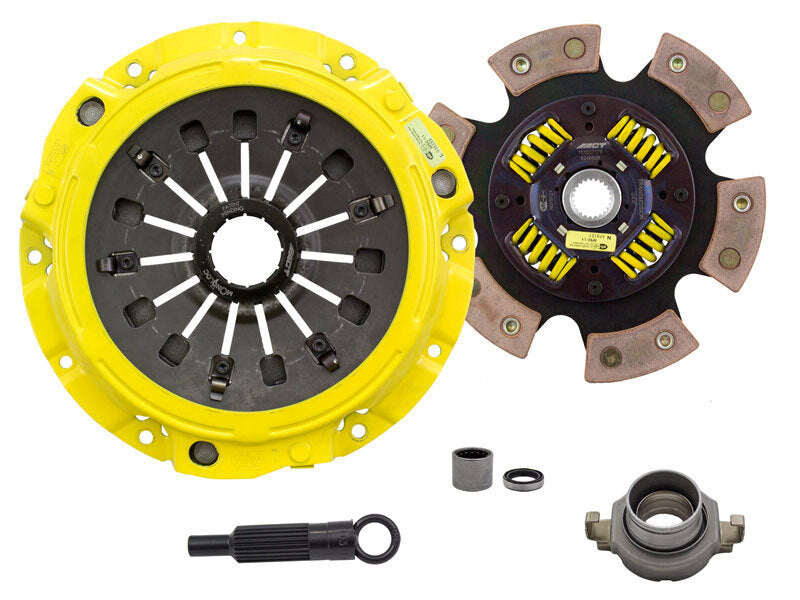

What's Included: Xtreme pressure plate, XT-M/Race sprung 6-pad race disc, Monoloc release-bearing collar, and installation components supplied by ACT.

Features:

• Xtreme pressure plate: Increases clamp load, reduces diaphragm deflection, and helps extend clutch service life.
• Sprung 6-pad race disc: Uses ceramic friction material and spring-centered construction for aggressive engagement, fast shifting, and torsional vibration control.
• Reinforced spring retainers: Wraparound spring windows and thicker stampings improve spring support, strength, and reliability.
• Monoloc release system: Hardened chrome-moly steel construction provides uniform loading and reliable alignment in pull-type clutch applications.

Fitments:
1993 Mazda RX-7 Base
1993 Mazda RX-7 R1
1993 Mazda RX-7 Touring
1994 Mazda RX-7 Base
1994 Mazda RX-7 R2
1994 Mazda RX-7 Touring
1995 Mazda RX-7 Base
1995 Mazda RX-7 R2
1995 Mazda RX-7 Touring

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
