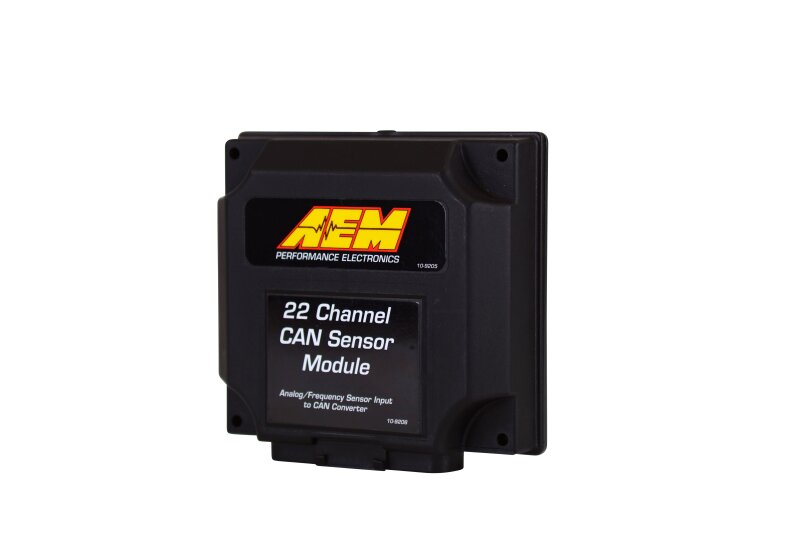

AEM 22-Channel CAN Sensor Module, Part Number 30-2212

AEM's 22 Channel CAN Sensor Module (PN 30-2212) converts analog, digital and frequency inputs into an AEMnet CAN bus signal that can be transmitted to the CD-5 Carbon and CD-7 Digital Dashes. This expansion module provides a way for users with carbureted vehicles to add a CD Dash, and lets users with existing CAN-based devices add more channels to the display for viewing and/or data logging (data logging requires CD-5L Carbon or CD-7L logging Dashes). The 22-Channel CAN Sensor Module is compatible with the CD Dashes only; it will run in parallel with 3rd party CAN devices on the CD dashes but it is currently not compatible with AEM's AQ-1 Data Logger, Series 2 or Infinity ECUs, or 3rd party ECUs or loggers. Multiple digital, analog, and frequency inputs

• Convert analog, digital and frequency-based inputs to AEMnet CAN bus for display on CD-5 Carbon and CD-7 Dashes!
• Ideal for EFI users who want to add more channels to a CD Dash without purchasing multiple CAN-based devices
• Six Digital Inputs, active low, protected to ~18v, frequency, duty cycle or simple switch
• Four User configurable analog inputs, (jumper selectable; 0-5v, thermistor, or RTD)
• Perfect for users with carbureted vehicles who want to add a CD Dash display
• Wiring harness included with 36-inch flying leads and pre-wired CAN cable
• Two VR pair frequency inputs (crank, wheel or drive shaft speeds)
• Daisy chain two Modules together for additional channels
• IP65-rated enclosure is 'dust tight' and water resistant
• One dedicated fuel level input (0 to 250 ohm range)
• Jumper selectable header length, 11bit or 29 bit
• Jumper selectable CAN bus speeds, 250k,500k,1M
• Jumper selectable terminating resistor
• Four Temperature (thermistor) inputs
• Four Dedicated 0-5V analog inputs
• One Tach Input

The AEM 22-Channel CAN Sensor Module, Part Number 30-2212, converts analog, digital, and frequency-based sensor inputs into an AEMnet CAN bus signal for display on compatible AEM CD-5 Carbon and CD-7 Digital Dashes. It is an effective expansion solution for carbureted vehicles being upgraded with a CD Dash, as well as EFI applications that need additional channels for display and data logging. Data logging requires a CD-5L Carbon or CD-7L logging dash.

The module includes multiple dedicated and configurable inputs for monitoring engine, vehicle, and chassis data. Six protected digital inputs support frequency, duty-cycle, or simple switch signals, while four jumper-selectable analog inputs can be configured for 0-5-volt, thermistor, or RTD sensors. Additional inputs include four dedicated temperature channels, four dedicated 0-5-volt channels, two VR frequency input pairs, one tachometer input, and one fuel-level input supporting a 0 to 250-ohm range. Two modules may be daisy-chained when additional channels are required.

Configuration options include selectable 11-bit or 29-bit CAN identifiers, 250 kbps, 500 kbps, or 1 Mbps CAN bus speeds, and a selectable terminating resistor. The IP65-rated enclosure is dust-tight and water resistant for demanding automotive environments. A wiring harness with 36-inch flying leads and a pre-wired CAN cable is included. The AEM 30-2212 is compatible with AEM CD Dashes only; it can operate in parallel with third-party CAN devices on those dashes, but it is not compatible with the AEM AQ-1 Data Logger, Series 2 or Infinity ECUs, or third-party ECUs and data loggers.

Fitment: Designed for automotive applications using compatible AEM CD-5 Carbon or CD-7 Digital Dashes. Verify dash compatibility, wiring requirements, and sensor types before installation. This product is not emissions-certified for road use where applicable.

Features:

• 22-channel CAN expansion: Converts analog, digital, and frequency inputs into AEMnet CAN data for compatible AEM CD Dashes.
• Flexible digital inputs: Six active-low, approximately 18-volt-protected inputs support frequency, duty-cycle, or switch signals.
• Configurable analog inputs: Four jumper-selectable inputs support 0-5-volt, thermistor, or RTD sensor configurations.
• Comprehensive sensor connectivity: Includes temperature, dedicated 0-5-volt, VR frequency, tachometer, and fuel-level inputs.
• CD Dash compatibility: Adds channels for viewing on AEM CD-5 Carbon and CD-7 Digital Dashes.
• Expanded data monitoring: Supports additional channels for EFI vehicles and provides a display solution for carbureted applications.
• Daisy-chain capability: Two modules can be connected together when more sensor channels are needed.
• Rugged installation package: IP65-rated enclosure includes a wiring harness with 36-inch flying leads and a pre-wired CAN cable.
• Selectable CAN configuration: Supports 11-bit or 29-bit identifiers, 250 kbps, 500 kbps, or 1 Mbps bus speeds, and a terminating resistor.
