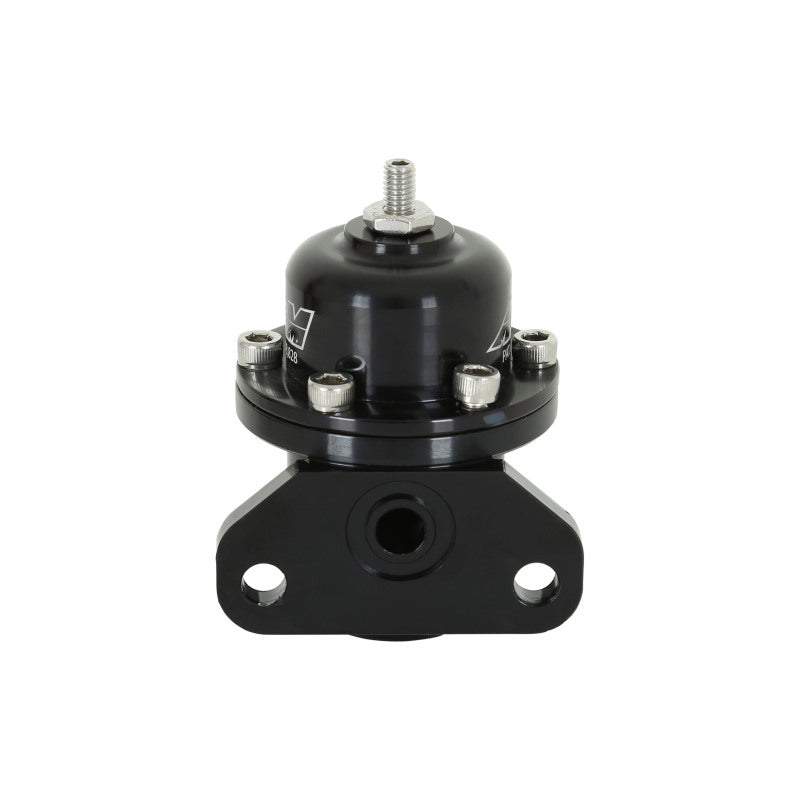

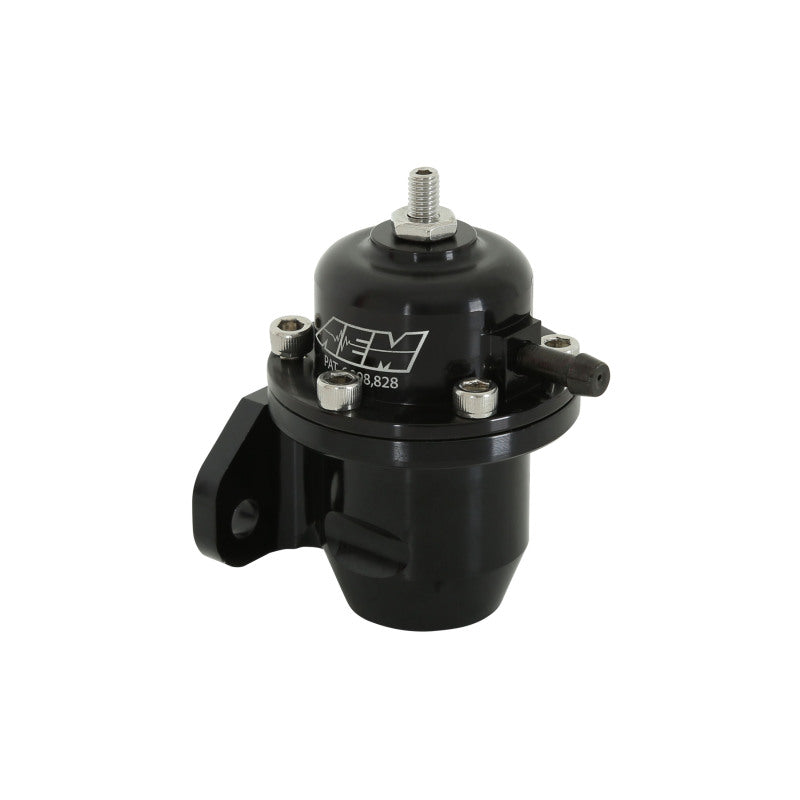

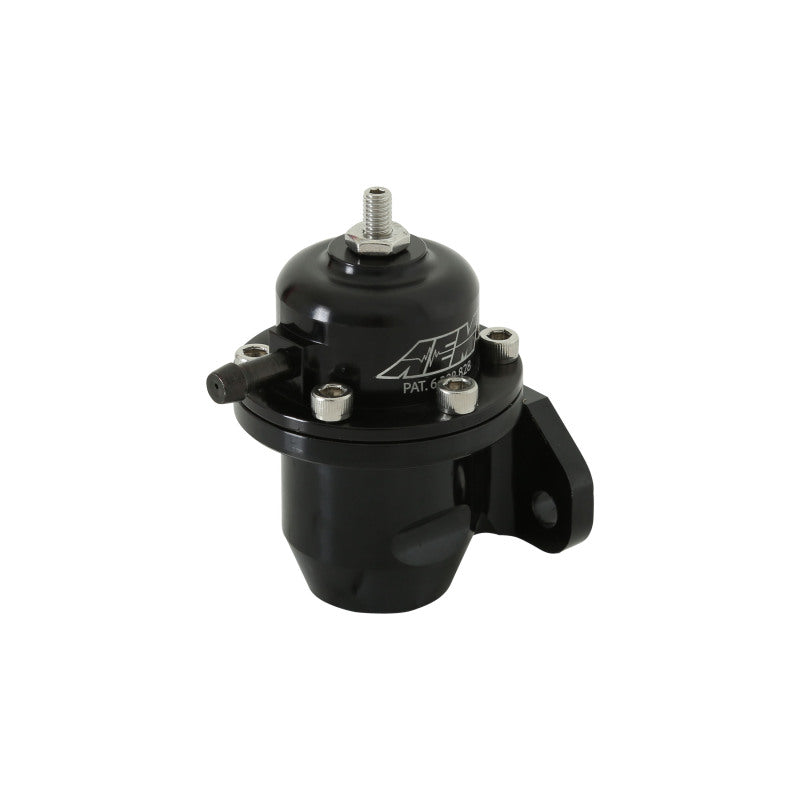

AEM 25-301BK Adjustable Fuel Pressure Regulator for Honda and Acura

AEM's Honda/Acura Adjustable Fuel Pressure Regulators are capable of supporting enough fuel flow for engines up to 1000 horsepower. Our patented interchangeable discharge ports enable the regulator's output to match the output of any fuel pump.A single large discharge orifice is included.AEM includes a custom barb fitting to accommodate the factory fuel hose and the base of each regulator is tapped to accept a -6 AN or 9/16"x18 fittings. Adjustable Fuel Pressure Regulator, Black Anodized, Acura and Honda Offset Flange with Straight Return Line Fitting

• Patented interchangeable discharge orifices match output of virtually any fuel pump (single large port included)
• Mounts directly to O.E. fuel rail or AEM High Volume Fuel Rail
• Adjustable from 20 psi to maximum fuel pump capacity
• Boost dependent rising fuel pressure rate (1:1)
• No additional parts required for installation
• CNC-machined from 6061-T6 billet aluminum
• Accept a -6 AN or 9/16"x18 fittings
• Patent # 6,298,828

The AEM 25-301BK Adjustable Fuel Pressure Regulator is designed for Honda and Acura fuel systems requiring precise fuel pressure control and increased fuel delivery capability. Its high-flow design supports engines producing up to 1,000 horsepower, making it a practical upgrade for performance applications using higher-capacity fuel pumps. The regulator features a black anodized finish and an offset flange with a straight return-line fitting for direct installation on compatible original equipment fuel rails or AEM High Volume Fuel Rails.

Fuel pressure is adjustable from 20 psi to the maximum capacity of the fuel pump, while the 1:1 boost-referenced rising-rate design helps maintain consistent fuel pressure under boost. AEM's patented interchangeable discharge-port system allows the regulator output to be matched to virtually any fuel pump. The included single large discharge orifice provides high-flow capability, and a custom barb fitting is included to accommodate the factory fuel hose. The regulator base accepts -6 AN or 9/16-inch x 18 fittings for flexible fuel-system configuration.

Constructed from CNC-machined 6061-T6 billet aluminum, the AEM 25-301BK is engineered for durability in demanding automotive applications. No additional parts are required for installation when used with the appropriate compatible fuel system. Fitment data includes select 1996-2000 Honda Civic, 2000 Honda CR-V, 1998-1999 Acura CL, and related Honda applications; verify the vehicle, fuel rail, and return-line configuration before ordering. This product is not CARB approved and may not be legal for use on pollution-controlled vehicles in certain areas. Patent number 6,298,828.

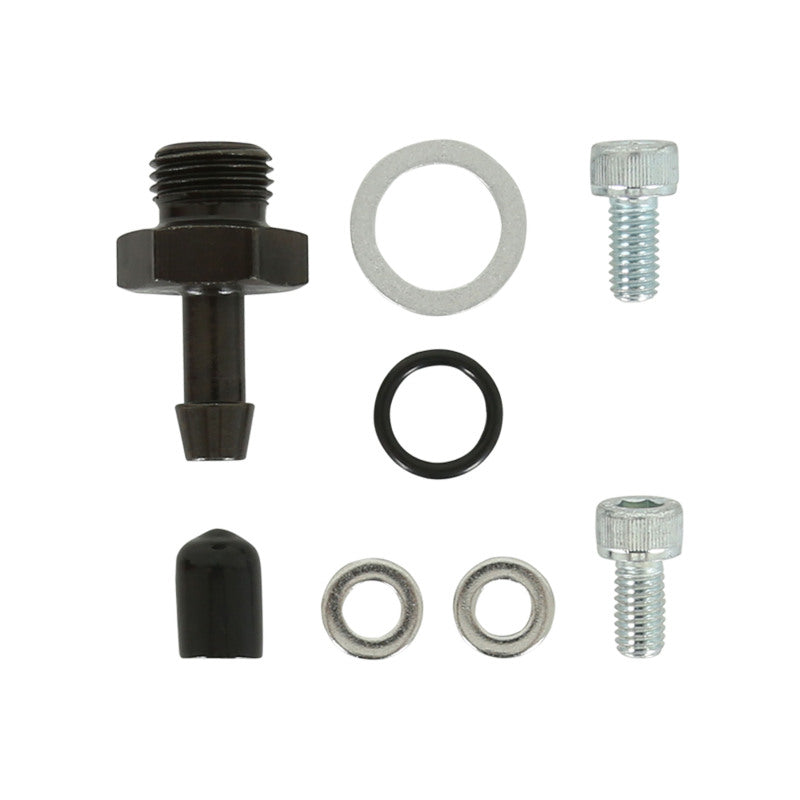

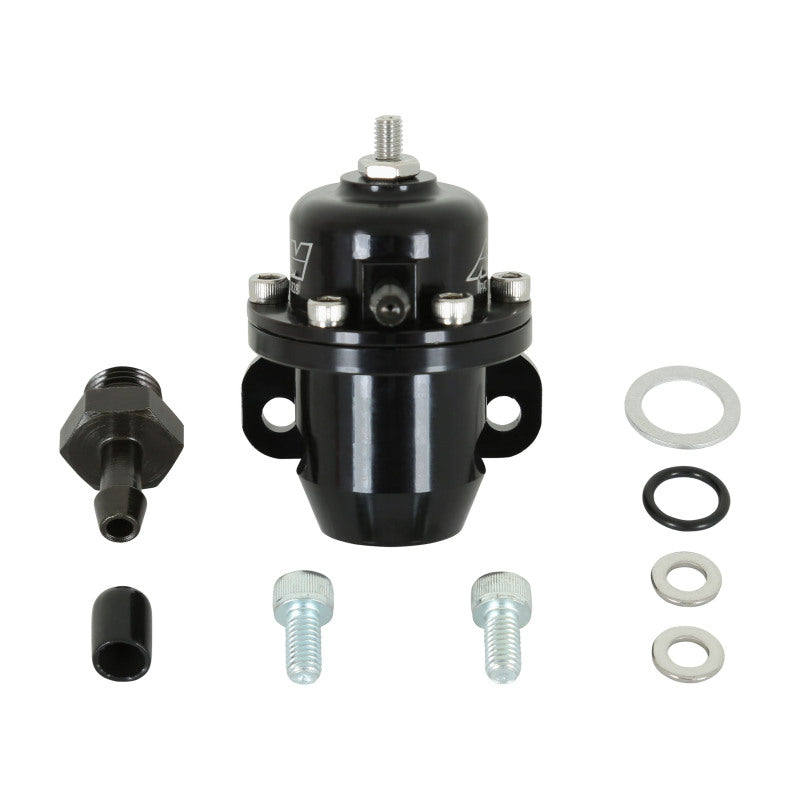

What's Included: AEM adjustable fuel pressure regulator, single large discharge orifice, and custom factory fuel-hose barb fitting.

Features:

• High-flow capability supports fuel systems for engines producing up to 1,000 horsepower
• Interchangeable discharge-port design matches regulator output to virtually any fuel pump
• Adjustable fuel pressure from 20 psi to maximum fuel-pump capacity
• 1:1 boost-referenced rising fuel pressure rate helps maintain consistent pressure under boost

Fitments:
1996 Honda Civic CX
1996 Honda Civic DX
1996 Honda Civic HX
1996 Honda Civic LX
1996 Honda Civic del Sol S
1997 Honda Civic CX
1997 Honda Civic DX
1997 Honda Civic HX
1997 Honda Civic LX
1997 Honda Civic del Sol S
1998 Acura CL Base
1998 Acura CL Premium
1998 Honda Accord DX
1998 Honda Accord EX
1998 Honda Accord LX
1998 Honda Civic CX
1998 Honda Civic DX
1998 Honda Civic HX
1998 Honda Civic LX
1999 Acura CL Premium
1999 Honda Accord DX
1999 Honda Accord EX
1999 Honda Accord LX
1999 Honda Civic CX
1999 Honda Civic DX
1999 Honda Civic HX
1999 Honda Civic LX
1999 Honda Civic Value Package
1999 Honda CR-V EX
1999 Honda CR-V LX
2000 Honda Accord DX
2000 Honda Accord EX
2000 Honda Accord LX
2000 Honda Accord SE
2000 Honda Civic CX
2000 Honda Civic DX
2000 Honda Civic HX
2000 Honda Civic LX
2000 Honda CR-V EX
2000 Honda CR-V LX
2000 Honda CR-V SE
2000 Honda S2000 Base
2001 Honda Accord DX
2001 Honda Accord EX
2001 Honda Accord LX
2001 Honda Accord Value Package
2001 Honda S2000 Base
2002 Honda Accord DX
2002 Honda Accord EX
2002 Honda Accord LX
2002 Honda Accord SE
2002 Honda Accord Value Package
2002 Honda S2000 Base
2003 Honda S2000 Base
2004 Honda S2000 Base
2005 Honda S2000 Base

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
