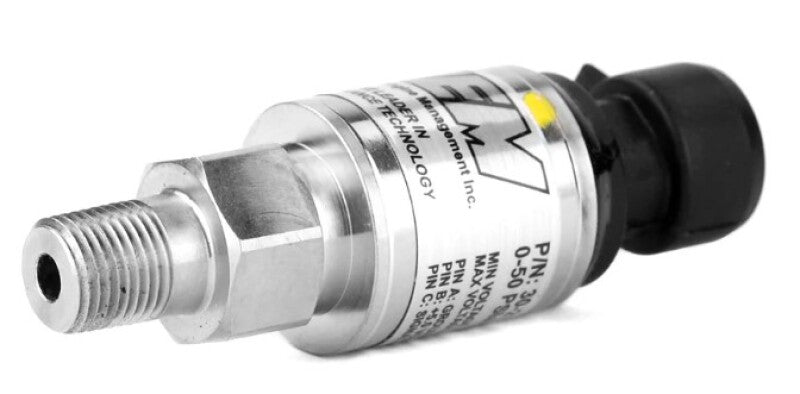

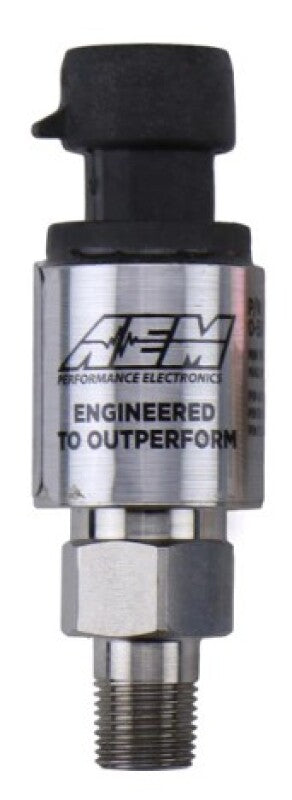

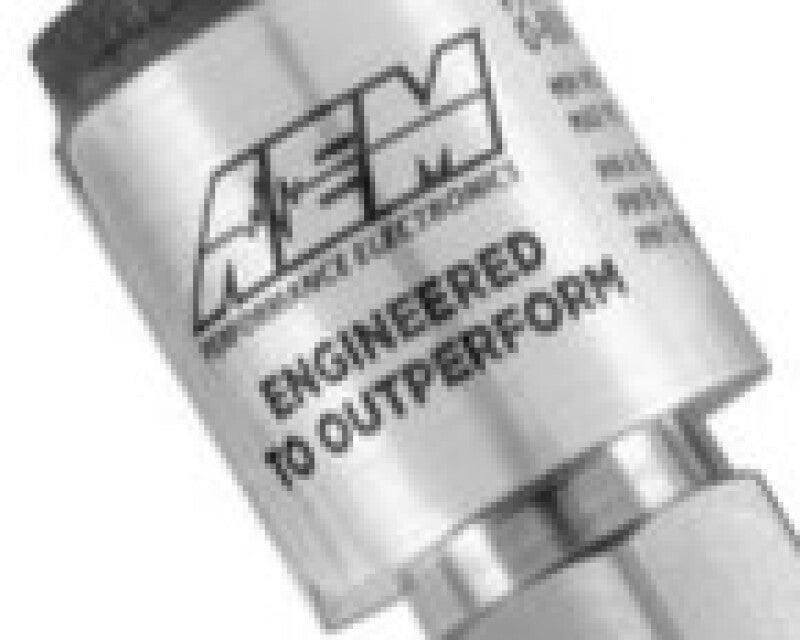

AEM 30-2130-100 100 PSIG Stainless Steel Pressure Sensor Kit

100 PSIg Stainless Sensor Kit. Stainless Steel Sensor Body. 1/8" NPT Male Thread. Includes: 100 PSIg Stainless Sensor, Connector, Pins & 1/8" NPT to -4 AdapterGauge style (PSIg) Pressure SensorsAEM offers high quality stainless steel PSIg sensors in 100, 150, 500, 1,000, and 2,000. Gauge style pressure sensors reference pressure above atmospheric pressure. When exposed to atmospheric pressure, gauge style pressure sensors will read 0 psig. Gauge style pressure sensors are commonly used for oil pressure, fuel pressure, brake pressure, nitrous pressure etc.Which Pressure Sensor is right for you?There are many different tools that can be used for measurement, but the degree of accuracy is dependent upon the tool. For example, a ruler can measure distance with a good degree of accuracy, but for a more precise measurement a caliper should be used. The difference between a brass pressure sensor and a stainless steel pressure sensor is similar if we think about it in these terms:Brass Pressure Sensor = RulerUse a Brass Pressure Gauge Sensor where you need a good reference to what pressure is being seen.Example: Brass Pressure Sensor used for a Boost Gauge - Reference/Information for knowing manifold pressure, not for ECU calibration.Stainless Steel Pressure Sensor = CaliperUse a SS Pressure Sensor where you need exact details of the pressure.Example: MAP Sensor information for the ECU - Calibration/crucial information for the ECU. 100 PSIg Stainless Sensor Kit, Stainless Steel Sensor Body, 1/8-inch NPT Male Thread, Includes 100 PSIg Stainless Sensor, Connector, Pins and 1/8-inch NPT to -4 Adapter

• High-quality sealed sensor housings are virtually impervious to automotive fluids (360-degree welded wetted area)
• Stainless-steel sensors accurate to within 1% of full scale (pressure sensors)
• Analog Data Scaled in Charts

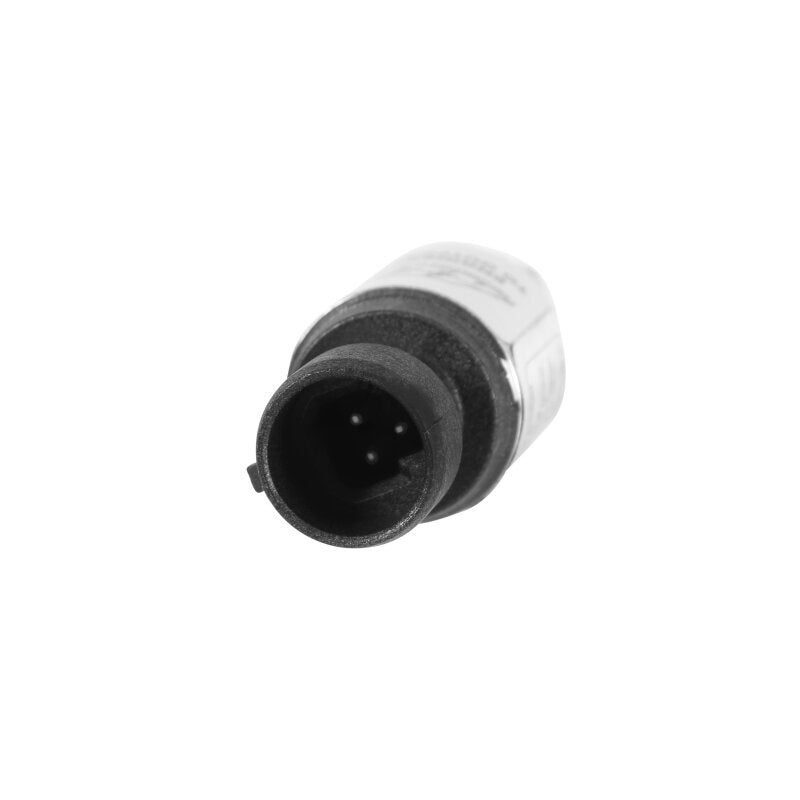

• Connector and pins included

The AEM 30-2130-100 100 PSIG Stainless Steel Pressure Sensor Kit is designed for accurate measurement of gauge pressure in automotive applications. Its stainless steel sensor body and sealed housing provide reliable resistance to automotive fluids, making it suitable for monitoring oil pressure, fuel pressure, brake pressure, nitrous pressure, and other systems where dependable pressure data is required.

This gauge-style sensor measures pressure above atmospheric pressure, reading 0 PSIG when exposed to atmospheric conditions. The AEM stainless steel pressure sensor is accurate to within 1% of full scale, making it a strong choice for applications that require precise pressure information for data logging, monitoring, or ECU calibration. The 1/8-inch NPT male connection installs with the included adapter, while the supplied connector and pins simplify wiring.

AEM pressure sensors are available in multiple pressure ranges, but the 100 PSIG version is well suited to systems that operate within a moderate pressure range. Compared with a brass pressure sensor intended primarily for general reference information, this stainless steel sensor is designed for applications where accurate pressure details are important. Its 360-degree welded wetted area helps protect the sensing assembly from exposure to automotive fluids.

Product Specifications and Technical Data

• Brand: AEM
• Part Number: 30-2130-100
• Sensor Type: Gauge-style pressure sensor
• Pressure Range: 0 to 100 PSIG
• Sensor Material: Stainless steel
• Accuracy: Within 1% of full scale
• Port Connection: 1/8-inch NPT male
• Output and Installation: Analog output with connector and pins included

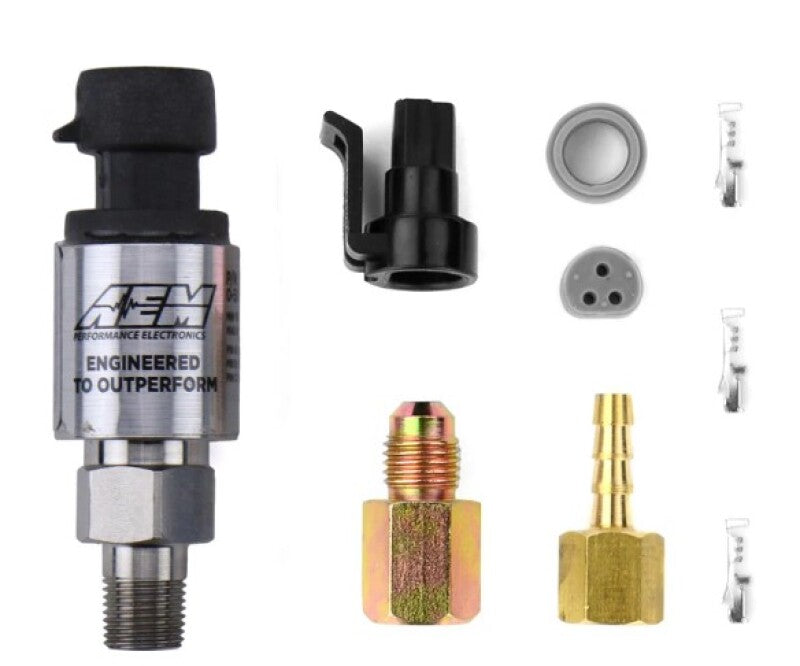

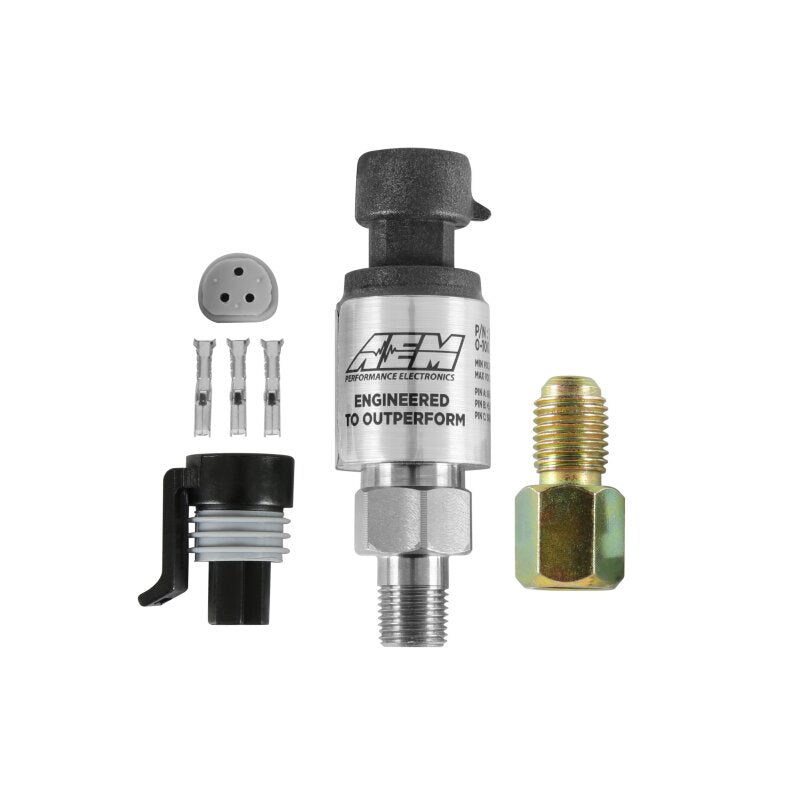

What's Included

• One AEM 100 PSIG stainless steel pressure sensor
• Electrical connector
• Connector pins

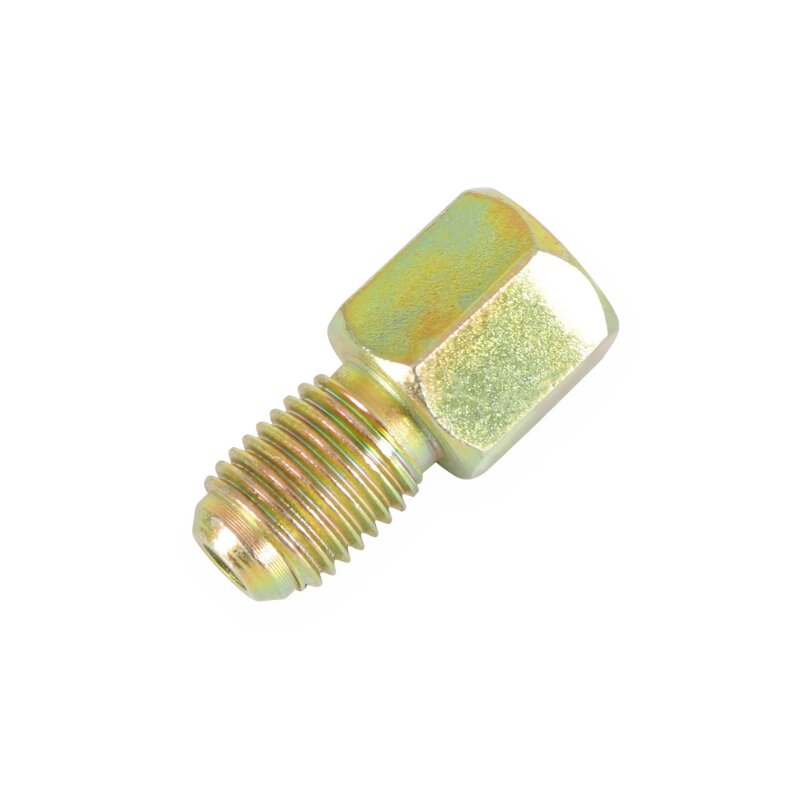

• 1/8-inch NPT to -4 adapter

Fitment varies by application and installation configuration. Verify the required pressure range, thread type, wiring configuration, and available clearance before installation.

Features:

• High-quality sealed housing resists exposure to automotive fluids through a 360-degree welded wetted area.
• Stainless steel sensor construction provides accurate pressure measurement within 1% of full scale.
• 100 PSIG gauge-pressure range is suitable for oil, fuel, brake, nitrous, and other automotive pressure monitoring applications.
• Includes the connector, pins, and 1/8-inch NPT to -4 adapter for simplified installation.
