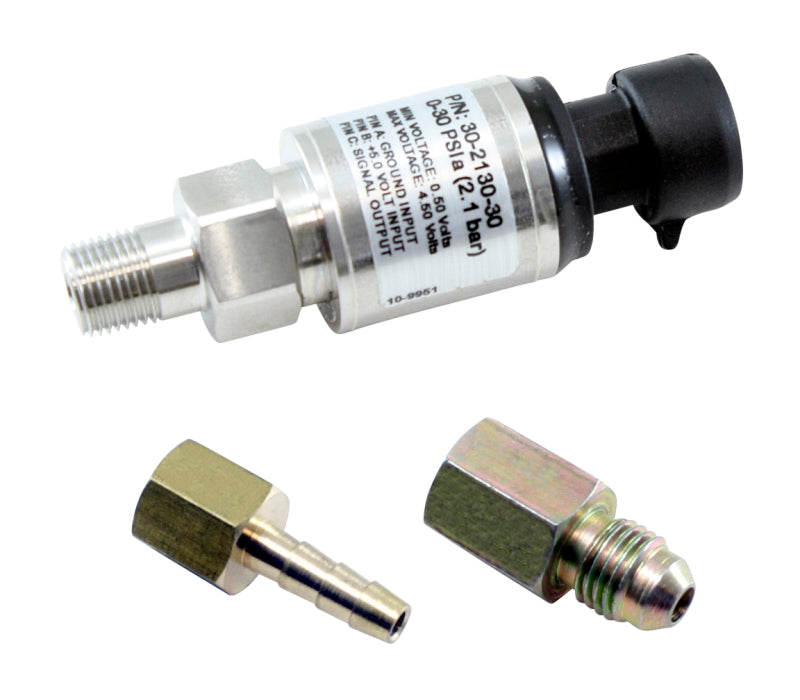

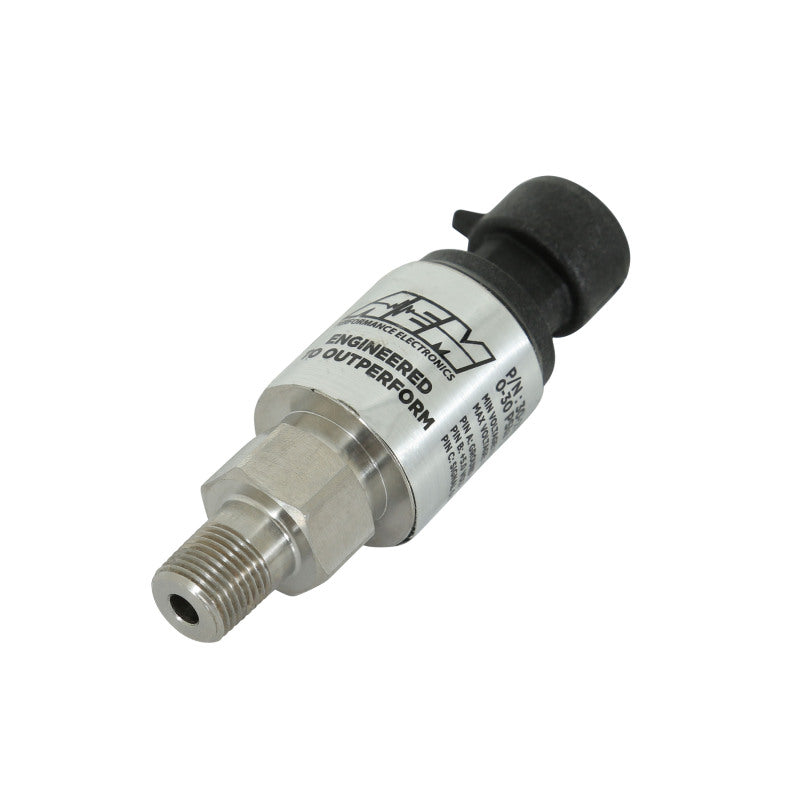

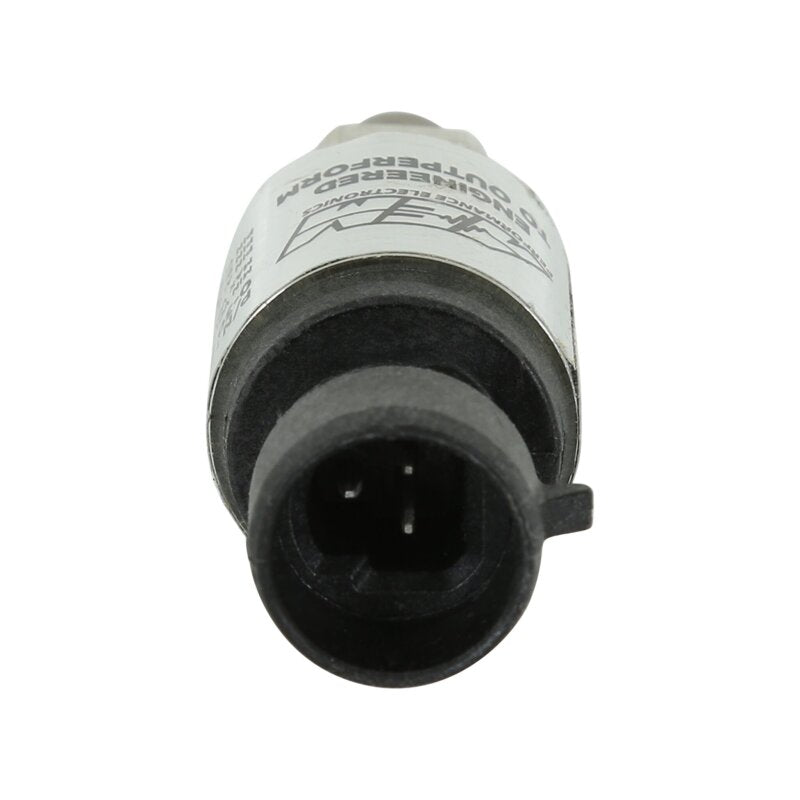

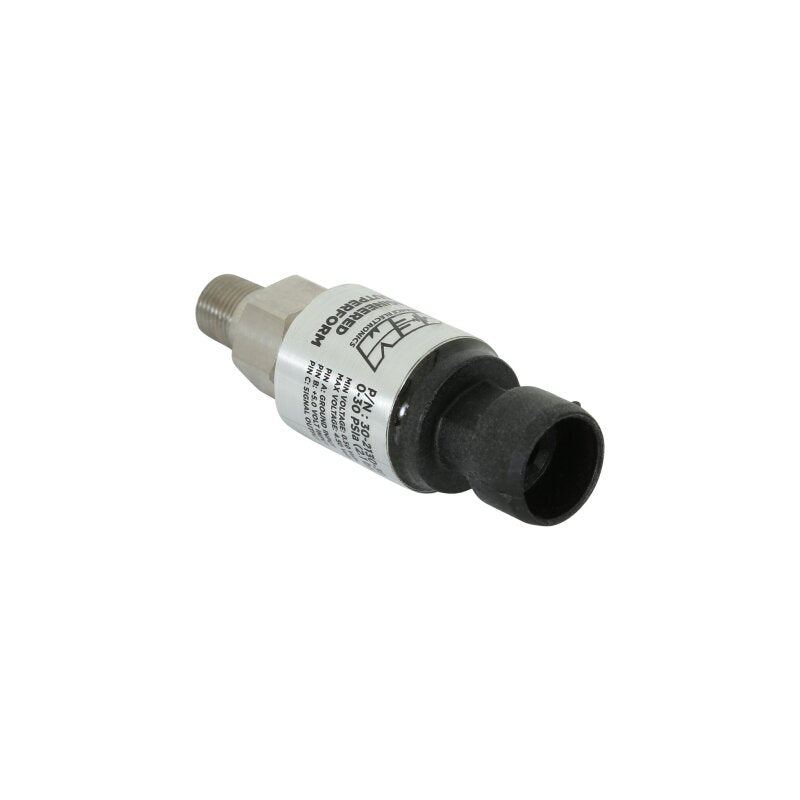

AEM 30 PSIa (2 Bar) MAP Sensor Kit, Stainless Steel, Part Number AEM30-2130-30

AEM offers high quality stainless steel PSIa sensors in 15 (1BAR), 30 (2BAR), 50 (3.5BAR), 75 (5BAR) and 100 (7BAR). PSIa is referenced to absolute zero. Absolute zero is the pressure measurement when all the pressure exerted by the atmosphere has been removed. The most common use for absolute pressure sensors is reading manifold pressure. PSIa pressure sensors are required if you wish to measure vacuum. A PSIa sensor will read about 14.7 PSI when the sensing element is exposed to atmospheric pressure at sea level however they can be recalibrated to read zero at atmospheric and a negative number at values less than atmospheric pressure. 30 PSIa or 2 Bar Stainless Sensor Kit, Stainless Steel Sensor Body, 1/8-inch NPT Male Thread, Includes 30 PSIa or 2 Bar Stainless Sensor, Connector, Pins, 1/8-inch NPT to -4 Adapter & 1/8-inch NPT to 3/16-inch Barb Adapter

• Stainless steel body, with high quality sealing which makes it impervious to fluids.
• 1/8"NPT to -4 AN adapter and barbed fitting included
• Weather resistant connector and pins included
• Accurate to 1% margin of error.

The AEM 30 PSIa (2 Bar) MAP Sensor Kit is designed for accurately measuring absolute manifold pressure in automotive applications. With a stainless steel sensor body and 1/8-inch NPT male thread, this sensor is suitable for systems that require reliable pressure measurement in demanding environments. Because it measures pressure relative to absolute zero, it can be used to monitor both boost and vacuum.

The AEM30-2130-30 sensor is sealed against fluids and built with a weather-resistant connector for dependable operation. At sea level, an absolute pressure sensor typically reads approximately 14.7 PSI when exposed to atmospheric pressure. The sensor may also be recalibrated to establish atmospheric pressure as zero, allowing negative readings when pressure falls below atmospheric levels. This makes it a practical choice for manifold pressure monitoring, engine management systems, and other automotive data acquisition applications.

• Pressure Range: 30 PSIa, equivalent to 2 Bar
• Pressure Reference: Absolute pressure referenced to absolute zero
• Sensor Body: Stainless steel construction with fluid-resistant sealing
• Connection Thread: 1/8-inch NPT male thread
• Measurement Accuracy: Within a 1% margin of error

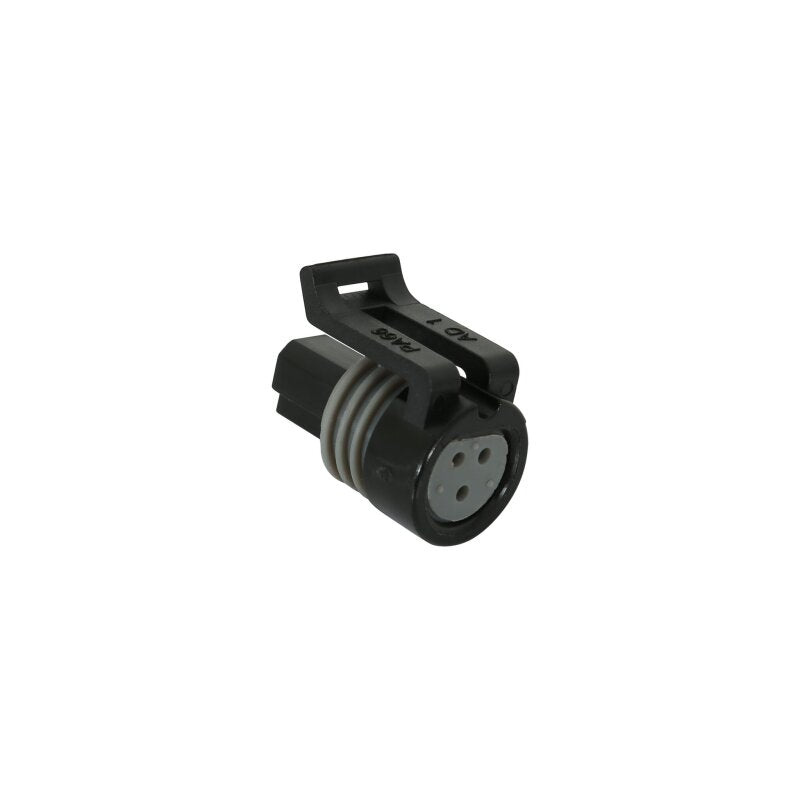

• Electrical Connection: Weather-resistant connector and pins included
• Included Adapters: 1/8-inch NPT to -4 AN adapter and 1/8-inch NPT to 3/16-inch barb adapter
• Application: MAP, manifold pressure, boost, and vacuum measurement

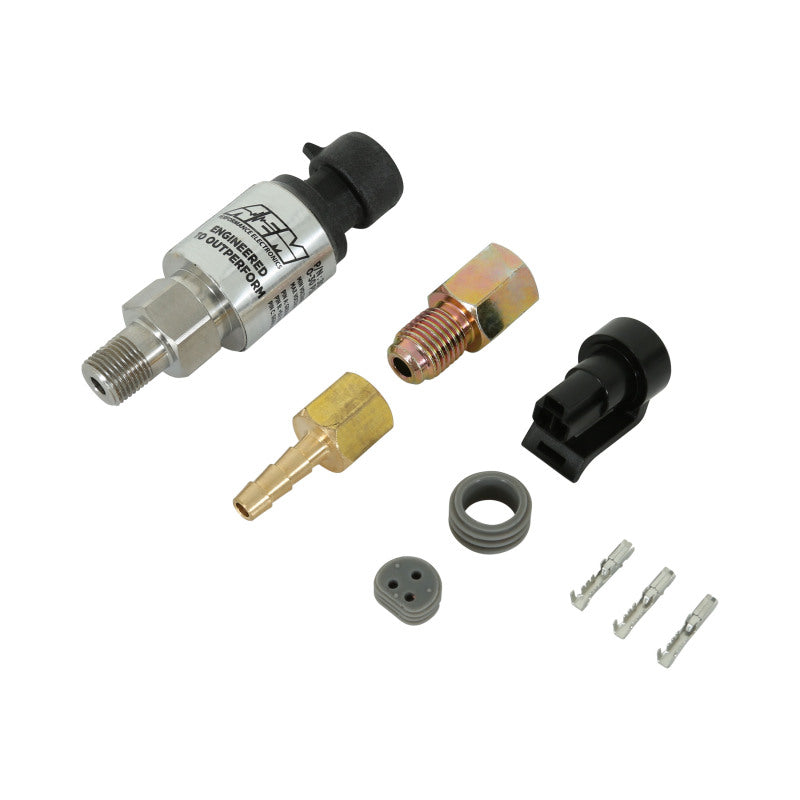

What's Included: One AEM 30 PSIa stainless steel pressure sensor, connector, electrical pins, 1/8-inch NPT to -4 AN adapter, and 1/8-inch NPT to 3/16-inch barb adapter. Fitment data should be verified against the vehicle, engine management system, and installation requirements before purchase.

Features:

• Stainless steel sensor body with high-quality sealing for resistance to automotive fluids
• 30 PSIa or 2 Bar absolute pressure range supports manifold, boost, and vacuum measurement
• Includes 1/8-inch NPT to -4 AN and 1/8-inch NPT to 3/16-inch barb adapters
• Weather-resistant connector and pins included for dependable installation
