AEM 8-Channel K-Type Thermocouple EGT CAN Module 30-2224

AEM Channel K-Type Thermocouple EGT/Temperature Sensor Module 8-Channel K-Type Thermocouple EGT/Temperature Sensor Module with CANbus connectivity, includes CAN Module, DTM connector plug, Velcro tab for mounting and instructions.

• Pre-configured AEMnet CAN bus for plug & play connection to CD Digital Dashes, Infinity ECUs, and AQ-1 (not compatible with Series 2 ECU at this time)
• Outputs all channels via configurable CAN bus via one-plug connection (DTM-style Connection Cables sold separately in various lengths)
• Includes 8-Channel K-Type EGT CAN Module, 4-Pin DTM-style Connector Plug, instructions and Velcro for in-vehicle mounting

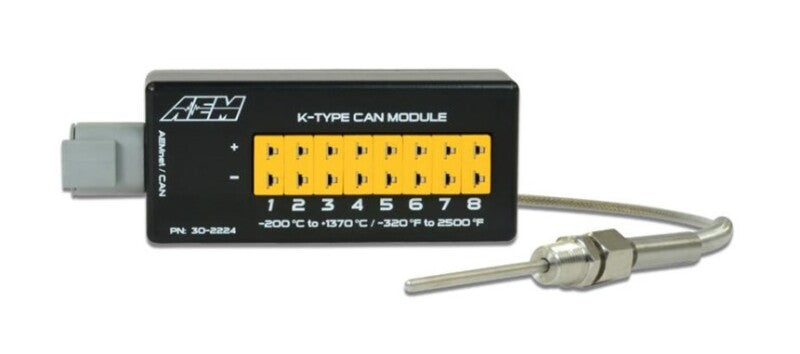

• Includes 8 K-type thermocouple inputs to accept common K-type thermocouple sensors (sensors sold separately)
• Daisy-chain two modules together for up to 16 temp inputs through a single plug!
• Cold junction compensated for lab-grade accuracy (+/- 0.15% full scale)
• Measures temperatures from -200 to 1372 degC (-328 to 2501 degF)
• Temperature resolution 0.1 degC (0.18 degF)
• Uses common miniature thermocouple sockets
• Integrated open circuit/fault detection

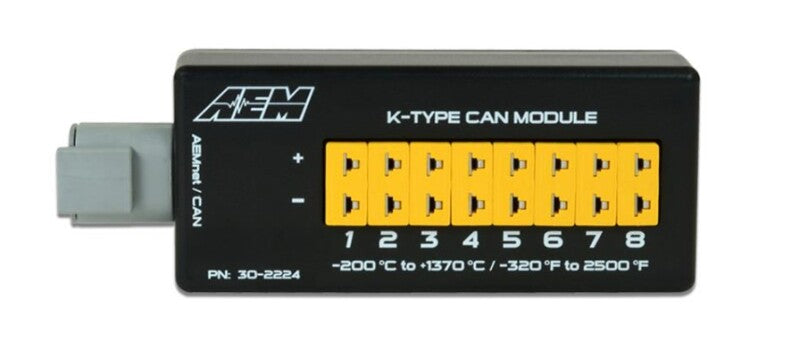

The AEM 30-2224 8-Channel K-Type Thermocouple EGT CAN Module provides accurate, centralized temperature monitoring for performance vehicles, motorsports applications, and advanced engine management systems. This AEM temperature sensor module accepts eight common K-type thermocouple inputs and transmits all measured channels through a configurable CAN bus connection.

The module is pre-configured for AEMnet CAN bus plug-and-play connectivity with compatible AEM CD Digital Dashes, Infinity ECUs, and AQ-1 data acquisition systems. It is not currently compatible with Series 2 ECUs. Two modules can be daisy-chained to monitor up to 16 temperature inputs through a single connection. Cold-junction compensation supports lab-grade accuracy of plus or minus 0.15 percent of full scale, while integrated open-circuit and fault detection helps identify sensor or wiring issues.

The AEM 30-2224 measures temperatures from -328 to 2,501 degrees Fahrenheit with 0.18-degree Fahrenheit resolution. The kit includes the 8-channel CAN module, a 4-pin DTM-style connector plug, mounting Velcro, and installation instructions. K-type thermocouple sensors and DTM-style connection cables are sold separately. This product is intended for automotive use and is not CARB approved.

Product Specifications and Technical Data

• Channels: Eight K-type thermocouple temperature inputs
• Temperature Range: -328 to 2,501 degrees Fahrenheit
• Temperature Resolution: 0.18 degrees Fahrenheit
• Accuracy: Plus or minus 0.15 percent of full scale
• Communication: Configurable CAN bus with pre-configured AEMnet support
• Compatibility: AEM CD Digital Dashes, Infinity ECUs, and AQ-1 systems
• Connectivity: 4-pin DTM-style connector; cables sold separately
• Expansion: Supports daisy-chaining two modules for up to 16 inputs

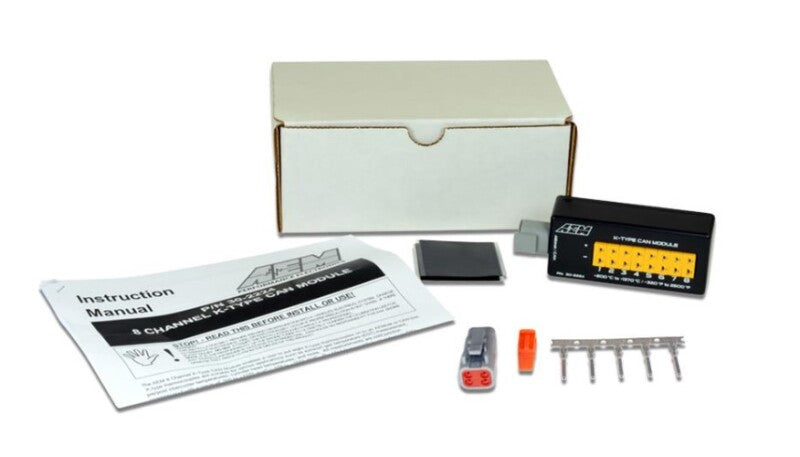

What's Included

• AEM 30-2224 8-channel K-type thermocouple CAN module
• 4-pin DTM-style connector plug
• Velcro mounting tab
• Installation instructions

Features:

• Eight K-type Inputs: Accepts common K-type thermocouple sensors for monitoring exhaust gas and other engine temperatures.
• AEMnet CAN Connectivity: Provides plug-and-play connection to compatible AEM CD Digital Dashes, Infinity ECUs, and AQ-1 systems.
• Expanded Temperature Monitoring: Daisy-chain two modules to support up to 16 temperature inputs through a single plug.
• Accurate Measurement: Cold-junction compensation delivers accuracy of plus or minus 0.15 percent of full scale, with 0.18-degree Fahrenheit resolution.

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
