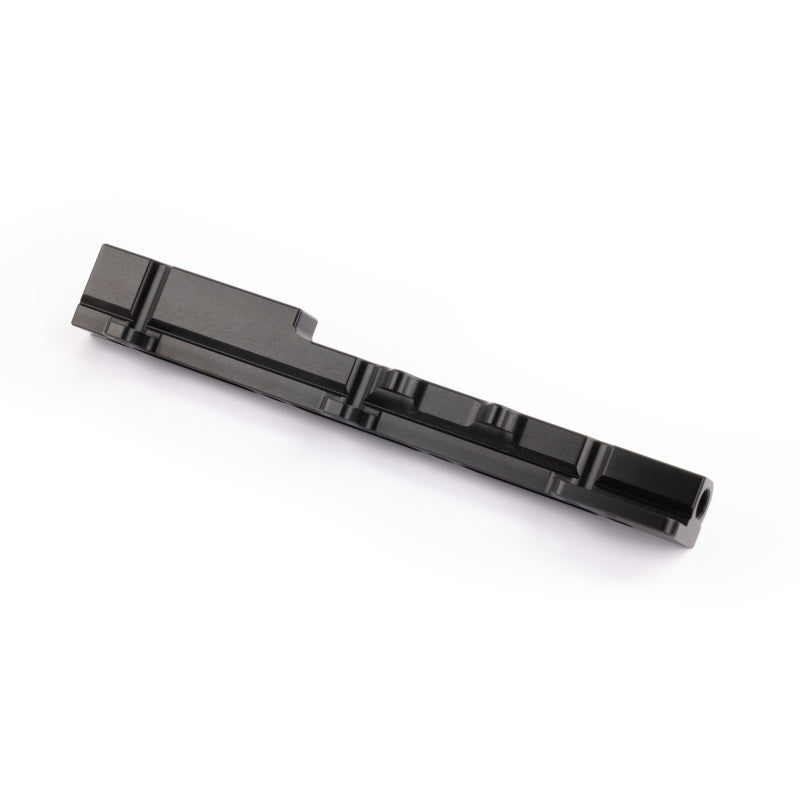

AEM AEM25-103BK High Volume Black Fuel Rail for Honda B16A2 and B16A3 Engines

AEM High Volume fuel rails feature a 1/2-inch fuel bore to support fuel flow for applications up to 1,000 horsepower. This large bore also dampens backpressure pulses created by larger injectors and works perfectly with stock injector sizes. An additional 1/8th NPT port is included to accommodate a nitrous set up or fuel pressure gauge. A custom fuel line fitting is included for the factory fuel line, and in most cases the ends of each rail are pre tapped to accept -6 AN or 9/16"x18 fittings for users who want to use custom fuel lines. High Volume Fuel Rail, Black Anodized, Fits Honda B16A2 and B16A3 engines

• No additional parts required for installation - installs with factory fuel line using supplied fitting
• Comprehensive installation instructions, hardware, fittings and injector O-rings included
• 1/2 inch bore dampens backpressure pulses from larger fuel injectors
• 1/8 NPT port included for nitrous pick up or fuel pressure gauge
• Complete hardware, fittings and injector O-rings included
• Works with factory fuel line or custom fuel lines
• Specifically engineered for each application
• Pre-tapped for -6 AN or 9/16"x 18 fittings
• Supports fuel flow up to 1,000 horsepower
• Manufactured and assembled in the USA
• Black anodizing with laser engraving
• CNC Machined from billet aluminum

The AEM AEM25-103BK High Volume Fuel Rail is designed for Honda B16A2 and B16A3 engines that require dependable fuel delivery for high-performance applications. Its large internal fuel passage supports fuel flow for engines producing up to 1,000 horsepower while helping dampen backpressure pulses associated with larger fuel injectors. The rail also works with factory-size injectors, making it a versatile upgrade for both naturally aspirated and forced-induction builds.

Installation is straightforward because the AEM25-103BK uses the factory fuel line with the supplied custom fitting. The rail is also pre-tapped to accept -6 AN or 9/16-inch x 18 fittings, allowing compatibility with custom fuel-line configurations. An additional 1/8-inch NPT port can be used for a nitrous system pickup or fuel pressure gauge. Included hardware, injector O-rings, fittings, and installation instructions help provide a complete installation solution.

CNC machined from billet aluminum, the AEM fuel rail features a durable black anodized finish with laser engraving. It is specifically engineered for the application and manufactured and assembled in the USA. Fitment includes select 1994-2000 Honda Civic and Civic del Sol models equipped with compatible B16A2 or B16A3 engines. Verify engine configuration and vehicle application before installation. This product is not CARB approved, and applicable emissions requirements should be reviewed before use.

Product Specifications & Technical Data

• Brand: AEM
• Part Number: AEM25-103BK
• Product Type: High volume fuel rail
• Application: Honda B16A2 and B16A3 engines
• Fuel Flow Support: Up to 1,000 horsepower
• Fuel Passage: 1/2-inch internal bore
• Auxiliary Port: 1/8-inch NPT
• Fuel Line Compatibility: Factory fuel line, -6 AN, or 9/16-inch x 18 fittings

What's Included

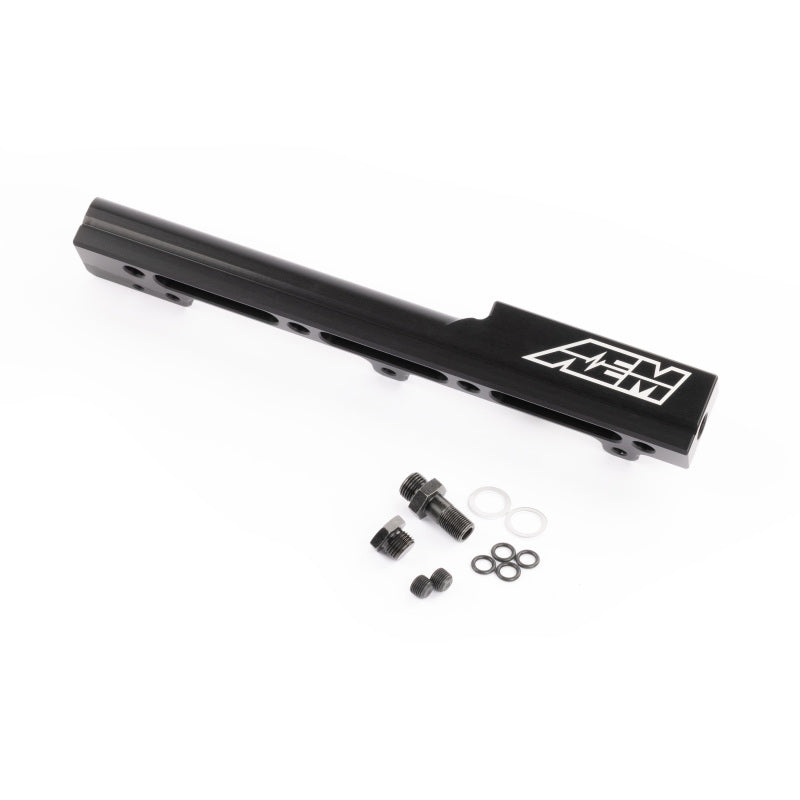

Fuel rail, factory fuel-line fitting, installation hardware, fittings, injector O-rings, and installation instructions.

Fitment

1994-2000 Honda Civic and Civic del Sol models with compatible B16A2 or B16A3 engines, including select 1994, 1995, 1996, 1997, 1999, and 2000 applications.

Features:

• High-volume fuel rail supports fuel flow for applications producing up to 1,000 horsepower.
• 1/2-inch internal fuel bore helps dampen backpressure pulses from larger injectors.
• Works with factory-size fuel injectors as well as upgraded injector configurations.
• Supplied fitting allows installation with the factory fuel line without additional parts.
• Pre-tapped ends accept -6 AN or 9/16-inch x 18 fittings for custom fuel-line setups.
• Integrated 1/8-inch NPT port accommodates a nitrous pickup or fuel pressure gauge.
• CNC machined from billet aluminum with a black anodized finish and laser engraving.
• Includes installation hardware, fittings, injector O-rings, and instructions; manufactured and assembled in the USA.

Fitments:
1994 Honda Civic del Sol VTEC
1995 Honda Civic del Sol VTEC
1996 Honda Civic del Sol VTEC
1997 Honda Civic del Sol VTEC
1999 Honda Civic Si
2000 Honda Civic Si

Air Freight Prohibited: false
Not Carb Approved: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: true
Regular Stock: t
Units Per Sku: 1
