AEM CD-5 Carbon Digital Dash Display, Non-Logging, Non-GPS, Part Number 30-5600

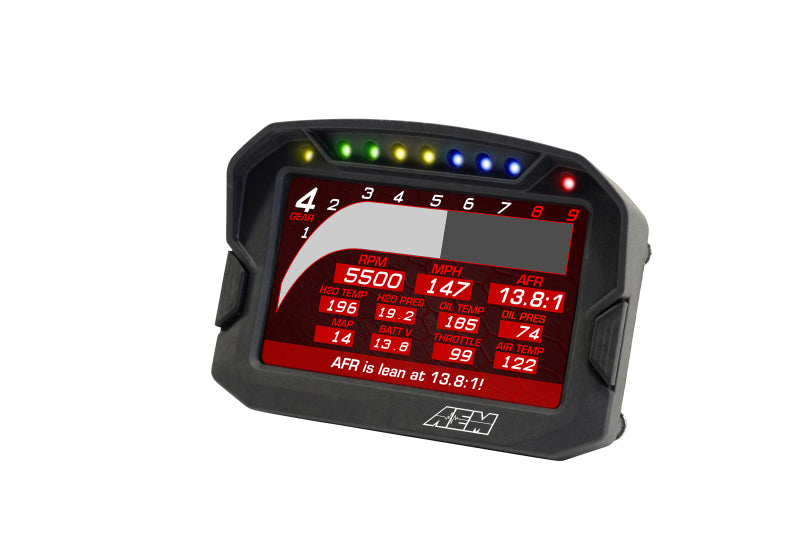

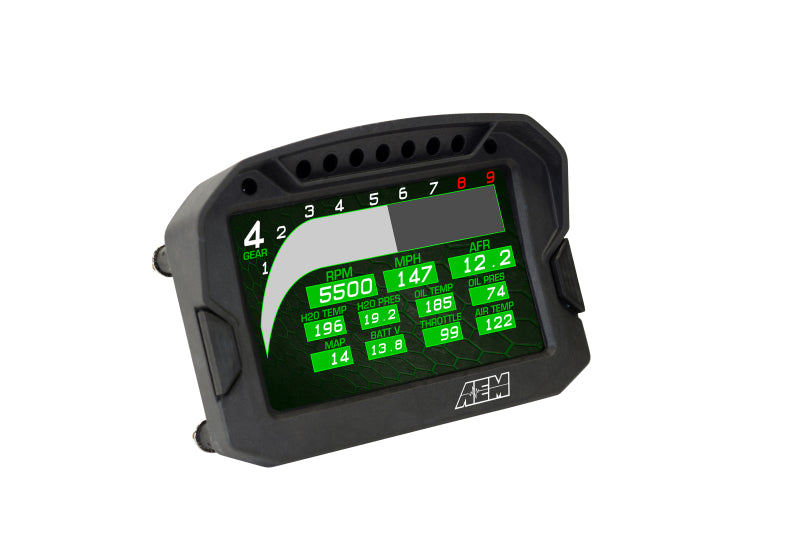

CD-5 Carbon Digital Dash Displays feature a full-color, daylight readable screen surrounded by a tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housing for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. Two large buttons are included on the face of the display, allowing easy page changing and memory resetting even with driving gloves on. These button functions are included in the supplied rear connector, allowing the user to mount remote buttons. Two additional programmable LEDs are located above the toggle buttons on the top of the housing on either side of the integrated LED shift lights.VIEW AND LOG DATA FROM OVER 250 CAN DEVICES!The CD-5 Carbon receives channels from two independent CAN bus inputs and it does not require special modules to read AEM and/or 3rd-party CAN signals. We have validated it to communicate with over 250 non-AEM devices, 2008-up stock ECUs via the OBDII port and the CD-5 Carbon can be added to any vehicle with the addition of our 22 Channel CAN Sensor Module. The CD-5 Carbon is ECU CAN ready and does not require external modules for CAN to CAN communication, just load your configuration and go! All channels can be named in virtually any language so that the information displayed makes sense to the user when displayed, whether on the main screen dashboard monitor or warning alerts. Carbon - Non-Logging - Non-GPS Display - 5 in.

• Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
• Accepts channels from two separate user programmable CAN bus connections - works with AEMnet enabled devices and non-AEM 3rd party devices side by side
• Install the CD-5 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Use included page layouts and input your channels and text, or create your own from scratch
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• User supplied graphics can be changed based on channel values (up to the full screen size)
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• IP66 water resistance allows for operation in boats and motorcycles without worry
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• Convert CAN bus channel values to user-defined text in multiple languages
• Available with or without 200Mb internal logging (up to 1,000Hz/channel)
• Headlight-in' connection dims the dash and LEDs during night operation
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• Available with or without on-board GPS receiver and antenna
• Layout files interchangeable with all versions of the CD-7
• Wiring interface/harness is identical to the CD-7
• Full color 5" screen with 800x480 resolution
• Total display weight of 11.7 oz./331 grams
• Free DashDesign Graphics Editor software
• Two programmable LEDs
• Odometer function

The AEM CD-5 Carbon Digital Dash Display is a compact, full-color motorsports display designed to present critical vehicle data in a clear, customizable format. Part Number 30-5600 features a daylight-readable 5-inch screen with 800 x 480 resolution, a rugged flow-molded carbon fiber composite housing, and seven programmable LED indicators for RPM and shift-light functions. The fixed-color LEDs can be programmed for specific RPM increments, flash points, and brightness levels, helping drivers monitor engine speed without taking their eyes off the course.

The CD-5 Carbon accepts channels from two independent, user-programmable CAN bus connections and can communicate with AEMnet-enabled devices, compatible third-party CAN devices, and supported 2008-and-newer factory ECUs through optional adapter cables. It can also be installed on carbureted or pre-2008 vehicles when paired with the optional AEM 22 Channel CAN Sensor Module. Channels can be named in virtually any language, while programmable warning pages, icons, graphics, and on-change displays provide flexible data presentation for racing, performance driving, boats, and motorcycles.

Two large face-mounted buttons support easy page changes and memory resets while wearing driving gloves, and their functions can also be assigned to remote buttons through the rear connector. Additional programmable LEDs, two switch inputs, a dedicated alarm page, an odometer function, and headlight input dimming further expand the display’s usability. The IP66-rated enclosure provides protection against dust and water, while the included DashDesign Graphics Editor software allows users to configure supplied layouts or create custom pages. The AEM CD-5 Carbon is a non-logging, non-GPS configuration; optional logging and vehicle-dynamics hardware are available separately.

Key Product Specifications & Technical Data

• Display: Full-color daylight-readable screen with 800 x 480 resolution
• Screen Size: 5 inches
• CAN Connectivity: Two independent programmable CAN bus inputs
• RPM Indicators: Seven programmable and dimmable LED shift-light indicators
• Water Resistance: IP66-rated enclosure
• Housing: Lightweight flow-molded carbon fiber composite construction
• Control Inputs: Two programmable switch inputs plus face-mounted control buttons
• Configuration Software: DashDesign Graphics Editor included

What's Included

• AEM CD-5 Carbon Digital Dash Display
• Rear connector interface
• DashDesign Graphics Editor software
• Supplied display layouts, warning icons, and programmable graphics resources

Optional accessories include the AEM Vehicle Dynamics Module, 22 Channel CAN Sensor Module, Plug & Play OBDII CAN Adapter Cable, and compatible CAN adapter cables for supported ECU platforms. The AEM CD-5 Carbon is suitable for automotive, marine, and motorcycle applications where customizable CAN data display and reliable daylight visibility are required.

Features:

• Full-color, direct-sunlight-readable 5-inch display with 800 x 480 resolution
• Seven programmable and dimmable LED RPM and shift-light indicators
• Dual independent CAN bus inputs support AEMnet and compatible third-party devices
• IP66-rated carbon fiber composite housing for demanding automotive, marine, and motorcycle environments
