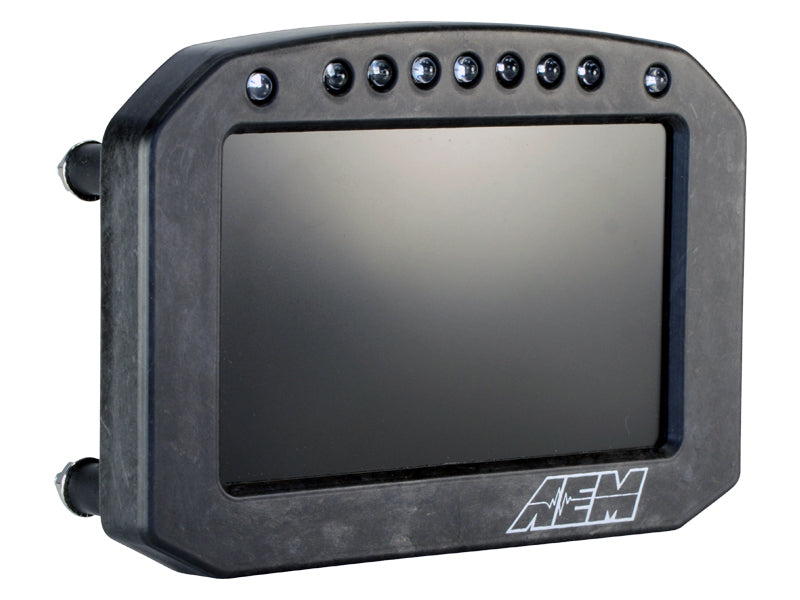

AEM CD-5 Carbon Flat Panel Digital Dash Display, Non-Logging, Part Number 30-5600F

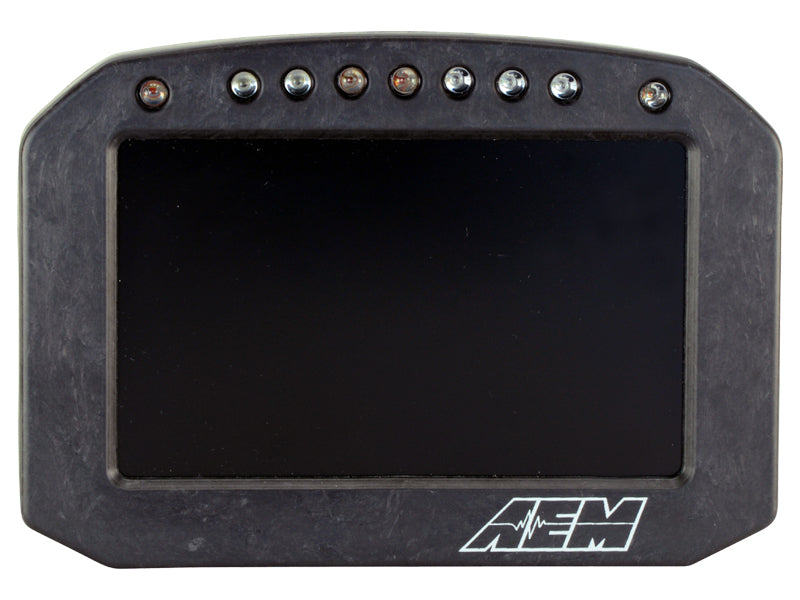

AEM CD5 Carbon Flat Panel Digital Displays are perfect for flush mount installation or in-dash enclosures with tight tolerances. They include all of the robust features found in the original CD-5 Carbon car dashboard monitors, but do not have buttons or an LED shade hood built into the enclosure. AEM CD5 Carbon Flat Panel Digital Displays feature full-color, daylight readable screens surrounded by a slim, tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housings for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. A remote button kit (PN 30-3610, sold separately) easily wires into the CD Carbon wiring harness and allows users to change pages and clear memory. Two additional programmable LEDs are included in the car dashboard monitor's enclosure and are fully programmable Flat Panel Digital Dash Display, CD-5 non-logging, non-GPS racing dash, CAN input only, 5-inch diagonal screen, carbon fiber enclosure, wiring harness included, Does Not Include Buttons (See PN 30-3610)

• Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
• Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212) or 6 Channel CAN Sensor Module (PN 30-2226)
• Install 8 additional temp inputs and send them to the CD Carbon Dash with our 8 Channel K-Type EGT CAN Module (PN 30-2224, sold separately)
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages (requires Button Kit PN 30-3610)
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Use the included page layouts and input your channels and text, or create your own from scratch
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• User supplied graphics can be changed based on channel values (up to the full screen size)
• Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• Available with or without 200Mb internal logging (up to 1,000Hz/channel)
• Headlight-in' connection dims the dash and LEDs during night operation
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Wiring interface/harnesses are identical between all CD Carbon Dashes
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• Available with or without onboard 20 Hz GPS receiver and antenna
• Layout files interchangeable between all CD Carbon Dashes
• Convert CAN bus channel values to user-defined text
• Full color 5" screen with 800x480 resolution
• Free DashDesign Graphics Editor software
• Two programmable LEDs
• IP66 water resistance
• Odometer function

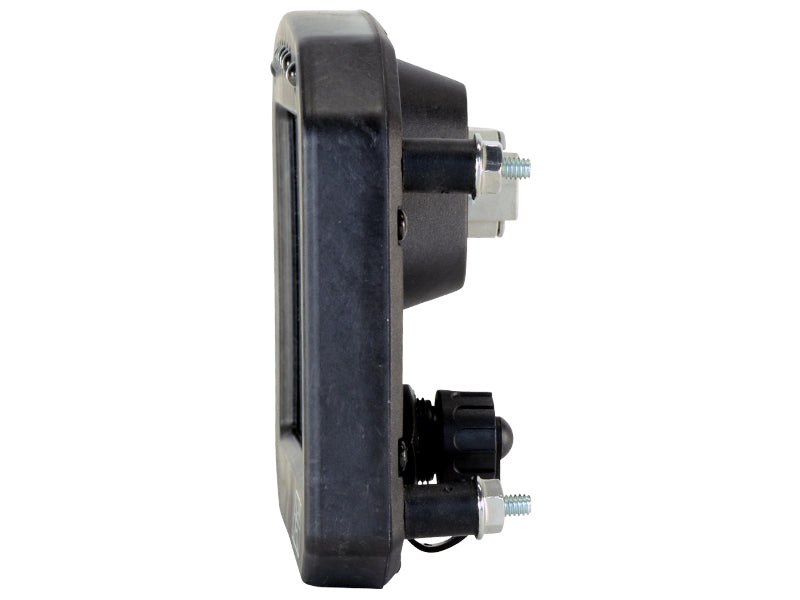

The AEM CD-5 Carbon Flat Panel Digital Dash Display is designed for flush-mount installations and in-dash enclosures where a slim profile is required. This non-logging, non-GPS racing dash uses a full-color, daylight-readable screen with 800 x 480 resolution to present critical vehicle data clearly in demanding driving conditions. Its lightweight, flow-molded carbon fiber composite housing provides a durable enclosure for track, competition, and high-performance street applications.

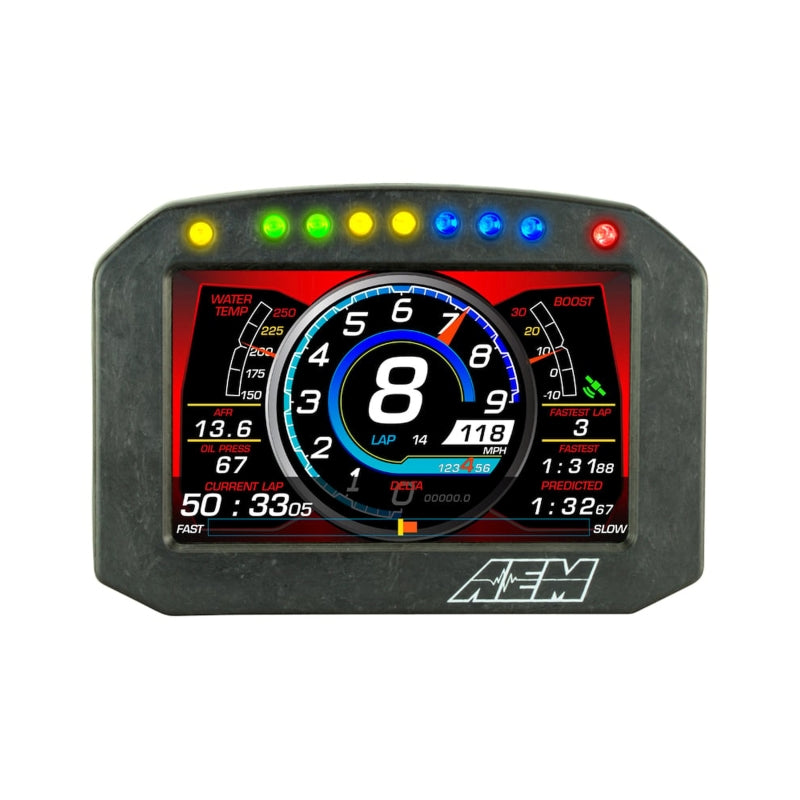

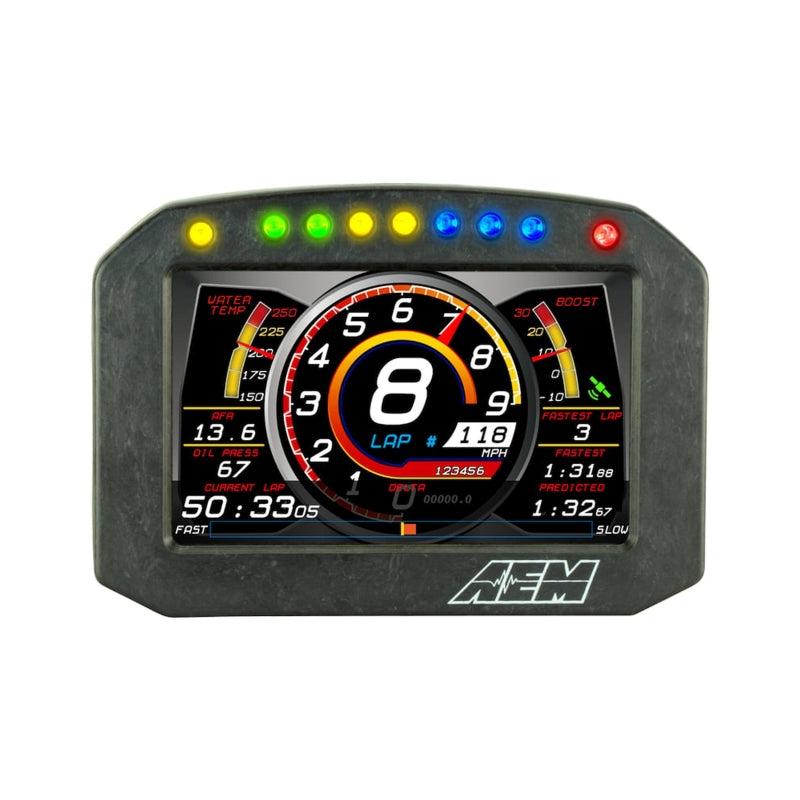

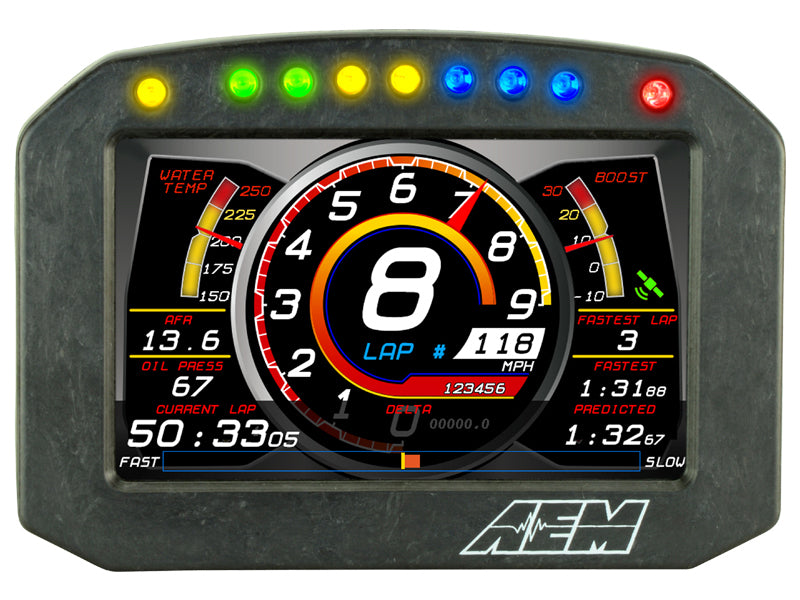

The AEM CD-5 Carbon, Part Number 30-5600F, accepts CAN channels from AEMnet devices and compatible non-AEM CAN bus systems. It can display data from compatible factory ECUs, aftermarket engine management systems, CAN sensor modules, and other supported accessories. Seven programmable and dimmable LEDs across the top of the display provide RPM and shift-light indication, while two additional programmable LEDs can be assigned to warnings or driver-selected events. A headlight input automatically dims the display and LEDs for nighttime operation.

Users can configure supplied page layouts or create custom screens with AEM DashDesign software. The dash supports multiple display pages, alarm messaging, on-change pages, user-defined text, warning icons, and graphics that respond to channel values. A dedicated alarm page helps identify vehicle problems quickly, and two switch inputs can display events such as turn signals or high beams. Optional accessories expand functionality, including the AEM remote button kit for page control, CAN sensor modules for carbureted or older ECU-equipped vehicles, an EGT CAN module, GPS and vehicle-dynamics functions, and supported plug-and-play ECU adapter cables. The wiring harness is included; buttons are not included.

With IP66 water resistance, direct-sunlight readability, and a rugged carbon fiber composite enclosure, the AEM CD-5 Carbon provides flexible digital instrumentation for racing and performance vehicles. This version does not include internal data logging, GPS hardware, or integrated buttons.

Product Specifications & Technical Data

• Brand: AEM
• Part Number: 30-5600F
• Display Type: Flat panel digital racing dash
• Screen Size: 5-inch diagonal
• Screen Resolution: 800 x 480 pixels
• Communication: CAN input only
• Enclosure Material: Flow-molded carbon fiber composite
• Protection Rating: IP66 water resistance

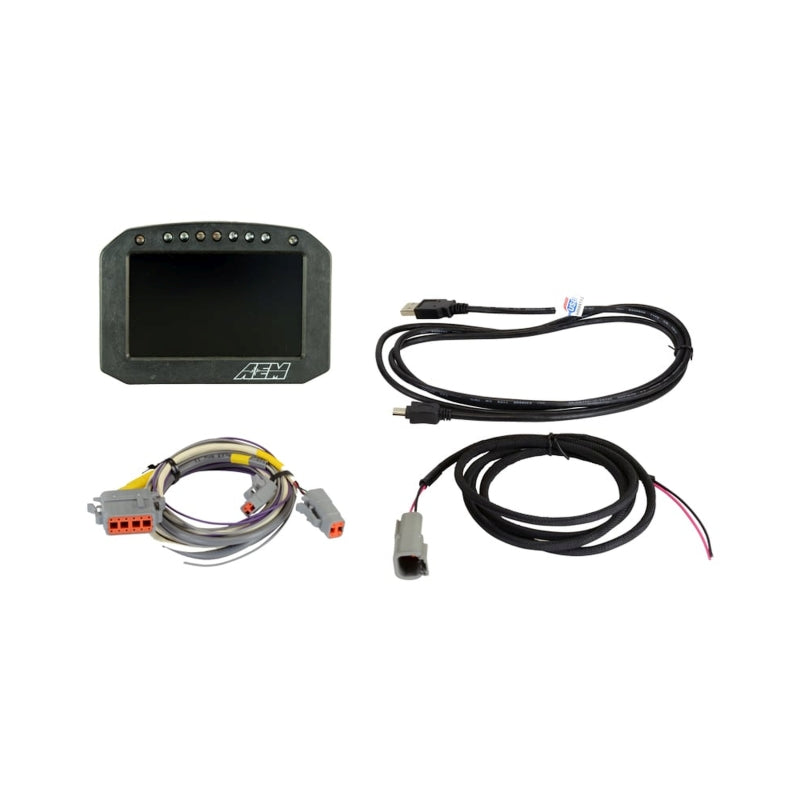

What's Included

• AEM CD-5 Carbon Flat Panel Digital Dash Display
• Wiring harness

Features:

• Daylight-readable full-color screen: The 5-inch display uses 1000 cd/m² brightness and an anti-glare filter for clear viewing in direct sunlight.
• Programmable RPM and shift indication: Seven bright, fixed-color LEDs provide programmable and dimmable RPM or shift-light alerts.
• Flexible CAN data integration: Accepts channels from AEMnet CAN-enabled devices and compatible non-AEM CAN bus systems.
• Flush-mount carbon fiber construction: The slim, lightweight, flow-molded carbon fiber composite housing is designed for tight in-dash installations.
