AEM CD-5G Carbon Digital Dash Display with Internal 10Hz GPS and Antenna, 30-5602

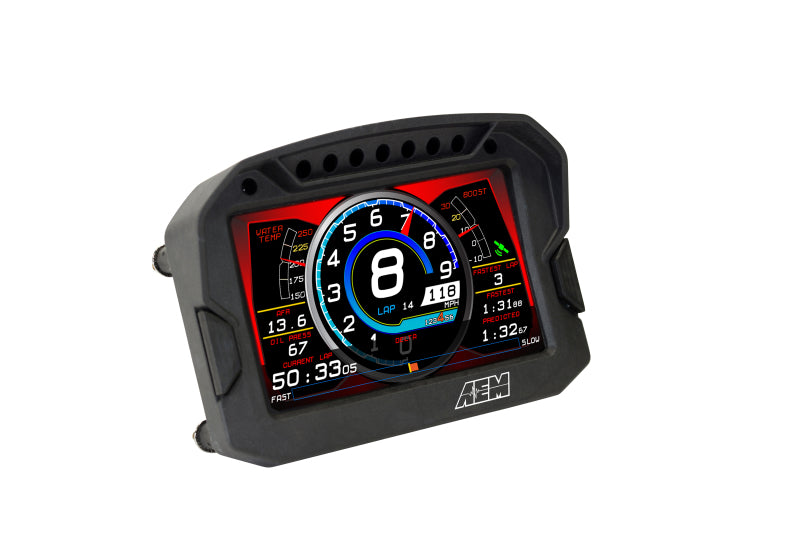

CD-5 Carbon Digital Dash Displays feature a full-color, daylight readable screen surrounded by a tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housing for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. Two large buttons are included on the face of the display, allowing easy page changing and memory resetting even with driving gloves on. These button functions are included in the supplied rear connector, allowing the user to mount remote buttons. Two additional programmable LEDs are located above the toggle buttons on the top of the housing on either side of the integrated LED shift lights. 5-inch diagonal screen, carbon fiber composite enclosure, GPS antenna and wiring harness included

• Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
• Accepts channels from two separate user programmable CAN bus connections - works with AEMnet enabled devices and non-AEM 3rd party devices side by side
• Install the CD-5 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)

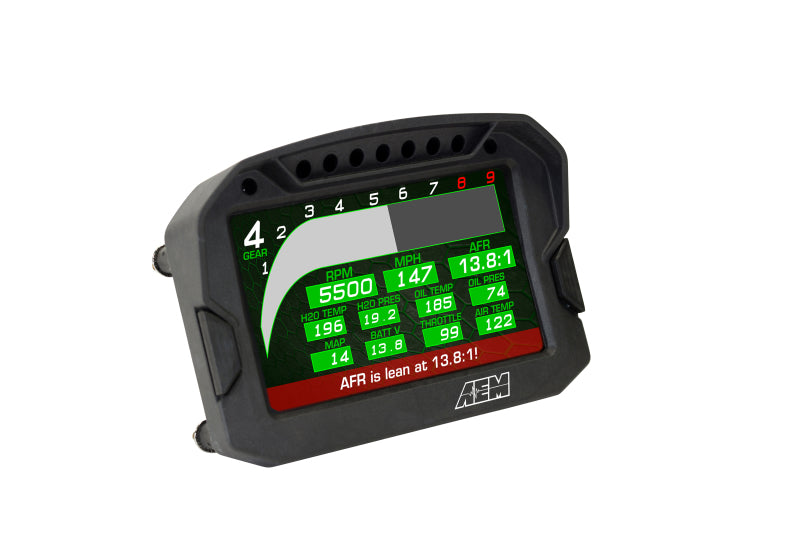

• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own

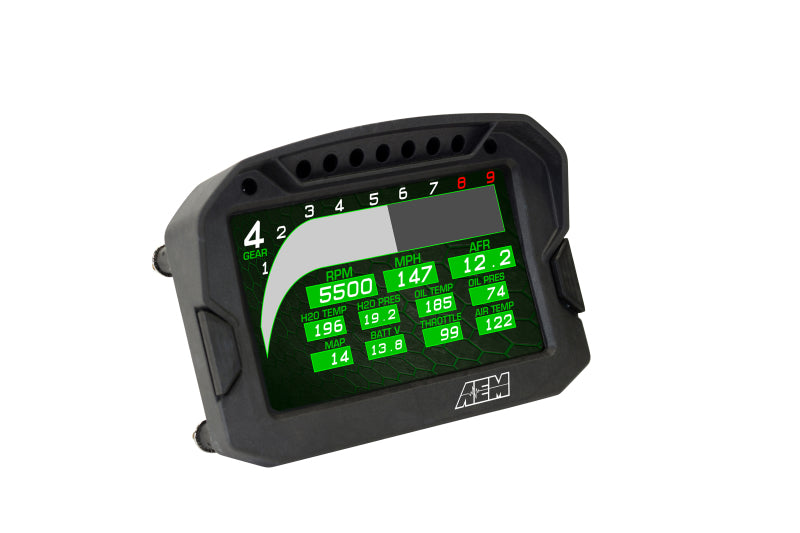

• Use included page layouts and input your channels and text, or create your own from scratch
• User supplied graphics can be changed based on channel values (up to the full screen size)
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages

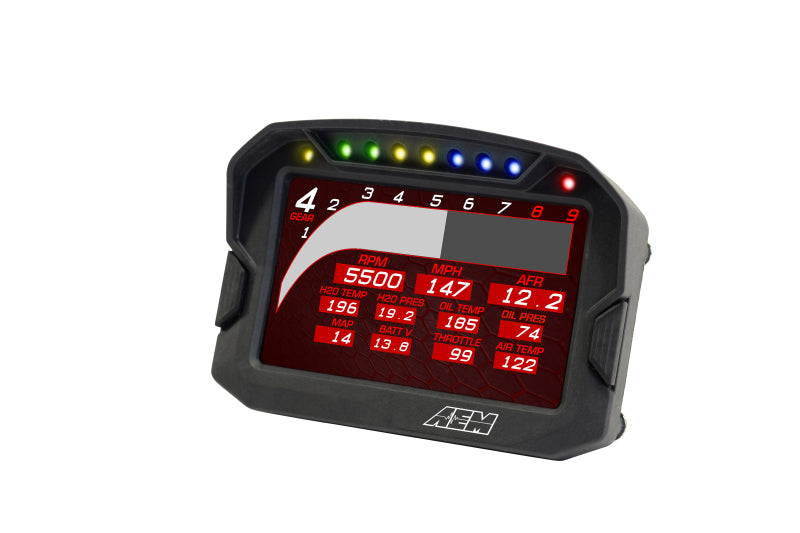

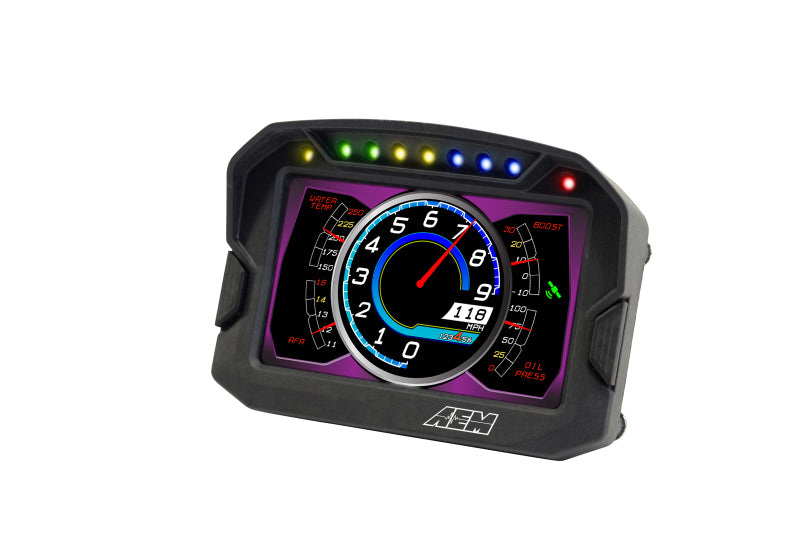

• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• IP66 water resistance allows for operation in boats and motorcycles without worry
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• Convert CAN bus channel values to user-defined text in multiple languages
• Available with or without 200Mb internal logging (up to 1,000Hz/channel)
• Headlight-in' connection dims the dash and LEDs during night operation
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• Available with or without on-board GPS receiver and antenna
• Layout files interchangeable with all versions of the CD-7
• Wiring interface/harness is identical to the CD-7
• Full color 5" screen with 800x480 resolution
• Total display weight of 11.7 oz./331 grams
• Free DashDesign Graphics Editor software
• Two programmable LEDs
• Odometer function

The AEM CD-5G Carbon Digital Dash Display, part number 30-5602, combines a full-color, sunlight-readable display with a lightweight flow-molded carbon fiber composite enclosure for motorsports, powersports, marine, and performance applications. Its 5-inch screen delivers 800 x 480 resolution, while the integrated 10Hz GPS receiver and included antenna support GPS-based data functions when configured with compatible inputs and software.

Seven programmable, dimmable LEDs across the top of the housing provide clear RPM and shift indications. Two additional programmable LEDs support custom alerts and status conditions. Large face-mounted buttons make it easy to change pages and reset memory while wearing driving gloves, and the supplied rear connector supports remote button installation. The headlight input automatically dims the display and LEDs for improved nighttime visibility.

The CD-5G accepts channels from two separate programmable CAN bus connections, allowing AEMnet-enabled and compatible third-party devices to operate together. It can also be integrated with factory ECUs, carbureted vehicles, and pre-2008 stock ECU-equipped vehicles using the appropriate optional adapters or CAN sensor modules. Seven programmable pages, an alarm page, an on-change page, custom graphics, user-defined text, and more than 200 warning icons provide flexible data presentation. The rugged enclosure offers IP66 water resistance, and the included wiring harness simplifies installation.

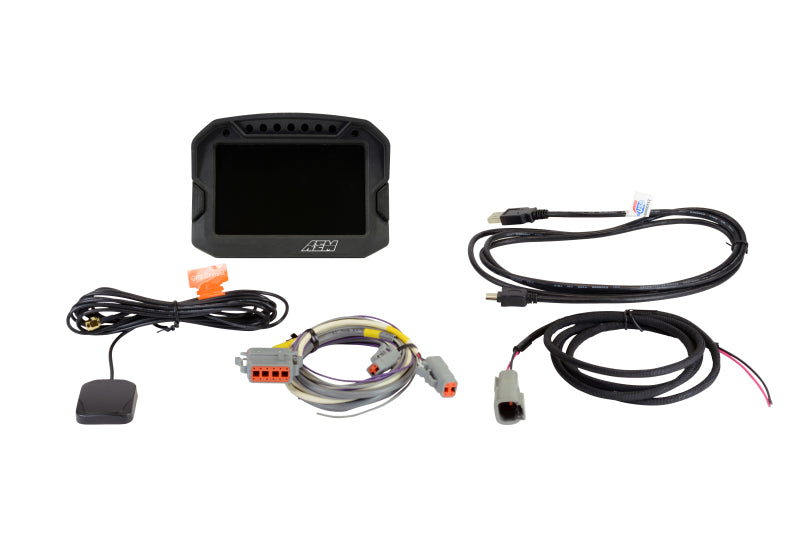

What's Included: AEM CD-5G Carbon Digital Dash Display, integrated 10Hz GPS receiver, GPS antenna, wiring interface harness, and access to free DashDesign Graphics Editor software. Optional Vehicle Dynamics Module, CAN Sensor Module, OBDII CAN Adapter Cable, and ECU-specific adapter cables are sold separately. The display is not CARB approved where applicable; review local regulations before installation.

Features:

• Full-Color Display: Sunlight-readable 5-inch screen with 800 x 480 resolution, 1000 cd/m² brightness, and an anti-glare filter.
• Programmable Shift Indication: Seven bright, dimmable RPM LEDs can be configured for progressive operation and shift alerts.
• Flexible CAN Connectivity: Supports two separate programmable CAN bus connections for AEMnet and compatible third-party devices.
• Rugged GPS-Enabled Design: Flow-molded carbon fiber composite housing, integrated 10Hz GPS, included antenna, IP66 water resistance, and user-configurable data pages.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
