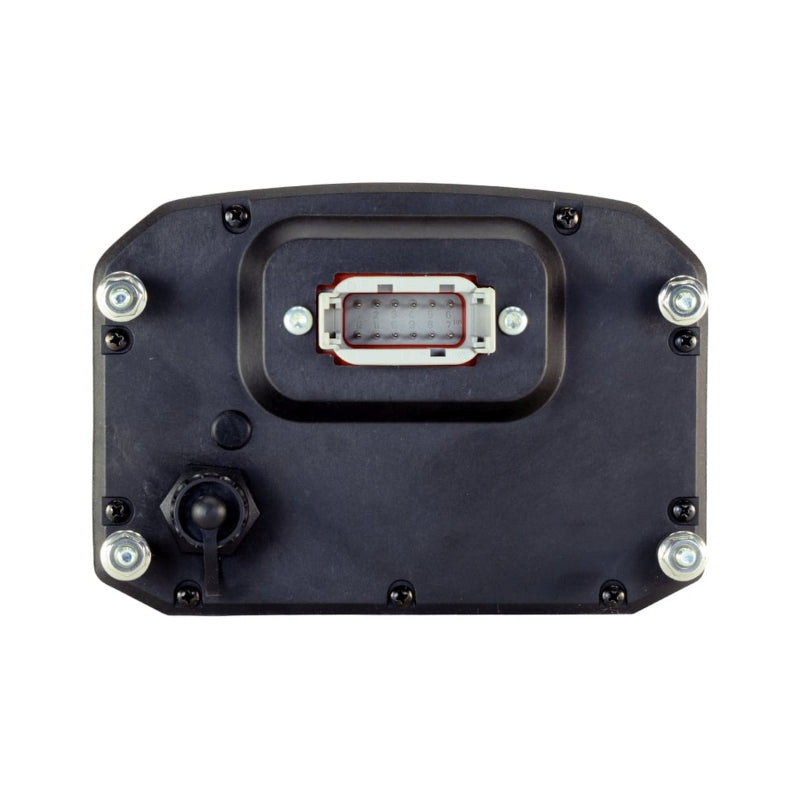

AEM CD-5G Carbon Flat Panel Digital Dash Display with Internal 20 Hz GPS and Antenna, Part 30-5602F

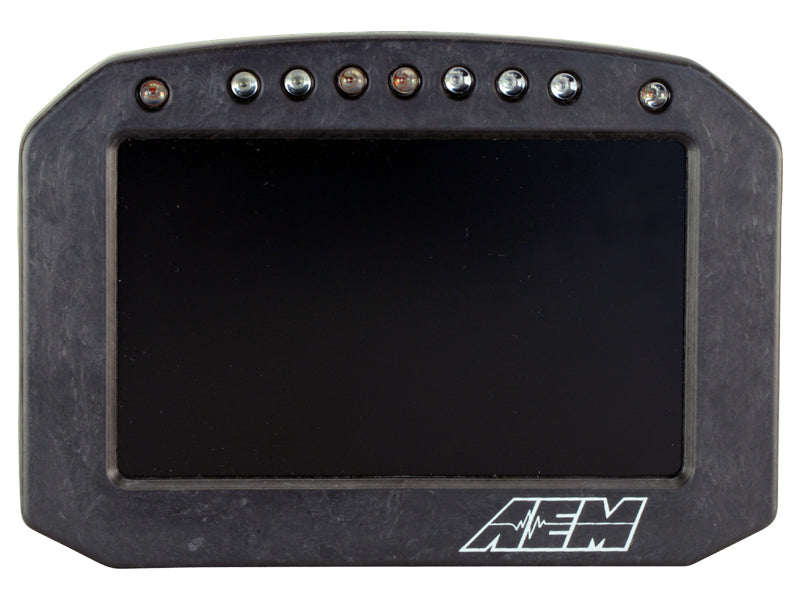

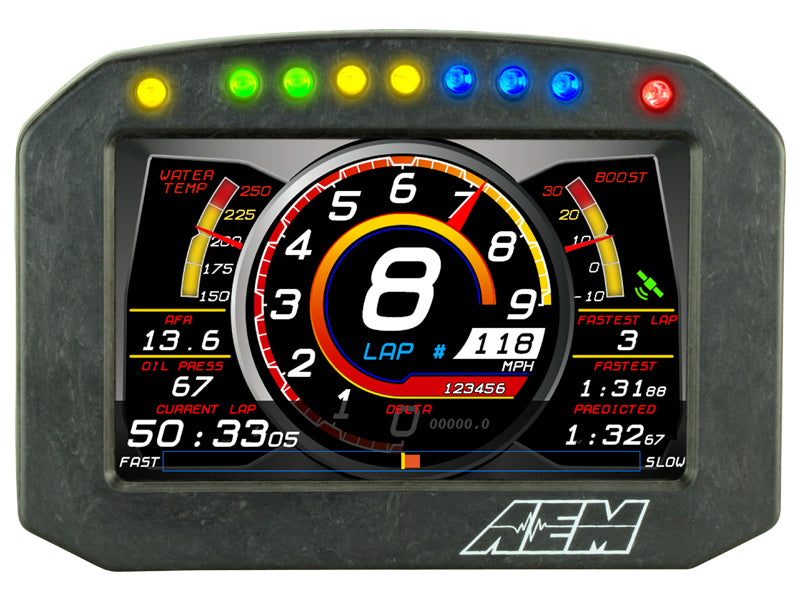

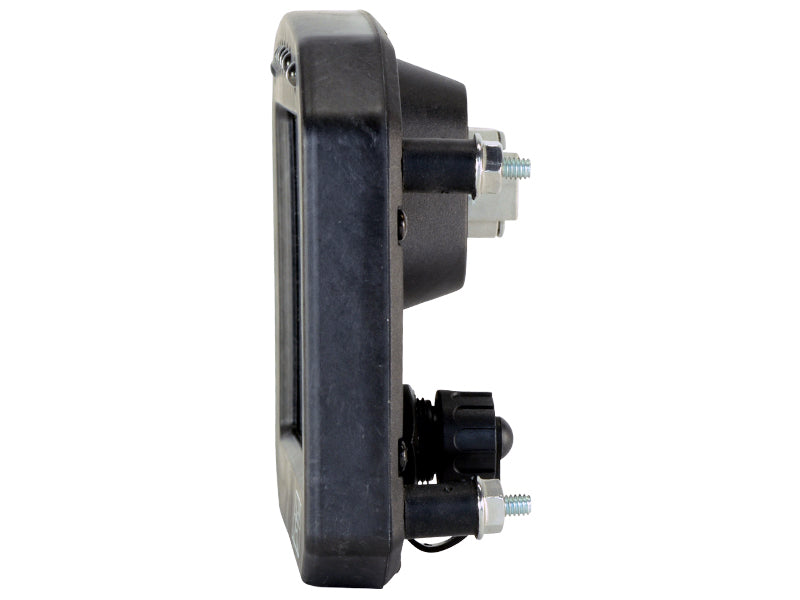

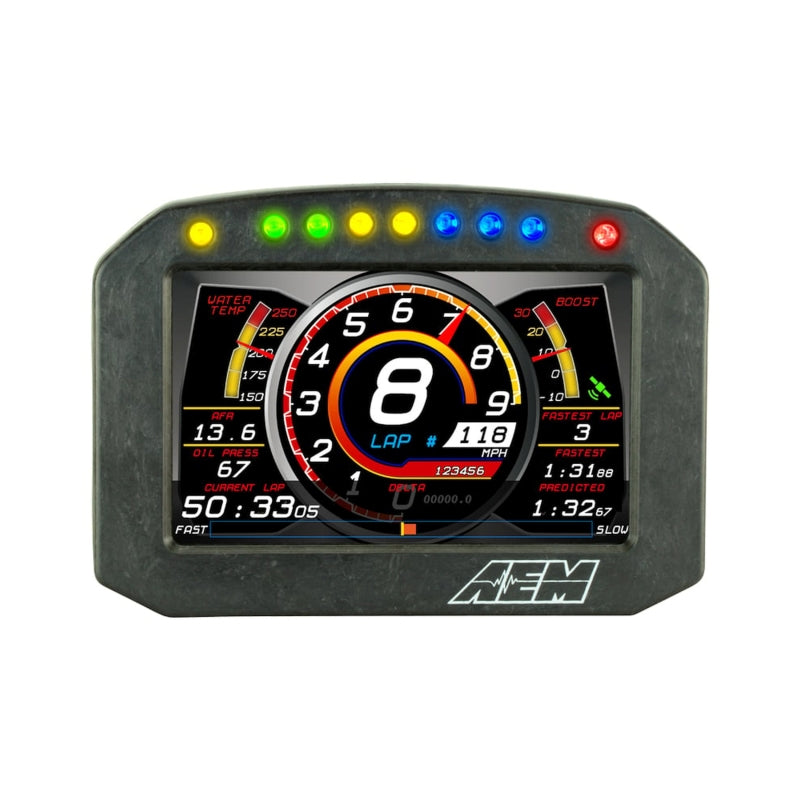

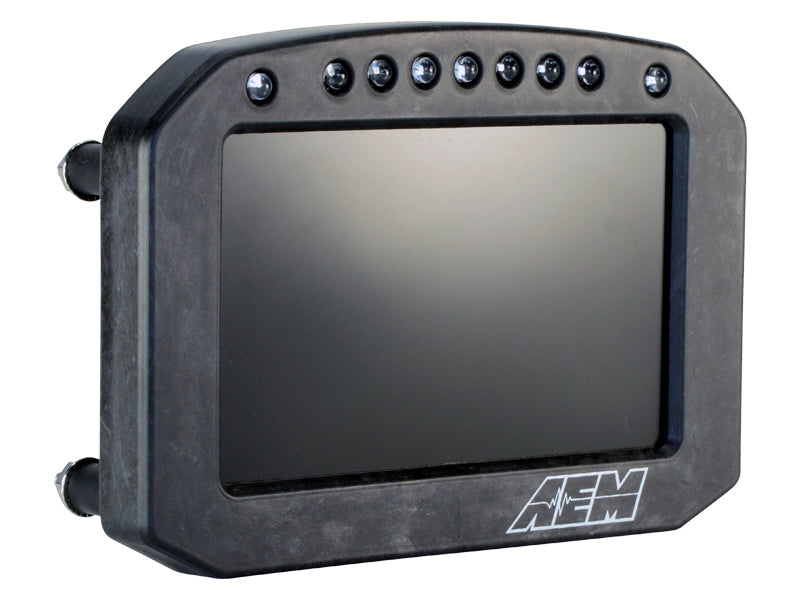

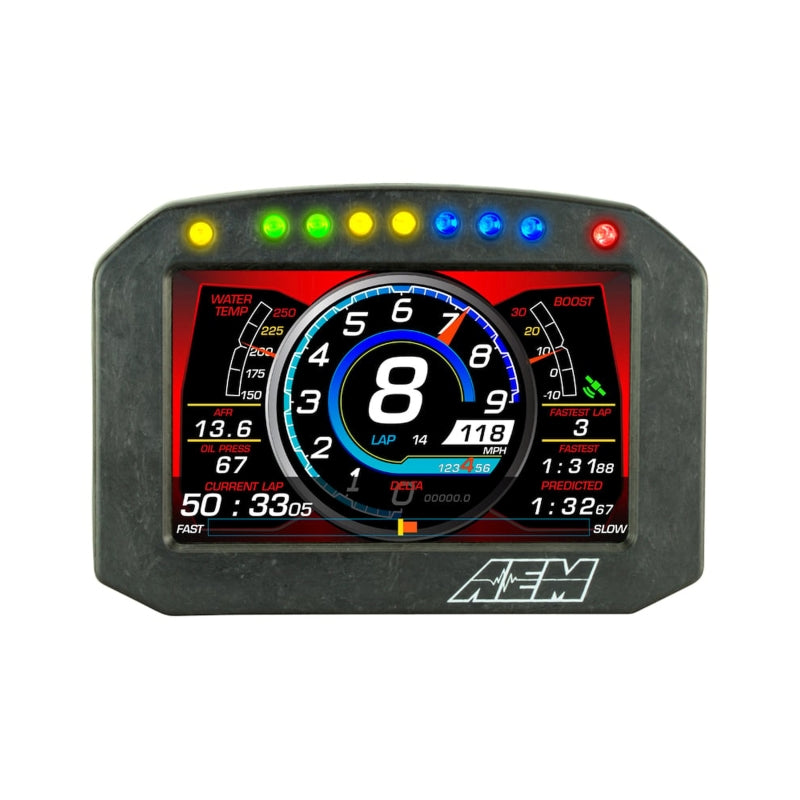

AEM CD5 Carbon Flat Panel Digital Displays are perfect for flush mount installation or in-dash enclosures with tight tolerances. They include all of the robust features found in the original CD-5 Carbon car dashboard monitors, but do not have buttons or an LED shade hood built into the enclosure. AEM CD5 Carbon Flat Panel Digital Displays feature full-color, daylight readable screens surrounded by a slim, tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housings for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. A remote button kit (PN 30-3610, sold separately) easily wires into the CD Carbon wiring harness and allows users to change pages and clear memory. Two additional programmable LEDs are included in the car dashboard monitor's enclosure and are fully programmable Flat Panel Digital Dash Display, CD-5G non-logging, GPS enabled racing dash, CAN input only, 5-inch diagonal screen, carbon fiber enclosure, GPS antenna and wiring harness included, Does Not Include Buttons (See PN 30-3610)

• Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
• Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212) or 6 Channel CAN Sensor Module (PN 30-2226)
• Install 8 additional temp inputs and send them to the CD Carbon Dash with our 8 Channel K-Type EGT CAN Module (PN 30-2224, sold separately)
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages (requires Button Kit PN 30-3610)
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Use the included page layouts and input your channels and text, or create your own from scratch
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• User supplied graphics can be changed based on channel values (up to the full screen size)
• Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• Available with or without 200Mb internal logging (up to 1,000Hz/channel)
• Headlight-in' connection dims the dash and LEDs during night operation
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)

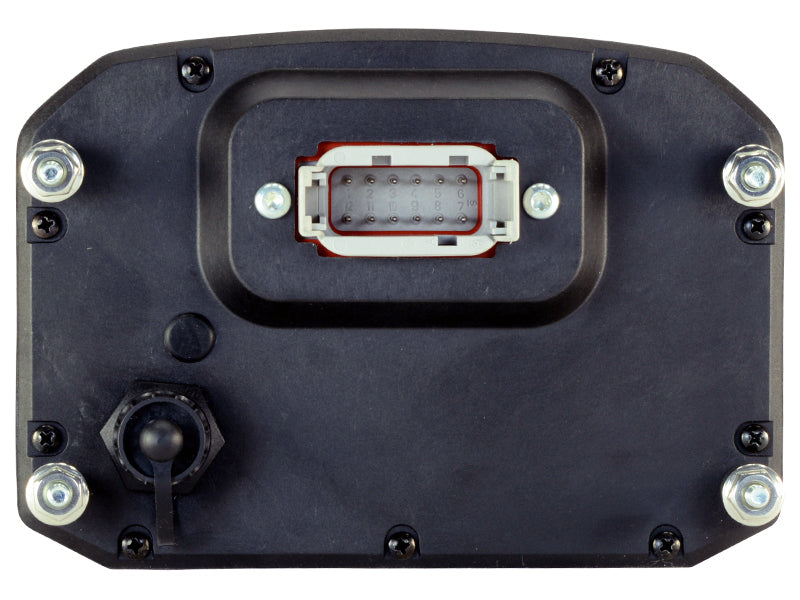

• Wiring interface/harnesses are identical between all CD Carbon Dashes
• Available with or without onboard 20 Hz GPS receiver and antenna
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• Layout files interchangeable between all CD Carbon Dashes
• Convert CAN bus channel values to user-defined text
• Full color 5" screen with 800x480 resolution
• Free DashDesign Graphics Editor software
• Two programmable LEDs
• IP66 water resistance
• Odometer function

Brief Description: The AEM CD-5G Carbon Flat Panel Digital Dash Display is designed for flush-mount installation and in-dash enclosures with limited clearance. This non-logging, GPS-enabled racing dash features a full-color, daylight-readable screen, CAN input capability, and a rugged flow-molded carbon fiber composite housing. The included 20 Hz GPS receiver, antenna, and wiring harness support GPS-based vehicle data and display functions. Buttons are not included; the optional AEM Remote Button Kit, Part 30-3610, is sold separately.

Performance Benefits: The display provides seven programmable and dimmable LEDs for RPM and shift indication, plus two additional programmable LEDs for user-defined alerts or events. Its 800 x 480 screen uses high-brightness output and an anti-glare filter for visibility in direct sunlight. Users can configure multiple display pages, warning icons, custom graphics, channel-based text, and alarm information through AEM DashDesign software. The headlight input automatically dims the display and LEDs for improved nighttime readability.

Key Product Specifications & Technical Data:

• Display: Full-color 5-inch diagonal screen with 800 x 480 resolution
• Data Interface: CAN input supports AEMnet and compatible non-AEM CAN bus devices
• GPS: Integrated 20 Hz GPS receiver with antenna included
• Housing: Lightweight flow-molded carbon fiber composite enclosure
• Visibility: Direct-sunlight readable with 1000 cd/m² brightness and anti-glare filter
• Indicators: Seven programmable RPM/shift LEDs and two programmable auxiliary LEDs
• Protection: IP66 water resistance for demanding motorsport environments
• Configuration: Seven programmable pages, alarm functions, odometer capability, custom graphics, and DashDesign software support

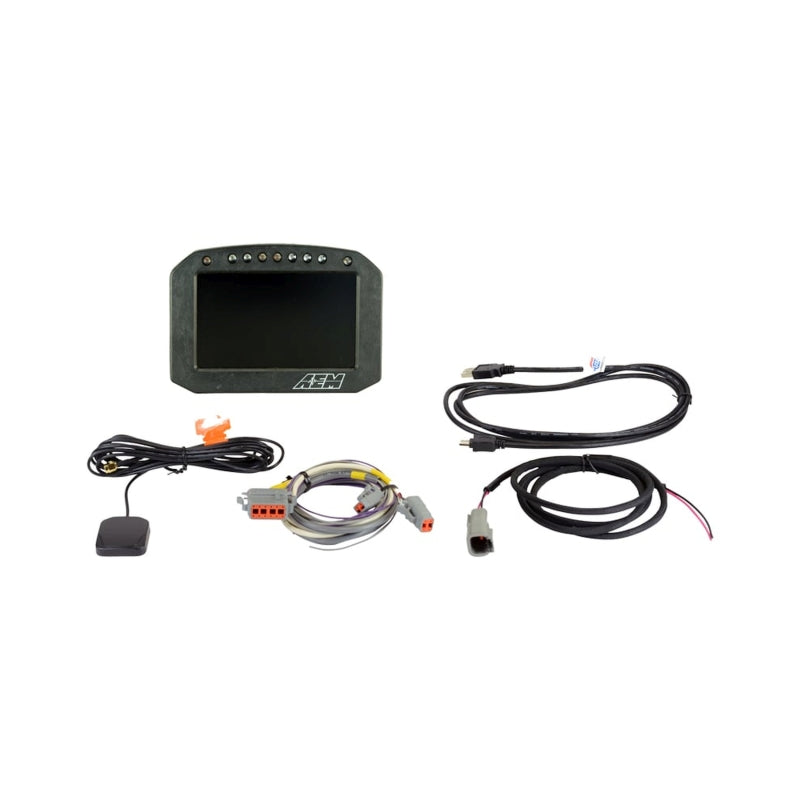

What's Included: AEM CD-5G Carbon Flat Panel Digital Dash Display, internal 20 Hz GPS receiver, GPS antenna, and wiring harness. The optional remote button kit is not included.

Fitment and Integration: The display accepts channels from 2008 and newer factory ECUs when used with the AEM Plug & Play OBDII CAN Adapter Cable, Part 30-2217. Carbureted and pre-2008 stock ECU-equipped vehicles can be integrated using an AEM 22 Channel CAN Sensor Module or 6 Channel CAN Sensor Module. Additional AEM modules support vehicle dynamics, EGT, temperature, track mapping, lap timing, and other data functions. Plug & Play adapter cables are available for Holley, Link, MSD Atomic, and Vi-Pec ECUs. Some functions require separately sold accessories.

Features:

• Flush-mount flat panel design fits in-dash enclosures with tight installation tolerances.
• Full-color, sunlight-readable 5-inch display provides clear vehicle data in bright racing conditions.
• Integrated 20 Hz GPS receiver and included antenna support GPS-based data and display functions.
• Seven programmable shift-light LEDs and two auxiliary programmable LEDs provide configurable driver alerts.
