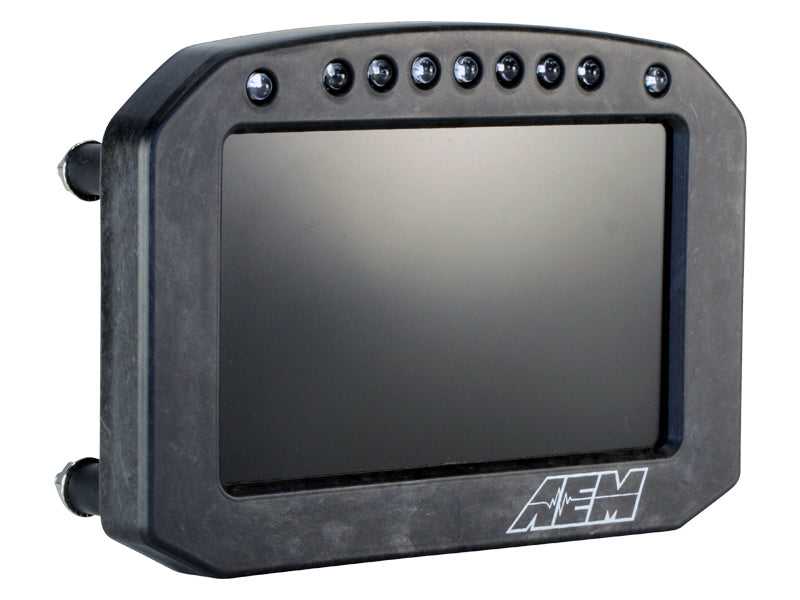

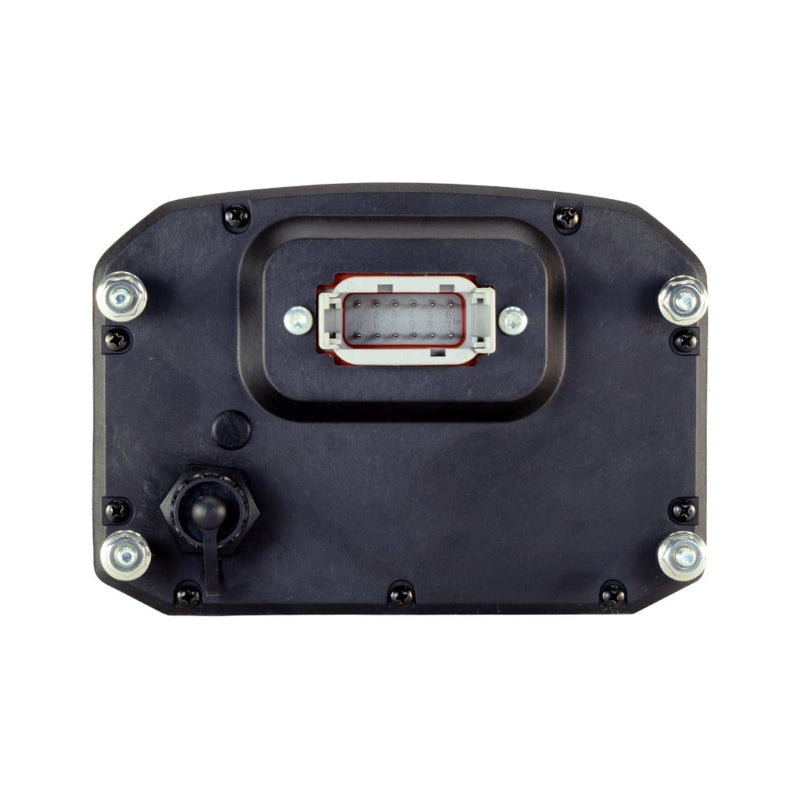

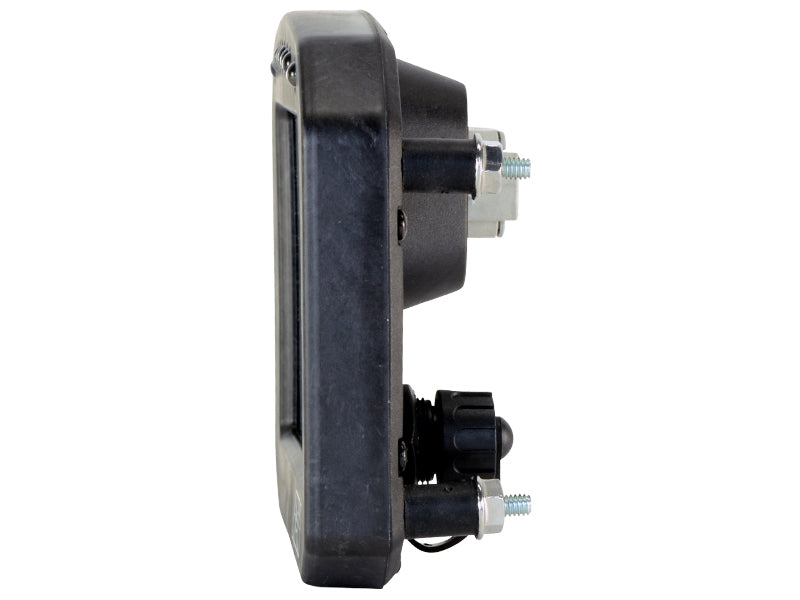

AEM CD-5L Carbon Logging Flush Digital Dash Display, Part Number 30-5601F

AEM CD5 Carbon Flat Panel Digital Displays are perfect for flush mount installation or in-dash enclosures with tight tolerances. They include all of the robust features found in the original CD-5 Carbon car dashboard monitors, but do not have buttons or an LED shade hood built into the enclosure. AEM CD5 Carbon Flat Panel Digital Displays feature full-color, daylight readable screens surrounded by a slim, tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housings for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. A remote button kit (PN 30-3610, sold separately) easily wires into the CD Carbon wiring harness and allows users to change pages and clear memory. Two additional programmable LEDs are included in the car dashboard monitor's enclosure and are fully programmable Flat Panel Digital Dash Display, CD-5L logging, non-GPS racing dash, CAN input only, 5-inch diagonal screen, carbon fiber enclosure, wiring harness included, Does Not Include Buttons (See PN 30-3610)

• Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
• Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212) or 6 Channel CAN Sensor Module (PN 30-2226)
• Install 8 additional temp inputs and send them to the CD Carbon Dash with our 8 Channel K-Type EGT CAN Module (PN 30-2224, sold separately)
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages (requires Button Kit PN 30-3610)
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Use the included page layouts and input your channels and text, or create your own from scratch
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• User supplied graphics can be changed based on channel values (up to the full screen size)
• Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• Available with or without 200Mb internal logging (up to 1,000Hz/channel)
• Headlight-in' connection dims the dash and LEDs during night operation
• Wiring interface/harnesses are identical between all CD Carbon Dashes
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Available with or without onboard 20 Hz GPS receiver and antenna
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• Layout files interchangeable between all CD Carbon Dashes
• Convert CAN bus channel values to user-defined text
• Full color 5" screen with 800x480 resolution
• Free DashDesign Graphics Editor software
• IP66 water resistance
• Two programmable LEDs
• Odometer function

The AEM CD-5L Carbon Logging Flush Digital Dash Display is designed for flush-mount installations and in-dash enclosures with limited clearance. This non-GPS racing dash features a full-color, daylight-readable 5-inch screen, CAN input, integrated data logging, and a rugged flow-molded carbon fiber composite housing. Its 800 x 480 resolution, anti-glare filter, and 1000 cd/m² brightness help provide clear data visibility in direct sunlight.

The AEM 30-5601F includes seven programmable and dimmable LED indicators across the top of the display for RPM and shift-light functions, plus two additional programmable LEDs for user-defined alerts or events. Seven programmable pages support main display layouts, alarms, on-change data, and startup information. The dedicated alarm page, warning icons, user graphics, and customizable text allow the display to be configured for a wide range of racing and performance applications.

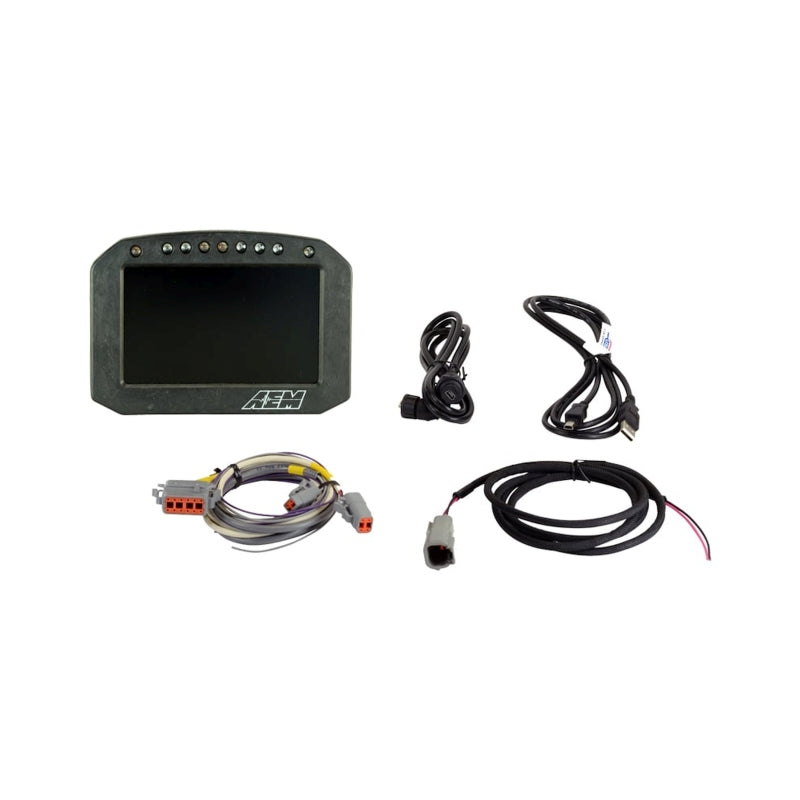

With 200 MB of internal logging capacity and recording rates up to 1,000 Hz per channel, the CD-5L can capture critical vehicle data for analysis. It accepts channels from AEMnet CAN-enabled devices and other CAN bus devices, while optional CAN modules and adapter cables support carbureted vehicles, pre-2008 factory ECU applications, 2008-and-newer factory ECUs, and select Holley, Link, MSD Atomic, and Vi-Pec systems. The included wiring harness supports installation, while the optional AEM remote button kit, part number 30-3610, is required for convenient page changes and memory clearing. GPS, vehicle dynamics, and additional sensor inputs require separately sold modules.

The display includes a headlight input for automatic nighttime dimming, two switch inputs for user-triggered events, an odometer function, IP66 water resistance, and compatibility with AEM DashDesign Graphics Editor software. The remote button kit is not included.

Features:

• Flush-Mount Design: Slim flat-panel construction fits in-dash enclosures and installations with tight tolerances.
• Daylight-Readable Display: Full-color 5-inch screen with 800 x 480 resolution, anti-glare filtering, and 1000 cd/m² brightness.
• Integrated Data Logging: Internal 200 MB memory records vehicle channels at rates up to 1,000 Hz per channel.
• Programmable Shift Lights: Seven bright, dimmable LEDs provide configurable RPM and shift indication.
• Customizable Pages: Seven user-configurable pages support main displays, alarms, startup information, and on-change data.
• Flexible CAN Compatibility: Accepts AEMnet and other CAN bus channels, with optional adapters for multiple ECU platforms.
• Rugged Construction: Flow-molded carbon fiber composite housing provides lightweight durability for racing environments.
• Expanded Inputs and Alerts: Includes two programmable LEDs, two switch inputs, headlight dimming, warning icons, custom graphics, and IP66 water resistance.
