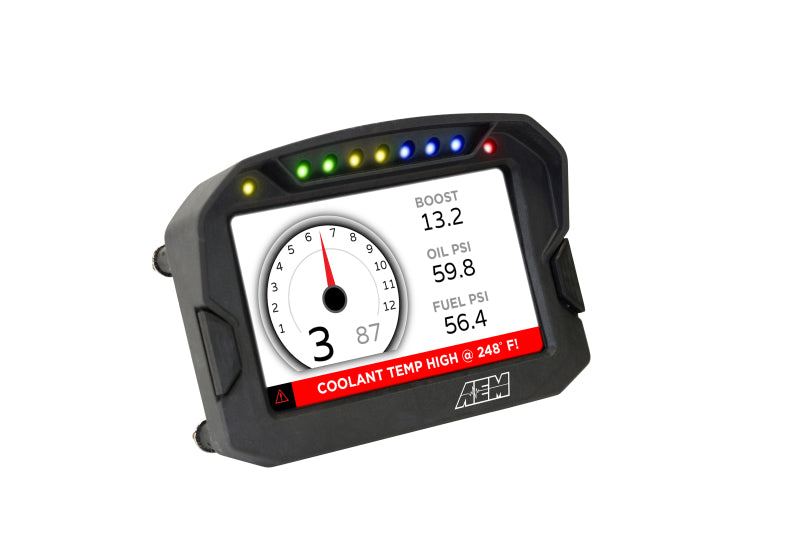

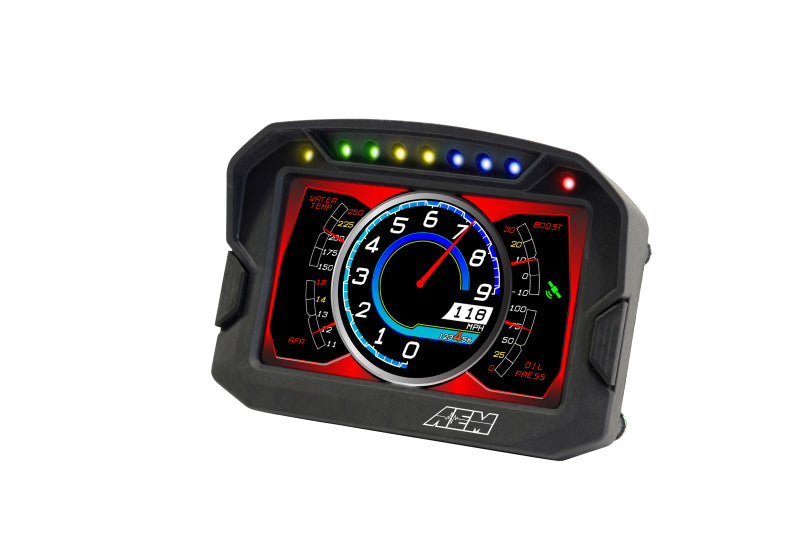

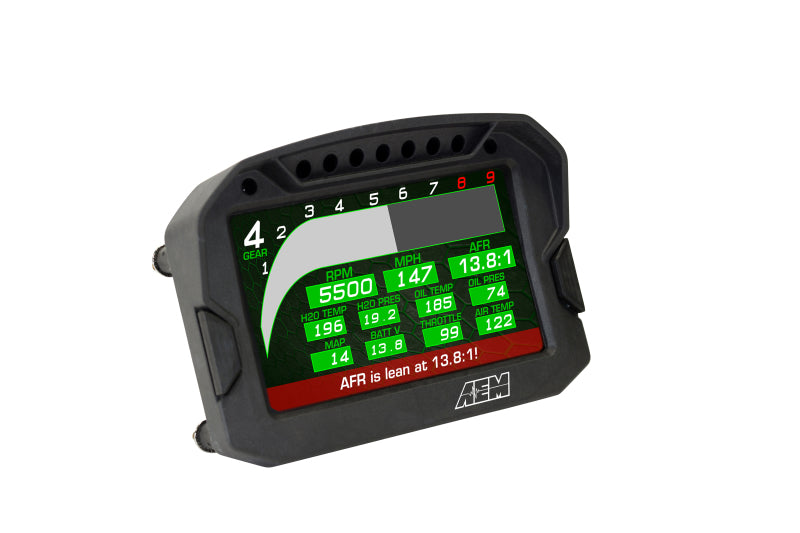

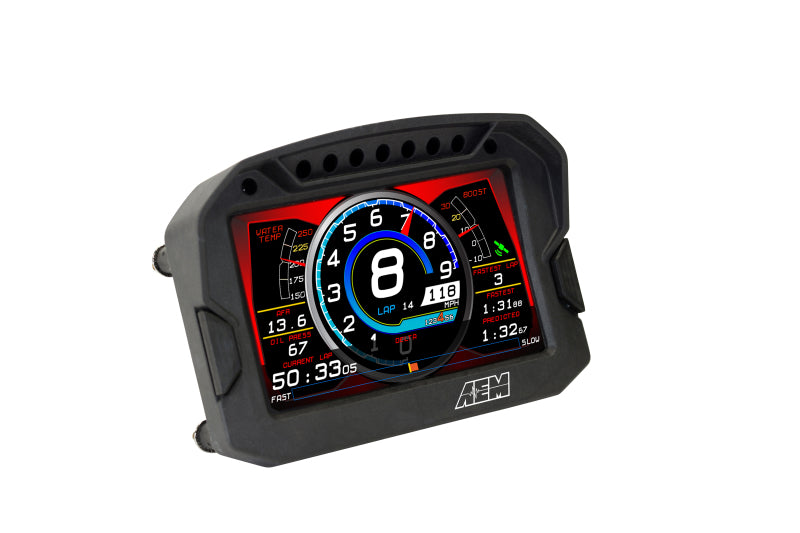

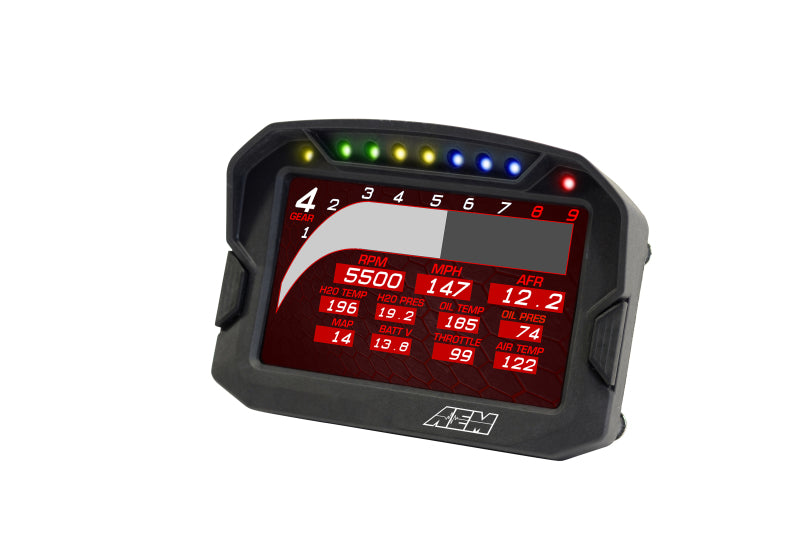

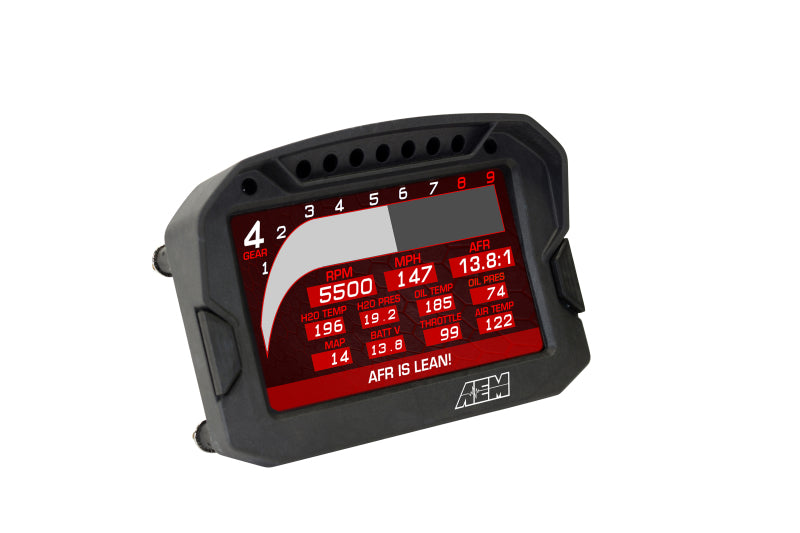

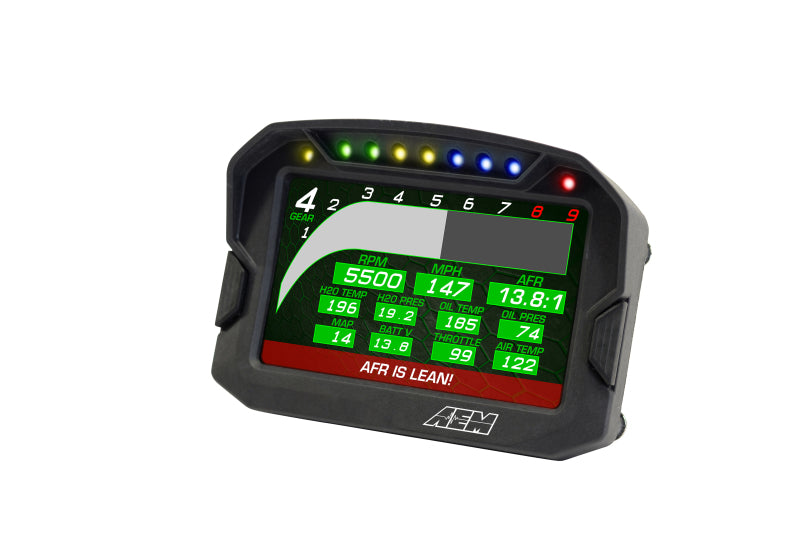

AEM CD-5LG Carbon Logging Digital Dash Display with 10 Hz GPS, Part Number 30-5603

CD-5 Carbon Digital Dash Displays feature a full-color, daylight readable screen surrounded by a tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housing for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. Two large buttons are included on the face of the display, allowing easy page changing and memory resetting even with driving gloves on. These button functions are included in the supplied rear connector, allowing the user to mount remote buttons. Two additional programmable LEDs are located above the toggle buttons on the top of the housing on either side of the integrated LED shift lights. 5-inch diagonal screen, carbon fiber composite enclosure, GPS antenna and wiring harness included

• Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
• Accepts channels from two separate user programmable CAN bus connections - works with AEMnet enabled devices and non-AEM 3rd party devices side by side
• Install the CD-5 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Use included page layouts and input your channels and text, or create your own from scratch
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• User supplied graphics can be changed based on channel values (up to the full screen size)
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• IP66 water resistance allows for operation in boats and motorcycles without worry
• Convert CAN bus channel values to user-defined text in multiple languages
• Available with or without 200Mb internal logging (up to 1,000Hz/channel)
• Headlight-in' connection dims the dash and LEDs during night operation
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• Available with or without on-board GPS receiver and antenna
• Layout files interchangeable with all versions of the CD-7
• Wiring interface/harness is identical to the CD-7
• Full color 5" screen with 800x480 resolution
• Total display weight of 11.7 oz./331 grams
• Free DashDesign Graphics Editor software
• Two programmable LEDs
• Odometer function

The AEM CD-5LG Carbon Logging Digital Dash Display, part number 30-5603, combines a full-color, daylight-readable display with integrated data logging and a 10 Hz GPS receiver. Its rugged, lightweight flow-molded carbon fiber composite enclosure is designed for demanding automotive, powersports, marine, and racing applications. The 5-inch screen provides 800 x 480 resolution, 1,000 cd/m² brightness, and an anti-glare filter for clear viewing in direct sunlight.

Seven programmable and dimmable LEDs across the top of the housing provide RPM and shift-light indication. The LEDs can be configured to illuminate in specific increments throughout the RPM range and flash when it is time to shift. Two additional programmable LEDs support custom alerts and status indications. Large face-mounted buttons make page changes and memory resets easy while wearing driving gloves, while the supplied rear connector supports remote button installation. A dedicated alarm page, programmable warning icons, custom graphics, and user-defined text help provide clear access to critical vehicle information.

The CD-5LG accepts channels from two separately programmable CAN bus connections, allowing AEMnet and third-party CAN devices to operate together. It can also be installed on carbureted and pre-2008 stock ECU-equipped vehicles with the optional AEM 22 Channel CAN Sensor Module, part number 30-2212, or on 2008-and-newer factory ECU applications with the optional Plug & Play OBDII CAN Adapter Cable, part number 30-2217. Additional adapters are available for Holley, Link, MSD Atomic, and Vi-Pec ECUs. Integrated GPS supports vehicle speed, track mapping, and lap timing, while optional expansion with the AEM Vehicle Dynamics Module, part number 30-2206, adds GPS-enhanced vehicle dynamics data, including G-loads, roll, pitch, and yaw.

What's Included: AEM CD-5LG Carbon Digital Dash Display, integrated 10 Hz GPS receiver, GPS antenna, and wiring harness. The display is compatible with free AEM DashDesign Graphics Editor software and uses layouts interchangeable with CD-7 versions. Internal logging supports recording at up to 1,000 Hz per channel, and the IP66 water-resistant enclosure supports operation in exposed vehicle environments.

Fitment: Universal motorsport and performance vehicle fitment. Vehicle-specific CAN, OBDII, and ECU connections may require optional adapter cables or modules.

Features:

• Full-color, direct-sunlight-readable 5-inch display with 800 x 480 resolution, 1,000 cd/m² brightness, and anti-glare filtering
• Integrated 10 Hz GPS receiver and antenna support speed data, track mapping, and lap timing
• Internal data logging records vehicle channels at up to 1,000 Hz per channel
• Rugged, lightweight flow-molded carbon fiber composite housing with IP66 water resistance
• Seven programmable and dimmable RPM/shift LEDs provide configurable visual shift indication
• Two additional programmable LEDs support custom alerts, status indicators, and user-triggered events
• Dual programmable CAN bus inputs support AEMnet and compatible third-party devices simultaneously
• Seven programmable display pages include Main, Alarm, On-Change, and Start-up layouts
• Dedicated alarm page supports more than 200 supplied warning icons, custom graphics, and user-defined text
• Two glove-friendly face buttons support page changes and memory resets, with remote button capability
• Headlight input automatically dims the display and LEDs for nighttime operation
• Compatible with optional AEM Vehicle Dynamics Module, 22 Channel CAN Sensor Module, and OBDII CAN Adapter Cable
