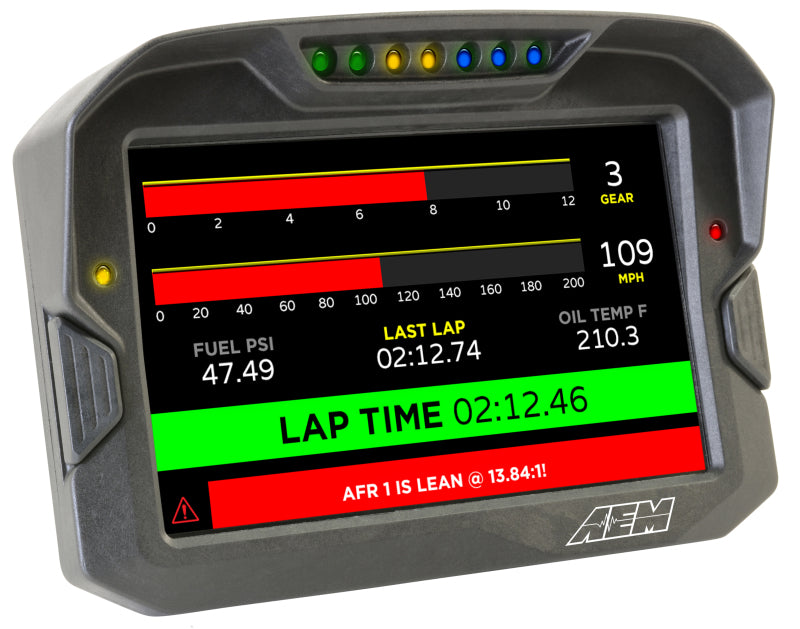

AEM CD-7 Carbon Digital Race Dash Display, Non-Logging, CAN Input Only, Part Number 30-5700

CD-7 Carbon Digital Dash Displays feature a full-color, daylight readable screen surrounded by a tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housing for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. Two large buttons are included on the face of the display, allowing easy page changing and memory resetting even with driving gloves on. These button functions are included in the supplied rear connector, allowing the user to mount remote buttons. Two additional programmable LEDs are located above the toggle buttons on the top of the housing on either side of the integrated LED shift lights. Digital Display CD-7 non-logging race dash, CAN input only, 7-inch diagonal screen, carbon fiber enclosure, wiring harness included

• Add a Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
• Accepts channels from two separate user programmable CAN bus connections - works with AEMnet enabled devices and non-AEM 3rd party devices side by side
• Install the CD-7 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Add an 8 Channel K-Type EGT CAN Module for 8 additional temps via AEMnet CAN bus (PN 30-2224, sold separately)
• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Use included page layouts and input your channels and text, or create your own from scratch
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• User supplied graphics can be changed based on channel values (up to the full screen size)
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• Convert CAN bus channel values to user-defined text in multiple languages
• Available with or without 200Mb internal logging (up to 1,000Hz/channel)
• Headlight-in' connection dims the dash and LEDs during night operation
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Layout files interchangeable with all versions of the CD-5 Carbon
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• IP65 water resistance - open cockpit, marine and motorcycle safe
• Available with or without on-board 20Hz GPS receiver and antenna
• Wiring interface/harness is identical to the CD-5 Carbon
• Total display weight of 20.9 oz. / 595 grams
• Full color 7" screen with 800x480 resolution
• Free DashDesign Graphics Editor software
• Two programmable LEDs
• Odometer function

The AEM CD-7 Carbon Digital Race Dash Display, Part Number 30-5700, delivers clear, configurable vehicle data in a rugged, lightweight package designed for demanding motorsports applications. Its full-color, 7-inch screen provides 800 x 480 resolution and 1,000 cd/m² brightness for direct-sunlight readability, while an anti-glare filter improves visibility in changing conditions. The flow-molded carbon fiber composite enclosure is IP65 water resistant, making the dash suitable for open-cockpit vehicles, motorcycles, and marine applications.

This non-logging model accepts channels from two separate, user-programmable CAN bus connections, allowing AEMnet-enabled and compatible third-party devices to operate together. The CD-7 Carbon can display data from factory ECUs, aftermarket engine management systems, CAN sensor modules, and other supported accessories. Optional modules and adapters can add GPS, vehicle dynamics, lap timing, track mapping, EGT inputs, and additional sensor channels. The supplied wiring harness supports the dash installation, while two large front buttons and compatible remote button functions allow convenient page changes and memory resets when wearing driving gloves.

Seven programmable and dimmable LEDs across the top of the housing provide configurable RPM and shift-light indication. Two additional programmable LEDs support event or warning indication, and the dedicated Alarm page can display user-defined warnings, icons, and text. Seven programmable pages include four main pages, Alarm, On-Change, and Start-Up layouts. Users can select supplied layouts or create custom displays with the included DashDesign Graphics Editor software. A headlight input automatically dims the display and LEDs for nighttime operation, while the odometer function and customizable graphics provide additional flexibility for race and performance vehicles.

What's Included: AEM CD-7 Carbon digital dash display and wiring harness. Optional accessories, including the Vehicle Dynamics Module, CAN Sensor Module, OBDII CAN Adapter Cable, and EGT CAN Module, are sold separately.

Fitment: Designed for motorsports, racing, open-cockpit, motorcycle, marine, carbureted, pre-2008 factory ECU-equipped, and 2008-and-newer factory ECU-equipped applications when used with the appropriate CAN interface or adapter. Verify ECU and vehicle compatibility before installation.

Features:

• Full-color, sunlight-readable display: Uses a 7-inch, 800 x 480 screen with 1,000 cd/m² brightness and an anti-glare filter for clear viewing in bright conditions.
• Dual programmable CAN inputs: Accepts channels from two separate CAN bus connections and supports AEMnet-enabled and compatible third-party devices.
• Programmable RPM and shift indication: Seven bright, dimmable LEDs provide configurable RPM progression and shift alerts.
• Rugged carbon fiber construction: Flow-molded carbon fiber composite housing provides a lightweight, durable enclosure with IP65 water resistance.
• Flexible data expansion: Supports optional GPS, vehicle dynamics, CAN sensor, OBDII, and EGT modules for expanded monitoring and analysis.
• Customizable display layouts: Includes seven programmable pages, user-defined graphics, warning icons, multilingual text, and DashDesign Graphics Editor software.
• Convenient driver controls: Large front buttons support easy page changes and memory resets, with remote button functions available through the rear connector.
• Night driving and event indication: Headlight input dims the screen and LEDs, while two additional programmable LEDs and switch inputs display user-defined events.
