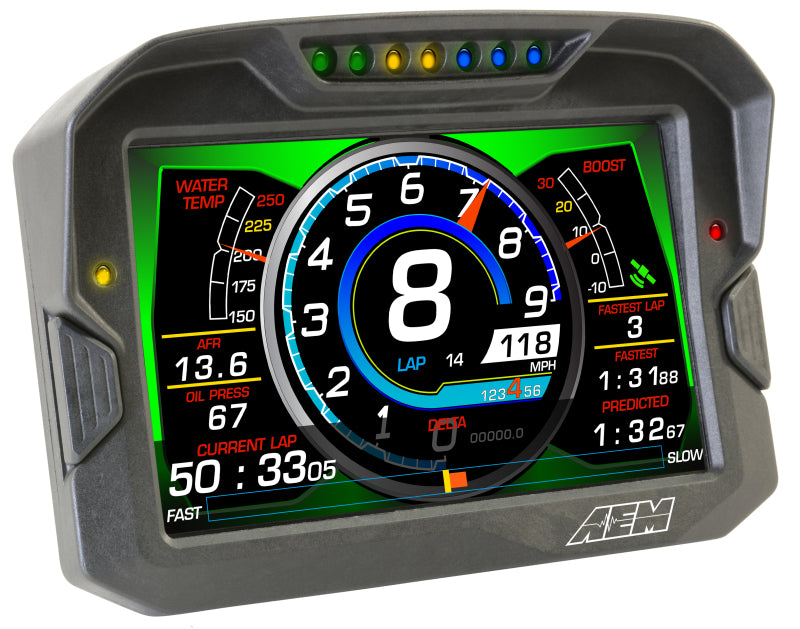

AEM CD-7G Carbon Digital Dash Display, GPS-Enabled Non-Logging Race Dash with CAN Input Only, Part Number 30-5702

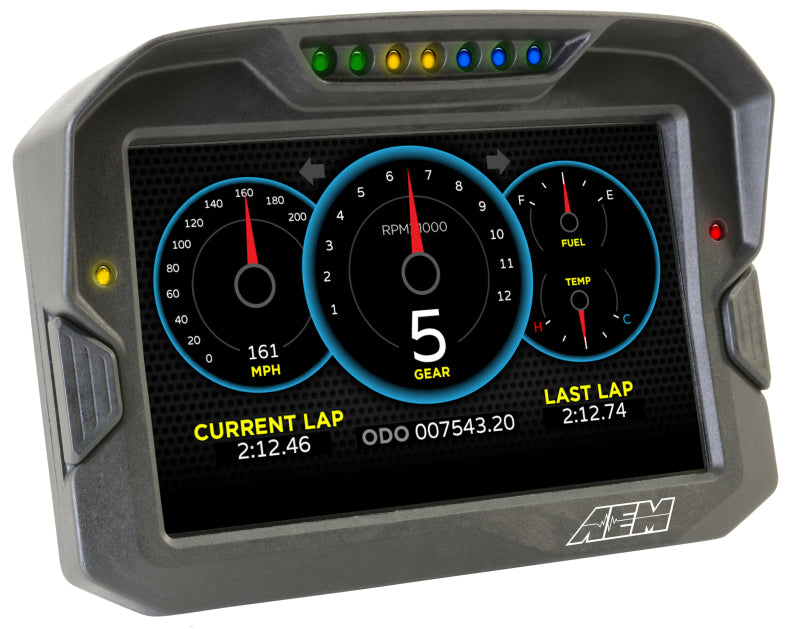

CD-7 Carbon Digital Dash Displays feature a full-color, daylight readable screen surrounded by a tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housing for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. Two large buttons are included on the face of the display, allowing easy page changing and memory resetting even with driving gloves on. These button functions are included in the supplied rear connector, allowing the user to mount remote buttons. Two additional programmable LEDs are located above the toggle buttons on the top of the housing on either side of the integrated LED shift lights. Digital Dash Display, CD-7G non-logging, GPS enabled racing dash, CAN input only, 7-inch diagonal screen, carbon fiber enclosure, GPS antenna and wiring harness included (Does NOT Include Vehicle Dynamics Module)

• Add a Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
• Accepts channels from two separate user programmable CAN bus connections - works with AEMnet enabled devices and non-AEM 3rd party devices side by side
• Install the CD-7 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Add an 8 Channel K-Type EGT CAN Module for 8 additional temps via AEMnet CAN bus (PN 30-2224, sold separately)

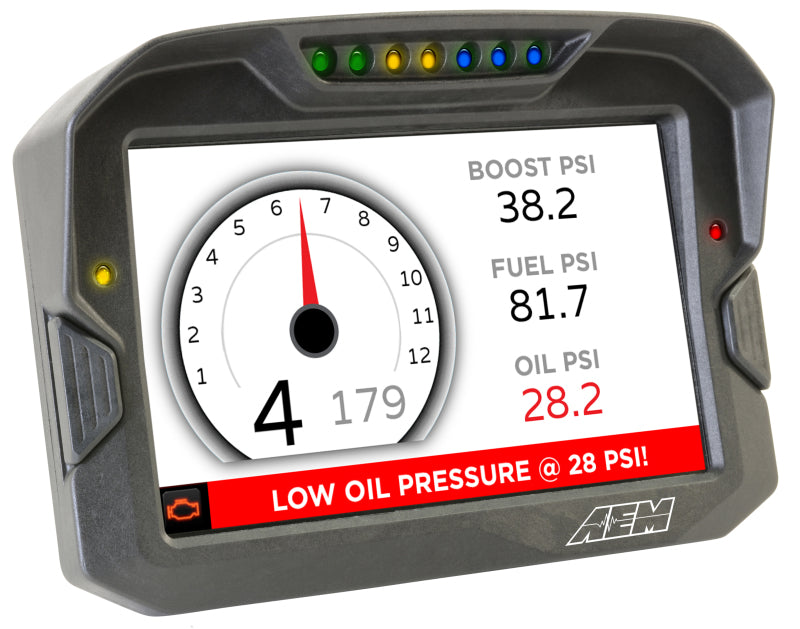

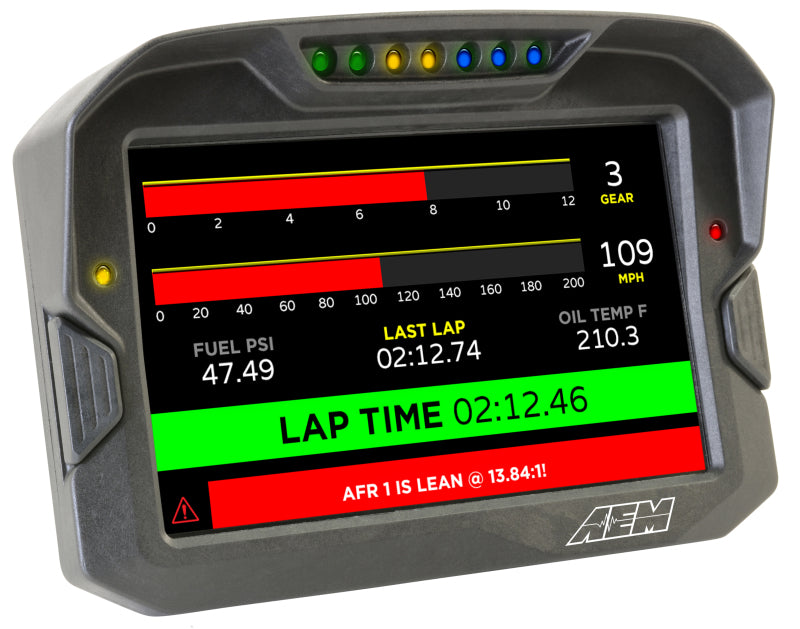

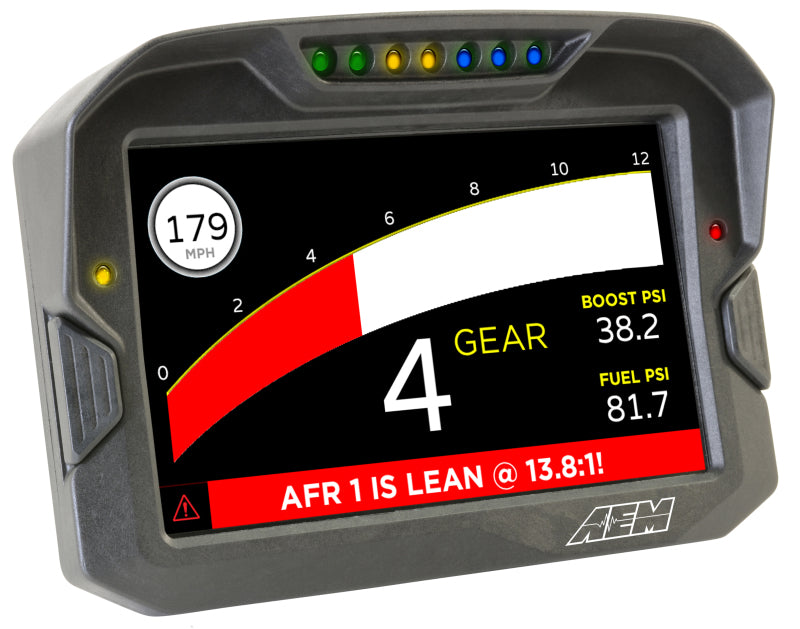

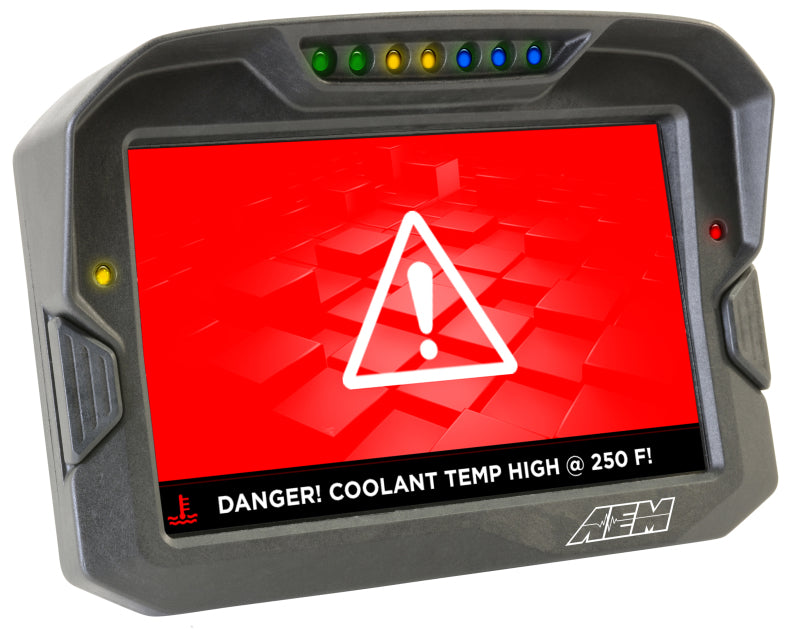

• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.

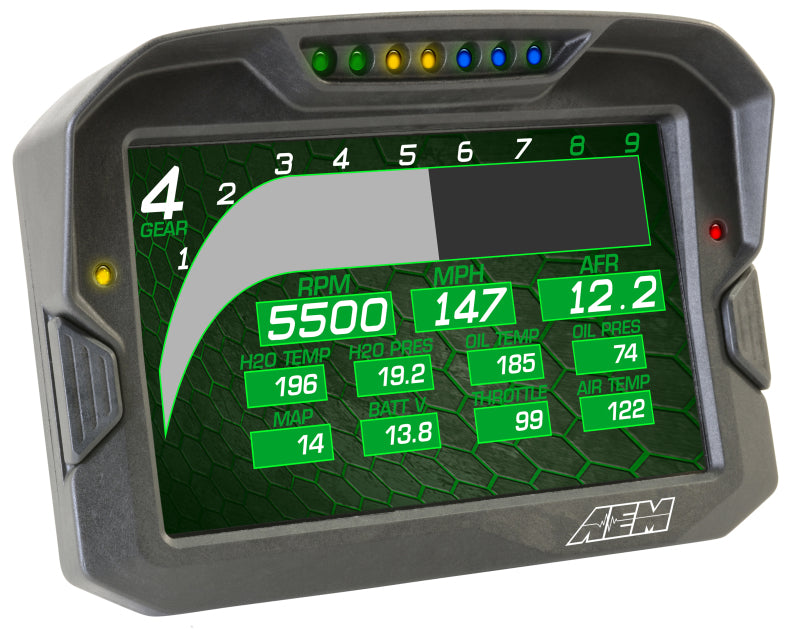

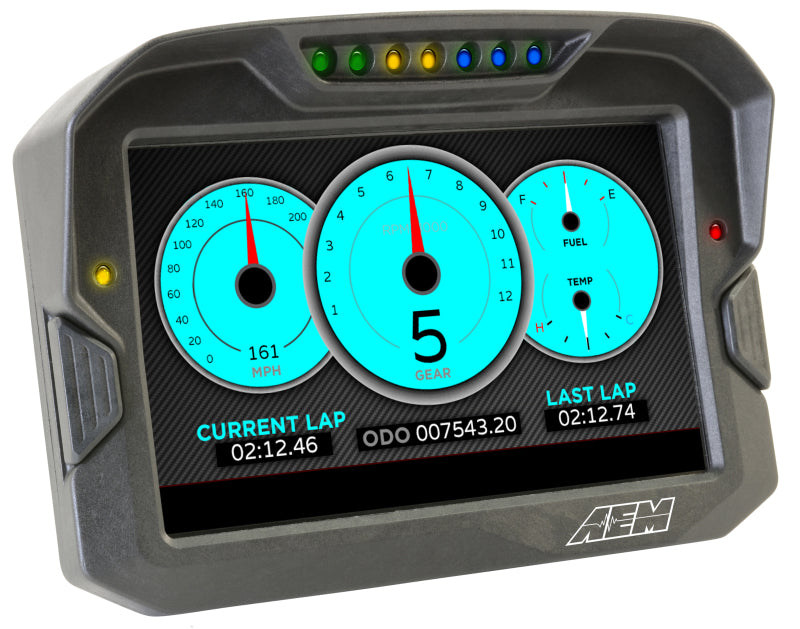

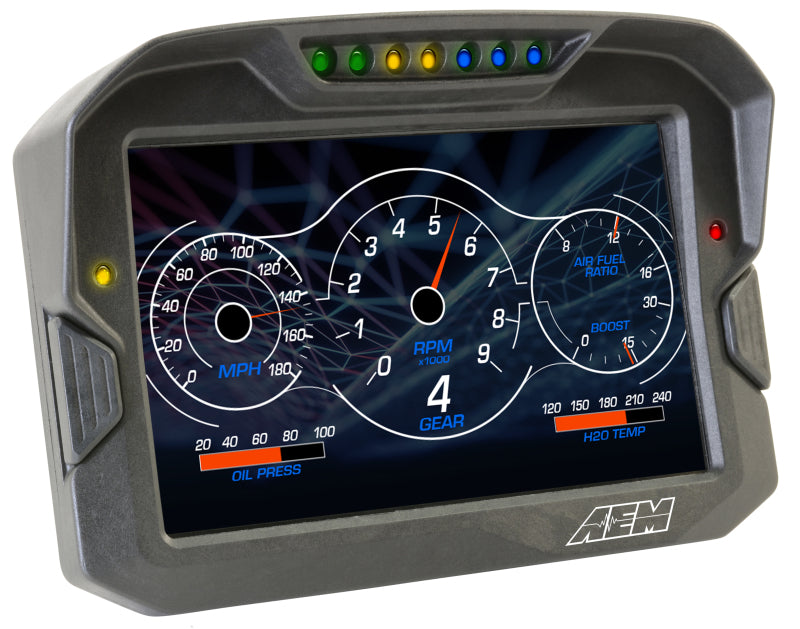

• Use included page layouts and input your channels and text, or create your own from scratch
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• User supplied graphics can be changed based on channel values (up to the full screen size)
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• Convert CAN bus channel values to user-defined text in multiple languages
• Available with or without 200Mb internal logging (up to 1,000Hz/channel)
• Headlight-in' connection dims the dash and LEDs during night operation
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Layout files interchangeable with all versions of the CD-5 Carbon
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• IP65 water resistance - open cockpit, marine and motorcycle safe
• Available with or without on-board 20Hz GPS receiver and antenna
• Wiring interface/harness is identical to the CD-5 Carbon
• Total display weight of 20.9 oz. / 595 grams
• Full color 7" screen with 800x480 resolution
• Free DashDesign Graphics Editor software
• Two programmable LEDs
• Odometer function

The AEM CD-7G Carbon Digital Dash Display, Part Number 30-5702, is a GPS-enabled, non-logging racing dash designed for drivers who need clear, configurable vehicle data in demanding motorsport environments. Its full-color 7-inch screen provides 800 x 480 resolution and 1,000 cd/m² brightness for direct-sunlight readability, while the anti-glare filter helps maintain visibility during daytime driving. The lightweight, flow-molded carbon fiber composite housing provides a durable enclosure with IP65 water resistance for open-cockpit, marine, and motorcycle applications.

The CD-7G accepts channels from two separate, user-programmable CAN bus connections, allowing AEMnet-enabled and compatible third-party devices to operate side by side. It can display data from compatible factory ECUs, sensors, and optional CAN modules, including additional EGT channels and vehicle dynamics data. This version includes GPS capability, a GPS antenna, and wiring harness but does not include the Vehicle Dynamics Module. The optional AEM Vehicle Dynamics Module adds GPS-based track mapping and lap timing along with 3-axis gyroscope and accelerometer data for G-loads, roll, pitch, and yaw.

Seven programmable and dimmable LEDs across the top of the housing provide RPM and shift indication, with two additional programmable LEDs near the face-mounted toggle buttons. The large buttons are glove-friendly and support page changes and memory resets, while remote button functionality is available through the rear connector. Seven programmable pages, customizable warning icons, user-defined text, alarm functions, switch inputs, an On-Change page, and free DashDesign Graphics Editor software make the AEM CD-7G adaptable to a wide range of racing data display requirements. Headlight input automatically dims the display and LEDs for nighttime operation.

What's Included: AEM CD-7G Carbon Digital Dash Display, GPS antenna, and wiring harness. The Vehicle Dynamics Module, CAN adapters, sensor modules, and other accessories are sold separately.

Fitment: Universal motorsport application for vehicles equipped with compatible CAN bus systems. Carbureted and pre-2008 stock ECU-equipped vehicles require the optional AEM 22 Channel CAN Sensor Module. 2008 and newer factory ECU applications require the appropriate Plug & Play OBDII CAN Adapter Cable. Additional Plug & Play adapter cables are available for select Holley, Link, MSD Atomic, and Vi-Pec ECUs.

Key Specifications: Seven-inch full-color display; 800 x 480 screen resolution; GPS-enabled; CAN input only; non-logging configuration; 20.9-ounce display weight; IP65 water resistance; carbon fiber composite enclosure.

Features:

• Full-Color Sunlight-Readable Display: Provides 800 x 480 resolution, 1,000 cd/m² brightness, and an anti-glare filter for clear daytime visibility.
• Programmable RPM and Shift Indicators: Seven bright, dimmable LEDs display programmable RPM increments and shift alerts.
• Dual CAN Bus Connectivity: Accepts channels from two separate user-programmable CAN bus connections for AEMnet and compatible third-party devices.
• Flexible Racing Data Configuration: Offers seven programmable pages, customizable warning icons, user-defined text, switch inputs, alarm functions, and DashDesign Graphics Editor support.
