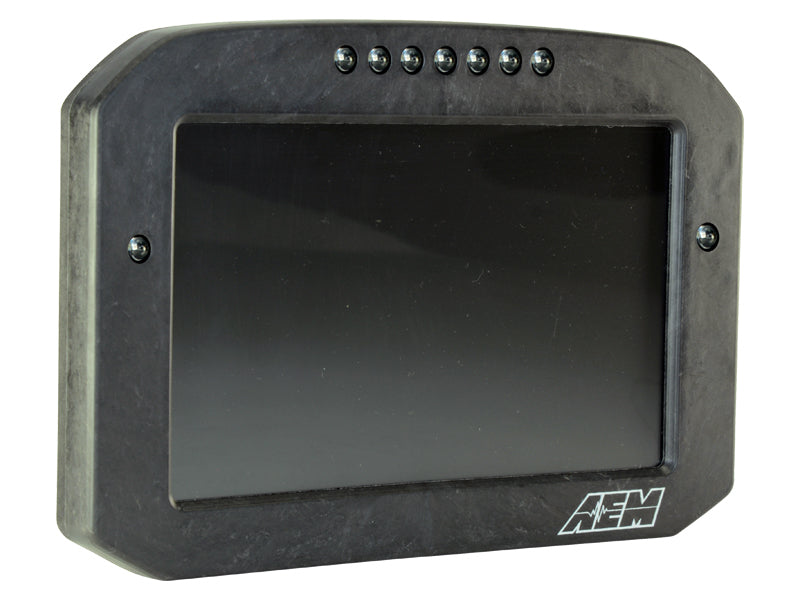

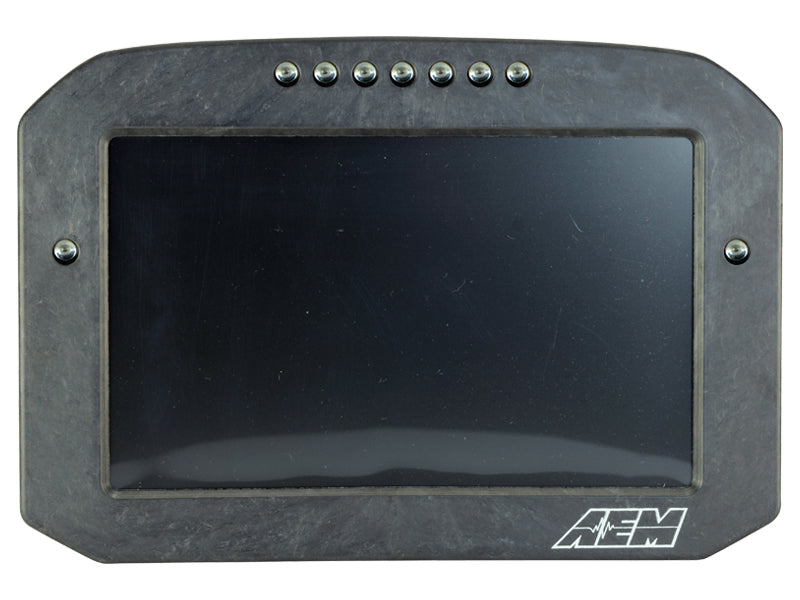

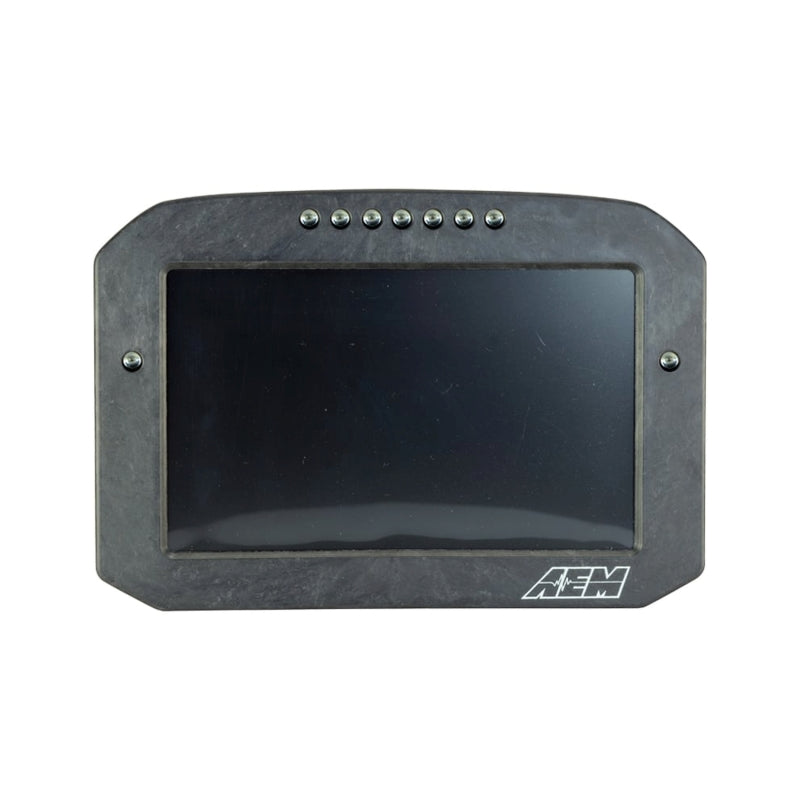

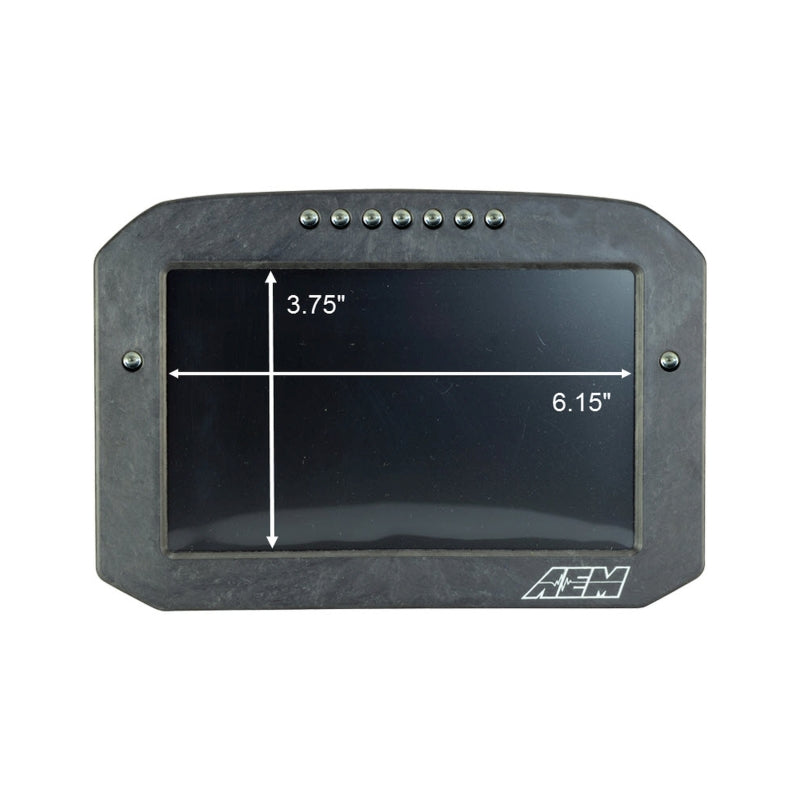

AEM CD-7G Carbon Flush Digital Dash Display with 20 Hz GPS, Part Number 30-5702F

AEM CD7 Carbon Digital Flat Panel Displays feature full-color, daylight readable screens surrounded by a slim, tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housings for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. A remote button kit (PN 30-3610, sold separately) easily wires into the CD Carbon wiring harness and allows users to change pages and clear memory. Two additional programmable LEDs are included in the enclosure and are fully programmable. Flat Panel Digital Dash Display, CD-7G non-logging, GPS enabled racing dash, CAN input only, 7-inch diagonal screen, carbon fiber enclosure, GPS antenna and wiring harness included (Does NOT Include VDM or Buttons (See PN 30-3610)

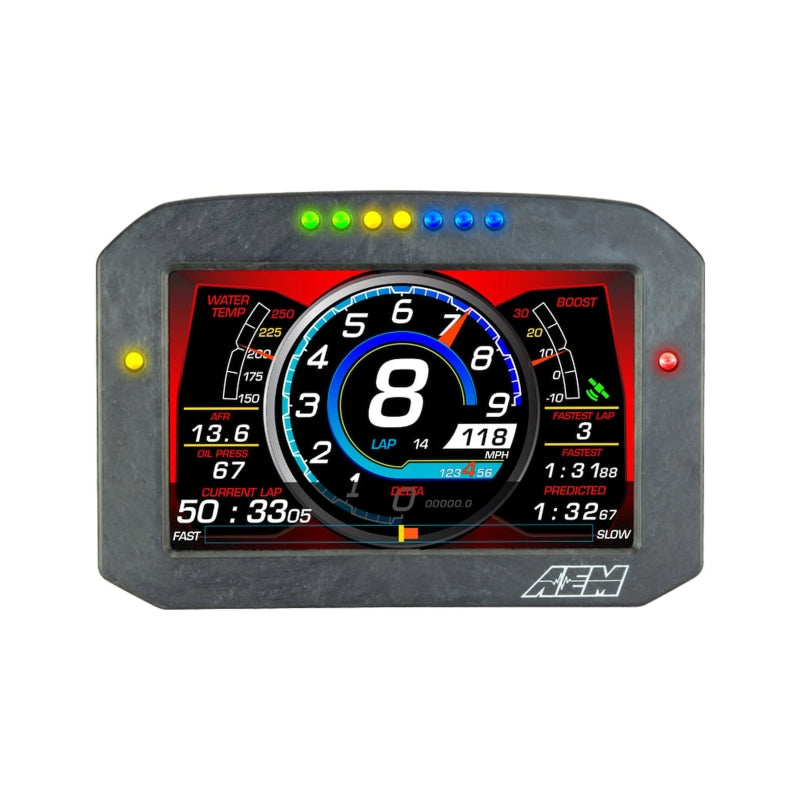

• Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
• Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212) or 6 Channel CAN Sensor Module (PN 30-2226)
• Install 8 additional temp inputs and send them to the CD-7 Carbon with our 8 Channel K-Type EGT CAN Module (PN 30-2224, sold separately)
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages (requires Button Kit PN 30-3610)
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.

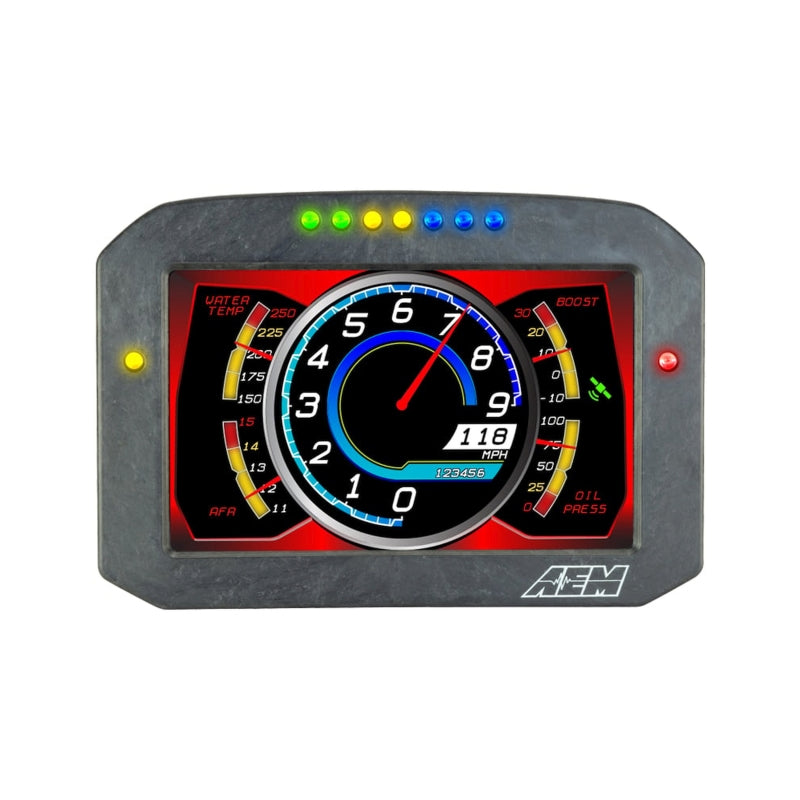

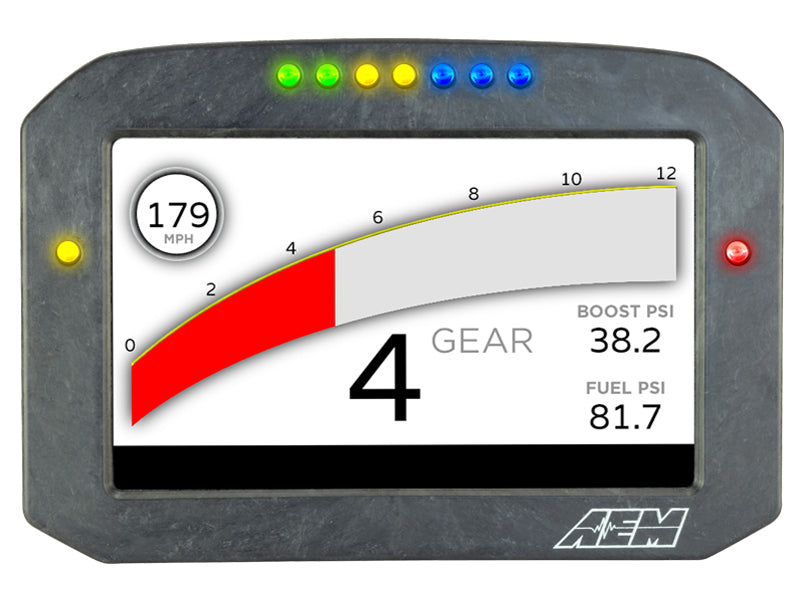

• Use the included page layouts and input your channels and text, or create your own from scratch
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• User supplied graphics can be changed based on channel values (up to the full screen size)
• Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• Available with or without 200Mb internal logging (up to 1,000Hz/channel)
• Headlight-in' connection dims the dash and LEDs during night operation
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)

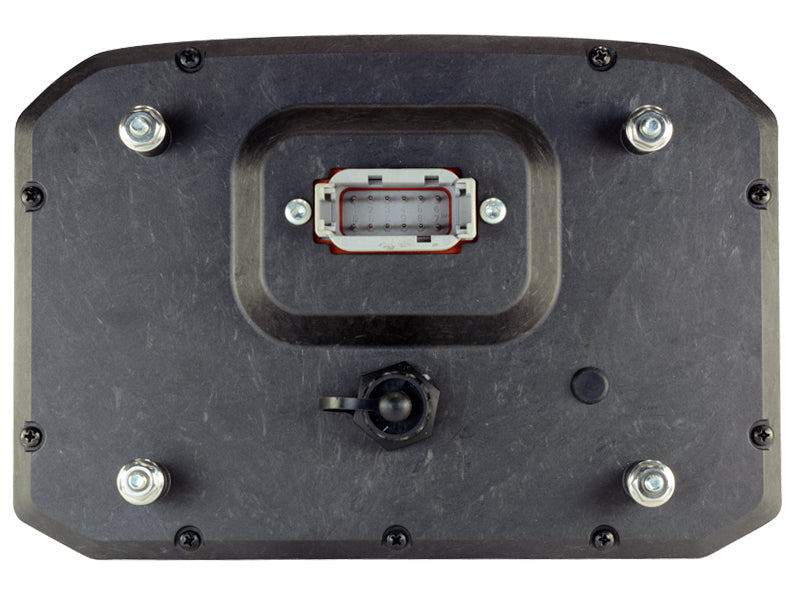

• Wiring interface/harnesses are identical between all CD Carbon Dashes
• Available with or without onboard 20 Hz GPS receiver and antenna
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• Layout files interchangeable between all CD Carbon Dashes
• Convert CAN bus channel values to user-defined text
• Full color 7" screen with 800x480 resolution
• IP66 water resistance - open cockpit safe
• Free DashDesign Graphics Editor software
• Two programmable LEDs
• Odometer function

The AEM CD-7G Carbon Flush Digital Dash Display, part number 30-5702F, provides a clear, configurable view of critical vehicle data for race and performance applications. Its full-color, daylight-readable 7-inch screen features 800 x 480 resolution, 1,000 cd/m² brightness, and an anti-glare filter for visibility in direct sunlight. The lightweight, flow-molded carbon fiber composite housing offers a rugged solution for open-cockpit environments with IP66 water resistance.

This non-logging racing dash accepts CAN input from AEMnet CAN-enabled devices and compatible non-AEM CAN bus systems. The integrated 20 Hz GPS receiver and included antenna support GPS-based vehicle data, while the seven programmable and dimmable LEDs provide RPM and shift indication. Two additional programmable LEDs and two switch inputs support user-defined events such as high beams, blinkers, map changes, or other vehicle functions. A headlight input automatically dims the display and LEDs for nighttime operation.

The CD-7G supports seven programmable pages, including four main pages, an alarm page, an on-change page, and a startup page when used with the optional AEM remote button kit, part number 30-3610. Users can select supplied layouts or create custom pages with programmable text, graphics, warning icons, and channel-based display changes. The included wiring harness connects to compatible systems, while optional modules and adapter cables expand compatibility with factory ECUs, carbureted vehicles, EGT sensors, and additional vehicle data sources. AEM DashDesign software is included for display configuration.

Specifications and Technical Data

• Display: Full-color 7-inch digital screen
• Resolution: 800 x 480 pixels
• GPS: Integrated 20 Hz receiver with antenna
• Communications: CAN input with AEMnet and compatible CAN devices
• Logging: Non-logging configuration
• RPM Indication: Seven programmable, dimmable LED indicators
• Protection: IP66 water resistance
• Enclosure: Flow-molded carbon fiber composite housing

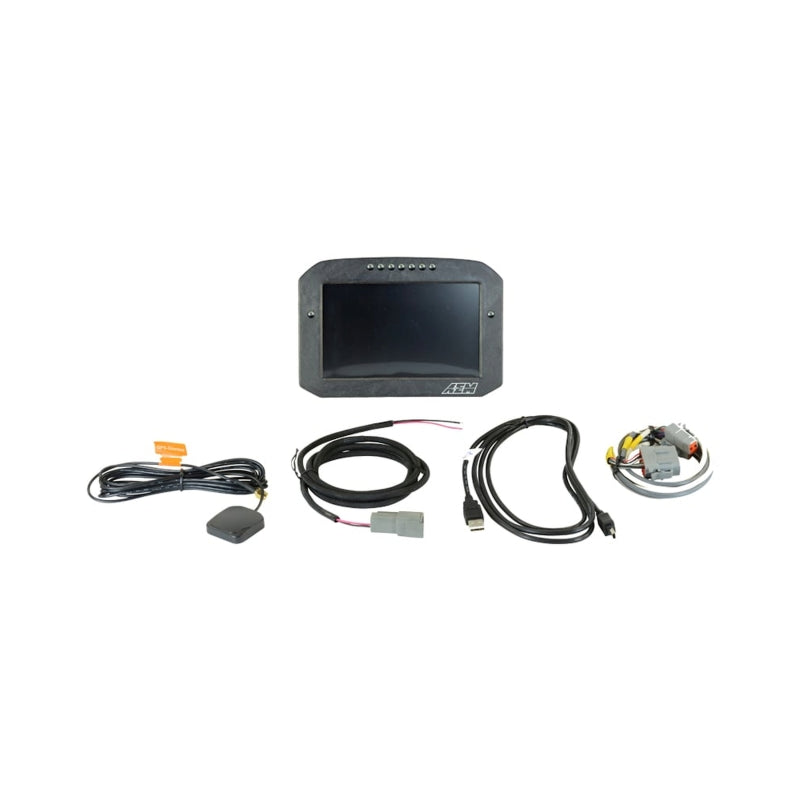

What's Included

• AEM CD-7G Carbon digital dash display
• 20 Hz GPS antenna
• Wiring harness
• DashDesign graphics editor software

Optional components, including the remote button kit, Vehicle Dynamics Module, CAN sensor modules, EGT CAN module, and ECU adapter cables, are sold separately.

Features:

• Daylight-Readable Display: Full-color 800 x 480 screen with 1,000 cd/m² brightness and anti-glare filtering for clear viewing in direct sunlight.
• Programmable RPM and Shift Indicators: Seven user-configurable and dimmable LEDs provide precise RPM progression and shift alerts.
• Integrated GPS Data: Built-in 20 Hz GPS receiver and included antenna support GPS-based vehicle information and racing functions.
• Flexible CAN Connectivity: Accepts data from AEMnet CAN-enabled devices and compatible non-AEM CAN bus systems, with optional modules and adapter cables available for expanded fitment.
