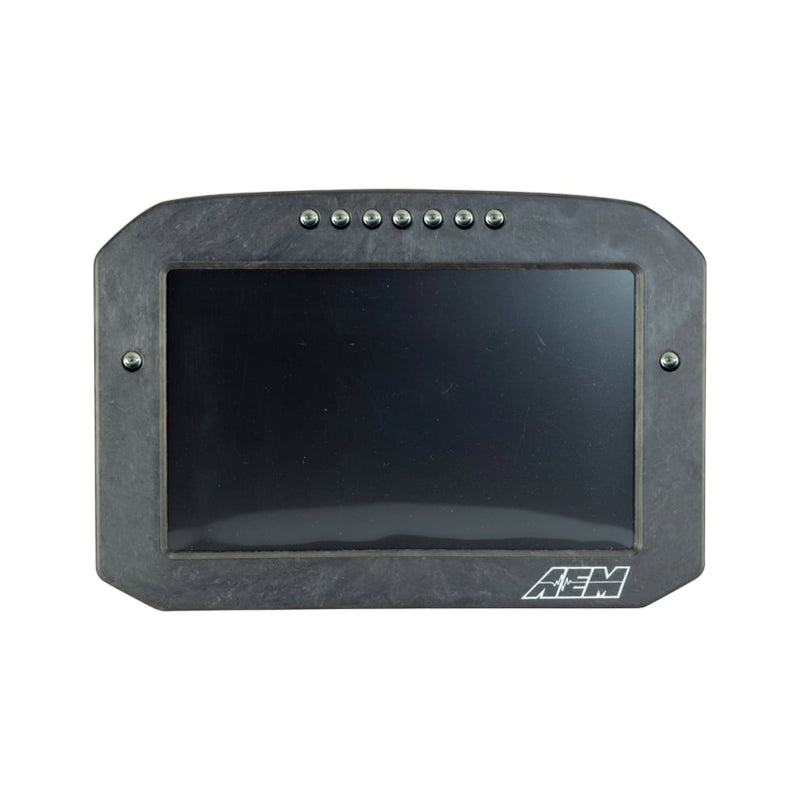

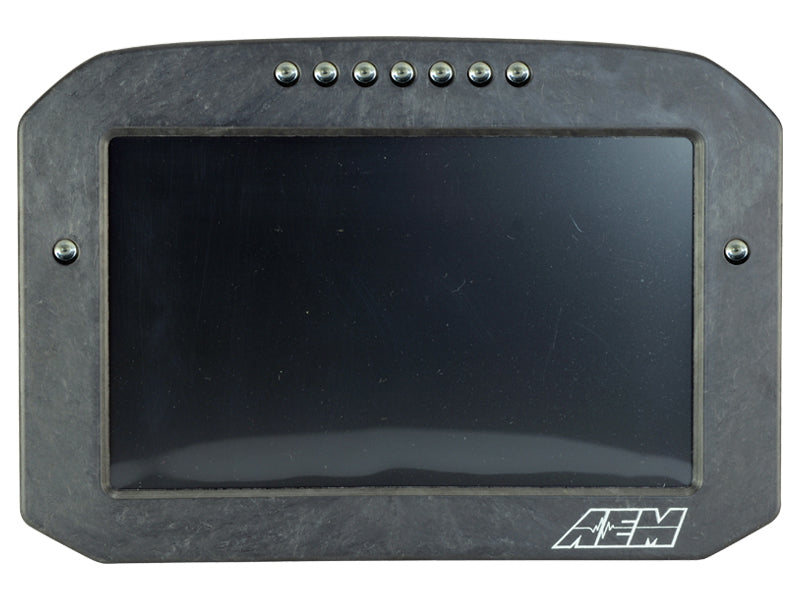

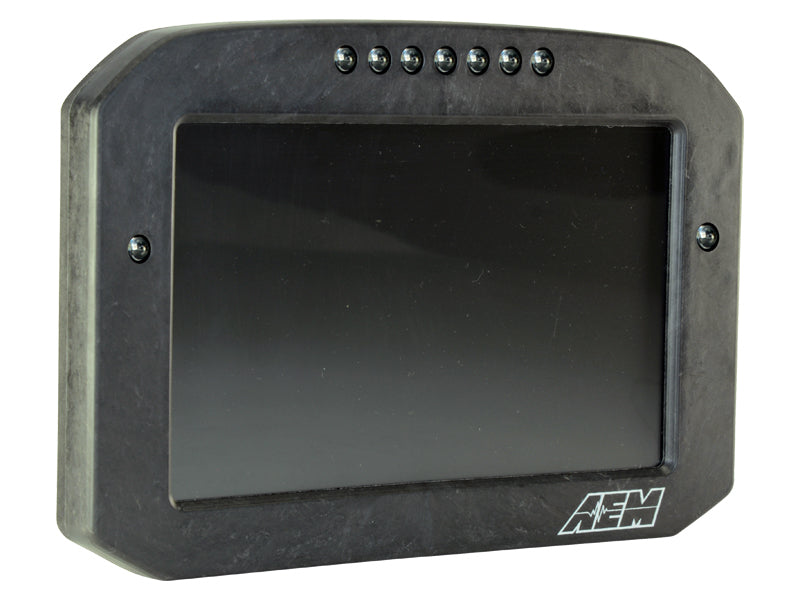

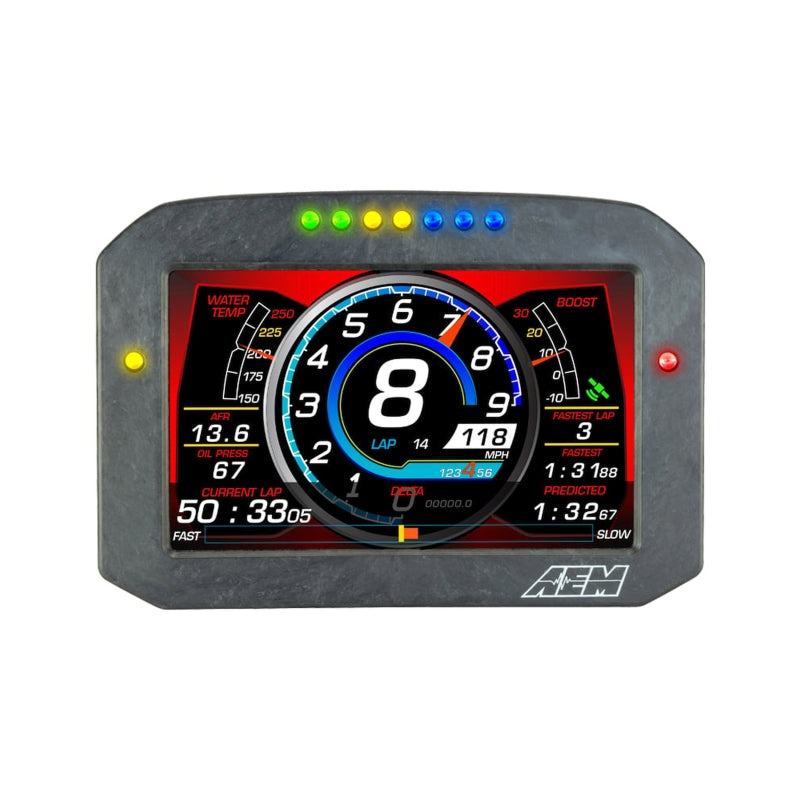

AEM CD-7LG Carbon Digital Dash Display with Internal Logging and 20 Hz GPS – 30-5703F

AEM CD7 Carbon Digital Flat Panel Displays feature full-color, daylight readable screens surrounded by a slim, tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housings for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. A remote button kit (PN 30-3610, sold separately) easily wires into the CD Carbon wiring harness and allows users to change pages and clear memory. Two additional programmable LEDs are included in the enclosure and are fully programmable. Digital Dash Display, CD-7LG logging, GPS enabled racing dash, CAN input only, 7-inch diagonal screen, carbon fiber enclosure, GPS antenna and wiring harness included (Does NOT Include Vehicle Dynamics Module or Buttons (See PN 30-3610)

• Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
• Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212) or 6 Channel CAN Sensor Module (PN 30-2226)
• Install 8 additional temp inputs and send them to the CD-7 Carbon with our 8 Channel K-Type EGT CAN Module (PN 30-2224, sold separately)
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages (requires Button Kit PN 30-3610)
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.

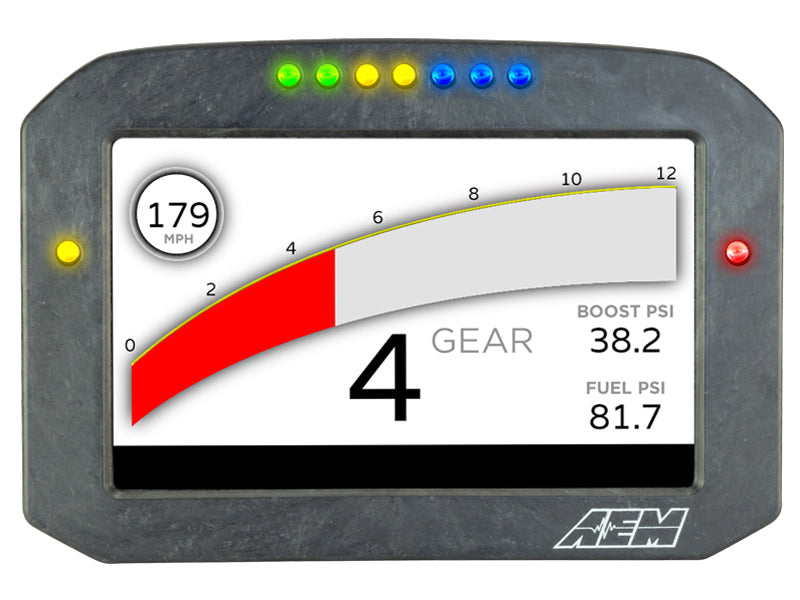

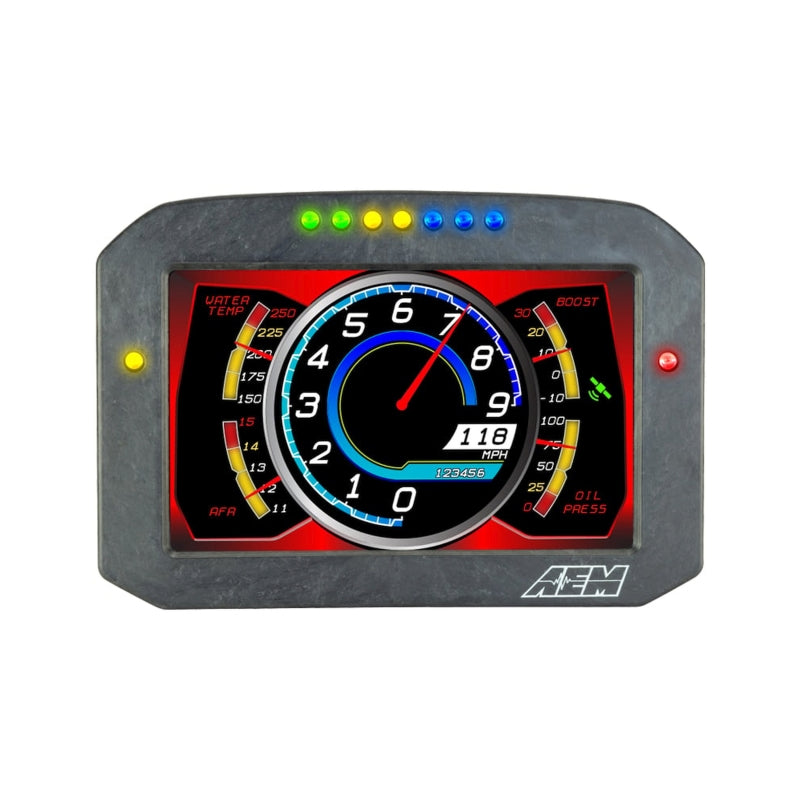

• Use the included page layouts and input your channels and text, or create your own from scratch
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• User supplied graphics can be changed based on channel values (up to the full screen size)
• Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• Available with or without 200Mb internal logging (up to 1,000Hz/channel)
• Headlight-in' connection dims the dash and LEDs during night operation
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Wiring interface/harnesses are identical between all CD Carbon Dashes
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• Available with or without onboard 20 Hz GPS receiver and antenna
• Layout files interchangeable between all CD Carbon Dashes
• Convert CAN bus channel values to user-defined text

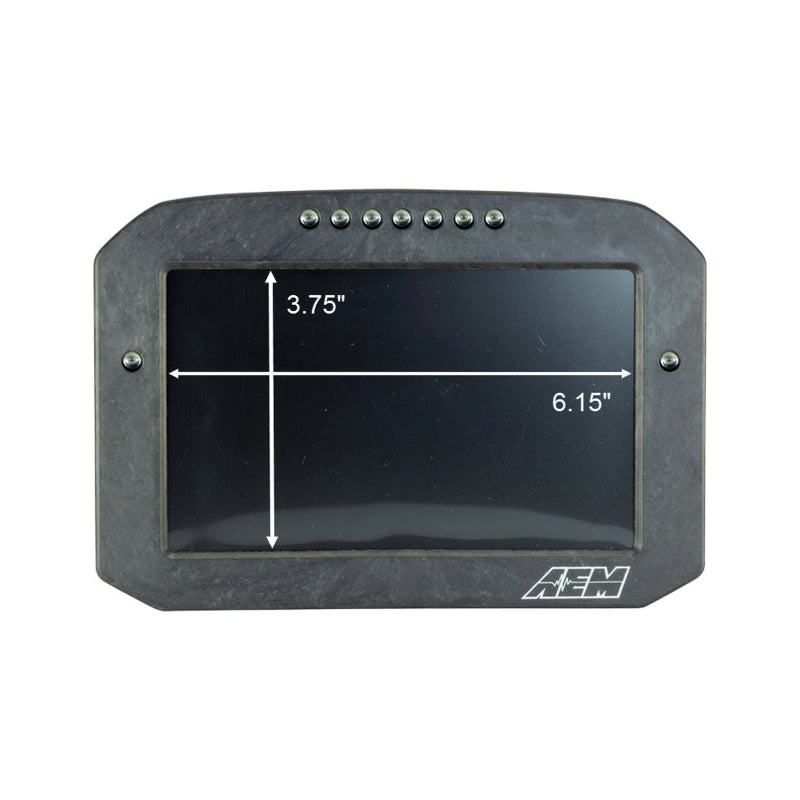

• Full color 7" screen with 800x480 resolution
• IP66 water resistance - open cockpit safe
• Free DashDesign Graphics Editor software
• Two programmable LEDs
• Odometer function

The AEM CD-7LG Carbon Digital Dash Display combines a full-color, daylight-readable racing display with internal data logging, GPS functionality, and extensive CAN bus compatibility. Part number 30-5703F features a lightweight, flow-molded carbon fiber composite enclosure, a 7-inch diagonal screen with 800 x 480 resolution, an included 20 Hz GPS receiver and antenna, and a vehicle wiring harness. The display is designed for demanding motorsports applications and provides clear access to critical engine, vehicle, and driver information.

Seven programmable and dimmable LEDs span the top of the housing for RPM and shift indication, while two additional programmable LEDs can display user-defined warnings or events. The 1,000 cd/m² screen with anti-glare filtering remains readable in direct sunlight, and the headlight input automatically dims the display and LEDs for nighttime operation. The IP66-rated enclosure is suitable for open-cockpit use and helps protect the electronics from dust and water exposure.

The CD-7LG supports up to seven programmable display pages, including main, alarm, on-change, and startup pages. Users can configure supplied layouts, create custom screens, add warning icons and graphics, and convert CAN channel values into user-defined text. The display accepts data from AEMnet and compatible non-AEM CAN devices, as well as factory ECU systems through available adapters. AEM sensor modules can add inputs for carbureted and pre-2008 stock ECU-equipped vehicles, while the optional Vehicle Dynamics Module adds GPS-based track mapping, lap timing, G-load, roll, pitch, and yaw data. Remote page-change and memory-clear functions require the separately sold AEM Button Kit, part number 30-3610.

Key Product Specifications & Technical Data

• Display type: Full-color digital racing dash with 7-inch diagonal screen
• Screen resolution: 800 x 480 pixels
• Data logging: Internal 200 MB memory with recording rates up to 1,000 Hz per channel
• GPS system: Integrated 20 Hz GPS receiver with antenna included
• Enclosure: Flow-molded carbon fiber composite housing
• Visibility: 1,000 cd/m² brightness with anti-glare filter and programmable dimming
• Environmental protection: IP66 water-resistant construction

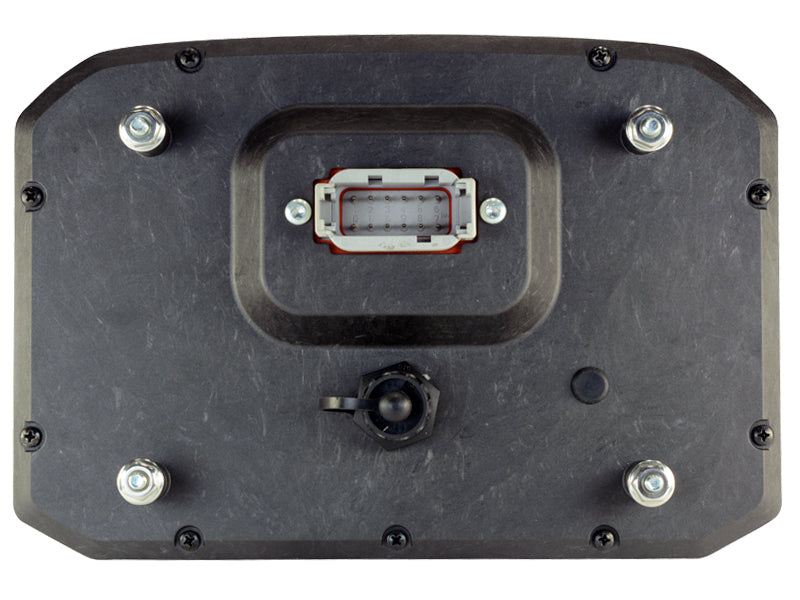

• Connectivity: CAN input, two switch inputs, GPS antenna connection, and included wiring harness

What's Included

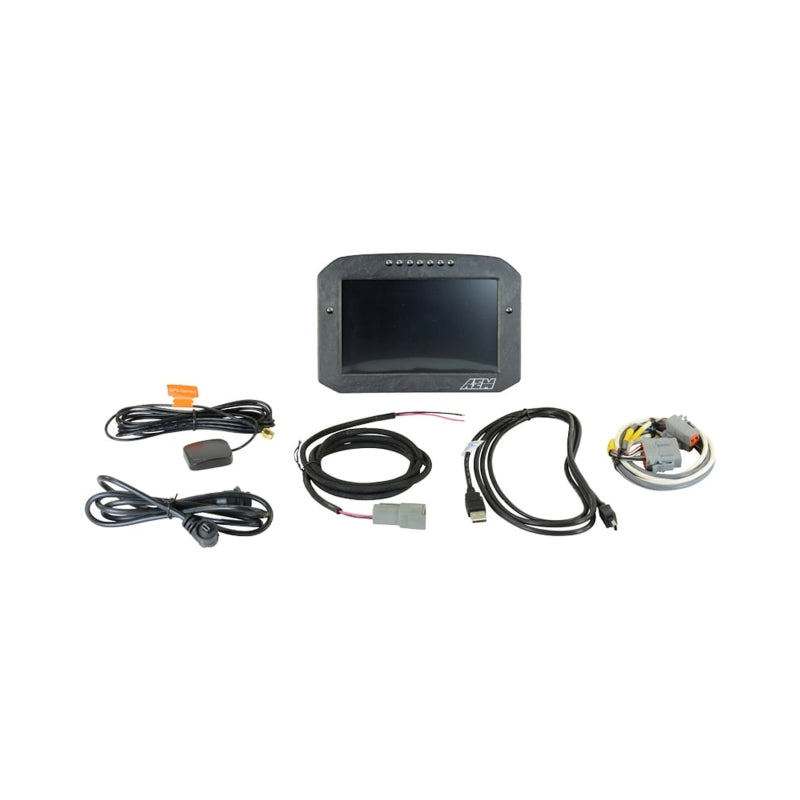

• AEM CD-7LG Carbon Digital Dash Display
• Integrated 20 Hz GPS receiver
• GPS antenna
• Display wiring harness

Optional accessories include the AEM Vehicle Dynamics Module, 22 Channel CAN Sensor Module, 6 Channel CAN Sensor Module, 8 Channel K-Type EGT CAN Module, OBDII CAN Adapter Cable, and Button Kit. The AEM CD-7LG is intended for motorsports and off-road applications; verify ECU, CAN bus, and sensor compatibility before installation.

Features:

• Daylight-readable full-color display with 800 x 480 resolution, 1,000 cd/m² brightness, and anti-glare filtering
• Internal 200 MB data logging with recording rates up to 1,000 Hz per channel
• Integrated 20 Hz GPS receiver and antenna for GPS-enabled racing data
• Seven programmable RPM and shift LEDs plus two additional programmable warning LEDs
• Seven configurable display pages with main, alarm, on-change, and startup page options
• CAN input compatibility with AEMnet devices, select non-AEM CAN devices, and available ECU adapter cables
• Rugged IP66 flow-molded carbon fiber composite enclosure for open-cockpit motorsports use
• Two switch inputs for user-triggered events such as turn signals, high beams, or other vehicle functions
