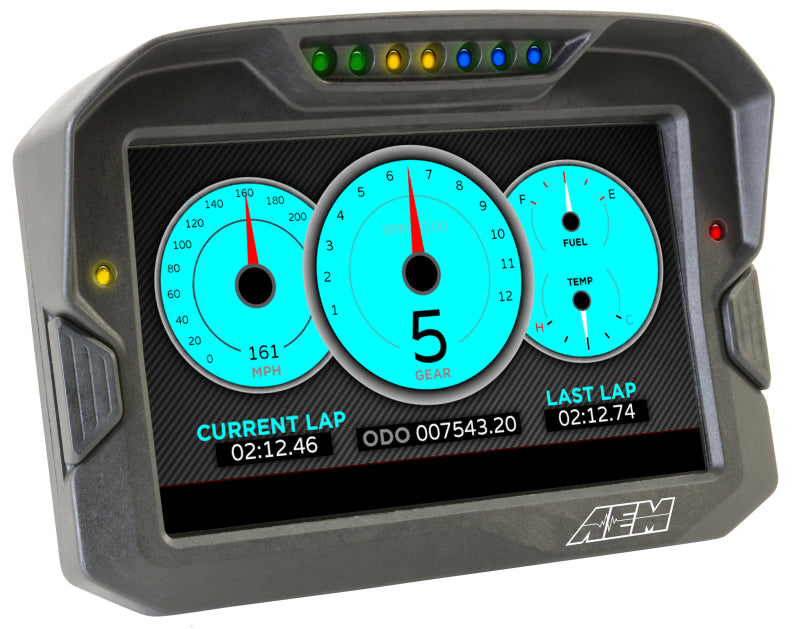

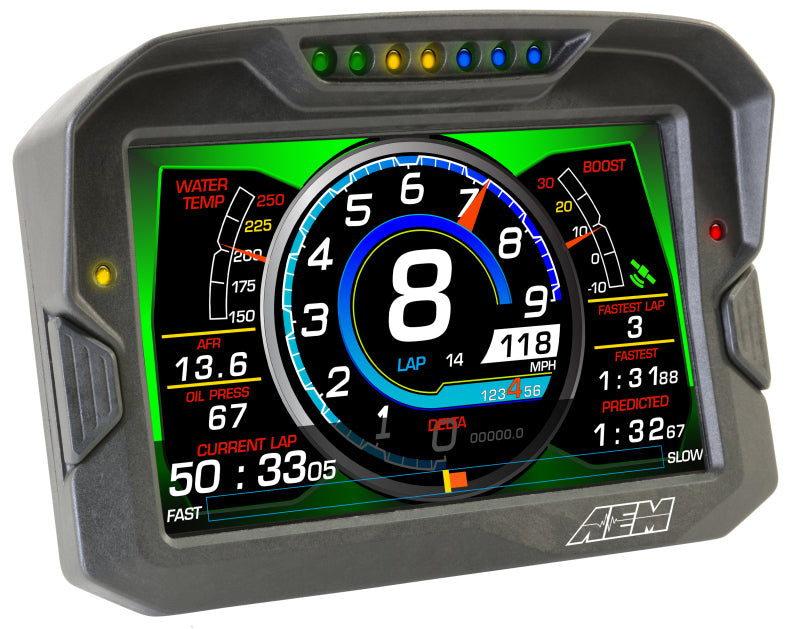

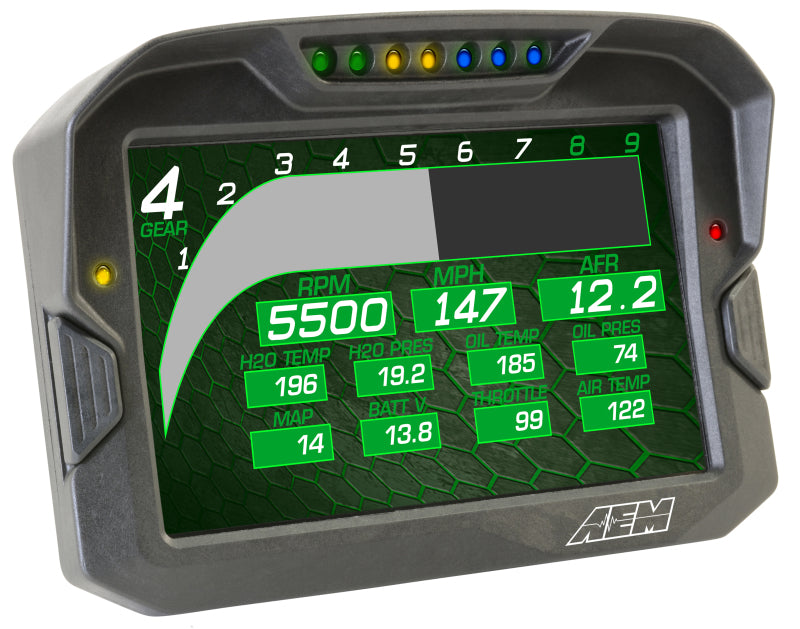

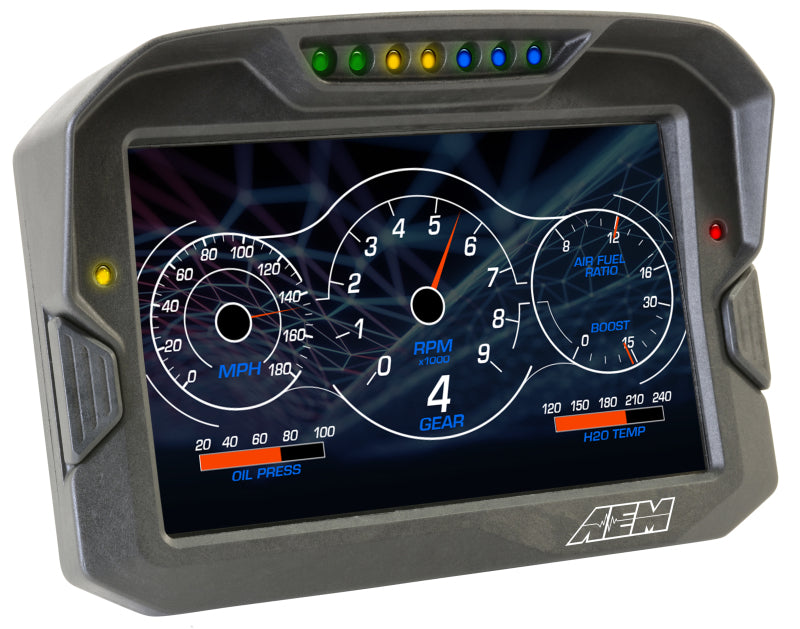

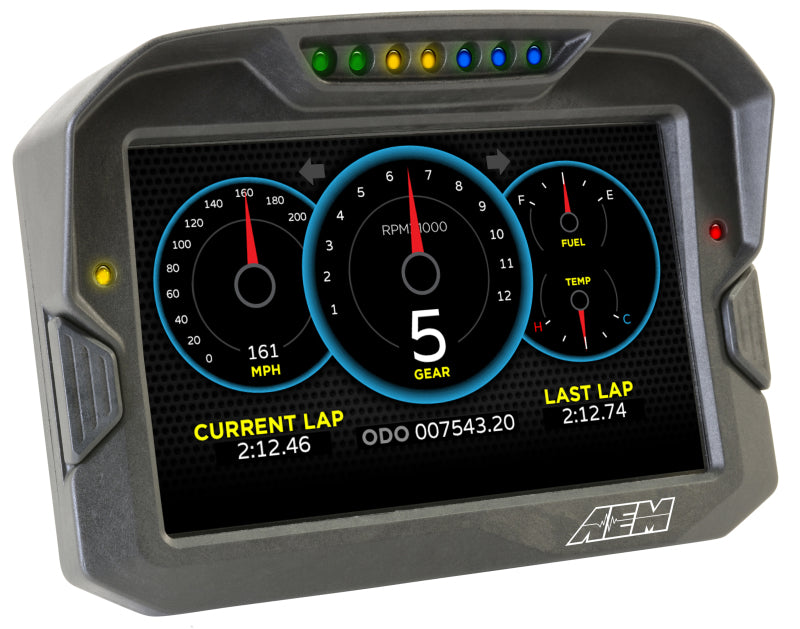

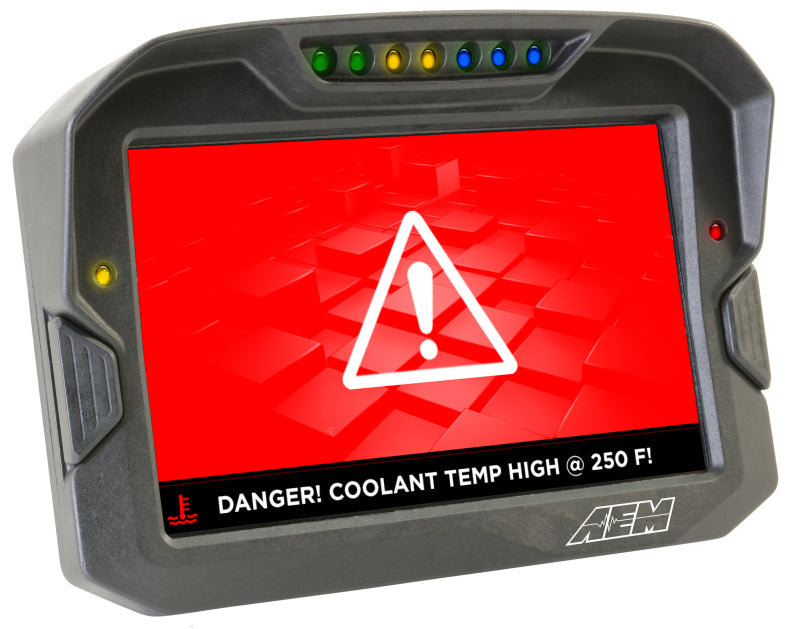

AEM CD-7LG Carbon Fiber Digital Racing Dash Display with GPS, CAN Input Only – 30-5703

CD-7 Carbon Digital Dash Displays feature a full-color, daylight readable screen surrounded by a tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housing for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. Two large buttons are included on the face of the display, allowing easy page changing and memory resetting even with driving gloves on. These button functions are included in the supplied rear connector, allowing the user to mount remote buttons. Two additional programmable LEDs are located above the toggle buttons on the top of the housing on either side of the integrated LED shift lights. Digital Dash Display, CD-7LG logging, GPS enabled racing dash, CAN input only, 7-inch diagonal screen, carbon fiber enclosure, GPS antenna and wiring harness included (Does NOT Include Vehicle Dynamics Module)

• Add a Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
• Install the CD-7 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Add an 8 Channel K-Type EGT CAN Module for 8 additional temps via AEMnet CAN bus (PN 30-2224, sold separately)

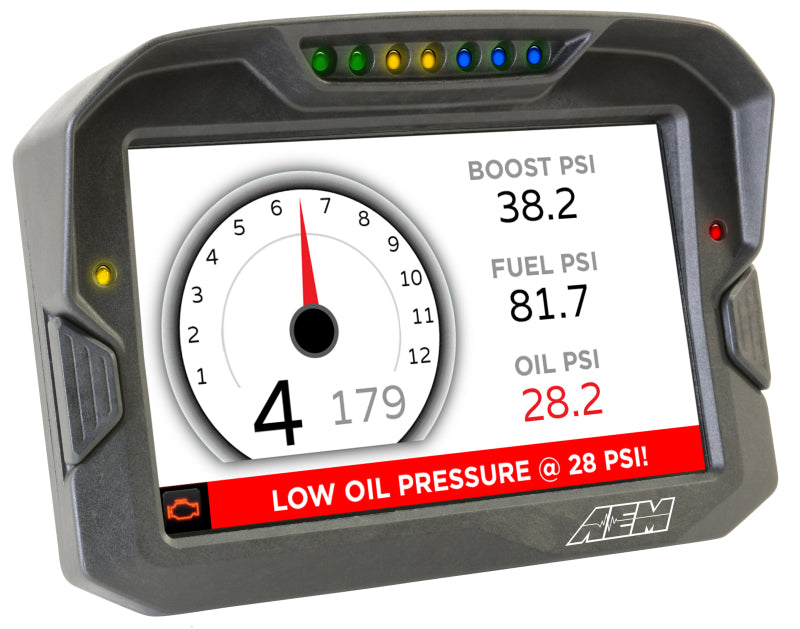

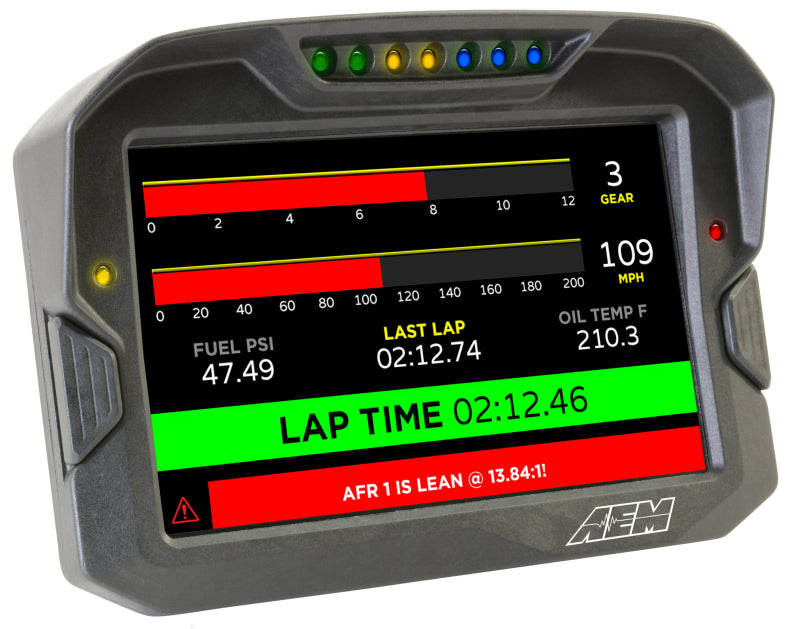

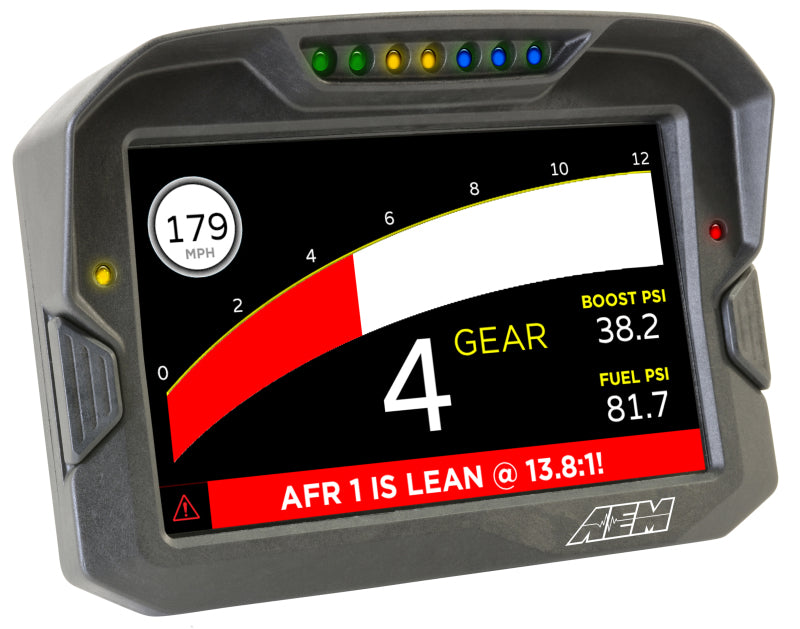

• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• Use included page layouts and input your channels and text, or create your own from scratch
• User supplied graphics can be changed based on channel values (up to the full screen size)
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• Convert CAN bus channel values to user-defined text in multiple languages
• Accepts channels from two separate user programmable CAN bus connections
• Headlight-in' connection dims the dash and LEDs during night operation
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Layout files interchangeable with all versions of the CD-5 Carbon
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• IP65 water resistance - open cockpit, marine and motorcycle safe
• Wiring interface/harness is identical to the CD-5 Carbon
• Total display weight of 20.9 oz. / 595 grams
• Full color 7" screen with 800x480 resolution
• Free DashDesign Graphics Editor software
• Two programmable LEDs
• Odometer function

The AEM CD-7LG Carbon Digital Dash Display is a GPS-enabled racing dash designed for clear, configurable vehicle data presentation in demanding motorsports environments. Its full-color 7-inch screen provides 800 x 480 resolution, direct-sunlight readability, and an anti-glare filter for improved visibility during daytime driving. The lightweight, flow-molded carbon fiber composite enclosure offers a rugged housing with IP65 water resistance, making the display suitable for open-cockpit, marine, and motorcycle applications.

Seven ultra-bright, programmable LEDs span the top of the enclosure for RPM and shift-light indication. The LEDs can be configured to illuminate in specific RPM increments, flash at the desired shift point, and adjust brightness through the dash setup. Two large face-mounted buttons allow convenient page changes and memory resets while wearing driving gloves, while their functions can also be assigned to remote buttons through the supplied rear connector. Two additional programmable LEDs support custom event or warning indications.

The AEM CD-7LG supports two separate user-programmable CAN bus connections and includes seven configurable pages, including Main, Alarm, On-Change, and Start-up pages. More than 200 supplied SAE and custom warning icons, user-defined text, channel-based graphics, odometer functionality, and a dedicated alarm page provide extensive display customization. Included GPS antenna and wiring harness support installation, while the Vehicle Dynamics Module is not included. Add AEM Part Number 30-2206 separately for GPS-based track mapping, lap timing, G-loads, and roll, pitch, and yaw data. Carbureted and pre-2008 ECU-equipped vehicles can use the AEM 22 Channel CAN Sensor Module, while 2008-and-newer factory ECU applications can connect through the Plug & Play OBDII CAN Adapter Cable. The display is compatible with AEM DashDesign software and interchangeable layout files used by CD-5 Carbon displays.

What's Included

• AEM CD-7LG Carbon Digital Dash Display
• GPS antenna
• Wiring harness
• DashDesign graphics editor software access

Fitment and Compatibility

Designed for motorsports and custom vehicle installations using CAN data. Compatible connection options are available for select Holley, Link, MSD Atomic, and Vi-Pec ECUs. The Vehicle Dynamics Module, CAN sensor modules, and OBDII adapter cables are sold separately.

Features:

• Full-color 7-inch display: Delivers 800 x 480 resolution with 1000 cd/m² brightness and an anti-glare filter for direct-sunlight readability.
• Programmable RPM and shift lights: Seven ultra-bright, dimmable LEDs provide configurable RPM progression and shift indication.
• Rugged carbon fiber composite enclosure: Flow-molded construction combines low weight with IP65 water resistance for demanding vehicle environments.
• Advanced CAN data visualization: Supports two programmable CAN bus connections, custom layouts, warning icons, channel-based graphics, user-defined text, and seven configurable display pages.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
