AEM RTD Exhaust Gas Temperature Sensor Kit 30-2052

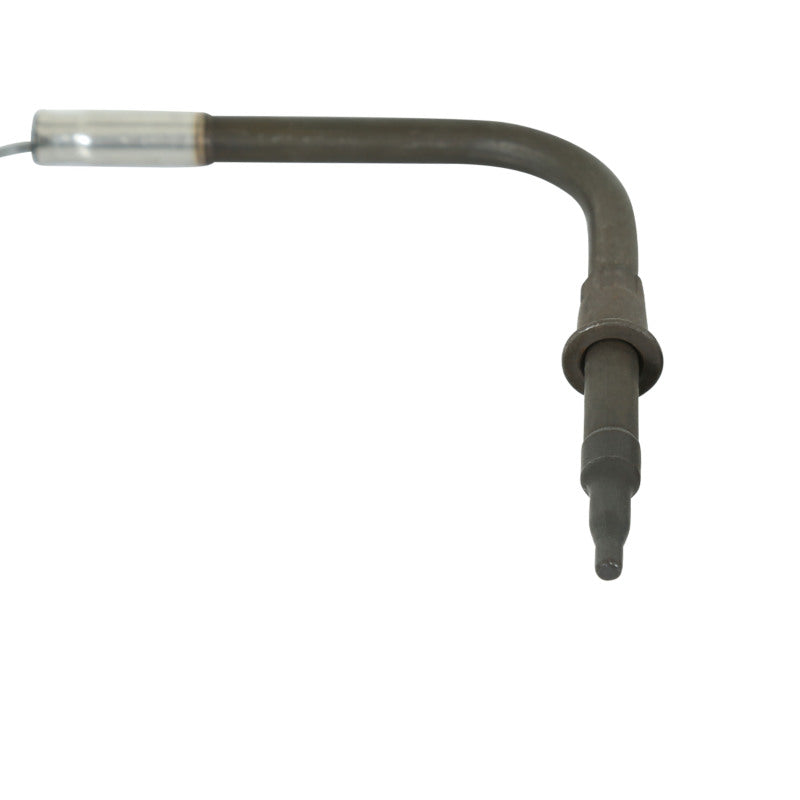

AEM's RTD-Type Temperature Sensor (PN 30-2052) is packed with features that deliver consistent measurement and long life. This AEM EGT Sensor features a closed-tip design that lasts longer than the previous generation's perforated tip design and the tip is smaller for less intrusion-and less restriction. Inconel-tubing protects the wiring, which is terminated with a high-quality DTM-style 2-pin connector. The sensor reads a temperature range of -40 to 1,560 degrees F (-40 to 850 degrees C), and its thin-film platinum element provides a high degree of accuracy (+/- 0.9% from 536 to 1,560 degrees F). Our RTD-Type Sensor features a 90-degree bend at the sensor tip for easier installation in tight spaces, and it includes a weld-in sensor bung with machined M14x1.5 threads. RTD Exhaust Gas Temperature Sensor Kit, 90-Degree Platinum Closed Tip Design with Inconel 601 Coating, -40°C to 850°C Temperature Range, M14x1.5 Thread w/ Bung, 2-Pin DTM Connector (Mating Connector Not Included)

• No calibration needed when used with out gauges.
• Sold individually or in 2-or 4-packs
• EGT sensor kit for 30-0305 EGT gauge
• Female thread end

The AEM RTD Exhaust Gas Temperature Sensor Kit, part number 30-2052, provides accurate and dependable exhaust gas temperature monitoring for compatible AEM instrumentation. Its thin-film platinum sensing element measures temperatures from -40 to 1,560 degrees F, with accuracy of plus or minus 0.9 percent across the 536 to 1,560 degrees F range. The sensor is designed for use with the AEM 30-0305 EGT gauge and requires no calibration when used with compatible AEM gauges.

A closed-tip construction improves service life compared with the previous perforated-tip design while reducing sensor intrusion and exhaust restriction. Inconel 601 tubing protects the wiring in high-temperature environments, and the integrated 90-degree bend helps simplify installation in tight spaces. The sensor terminates in a durable 2-pin DTM-style connector; the mating connector is not included. A weld-in sensor bung with machined M14x1.5 female threads is included for installation.

• Brief Description: RTD-style platinum exhaust gas temperature sensor kit for compatible AEM EGT monitoring systems.
• Measurement Range: -40 to 1,560 degrees F for broad temperature monitoring capability.

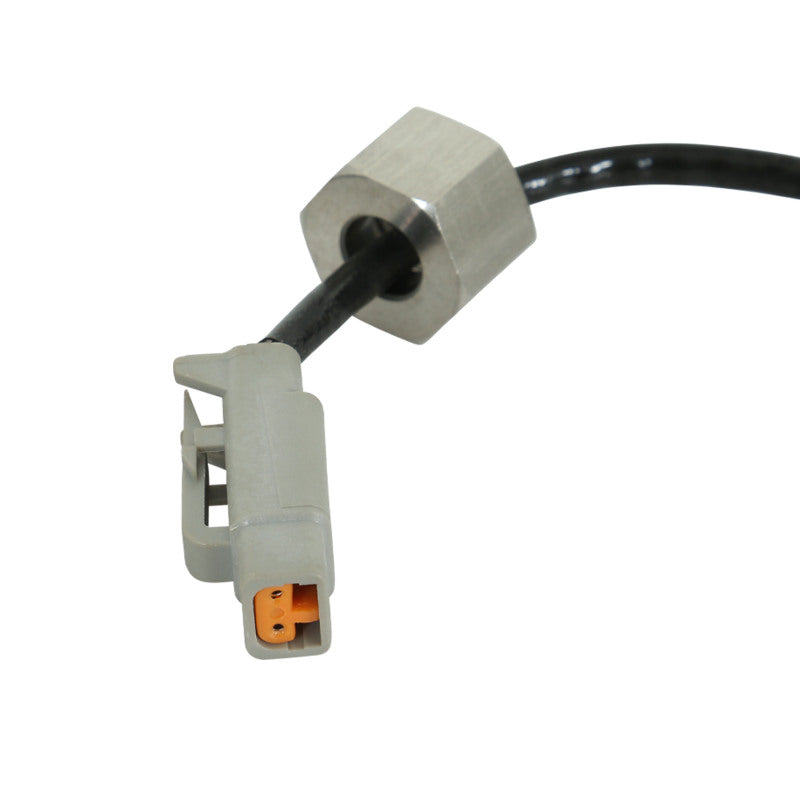

• Connector: High-quality 2-pin DTM-style connector for secure electrical connection.

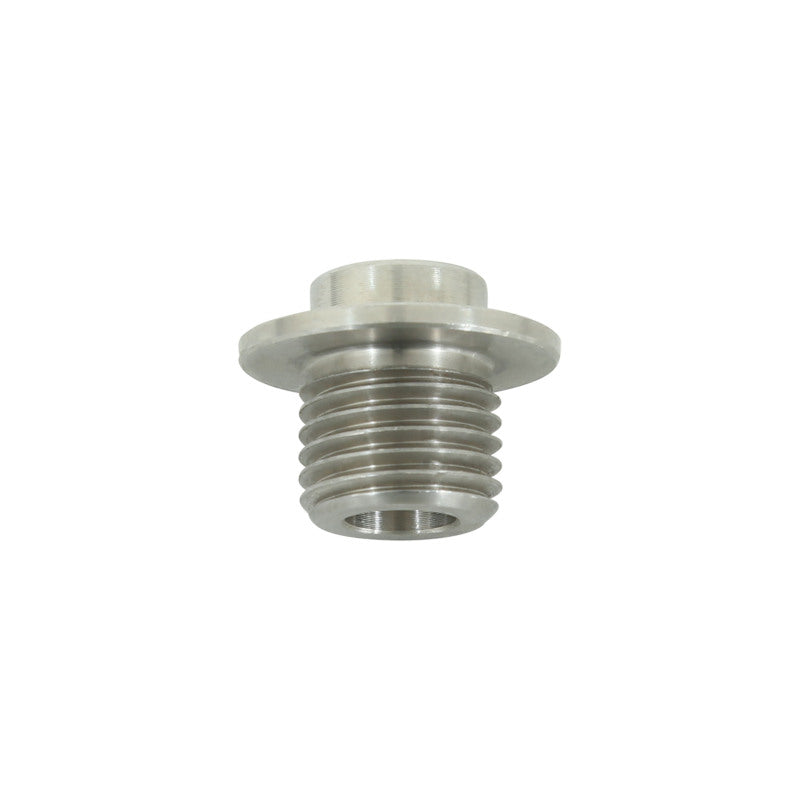

• Installation Design: 90-degree sensor bend and included weld-in M14x1.5 threaded bung support flexible installation.

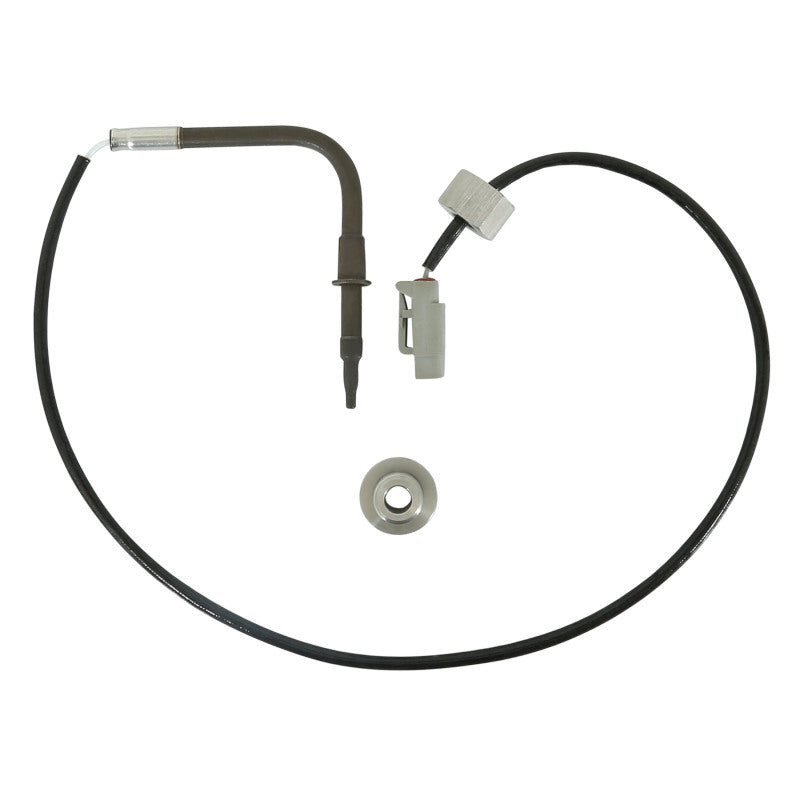

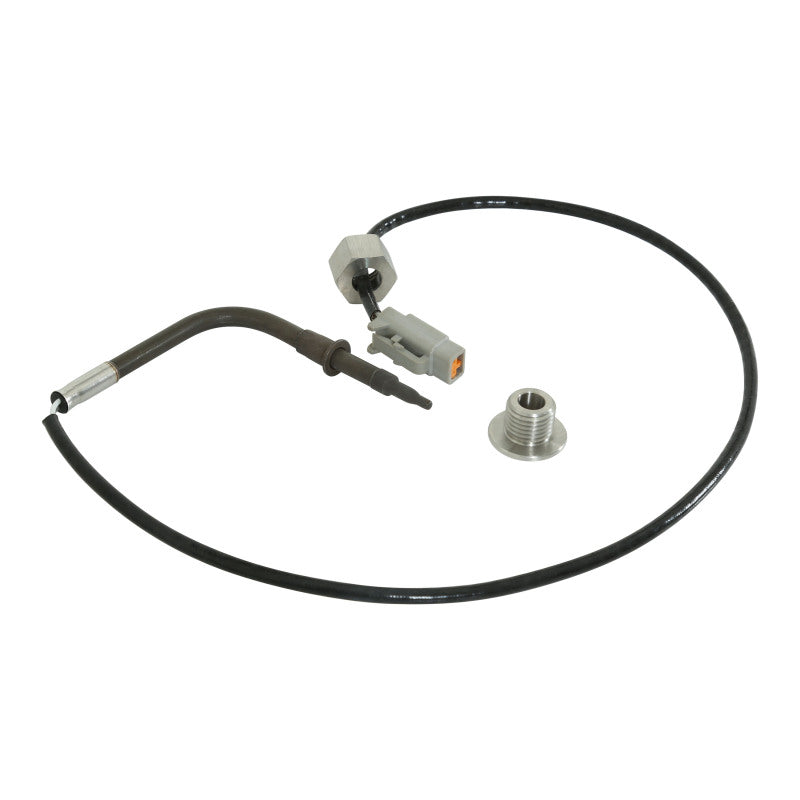

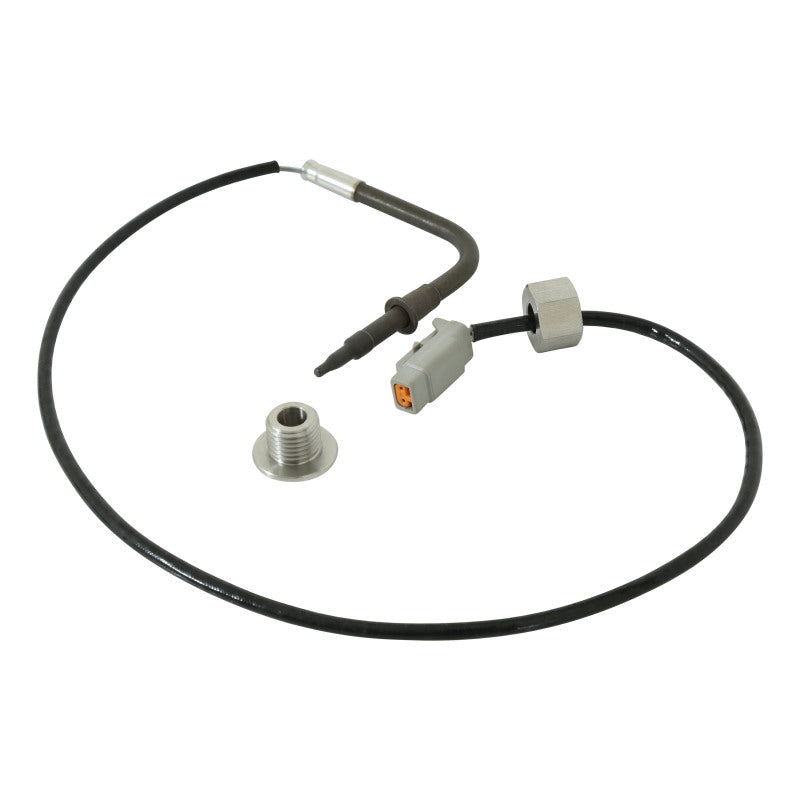

• What's Included: One AEM RTD exhaust gas temperature sensor and one weld-in sensor bung.
• Fitment: Designed for use with the AEM 30-0305 EGT gauge; verify application requirements before installation.

Key Product Specifications and Technical Data:

• Brand: AEM
• Part Number: 30-2052
• Sensor Type: RTD exhaust gas temperature sensor
• Sensing Element: Thin-film platinum
• Maximum Temperature: 1,560 degrees F
• Temperature Accuracy: Plus or minus 0.9 percent from 536 to 1,560 degrees F
• Probe Construction: Closed-tip design with Inconel 601 protective tubing
• Thread and Connector: M14x1.5 female threads with a 2-pin DTM-style connector

Features:

• Closed-tip RTD design improves durability while reducing sensor intrusion and exhaust restriction.
• Thin-film platinum sensing element provides accurate temperature measurement across a wide operating range.
• Inconel 601 tubing protects the wiring in demanding high-temperature exhaust applications.
• The 90-degree bend, M14x1.5 weld-in bung, and 2-pin DTM-style connector support convenient installation with the AEM 30-0305 EGT gauge.
