AEM Universal High-Flow -10 AN Inline Black Fuel Filter 25-201BK

AEM's Universal High Flow -10 AN Inline Filter is specifically engineered for maximizing flow without sacrificing filtration, and is designed for ease of installation. The end caps are machined with -10AN female fittings that allow the filter to flow up to 12.32 gpm @ 45 PSI and 2.63 gpm @ 6 PSI. Machined O-ring receiver grooves on the end caps ensure against leaks, and all sealing o-rings and gaskets are made of Viton for outstanding performance when using gasoline, alcohol or gasoline/alcohol blended fuels. The commonly available replacement filter cartridges filter particles as small as 7 microns. The filter's standard 2" OD allows for easy mounting virtually anywhere in the vehicle for easy access. Universal High Volume Fuel Filter, Inlet -10AN, Outlet -10AN, 2 inch diameter

• Viton o-rings and gaskets ensure outstanding performance when using gasoline, alcohol or gasoline/alcohol blended fuels
• Laser etched with AEM logo, flow and comes with filter replacement information

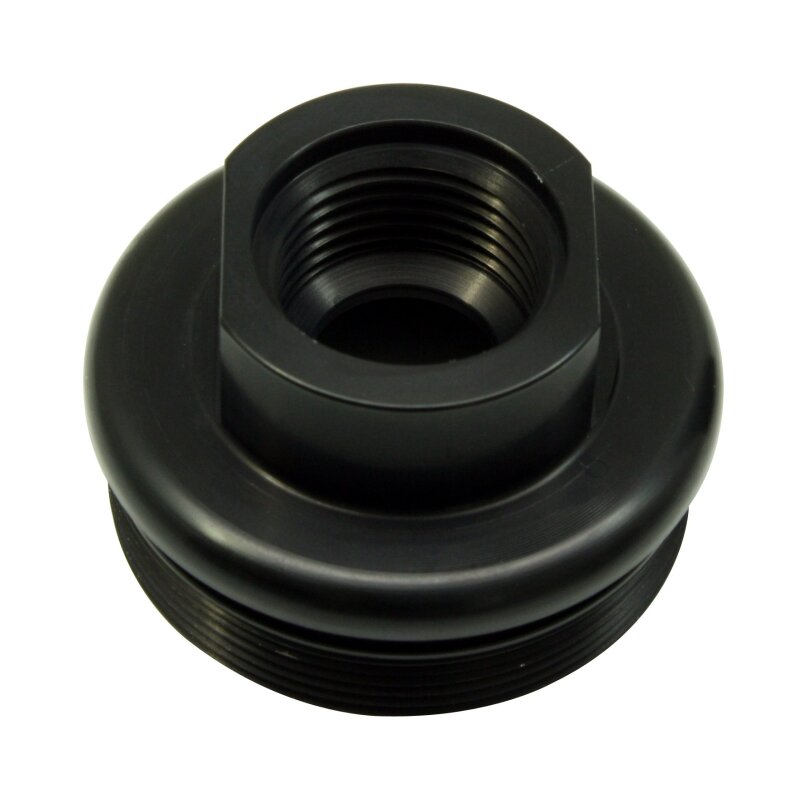

• End caps are machined with -10 AN female fittings with o-ring receiver groove
• End caps have pressure intensifiers for greater sealing of end gaskets
• Machined from 6061-T6 aluminum with a black hard anodized finish
• Flows up to 12.32 gpm @ 45 PSI and 2.63 gpm @ 6 PSI
• Commonly available replacement filter cartridges
• Filters particles as small as 7 microns
• 2" OD x 10" length for easy mounting

The AEM Universal High-Flow -10 AN Inline Black Fuel Filter is engineered to support high-volume fuel delivery while providing effective contaminant filtration. Designed for automotive fuel systems, this inline filter features -10 AN female inlet and outlet fittings for straightforward integration into custom fuel lines. Its high-flow design supports flow rates up to 12.32 gallons per minute at 45 PSI and 2.63 gallons per minute at 6 PSI.

Machined from 6061-T6 aluminum and finished with a durable black hard-anodized coating, the AEM 25-201BK is built for reliable service in demanding applications. Viton O-rings and gaskets provide compatibility with gasoline, alcohol, and gasoline/alcohol blended fuels. Machined O-ring receiver grooves and pressure intensifiers help improve sealing at the end caps, reducing the risk of fuel leaks during operation.

The filter accepts commonly available replacement cartridges capable of filtering particles as small as 7 microns. Its compact cylindrical housing and standard 2-inch outside diameter allow flexible mounting in a wide range of vehicle configurations while keeping the filter accessible for service. The housing is laser etched with the AEM logo, flow direction, and replacement filter information to simplify installation and maintenance.

What's Included

• AEM Universal High-Flow Inline Fuel Filter
• Viton sealing O-rings and gaskets
• Installation and replacement filter information

Fitment

Universal automotive fitment. Intended for custom fuel-system installations using -10 AN connections. Verify fuel-system requirements, fitting orientation, mounting clearance, and fuel compatibility before installation.

Features:

• High-flow fuel filtration: Supports flow rates up to 12.32 gallons per minute at 45 PSI and 2.63 gallons per minute at 6 PSI.
• Fine particle filtration: Compatible replacement cartridges filter contaminants as small as 7 microns.
• Fuel-resistant sealing: Viton O-rings and gaskets support use with gasoline, alcohol, and gasoline/alcohol blended fuels.
• Durable service construction: 6061-T6 aluminum housing with a black hard-anodized finish, machined sealing grooves, and pressure-intensified end-cap sealing.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
