AEM V2 Water/Methanol Injection Kit with 5-Gallon Reservoir, Part 30-3351

Water/methanol injection for forced induction (turbocharged or supercharged) gas-powered race engines is a proven means for effectively reducing engine inlet air temperatures and suppressing harmful detonation. This allows racers to reliably increase boost and advance ignition timing-without using high-octane racing fuel-for power gains of up to 20%. AEM's Water Injection Kits utilize robust hardware and deliver more advanced features than any other comparably priced water/methanol injection system. V2 Water/Methanol Injection Kit, Multi Input Controller - 0-5v/MAF Frequency or Voltage/Duty Cycle/Ext MAP, 200psi WM Pump, 5 Gallon Reservoir, Conductive Fluid Level Sensor Heavy-Duty Waterproof High Pressure Injection Pump - Safe for Engine Bay/Frame Rail Mounting AEM's internally-bypassed water/methanol injection pump is waterproof and safe for mounting in loactions that are exposed the elements. It does not cycle on and off and provides quiet, smooth operation. It features robust construction including integral hose fittings, EPDM seals and a Santoprene diaphragm that provides consistent and reliable fluid delivery.

• Terminated harness features positive lock connector with integrated pump ground circuit and additional wire for optional on/off flow solenoid
• One machined billet injector with integral check valve to prevent unintended flow
• Recirculation-style pump with integral fittings for quiet operation
• LED dash light for system status and low fluid warning
• Includes “Boost Safe” readiness failsafe system
• 20 ft. of high-pressure Nylon injection tubing

The AEM V2 Water/Methanol Injection Kit is designed for forced-induction gasoline race engines using turbochargers or superchargers. By injecting a controlled water/methanol mixture into the intake system, the kit helps reduce inlet air temperatures and suppress harmful detonation. This can allow increased boost pressure and more aggressive ignition timing without relying exclusively on high-octane racing fuel, supporting potential power gains of up to 20% when properly calibrated.

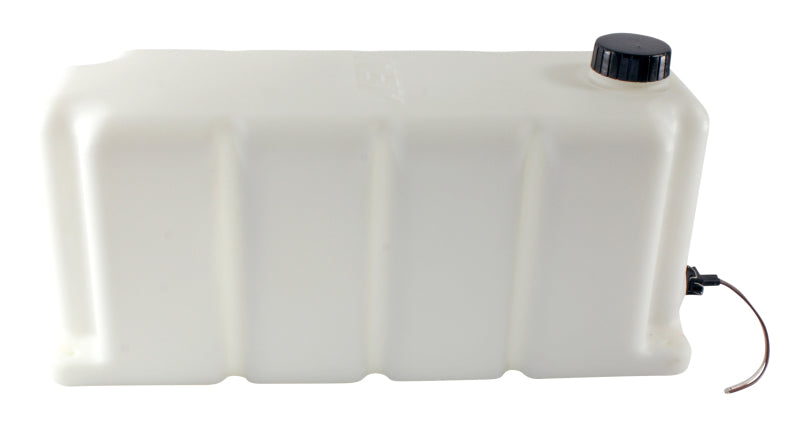

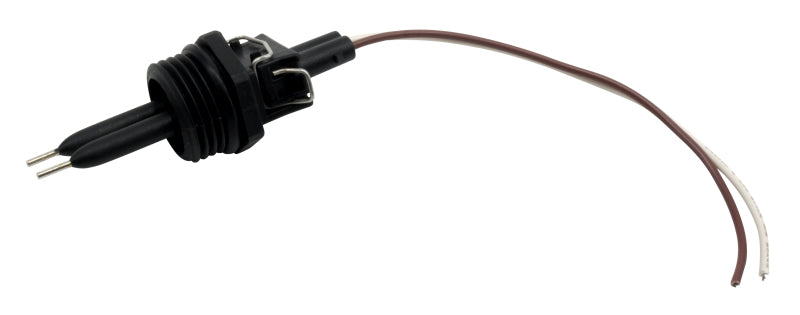

Part 30-3351 includes a multi-input controller compatible with 0–5-volt signals, MAF frequency or voltage, duty-cycle inputs, and external MAP sensors. The system features a 200-psi, internally bypassed pump with waterproof construction for engine-bay or frame-rail installation. EPDM seals, a Santoprene diaphragm, integral fittings, and recirculation-style operation provide consistent fluid delivery with quiet, smooth performance. A conductive fluid-level sensor monitors the 5-gallon reservoir, while the included LED dash light provides system-status and low-fluid warnings.

The kit includes AEM’s “Boost Safe” readiness failsafe system, which is designed to help protect the engine if the injection system is not operating as intended. A machined billet injector with an integral check valve helps prevent unintended fluid flow, and the terminated harness uses a positive-lock connector with an integrated pump-ground circuit. An additional wire is provided for an optional on/off flow solenoid. The system also includes 20 feet of high-pressure nylon injection tubing for installation flexibility.

What's Included: V2 multi-input water/methanol injection controller, 200-psi high-pressure pump, 5-gallon reservoir, conductive fluid-level sensor, billet injector with check valve, LED dash indicator, terminated wiring harness, high-pressure nylon tubing, and installation hardware.

Fitment: Intended for forced-induction gasoline-powered race engines. Vehicle-specific fitment depends on the engine, intake configuration, sensor outputs, and installation requirements. This product is not CARB approved and may require acknowledgement of emissions restrictions before use.

Features:

• Multi-Input Controller: Accepts 0–5-volt, MAF frequency or voltage, duty-cycle, and external MAP sensor inputs for flexible system control.
• 200-PSI Waterproof Pump: Internally bypassed, recirculation-style pump delivers quiet, smooth, and consistent water/methanol flow.
• Boost Safe Failsafe System: Helps monitor injection readiness and supports engine protection if the system experiences a fault or low-fluid condition.
• Integrated Fluid Monitoring: Conductive fluid-level sensing, LED system-status indication, and low-fluid warning help maintain reliable operation.

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
