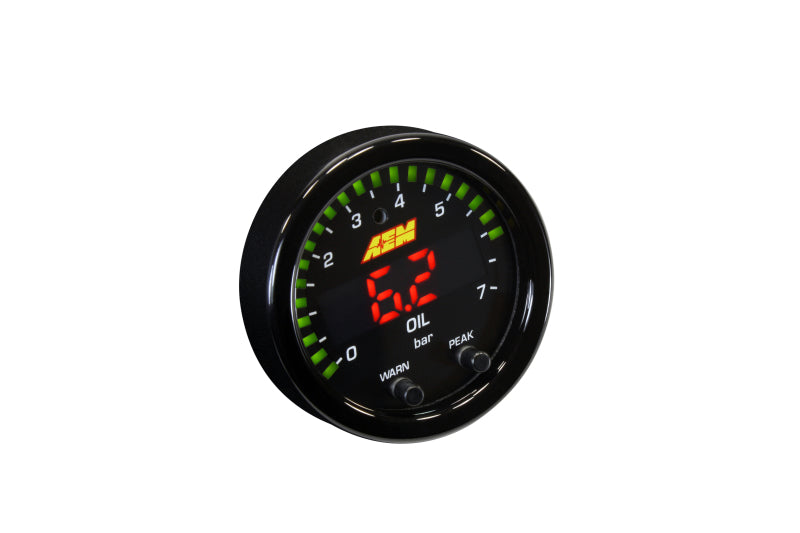

AEM X-Series 0-100 PSI Pressure Gauge Kit, Black Bezel and Oil Faceplate, 30-0301

X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems. X-Series Pressure Gauge 0-100psi - 0-7bar, Black Bezel and Black Oil Faceplate

• Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
• Optional silver bezel and white faceplate accessory kit available (sold separately)
• AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
• 0-5v analog outputs for transmitting data to EMS or Data Logger
• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
• Programmable center LED is 87% larger than original AEM gauges
• User selectable standard or metric display (0-100 PSI/0-7 BAR)
• 24 green outer LEDs for quick reference to engine parameter
• Positive locking connectors provide secure connection
• Auto dimming sensor delivers ideal display brightness
• Peak/Recall via gauge face buttons
• User selectable threshold warnings

The AEM X-Series 0-100 PSI Pressure Gauge Kit, part number 30-0301, combines a clear digital readout with a sweeping LED needle for fast, accurate monitoring of pressure data. The gauge displays pressure from 0 to 100 PSI or 0 to 7 bar, allowing users to select standard or metric units. Its black bezel and black oil faceplate provide a clean, functional appearance for street, performance, and competition vehicle interiors.

Designed for flexible installation, the AEM X-Series gauge features a compact profile and a standard 2-1/16-inch diameter for compatibility with many gauge pods and mounting solutions. Two faceplate buttons provide access to peak and recall functions, display-unit selection, and programmable threshold warnings. An auto-dimming sensor adjusts display brightness for improved visibility in changing lighting conditions, while 24 green outer LEDs provide quick reference to the monitored pressure level.

The AEM 30-0301 is AEMnet CAN-bus enabled, allowing it to be daisy chained with compatible AEM electronics, including Infinity ECUs, Series 2 EMS units, and AQ-1 Data Loggers. It can also transmit data to compatible third-party engine management systems or data loggers that accept AEMnet. Integrated 0-5V analog outputs provide an additional connection method for data acquisition and engine management applications. Positive-locking connectors help maintain secure electrical connections during vehicle operation.

What's Included: AEM X-Series pressure gauge, pressure sensor and associated wiring/connectors as supplied by AEM, and installation hardware/documentation. Verify application requirements and wiring compatibility before installation. A silver bezel and white faceplate accessory kit is available separately.

Features:

• Pressure Monitoring: Displays 0-100 PSI or 0-7 bar with user-selectable standard or metric units.
• AEMnet CAN-Bus Connectivity: Supports daisy-chain data transmission to compatible AEM ECUs, EMS units, data loggers, and third-party systems.
• 0-5V Analog Output: Provides an analog signal for integration with compatible engine management systems and data loggers.
• Programmable Display and Warnings: Faceplate buttons enable peak/recall functions, display selection, and user-selectable threshold warnings.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
