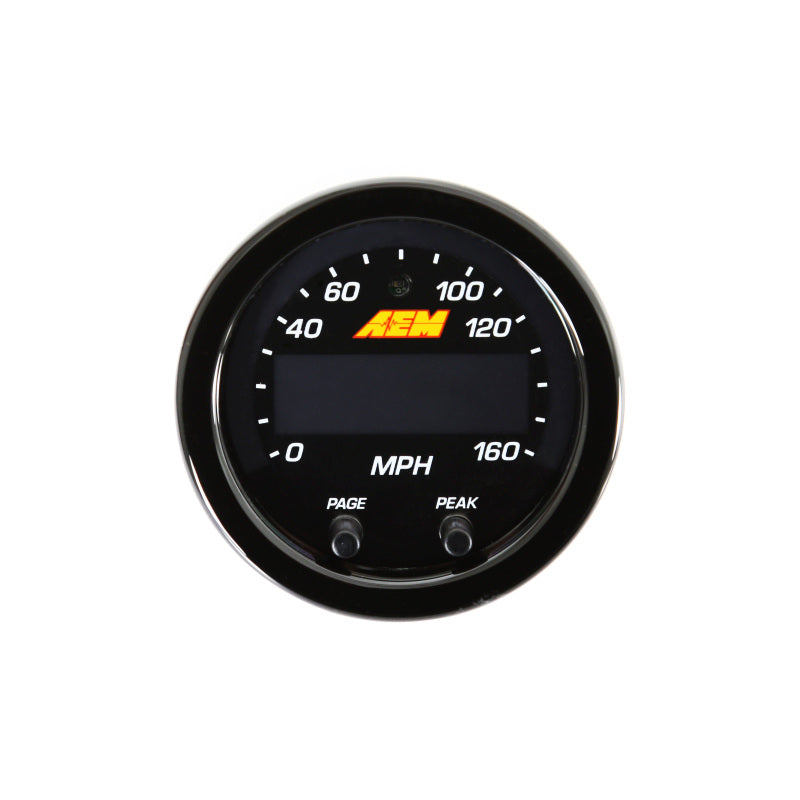

AEM X-Series 0-160 MPH GPS Speedometer Gauge with Black Bezel and Faceplate, Part Number 30-0313

The X-Series GPS Speedometer Gauge has a bright four-digit LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping LED "needle" lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance. X-Series Gauges come with a black bezel and faceplate, and an optional silver bezel/white faceplate accessory kit is available (PN 30-0313-ACC, sold separately). X-Series GPS Speedometer Gauge with 10Hz GPS, Displays 0-160mph / 0-240kph on Outer LEDs, Unlimted Readings Center Display, Black Bezel and Black Faceplate

• Optional silver bezel with white faceplate accessory kit available (sold separately, PN 30-0313-ACC)
• Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
• Transmit vehicle speed to an existing speedometer without needing a VSS sensor
• Integrate with the Infinity ECU via AEMnet CAN bus to add track mapping!
• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
• 24 green outer LEDs for quick reference to engine parameter
• Auto dimming sensor delivers ideal display brightness
• Positive locking connector provides secure connection
• User selectable units of measurement (US or Metric)
• Displays ground speed, heading and altitude!
• Compatible with 16v vehicle systems

Brief Description: The AEM X-Series GPS Speedometer Gauge delivers accurate vehicle speed information through a 10Hz GPS receiver and a highly visible LED display. Designed for performance vehicles, the gauge combines a four-digit center display with a sweeping outer LED reference for quick speed checks while driving. The center display provides unlimited speed readings, while the outer LEDs indicate speeds from 0 to 160 MPH or 0 to 240 KPH.

Key Features & Performance Benefits: The enlarged LED display improves readability compared with earlier AEM digital gauges, and the sweeping LED needle provides an immediate visual reference. The gauge can transmit vehicle speed to an existing speedometer without requiring a vehicle speed sensor. It also supports integration with an AEM Infinity ECU through the AEMnet CAN bus for track mapping applications. An automatic dimming sensor adjusts display brightness for improved visibility in changing lighting conditions.

Key Product Specifications & Technical Data: This AEM gauge uses a 2-1/16-inch diameter housing suitable for common performance gauge pods and has a slim profile for flexible installation. It includes a black bezel and black faceplate, 24 green outer LEDs, a positive-locking electrical connector, and user-selectable U.S. or metric units. The display provides ground speed, heading, and altitude information, and the unit is compatible with 16-volt vehicle electrical systems. The GPS receiver operates at a 10Hz update rate for responsive speed tracking. The primary speed range is 0-160 MPH, with metric display capability up to 240 KPH.

What's Included in the Box: One AEM X-Series GPS Speedometer Gauge with black bezel and black faceplate, along with the gauge electronics and locking connector. A silver bezel and white faceplate accessory kit is available separately under AEM part number 30-0313-ACC. This automotive gauge is intended for custom or performance vehicle installations; verify available mounting space, electrical compatibility, and wiring requirements before installation.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
