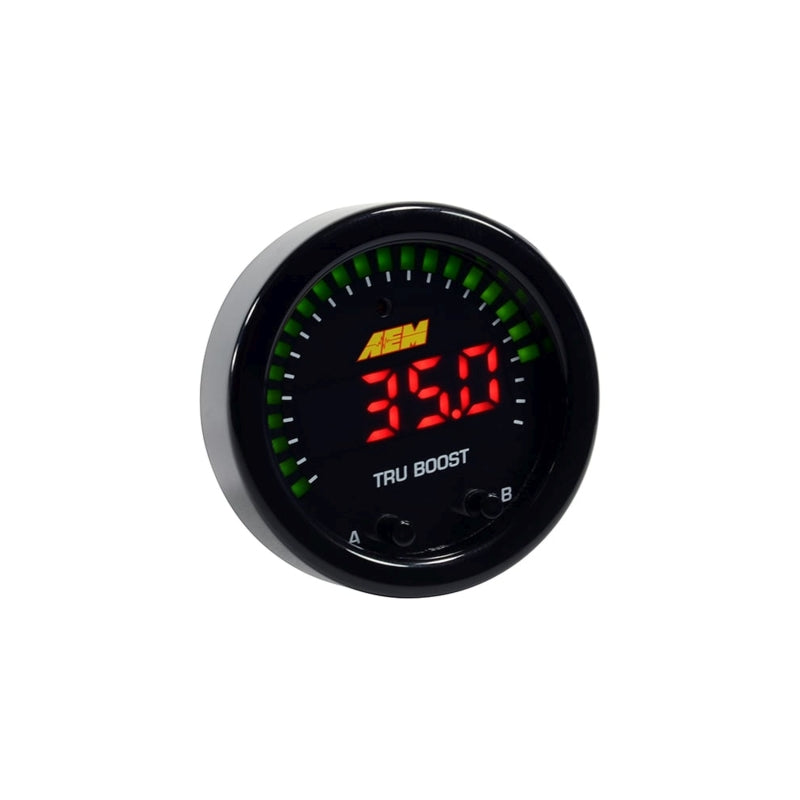

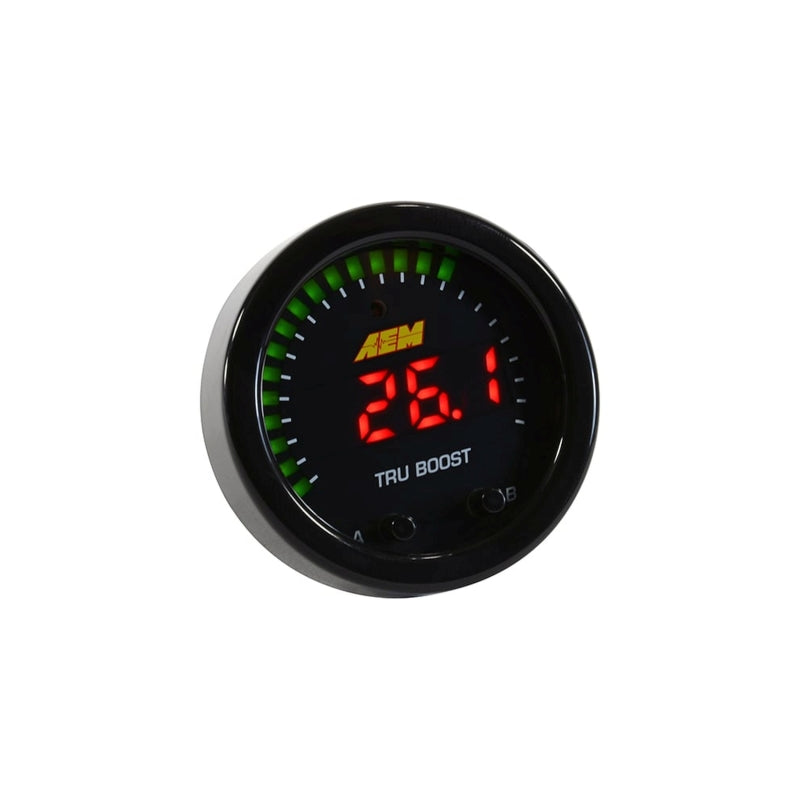

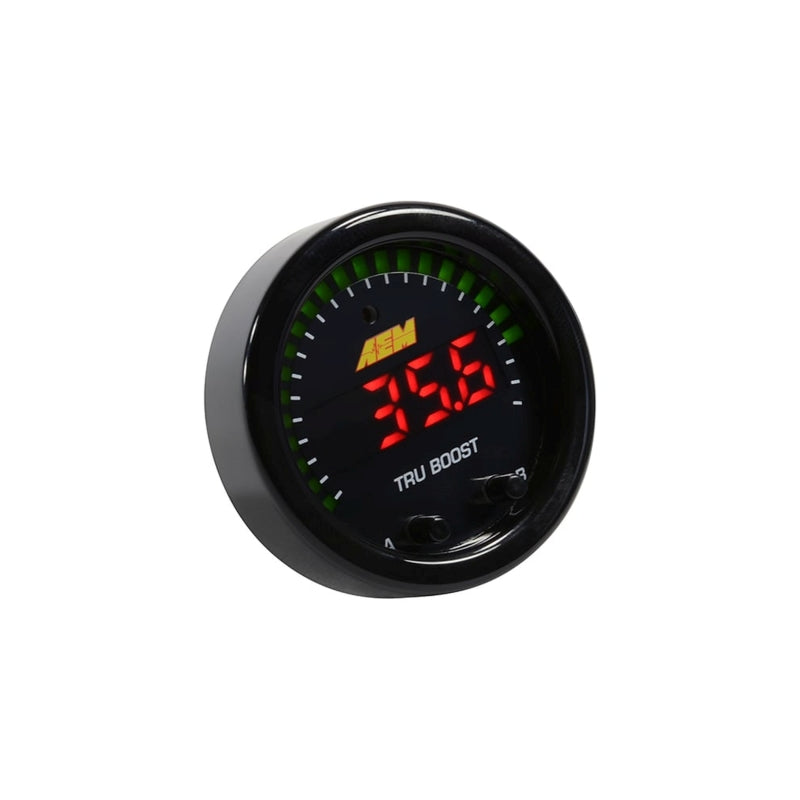

AEM X-Series Tru-Boost Controller Gauge with Boost Control Solenoid and 80 PSIg MAP Sensor AEM-30-0352

All AEM Tru-Boost gauge programming is done using the faceplate buttons and no laptop is required. AEM's specially designed Boost Control Solenoid and all necessary hardware is included.Program Two Boost Levels + Scramble Boost Setting - Program two boost modes for different levels of performance (up to 80PSIg internal MAP sensor), and program a time-based scramble boost setting that is controlled using a switched input. You can also turn off the controller and use the gauge as a display.Change Wastegate Open Pressure-Ideal for reducing boost spikes and improving spool up.Display Boost Levels in PSIg (PSI), BAR or kPa (PAS) -See your boost in the units you prefer, and scale the 24 outer LEDs to match your peak boost levels for the perfect sweeping motion.Set Alarms and Display Peak Boost-Set the 24 green outer LEDs to flash based on boost pressure so you are alerted to an overboost condition. A ground output is included for triggering an optional LED warning light. Select the "B" button to see peak boost level and clear the value using the menu.Overboost Protection Built In-Protects your engine from an overboost condition by shutting the boost control solenoid off until it is reactivated by you through the buttons on the faceplate.Integrated Error Protection-Alerts you to a fault if the boost control solenoid is shorted or disconnected so you are never left guessing whether the Tru-BoostX is operational.Datalog using AEMnet CAN bus-Outputting channels over AEMnet provides so much more than just boost pressure! Send 13 channels of data over a 2-wire connection, including boost pressure, peak boost, boost target, boost scramble duty, overboost status, wastegate crack pressure, boost control solenoid status and more. Tru-BoostX Controller Gauge with Boost Control Solenoid, 80 PSIg Internal MAP Sensor, Boost Hose Line and Wiring Harness.

• Overboost protection and programmable alarms, ground output for optional LED warning light
• Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
• Wastegate open pressure setting for controlling boost spikes and faster spool
• On-board 80PSIg MAP sensor-no upgrade kit needed for high boost vehicles
• AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
• Programmable center LED is 87% larger than original AEM gauges
• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
• 24 green outer LEDs for quick reference to engine parameter
• Two boost level settings and scramble boost setting
• A boost display gauge and boost controller in one!
• Display boost levels in PSI, BAR or kPa
• Easy to program - no laptop required

The AEM X-Series Tru-Boost Controller Gauge combines electronic boost control and real-time boost monitoring in a single 2-1/16-inch gauge. Part number AEM-30-0352 includes an AEM boost control solenoid, an integrated 80 PSIg MAP sensor, boost hose line, wiring harness, and the hardware required for installation. All programming is completed through the faceplate buttons, so no laptop is required.

The AEM Tru-Boost supports two programmable boost levels plus a time-based scramble boost setting controlled through a switched input. Users can also configure wastegate open pressure to help reduce boost spikes and improve spool-up performance. Boost pressure can be displayed in PSI, BAR, or kPa, while the 24 green outer LEDs can be scaled to match the desired peak boost range. The gauge may also be used as a boost display when the controller function is turned off.

Built-in overboost protection disables the boost control solenoid until the system is reactivated through the faceplate controls. Programmable alarms and a ground output for an optional warning light help provide immediate notification of an overboost condition. Integrated error protection identifies a shorted or disconnected boost control solenoid. AEMnet CAN bus connectivity allows the gauge to transmit up to 13 channels of data to a compatible engine management system or data logger, including boost pressure, peak boost, boost target, scramble duty, wastegate crack pressure, overboost status, and solenoid status.

What's Included: AEM X-Series Tru-Boost controller gauge, boost control solenoid, 80 PSIg internal MAP sensor, boost hose line, wiring harness, and required installation hardware. The 2-1/16-inch gauge format is designed for common automotive gauge pods and flexible mounting locations.

Features:

• Two programmable boost levels plus a time-based scramble boost setting
• Integrated 80 PSIg MAP sensor supports high-boost applications without an upgrade kit
• Wastegate open pressure adjustment helps reduce boost spikes and improve spool-up performance
• Overboost protection disables the boost control solenoid until manually reactivated
• Programmable boost alarms with ground output for an optional LED warning light
• Displays boost pressure in PSI, BAR, or kPa
• 24 green outer LEDs provide quick visual reference and adjustable sweep scaling
• AEMnet CAN bus outputs up to 13 channels for compatible engine management systems and data loggers
• Integrated fault detection alerts users to a shorted or disconnected boost control solenoid
• Slim gauge design with 2-1/16-inch diameter for installation in common gauge pods
• Programmable center LED is 87% larger than previous AEM gauge designs
• Faceplate programming requires no laptop

Air Freight Prohibited: false
Not Carb Approved: true
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
