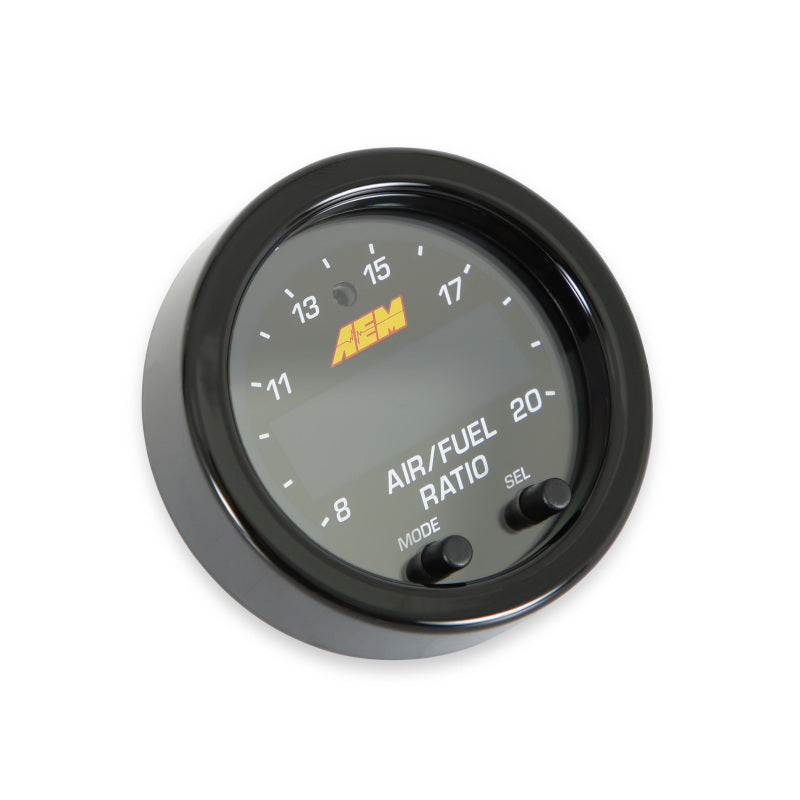

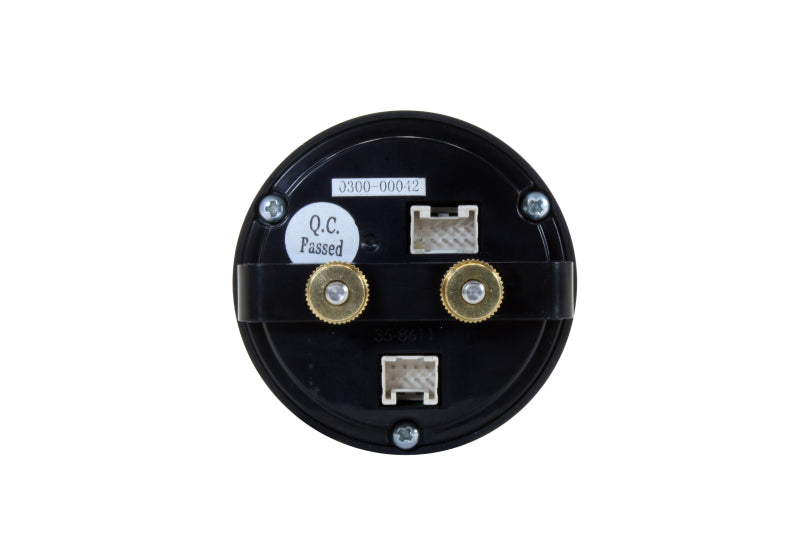

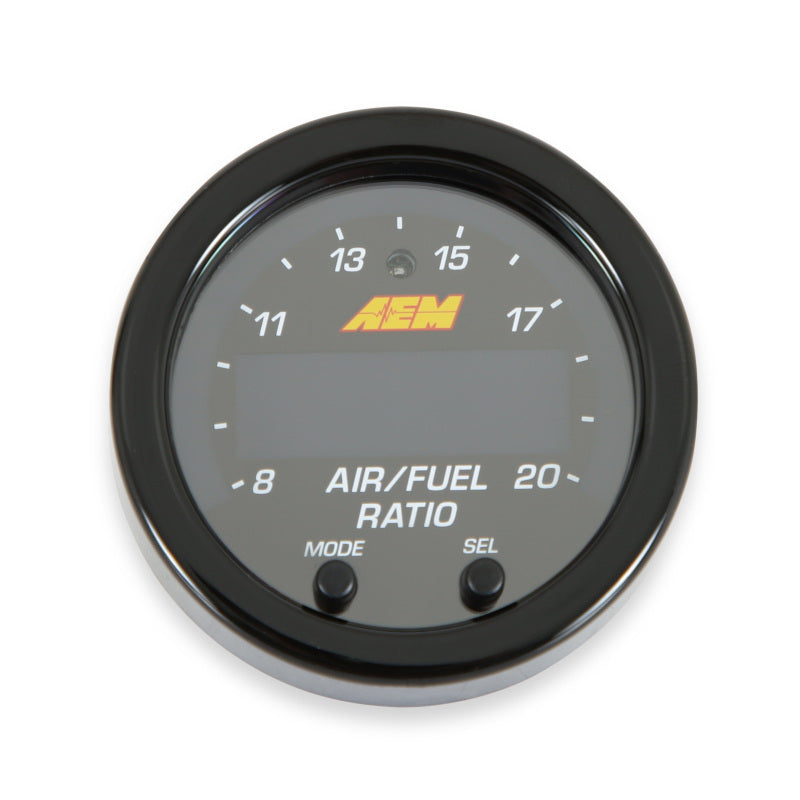

AEM X-Series Wideband UEGO AFR Sensor Controller Gauge 30-0300

Faster response time improves wideband feedback control, and can provide a safer, more powerful and accurate tune. AEM's Wideband Controllers with X-Digital technology can reduce deadtime and improve the performance of your vehicle through more accurate AFR tuning. Deadtime is the delay between when exhaust gas composition changes and when that change is reported by the O2 sensor. While flow of exhaust gases can affect deadtime, it is not the only source. Often, the sensing element’s response to the gas is the largest contributor to deadtime.When tuning an engine using wideband AFR feedback control, deadtime affects the data you are looking at because it is reported in a different operating location than when it occurred. This means whatever changes you make to the base fueling will likely be in the wrong timeframe. This can be particularly dangerous to high cylinder pressure applications, and EFI systems that use feedback control. X-Series Wideband UEGO AFR Sensor Controller Gauge with patented X-Digital Technology, Includes X-Series Wideband Controller Gauge, Bosch LSU 4.9 Sensor, Wiring Harnesses, Black Bezel, Reversible Black AFR-Lambda Faceplate, O2 Sensor Bung

• X-Series Wideband UEGO AFR Controller Gauges were the fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitor wideband AFR controllers
• 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
• Black bezel and black double-sided faceplate included (silver bezel/white faceplate option sold separately, PN 30-0300-ACC)
• Factory calibrated resistor does not require free-air calibration, but can be free-air calibrated
• User-configurable display for changing between AFR, Lambda, and O2%, and 3- or 4-digit display

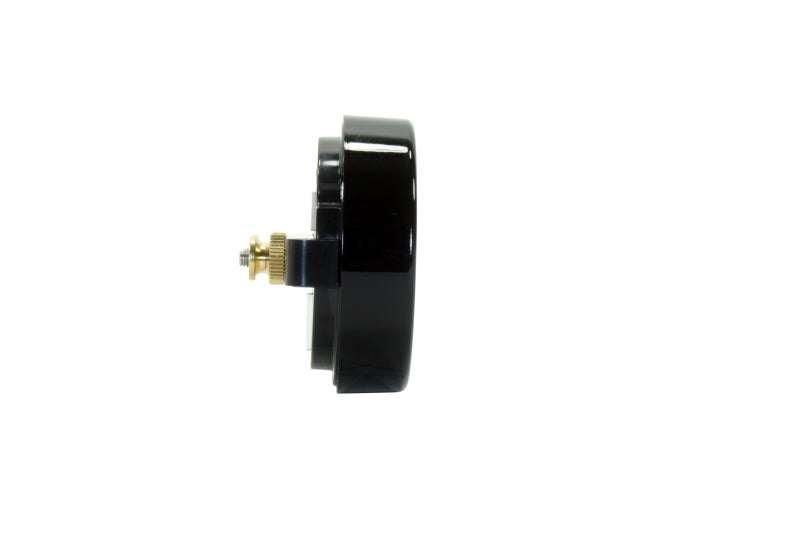

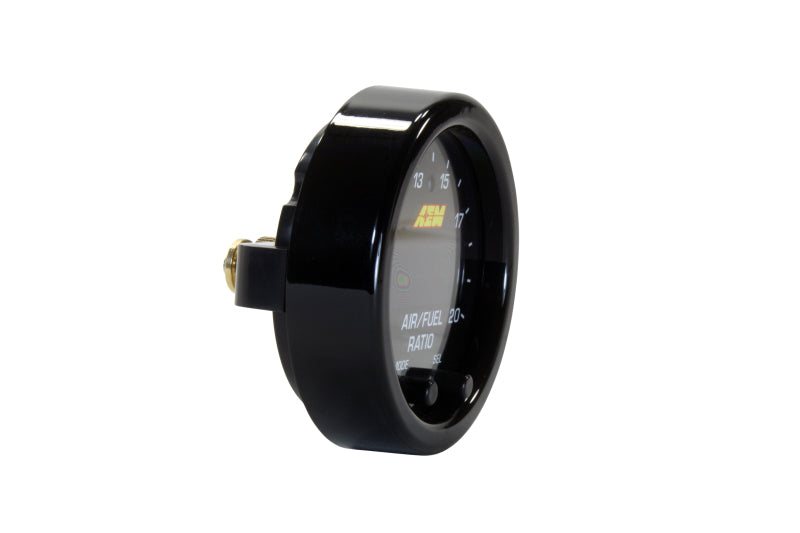

• 52mm gauge diameter and slim 0.825" gauge depth(Gauge cup depth only .200" deep)
• Auto-Sensor Detection between AEM FAE and Bosch LSU 4.9 wideband sensors
• Patented X-Digital wideband technology (Patent 9,575,030)
• Compatible with supply voltages up to 16V
• Auto-dimming feature

The AEM X-Series Wideband UEGO AFR Sensor Controller Gauge, part number 30-0300, provides fast and accurate air/fuel ratio feedback for performance tuning, data logging, and closed-loop engine control. Its patented X-Digital technology reduces sensor response deadtime, helping the reported exhaust gas data more closely match the actual operating conditions inside the engine. This can support safer, more precise fueling adjustments in high-cylinder-pressure applications and EFI systems that rely on wideband feedback.

The controller includes a Bosch LSU 4.9 wideband oxygen sensor, wiring harnesses, an O2 sensor bung, a black bezel, and a reversible black AFR/Lambda faceplate. Users can configure the display for AFR, Lambda, or oxygen percentage, as well as select a three- or four-digit display format. The gauge also features automatic sensor detection, auto-dimming, and factory calibration that eliminates the need for routine free-air calibration, while still allowing free-air calibration when desired.

Designed for integration with modern performance electronics, the AEM 30-0300 offers 0-5V and RS232 outputs for data logging and feedback control, plus AEMnet CANbus connectivity for data logging and daisy-chaining multiple controllers. It supports supply voltages up to 16 volts and fits standard 52-millimeter gauge installations. The compact gauge housing is suitable for space-conscious dashboards, gauge pods, and custom vehicle interiors. This product is intended for automotive performance and tuning applications; vehicle-specific fitment should be confirmed before installation.

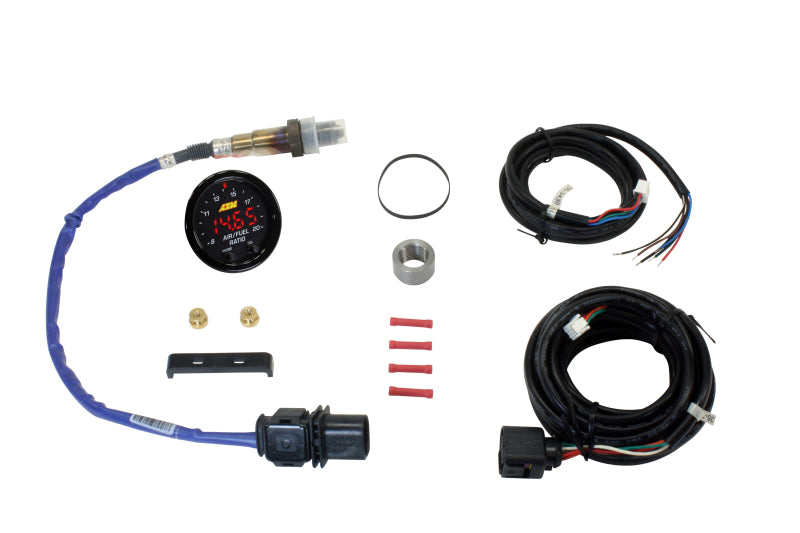

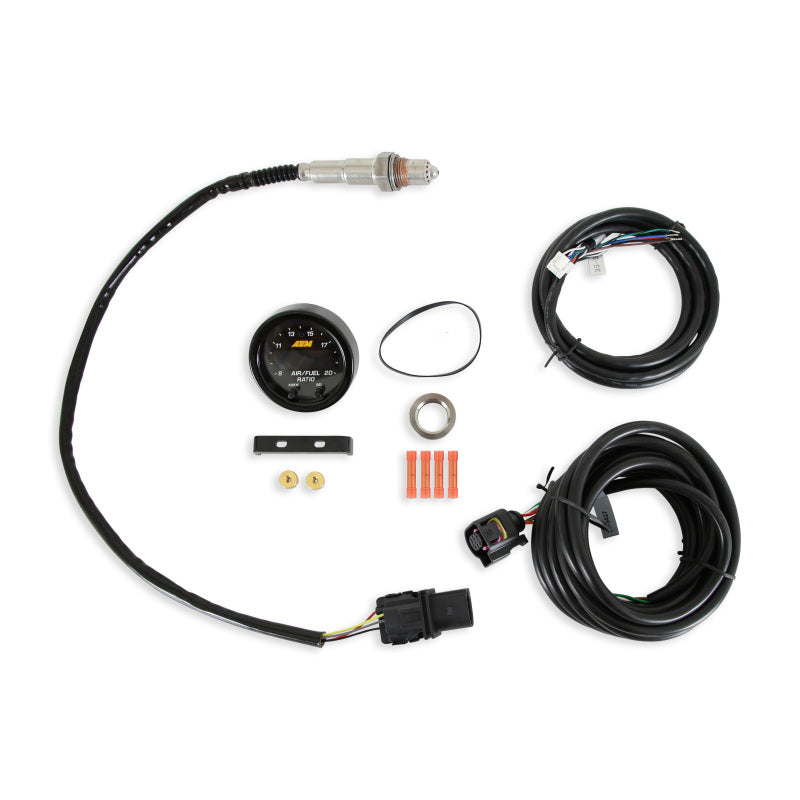

What's Included

• X-Series Wideband UEGO AFR controller gauge
• Bosch LSU 4.9 wideband oxygen sensor
• Wiring harnesses
• Black bezel
• Reversible black AFR/Lambda faceplate
• O2 sensor bung

Features:

• Fast X-Digital response: Reduces wideband sensor deadtime for more accurate AFR feedback and fueling adjustments.
• Multiple communication outputs: Provides 0-5V, RS232, and AEMnet CANbus connectivity for data logging and feedback control.
• Flexible display configuration: Switches between AFR, Lambda, and O2 percentage readings with selectable three- or four-digit display modes.
• Complete installation package: Includes the Bosch LSU 4.9 sensor, wiring harnesses, O2 sensor bung, black bezel, and reversible black AFR/Lambda faceplate.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
