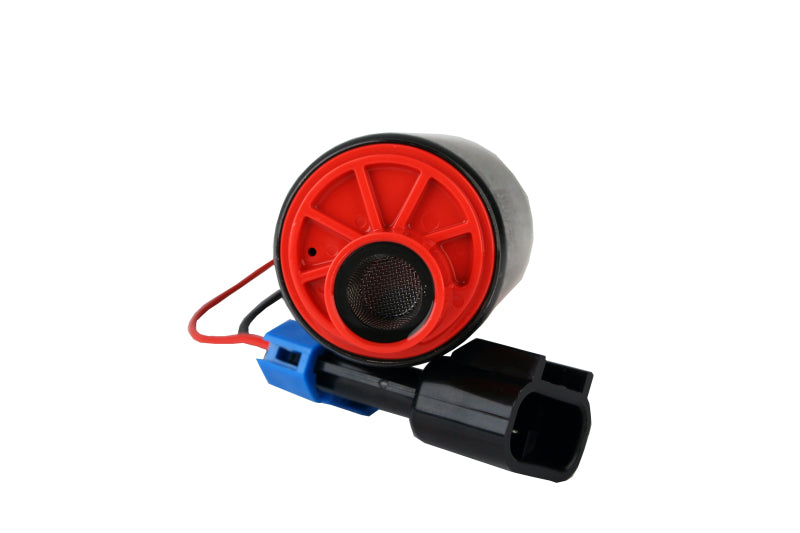

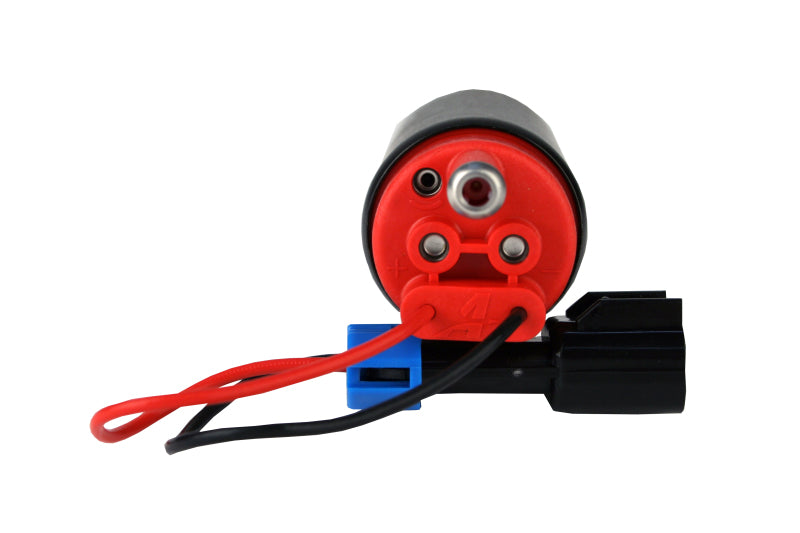

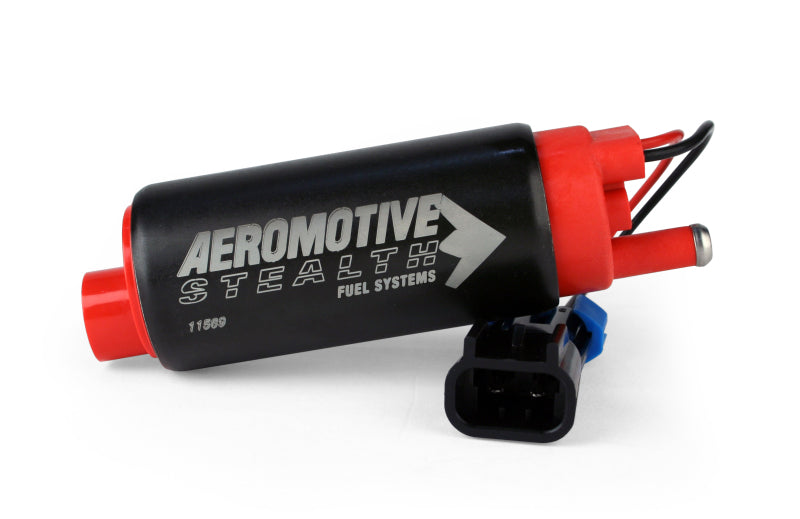

Aeromotive 11569 340 Series Stealth In-Tank E85 Fuel Pump for GM Applications

GM specific applications. The Aeromotive 340 Stealth Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The Aeromotive 340 is a compact, lightweight pump that bolts into many existing hanger assemblies. What sets the 340 Stealth Pump apart is its superior flow throughout a wide pressure range. Compared to other popular aftermarket pumps, at 40 psi the 340 boasts more than 340 lph. That?s over 30% more flow. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration. The 340 is also perfect for use as a universal replacement for applications that require more flow to support forced air power adders such as turbo and supercharged applications. Fits most vehicles where popular aftermarket pumps are applicable. Center Inlet. E85 Compatible. OEM 39mm Body. Includes universal filter sock. Designed for in-tank use only. Can be used in Carbureted or EFI applications. Turbine pump mechanism increases durability and can be used in pulse modulated applications. P/N 11569 Includes: 340 Stealth Pump, Universal Drop Parts Kit (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet). Supersedes P/N 11169. Fuel Pump, E85, GM, 340lph (This item will supersede P/N 11169). high-output, in-tank electric fuel pump; EFI or carbureted; supports up to 1000 HP carbureted; supports up to 825 HP EFI

The Aeromotive 340 Series Stealth Fuel Pump, Part Number 11569, is a high-output, in-tank electric fuel pump designed for GM-specific applications. Its compact, lightweight OEM-style 39 mm body fits many existing fuel pump hanger assemblies and factory mounting provisions, making it an effective upgrade for vehicles that need increased fuel delivery without replacing the entire fuel system.

Featuring a center inlet and turbine pump mechanism, the Aeromotive 340 delivers strong, consistent flow across a wide pressure range while supporting pulse-modulated applications. The pump flows more than 340 liters per hour at 40 psi, providing over 30 percent more flow than many popular aftermarket alternatives. It is suitable for EFI or carbureted applications and can support up to 825 horsepower in EFI configurations or up to 1,000 horsepower in carbureted configurations, depending on system design and operating conditions. The pump is compatible with E85 fuel and is intended for in-tank use only.

This Aeromotive 340 Stealth Fuel Pump supersedes Part Number 11169 and includes a universal drop parts kit with a filter sock, wiring pigtail, rubber hose, two clamps, and a rubber grommet. It is well suited for naturally aspirated or forced-induction builds, including turbocharged and supercharged applications that retain factory fuel lines and mounting provisions. Confirm fuel system requirements and vehicle compatibility before installation. Listed fitment includes 1985 through 1995 Chevrolet Corvette applications, including model years 1985, 1986, 1987, 1990, 1991, 1992, 1993, 1994, and 1995.

Brief Description

High-output Aeromotive 340 Series in-tank E85 fuel pump for GM applications, with a center inlet, OEM-style 39 mm body, and universal installation components.

Key Product Specifications & Technical Data

• Application: GM-specific in-tank fuel systems
• Pump Type: High-output electric turbine fuel pump
• Fuel Compatibility: E85 compatible
• Inlet Design: Center inlet
• Body Style: OEM-style 39 mm body
• Fuel System Compatibility: EFI or carbureted applications

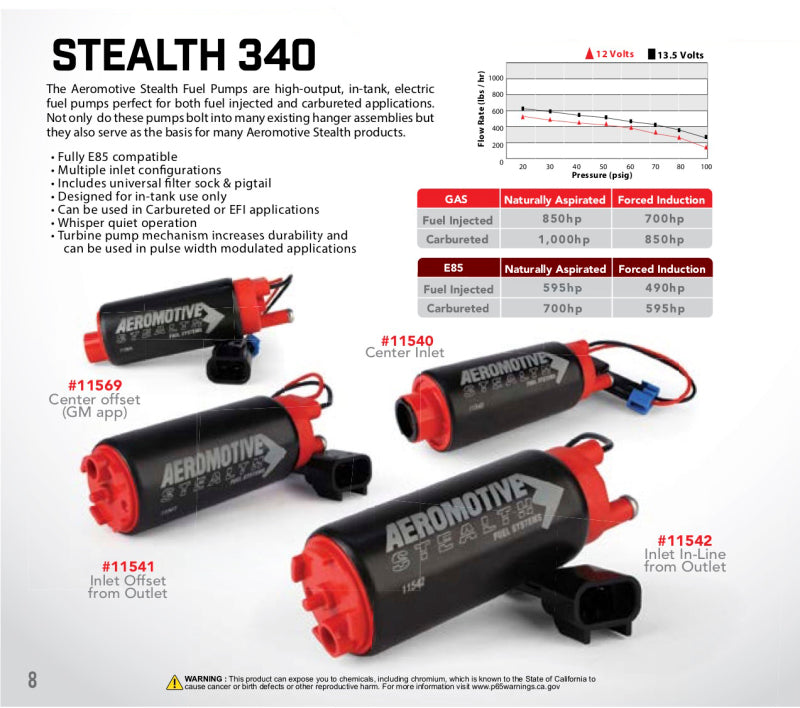

• Rated Support: Up to 825 horsepower EFI or 1,000 horsepower carbureted
• Installation: In-tank use only; universal drop-in components included

What's Included

One Aeromotive 340 Series Stealth Fuel Pump, universal filter sock, wiring pigtail, rubber hose, two hose clamps, and rubber grommet.

Features:

• High-output performance: Delivers more than 340 liters per hour at 40 psi for increased fuel flow across a broad pressure range.
• E85 compatible: Supports E85 fuel systems for compatible performance and competition applications.
• OEM-style installation: Compact 39 mm body bolts into many existing hanger assemblies and retains factory mounting provisions.
• Versatile fuel system support: Suitable for EFI or carbureted applications, including turbocharged and supercharged builds.

Fitments:
1982 Buick Regal Base
1982 Buick Regal Estate Wagon
1982 Buick Regal Limited
1982 Buick Regal Limited Turbo
1982 Buick Regal Sport
1982 Chevrolet Corvette Base
1982 Chevrolet Corvette Collector's Edition
1982 Chevrolet S10 Base
1982 Chevrolet S10 Durango
1982 Chevrolet S10 Sport
1982 Chevrolet S10 Tahoe
1983 Buick Regal Base
1983 Buick Regal Estate Wagon
1983 Buick Regal Limited
1983 Buick Regal T-Type
1983 Chevrolet S10 Base
1983 Chevrolet S10 Durango
1983 Chevrolet S10 Sport
1983 Chevrolet S10 Tahoe
1983 Chevrolet S10 Blazer Base
1983 Chevrolet S10 Blazer Sport
1983 Chevrolet S10 Blazer Tahoe
1984 Buick Regal Base
1984 Buick Regal Grand National
1984 Buick Regal Limited
1984 Buick Regal T-Type
1984 Chevrolet Corvette Base
1984 Chevrolet S10 Base
1984 Chevrolet S10 Durango
1984 Chevrolet S10 Sport
1984 Chevrolet S10 Tahoe
1984 Chevrolet S10 Blazer Base
1984 Chevrolet S10 Blazer Sport
1984 Chevrolet S10 Blazer Tahoe
1985 Buick Regal Base
1985 Buick Regal Grand National
1985 Buick Regal Limited
1985 Buick Regal T-Type
1985 Chevrolet Camaro Berlinetta
1985 Chevrolet Camaro Iroc-Z
1985 Chevrolet Camaro Sport
1985 Chevrolet Camaro Z28
1985 Chevrolet Corvette Base
1985 Chevrolet S10 Base
1985 Chevrolet S10 Durango
1985 Chevrolet S10 Sport
1985 Chevrolet S10 Tahoe
1985 Chevrolet S10 Blazer Base
1985 Chevrolet S10 Blazer Sport
1985 Chevrolet S10 Blazer Tahoe
1985 Pontiac Fiero Base
1985 Pontiac Fiero GT
1985 Pontiac Fiero SE
1985 Pontiac Fiero Sport
1985 Pontiac Firebird Base
1985 Pontiac Firebird S/E
1985 Pontiac Firebird Trans Am
1986 Buick Regal Base
1986 Buick Regal Grand National
1986 Buick Regal Limited
1986 Buick Regal T-Type
1986 Chevrolet Camaro Berlinetta
1986 Chevrolet Camaro Iroc-Z
1986 Chevrolet Camaro Sport
1986 Chevrolet Camaro Z28
1986 Chevrolet Corvette Base
1986 Chevrolet Corvette Indianapolis 500 Pace Car
1986 Chevrolet S10 Base
1986 Chevrolet S10 Durango
1986 Chevrolet S10 Sport
1986 Chevrolet S10 Tahoe
1986 Chevrolet S10 Blazer Base
1986 Chevrolet S10 Blazer Sport
1986 Chevrolet S10 Blazer Tahoe
1986 Pontiac Fiero GT
1986 Pontiac Fiero SE
1986 Pontiac Fiero Sport
1986 Pontiac Fiero Value Leader
1986 Pontiac Firebird Base
1986 Pontiac Firebird S/E
1986 Pontiac Firebird Trans Am
1987 Buick Regal Base
1987 Buick Regal GNX
1987 Buick Regal Grand National
1987 Buick Regal Limited
1987 Chevrolet Camaro Iroc-Z
1987 Chevrolet Camaro LT
1987 Chevrolet Camaro Sport
1987 Chevrolet Camaro Z28
1987 Chevrolet Corvette Base
1987 Chevrolet S10 Base
1987 Chevrolet S10 Durango
1987 Chevrolet S10 Sport
1987 Chevrolet S10 Tahoe
1987 Chevrolet S10 Blazer Base
1987 Chevrolet S10 Blazer High Country
1987 Chevrolet S10 Blazer Sport
1987 Chevrolet S10 Blazer Tahoe
1987 Pontiac Firebird Base
1987 Pontiac Firebird Trans Am
1988 Chevrolet Camaro Base
1988 Chevrolet Camaro Iroc-Z
1988 Chevrolet Corvette 35th Anniversary Edition
1988 Chevrolet Corvette Base
1988 Chevrolet S10 Base
1988 Chevrolet S10 Durango
1988 Chevrolet S10 Sport
1988 Chevrolet S10 Tahoe
1988 Chevrolet S10 Blazer Base
1988 Chevrolet S10 Blazer High Country
1988 Chevrolet S10 Blazer Sport
1988 Chevrolet S10 Blazer Tahoe
1988 Pontiac Firebird Base
1988 Pontiac Firebird Trans Am
1989 Chevrolet Camaro Iroc-Z
1989 Chevrolet Camaro RS
1989 Chevrolet Corvette Base
1989 Chevrolet S10 Base
1989 Chevrolet S10 Durango
1989 Chevrolet S10 Sport
1989 Chevrolet S10 Tahoe
1989 Chevrolet S10 Blazer Base
1989 Chevrolet S10 Blazer High Country
1989 Chevrolet S10 Blazer Sport
1989 Pontiac Firebird Base
1989 Pontiac Firebird Formula
1989 Pontiac Firebird Trans Am
1989 Pontiac Firebird Trans Am GTA
1990 Chevrolet Camaro Iroc-Z
1990 Chevrolet Camaro RS
1990 Chevrolet Corvette Base
1990 Chevrolet Corvette ZR-1
1990 Chevrolet S10 Base
1990 Chevrolet S10 Durango
1990 Chevrolet S10 Tahoe
1990 Chevrolet S10 Blazer Base
1990 Chevrolet S10 Blazer Sport
1990 Chevrolet S10 Blazer Tahoe
1990 Pontiac Firebird Base
1990 Pontiac Firebird Formula
1990 Pontiac Firebird Trans Am
1990 Pontiac Firebird Trans Am GTA
1991 Chevrolet Camaro RS
1991 Chevrolet Camaro Z28
1991 Chevrolet Corvette Base
1991 Chevrolet Corvette ZR-1
1991 Chevrolet S10 Baja
1991 Chevrolet S10 Base
1991 Chevrolet S10 Tahoe
1991 Chevrolet S10 Blazer Base
1991 Chevrolet S10 Blazer Tahoe
1991 Chevrolet S10 Blazer Tahoe LT
1991 Pontiac Firebird Base
1991 Pontiac Firebird Formula
1991 Pontiac Firebird Trans Am
1991 Pontiac Firebird Trans Am GTA
1992 Chevrolet Camaro RS
1992 Chevrolet Camaro RS Heritage Edition
1992 Chevrolet Camaro Z28
1992 Chevrolet Camaro Z28 Heritage Edition
1992 Chevrolet Corvette Base
1992 Chevrolet Corvette ZR-1
1992 Chevrolet S10 Base
1992 Chevrolet S10 EL
1992 Chevrolet S10 Tahoe
1992 Chevrolet S10 Blazer Base
1992 Chevrolet S10 Blazer Sport
1992 Chevrolet S10 Blazer Tahoe
1992 Chevrolet S10 Blazer Tahoe LT
1992 GMC Typhoon Base
1992 Pontiac Firebird Base
1992 Pontiac Firebird Formula
1992 Pontiac Firebird Trans Am
1992 Pontiac Firebird Trans Am GTA
1993 Chevrolet Corvette 40th Anniversary Edition
1993 Chevrolet Corvette Base
1993 Chevrolet Corvette ZR-1
1993 Chevrolet S10 Base
1993 Chevrolet S10 EL
1993 Chevrolet S10 Blazer Base
1993 Chevrolet S10 Blazer Tahoe
1993 Chevrolet S10 Blazer Tahoe LT
1993 GMC Typhoon Base
1994 Chevrolet Corvette Base
1994 Chevrolet Corvette ZR-1
1994 Chevrolet S10 Base
1994 Chevrolet S10 LS
1994 Chevrolet S10 SS
1994 Chevrolet S10 ZR2
1994 Chevrolet S10 Blazer Base
1994 Chevrolet S10 Blazer LT
1994 Chevrolet S10 Blazer Tahoe
1994 Chevrolet S10 Blazer Tahoe LT
1995 Chevrolet Corvette Base
1995 Chevrolet Corvette Indianapolis 500 Pace Car
1995 Chevrolet Corvette ZR-1
1995 Chevrolet S10 Base
1995 Chevrolet S10 LS
1995 Chevrolet S10 SS
1995 Chevrolet S10 ZR2
1996 Chevrolet Corvette Base
1996 Chevrolet Corvette Collector's Edition
1996 Chevrolet Corvette Grand Sport

Air Freight Prohibited: false
Not Carb Approved: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: true
Regular Stock: t
Units Per Sku: 1
