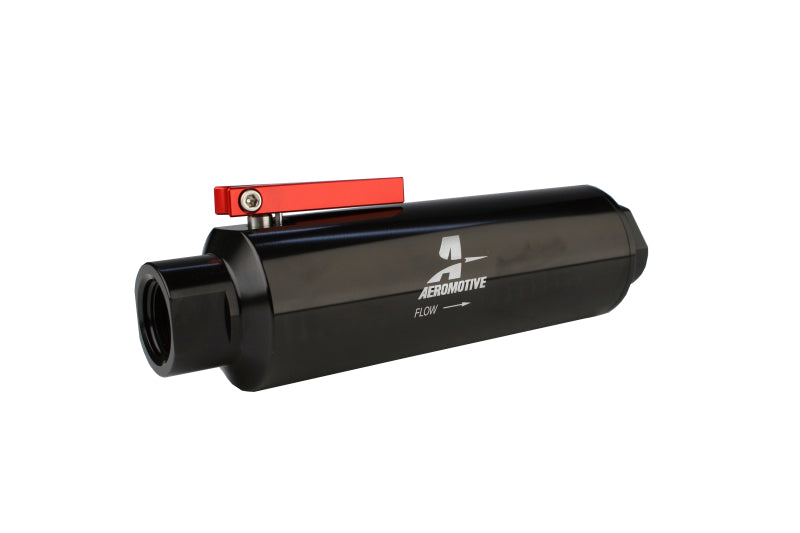

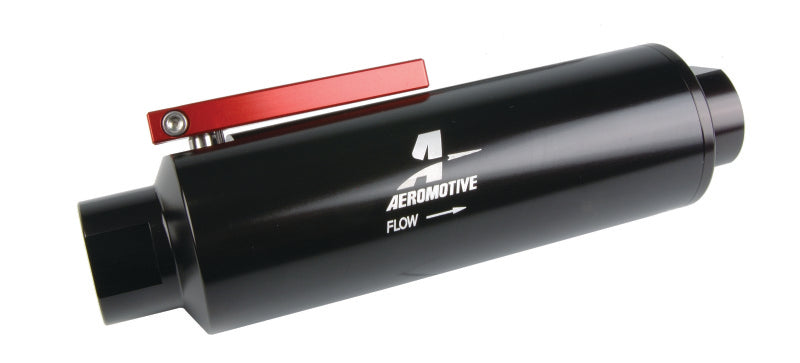

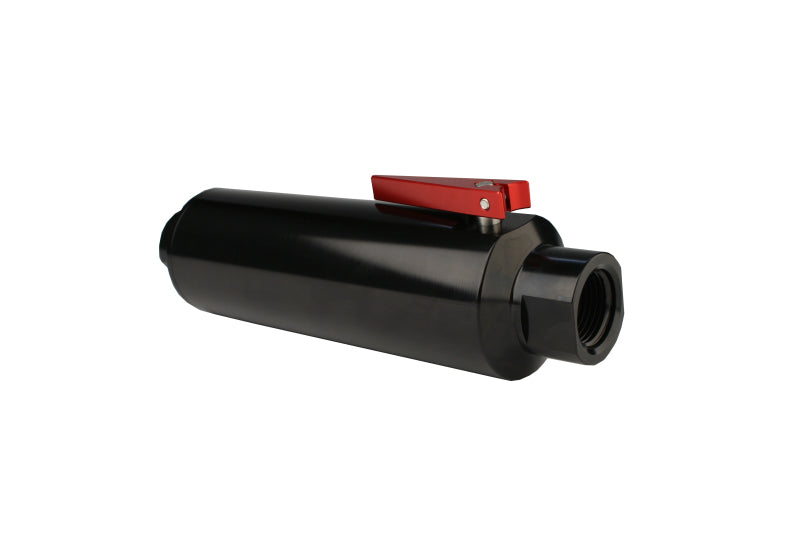

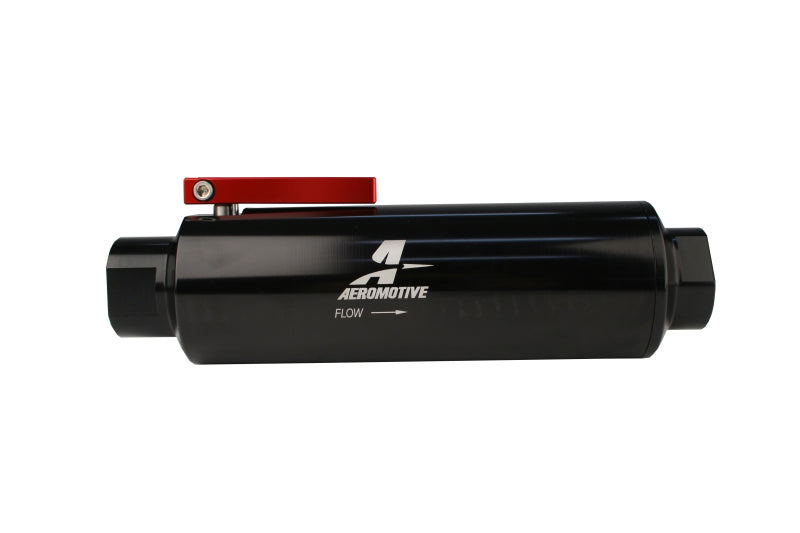

Aeromotive 12332 In-Line Fuel Filter with Shutoff Valve, 100-Micron Stainless Steel Element, AN-12 ORB Ports

Ever take a fuel bath when changing your filter? We have a solution! Cleaning and replacing you filter elements used to mean draining your gas tank. The new Aeromotive Shutoff Valve Fuel Filters allow you to shutoff fuel flow and replace your filter elements with little or no fuel loss. Both feature 100 micron stainless steel elements and are recommended for use between the fuel cell or sumped tank and the fuel pump inlet. ORB-12 ports. 100 micron stainless steel (coarse) cleanable element. Dimensions: 8.82? long x 2.5? diameter. Proprietary stainless steel shutoff valve design. Type II bright dip black anodized assembly and red anodized billet aluminum shutoff valve handle. Perfect for pre-pump filtration. Filter w/ Shutoff Valve, 100-m Stainless Mesh element, In-Line, ORB-12 Port, Bright-Dip Black, 2-12" OD. shutoff valve fuel filter; proprietary stainless steel shutoff valve design; 100-micron stainless steel element; Type II bright dip black anodized assembly and red anodized billet aluminum shutoff valve handle; 8.875" long x 2.5" diameter

The Aeromotive 12332 In-Line Fuel Filter with Shutoff Valve is designed for high-performance fuel systems that require reliable pre-pump filtration and convenient filter service. Its 100-micron stainless steel mesh element captures coarse contaminants before they reach the fuel pump, helping protect pump components and support consistent fuel delivery. The filter is recommended for installation between a fuel cell or sumped fuel tank and the fuel pump inlet.

A proprietary stainless steel shutoff valve allows fuel flow to be stopped before servicing the filter element, helping minimize fuel loss and reducing mess during maintenance. The cleanable filter element can be removed, inspected, and reused as part of a regular fuel-system service routine. The assembly features a Type II bright-dip black anodized finish with a red anodized billet aluminum shutoff valve handle for clear operation and durable performance.

Designed with AN-12 ORB ports, the Aeromotive 12332 integrates into compatible high-flow fuel plumbing. Its compact in-line configuration is well suited to racing, performance street, and custom fuel-cell applications. The filter assembly measures approximately 8.875 inches in length and 2.5 inches in diameter. This product is intended for automotive fuel-system use and is not intended for carbureted applications.

Product Specifications and Technical Data

• Brand: Aeromotive
• Part Number: 12332
• Filter Type: In-line fuel filter with shutoff valve
• Filter Element: 100-micron cleanable stainless steel mesh
• Port Configuration: AN-12 ORB ports
• Recommended Location: Between the fuel cell or sumped tank and fuel pump inlet
• Housing Finish: Type II bright-dip black anodized
• Shutoff Handle: Red anodized billet aluminum

What's Included

• One Aeromotive 12332 in-line fuel filter assembly
• One 100-micron stainless steel filter element
• Integrated shutoff valve and handle

Features:

• Shutoff Valve: Stops fuel flow before filter service to help reduce fuel loss and maintenance mess.
• 100-Micron Stainless Steel Element: Captures coarse debris and helps protect the fuel pump inlet.
• Cleanable Filter Element: Allows inspection, cleaning, and reuse during routine fuel-system maintenance.
• High-Flow AN-12 ORB Ports: Supports installation in compatible performance fuel systems between the tank and fuel pump.
